ONV ONV-IPS53108PFM 10-Port Industrial Managed PoE Switch
Product Overview

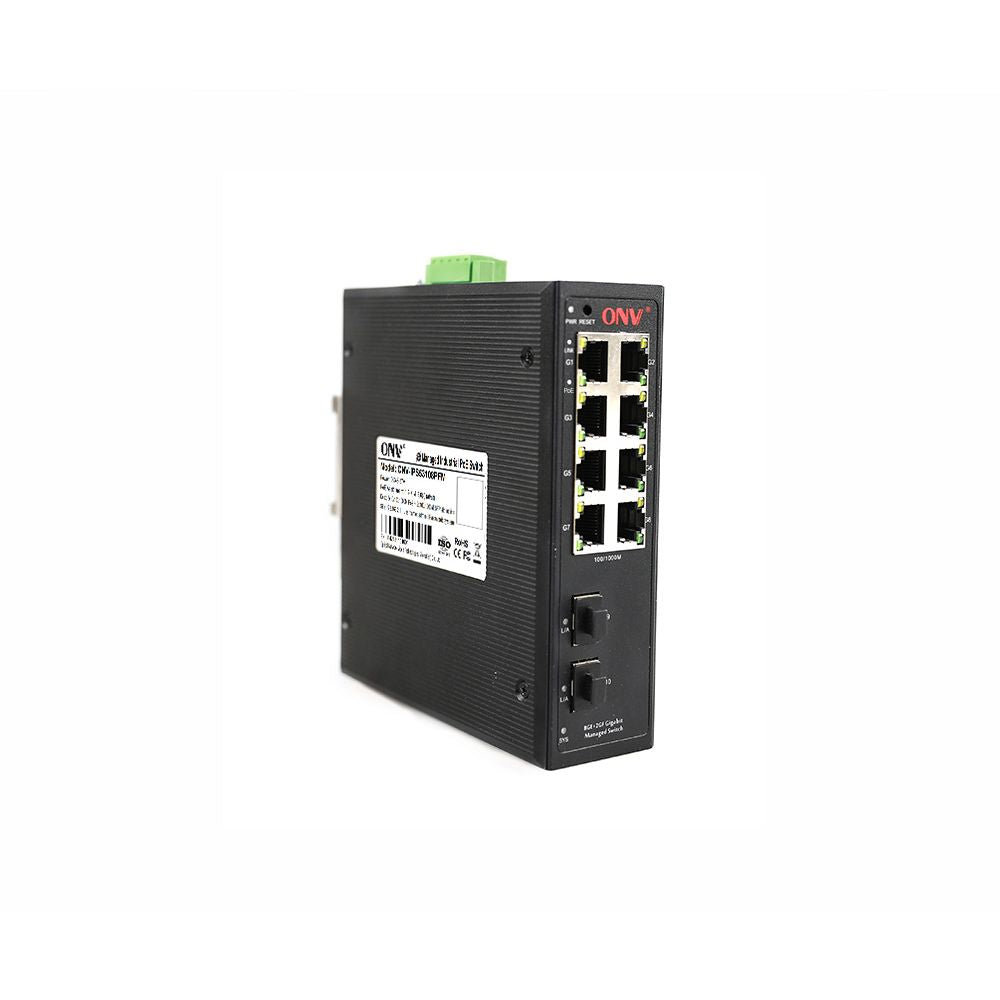

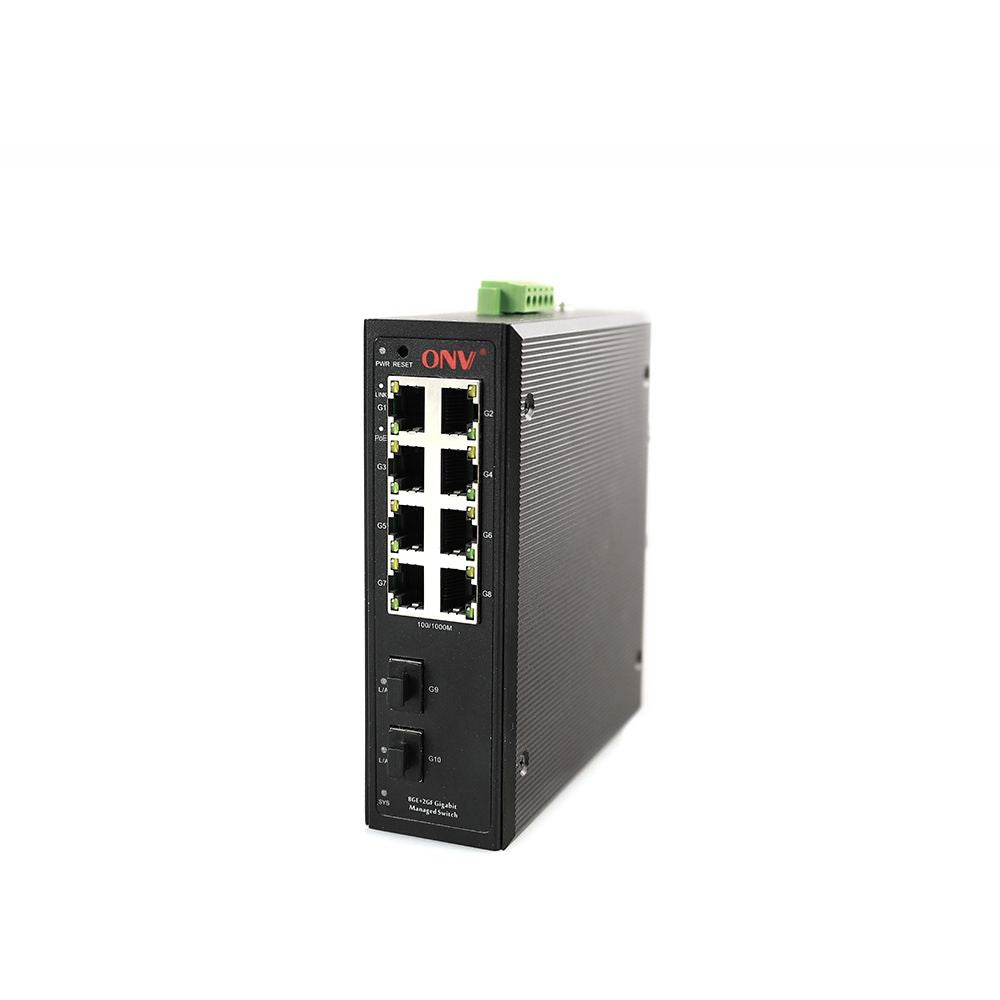

The ONV ONV-IPS53108PFM is a 10-port Gigabit industrial managed PoE switch featuring 8 Gigabit PoE+ Ethernet ports and 2 Gigabit SFP fiber uplinks. Designed for industrial networking and IP surveillance systems, it supports redundant DC power inputs, remote network management, and DIN rail installation.
Key Features
- 8 Gigabit RJ45 PoE+ ports and 2 Gigabit SFP uplinks.
- IEEE 802.3af/at PoE support with up to 30W per port.
- 20Gbps switching capacity and 14.88Mpps forwarding rate.
- Supports VLAN, QoS, IGMP Snooping, and port mirroring.
- Web management and ONV-NMS cloud platform support.
- Redundant DC power inputs and industrial aluminum housing.
- Wide operating temperature range of -40°C to +75°C.
Technical Specifications
| Item | Specification |
|---|---|
| Brand | ONV |
| Model | ONV-IPS53108PFM |
| Product Type | Industrial Managed PoE+ Switch |
| Total Ports | 10 |
| Ethernet Ports | 8 × 10/100/1000Mbps RJ45 |
| Fiber Uplink Ports | 2 × 100/1000Mbps SFP |
| PoE Standard | IEEE 802.3af/at |
| Maximum PoE Per Port | 30W |
| Switching Capacity | 20Gbps |
| Forwarding Rate | 14.88Mpps |
| MAC Address Table | 8K |
| Buffer Memory | 2MB |
| Jumbo Frame | 9.2KB |
| Management | Web, ONV-NMS Cloud Platform |
| Network Features | VLAN, QoS, IGMP Snooping, Port Mirroring, Link Aggregation |
| Power Input | DC 48–57V |
| Power Connections | 5-Pin Phoenix Terminal, DC5521 Jack |
| Recommended Power Supply | 48V / 120W or 240W |
| Protection Rating | IP40 |
| Lightning Protection | 6kV |
| Operating Temperature | -40°C to +75°C |
| Housing | Aluminum Alloy |
| Dimensions | 145 × 134.5 × 47mm |
| Net Weight | 0.75kg |

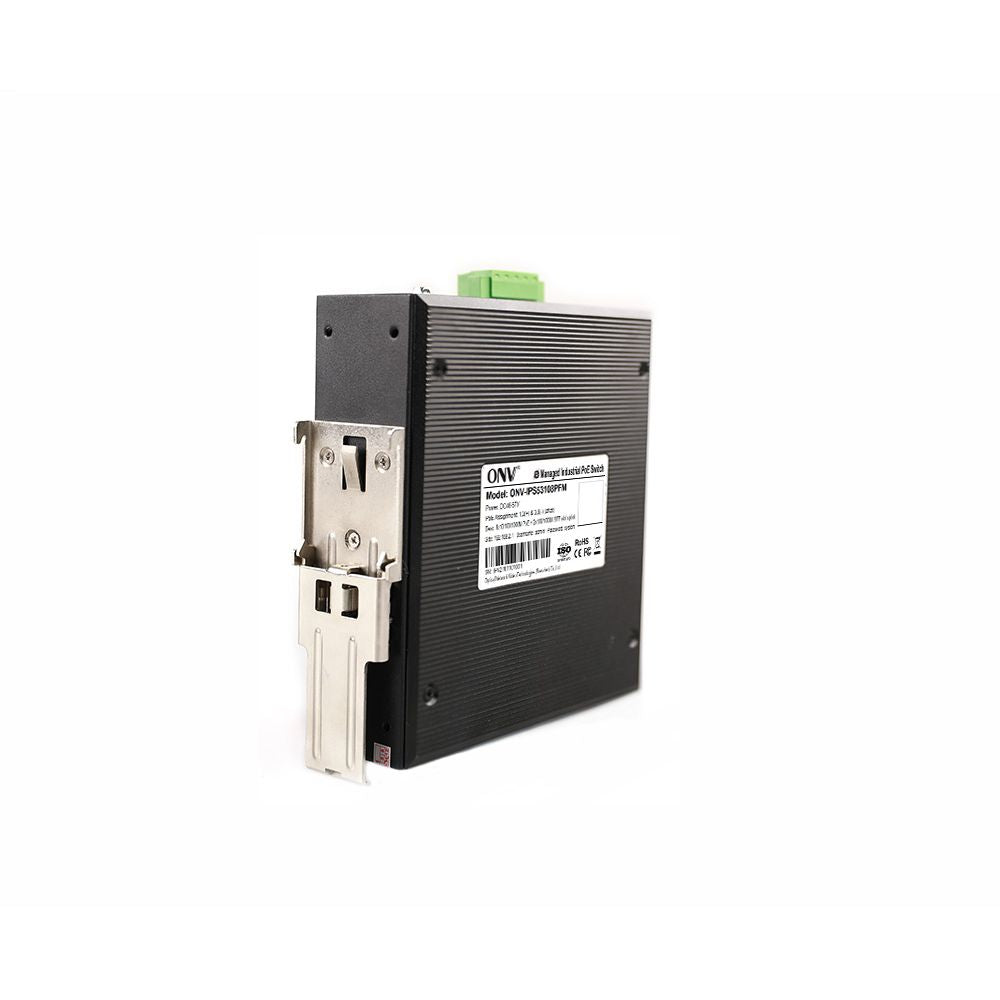

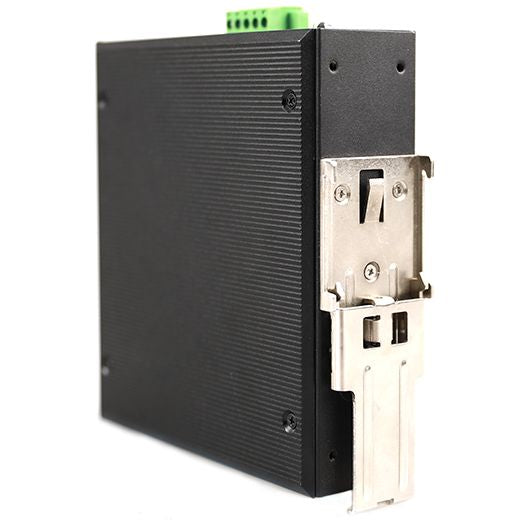

| Installation | Desktop / 35mm DIN Rail |
