ONV Gigabit 2-port single-mode dual fiber media converter ONV1110-SCX-O

Description

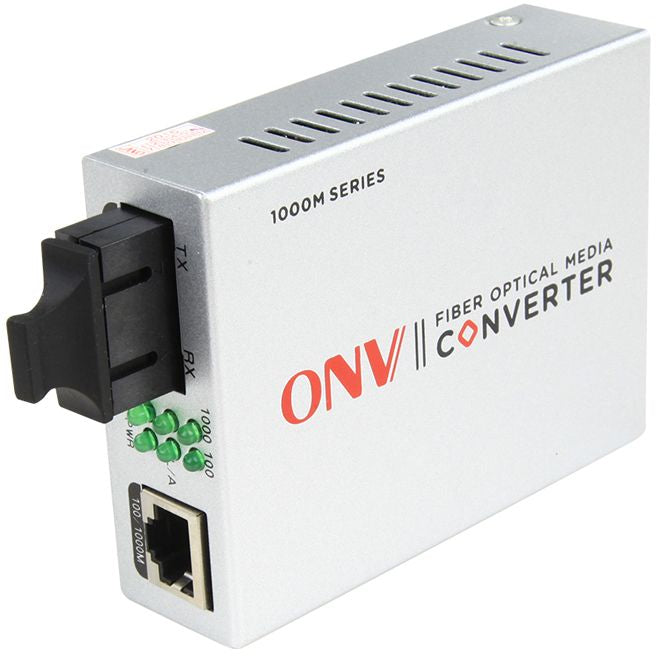

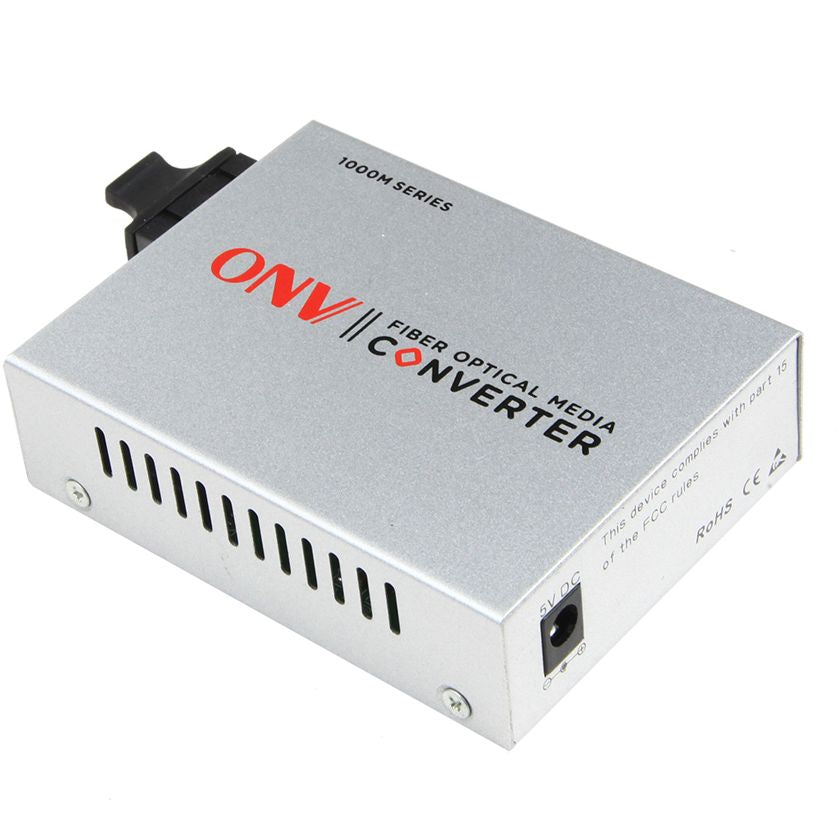

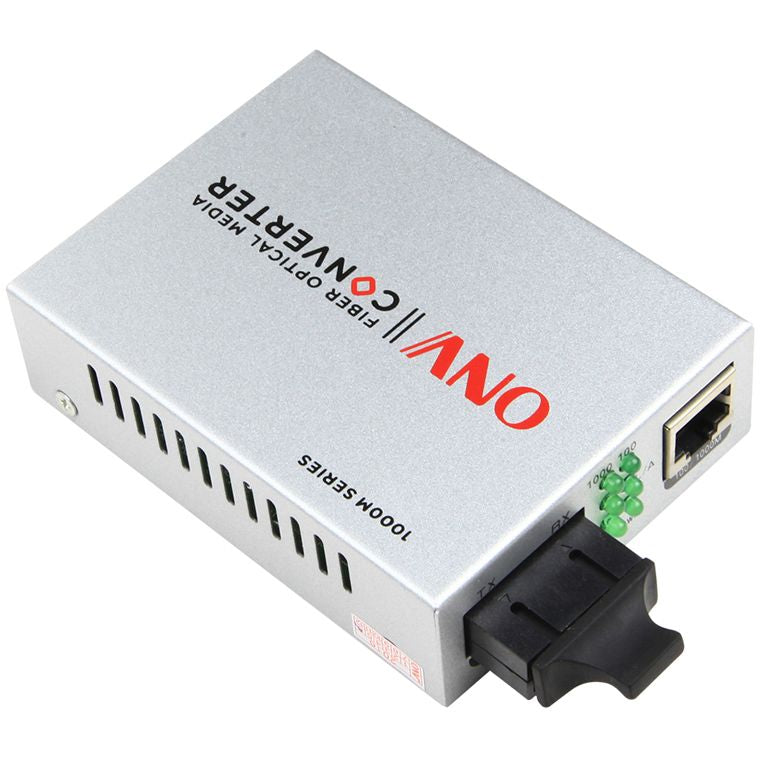

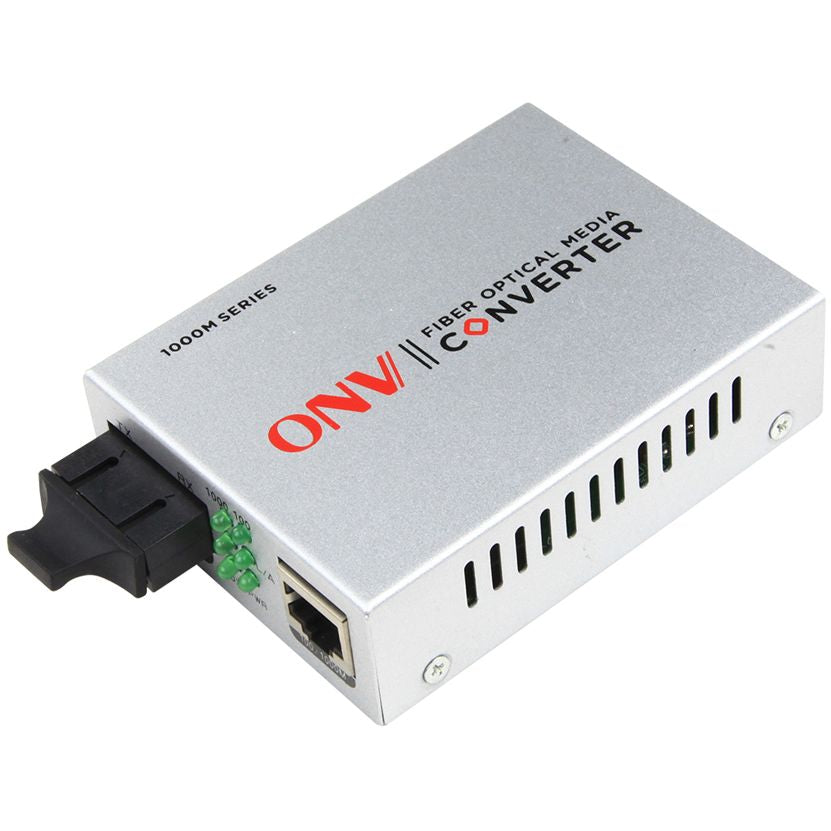

The Gigabit Single-Mode Dual Fiber Media Converter is a reliable networking solution designed to convert electrical Ethernet signals into fiber optic signals for long-distance data transmission. Featuring 1 × 10/100/1000Mbps RJ45 port and 1 × 1.25Gbps SC fiber port, it supports high-speed network connectivity over single-mode dual fiber at a 1310nm wavelength, with a transmission distance of up to 20km. With plug-and-play operation, automatic negotiation, LED status indicators, and a durable fanless galvanized steel housing, it provides efficient network extension for industrial, commercial, and professional applications.

Key Features

• Gigabit Ethernet Connectivity: Features 1 × 10/100/1000Mbps RJ45 port for high-speed wired networking.
• 1.25Gbps Fiber Port: Equipped with 1 × 1.25Gbps SC fiber port for optical communication.
• Single-Mode Dual Fiber: Designed for long-distance transmission using compatible single-mode dual fiber optic cables.
• 20km Transmission Distance: Supports fiber optic connections over distances of up to 20km.
• 1310nm Wavelength: Operates at a 1310nm optical wavelength.
• Ethernet-to-Fiber Conversion: Converts Gigabit Ethernet signals into optical signals for extended network connectivity.
• Non-Blocking Transmission: Supports wire-speed forwarding for efficient data communication.
• Full-Duplex and Half-Duplex Support: Supports IEEE 802.3x flow control and Backpressure technology.
• Auto-Negotiation: Automatically negotiates compatible Ethernet speeds and duplex settings.
• Auto MDI/MDI-X: Automatically detects straight-through and crossover Ethernet cable connections.
• Network Standards: Compatible with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-X standards.
• Plug-and-Play Installation: Easy setup without additional software or configuration.

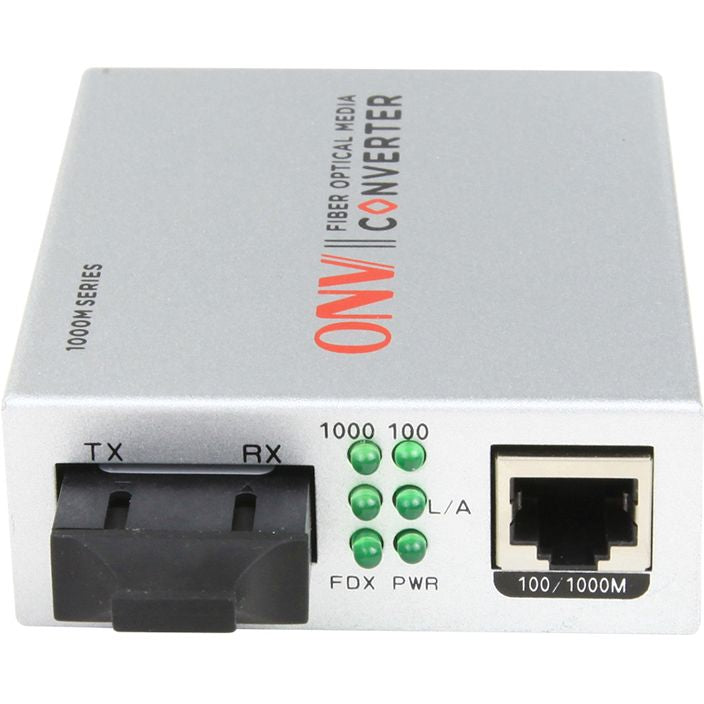

• LED Status Indicators: Provides operating status indicators for convenient network monitoring and troubleshooting.
• Low Power Consumption: Designed with a total power consumption of approximately 4W.
• External Power Supply: Uses an external power adapter supporting AC 100–240V input.
• Fanless Design: Operates without an internal cooling fan.
• Durable Metal Housing: Features a galvanized steel enclosure for reliable operation.
• Rackmount Compatibility: Supports centralized installation and power management through a compatible 2U 14-slot media converter rack.
• Certifications: CCC, CE, FCC, and RoHS.
• Telecommunications Compliance: Designed to meet telecommunications network access requirements, with MIIT telecommunications equipment network access licensing.
• Professional Applications: Suitable for fiber optic network expansion, industrial Ethernet connections, CCTV infrastructure, and long-distance network installations.
