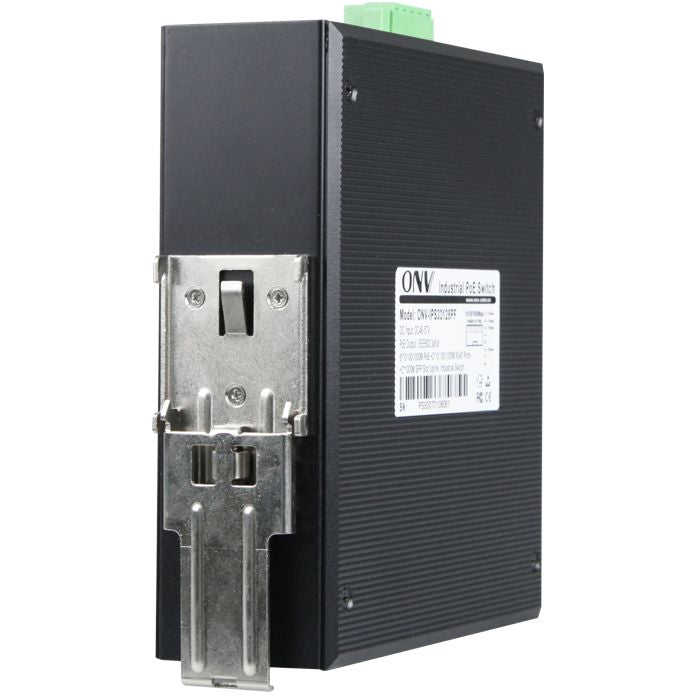

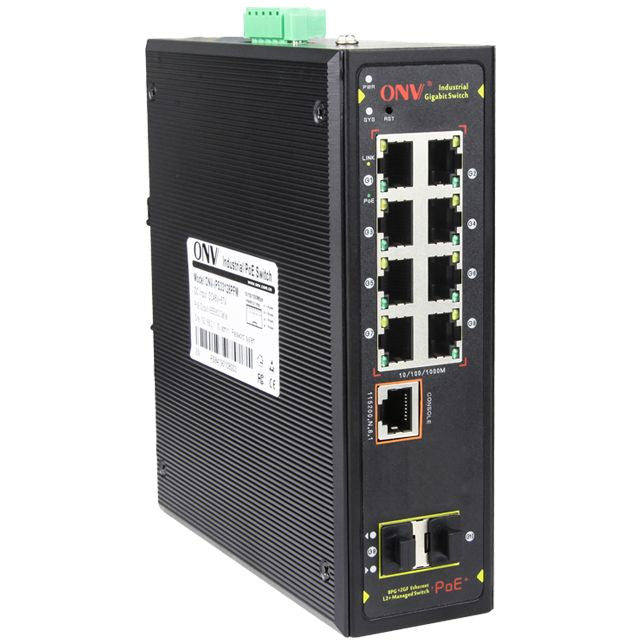

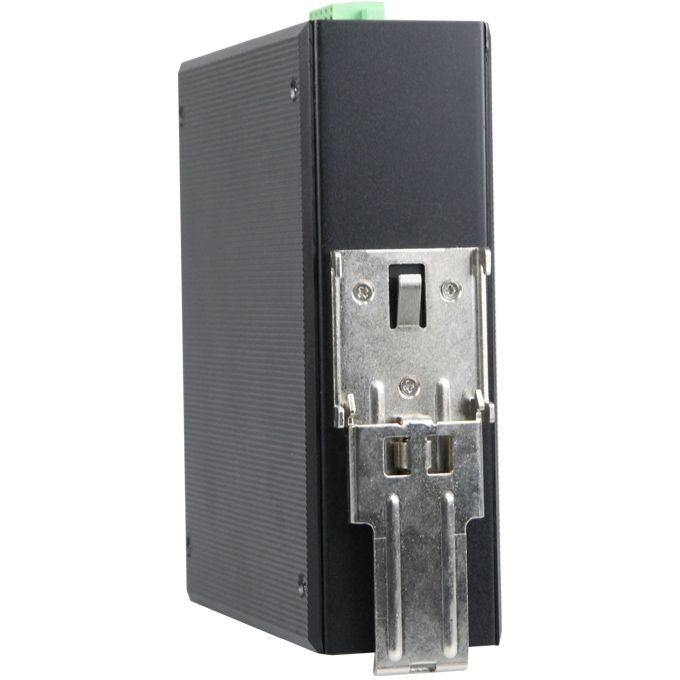

ONV Full gigabit 10-port L2+ managed industrial PoE fiber switch

FEATURE:

Gigabit access, SFP fiber port uplink

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

◇ Support Gigabit Ethernet port and Gigabit SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Powerful port lightning protection, ultra-wide voltage input

◇ DC INPUT: 48V-57V

◇ Industrial dual power input

◇ Contact discharge 8KV, air discharge 15KV, port lightning protection common-mode 4KV, differential mode 2KV.

Intelligent PoE power supply

◇ IEEE802.3af/at PoE standard, without damaging non-PoE devices.

◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

◇ 8*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

◇ PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.



PoE network management and fast Ring function

◇ STP/RSTP/MSTP.

◇ Static and dynamic aggregation.

◇ IGMP V1/V2 and IGMP Snooping.

◇ IEEE802.1Q VLAN, flexible VLAN division and QinQ configuration.

◇ QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.

◇ ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

Security

◇ 802.1X authentication.

◇ Port isolation,Storm control.

◇ IP-MAC-VLAN-Port binding.

Stable and reliable

◇ CCC, CE, FCC, RoHS.

◇ Low power consumption, aluminum shell. No fan.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR,SYS, Link, L/A, PoE.

One-stop remote control and management

◇ HTTPS, SSLV3, and SSHV1/V2.

◇ RMON, system log, LLDP, and port traffic statistics.

◇ CPU monitoring, memory monitoring, Ping test, and cable diagnose.

◇ Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).
