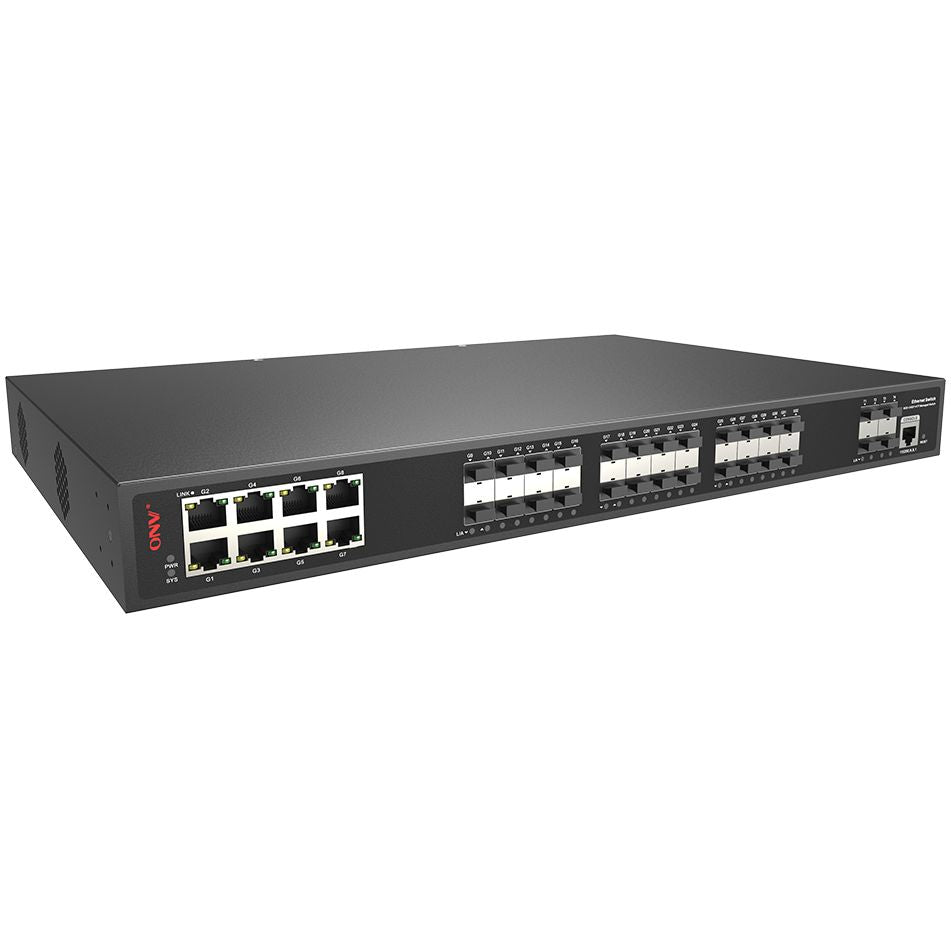

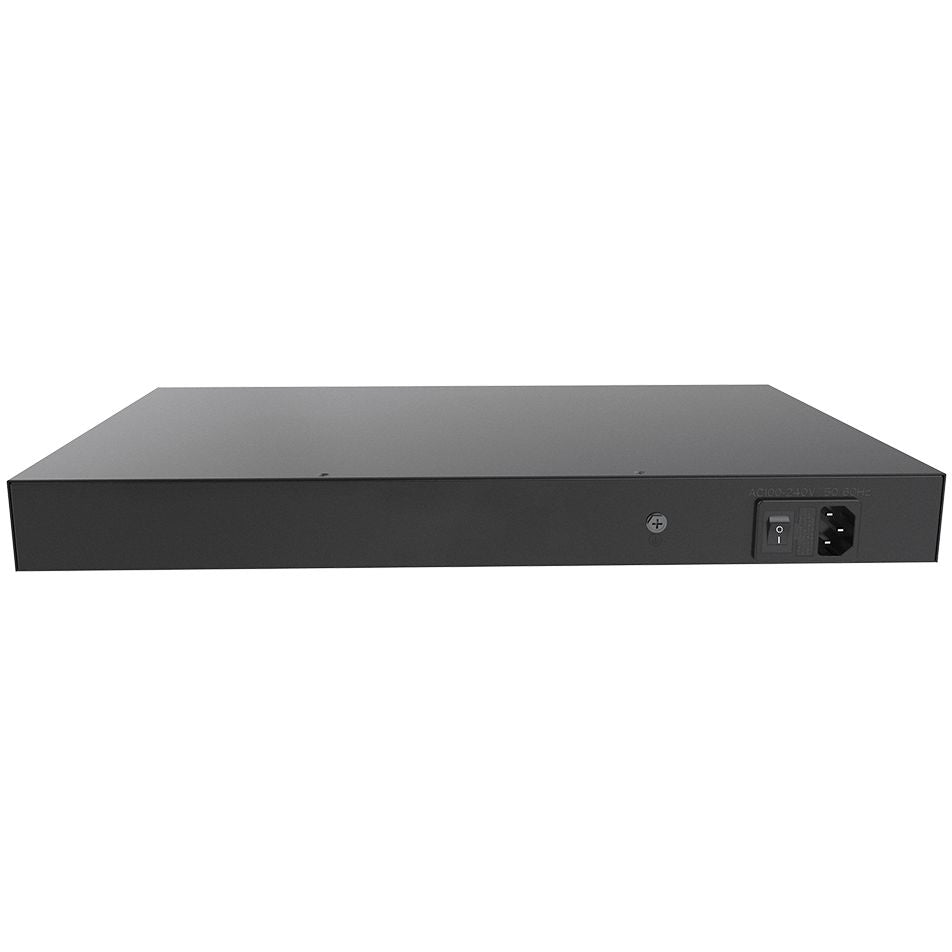

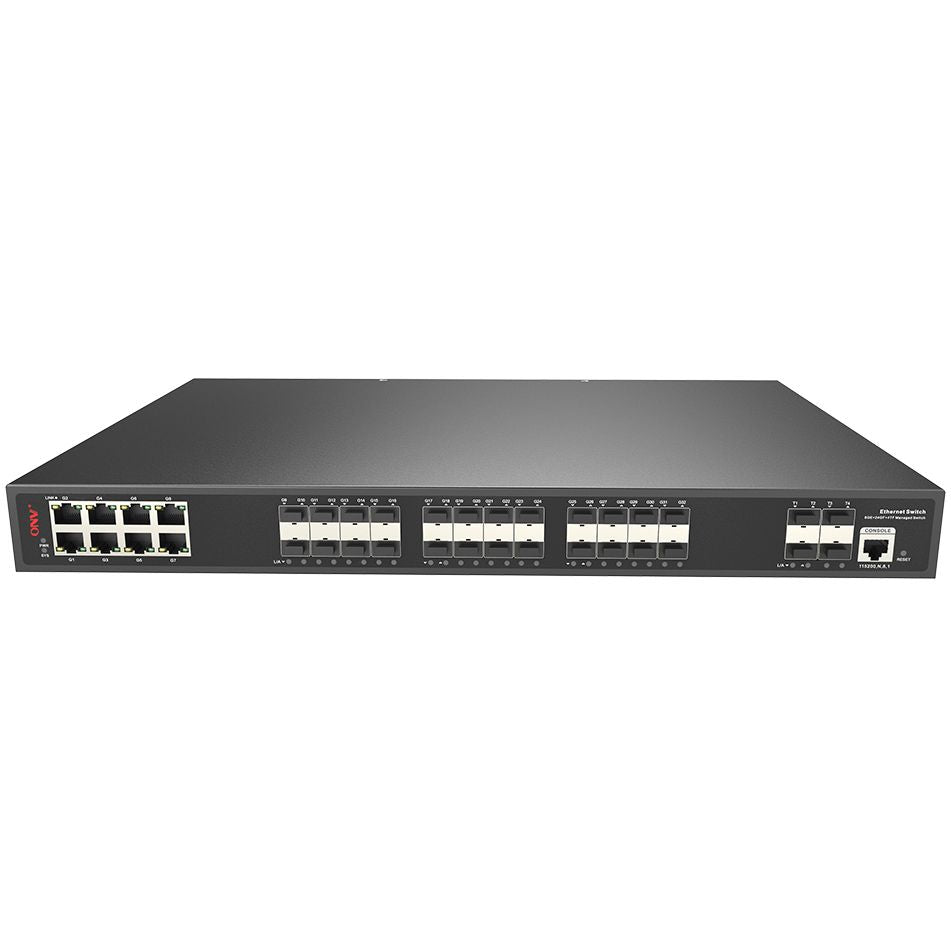

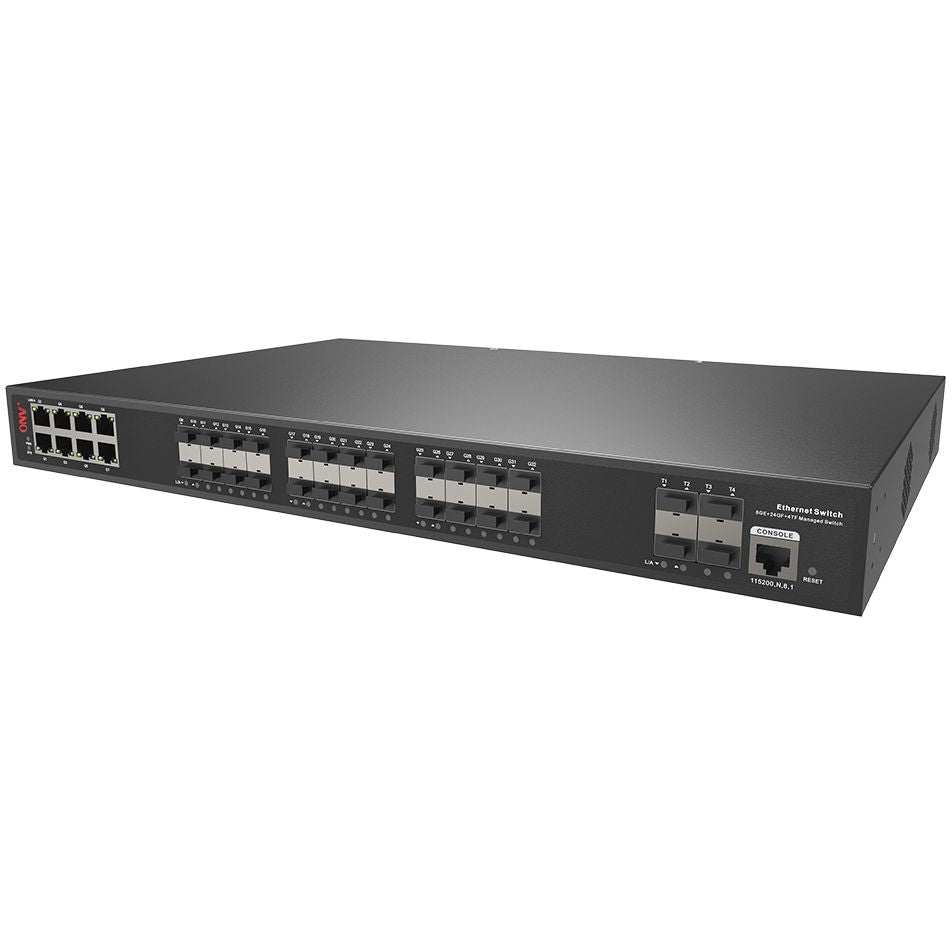

ONV 10G uplink 36-port L2+ managed Ethernet fiber switch ONV56368FM

 Description

The Managed Gigabit Ethernet Switch with 10G SFP+ Uplinks is a high-performance networking solution designed for enterprise, industrial, and professional network environments. Featuring Gigabit Ethernet connectivity, Gigabit SFP fiber ports, and 1/10G SFP+ uplink ports, it delivers flexible network expansion and high-speed data transmission. With advanced features including VLAN, QoS, ERPS, STP/RSTP/MSTP, ACL, and 802.1X authentication, it provides efficient traffic management and network security. Its durable galvanized steel housing, integrated cooling fan, and multiple management options make it suitable for demanding networking applications.

Key Features

• Gigabit Ethernet Connectivity: Supports Gigabit Ethernet ports for high-speed wired networking.
• 10G SFP+ Fiber Uplinks: Provides 1/10Gbps SFP+ ports for high-bandwidth fiber connections.
• Flexible Fiber Networking: Combines Gigabit RJ45, Gigabit SFP, and 10G SFP+ connectivity.
• Non-Blocking Switching: Supports wire-speed packet forwarding for efficient network performance.
• Duplex Support: Supports IEEE 802.3x full-duplex flow control and half-duplex Backpressure.
• Network Redundancy: Supports ERPS, STP, RSTP, and MSTP for improved network reliability.
• Link Aggregation: Supports static and dynamic link aggregation for flexible network connections.
• Multicast Management: Supports IGMP V1/V2 and IGMP Snooping for efficient multicast traffic handling.
• Advanced VLAN Features: Supports IEEE 802.1Q VLAN, Voice VLAN, and QinQ for network segmentation.
• Quality of Service (QoS): Supports 802.1P, port-based, and DSCP traffic prioritization.
• Queue Scheduling: Supports EQU, SP, WRR, and SP+WRR scheduling algorithms.
• Access Control Lists (ACL): Enables packet filtering and access control based on configurable rules.
• 802.1X Authentication: Provides network access authentication for enhanced security.
• Port Isolation: Helps prevent unauthorized communication between selected network ports.
• Storm Control: Helps manage excessive network broadcast and multicast traffic.
• IP-MAC-VLAN-Port Binding: Enhances network security through device and port binding.
• Secure Management: Supports HTTPS, SSLv3, and SSHv1/v2 management protocols.
• Multiple Management Options: Supports Web, CLI (Console and Telnet), and SNMP V1/V2/V3.
• Network Monitoring: Supports RMON, system logs, LLDP, and port traffic statistics.
• Diagnostic Tools: Includes CPU and memory monitoring, Ping testing, and cable diagnostics.
• Durable Steel Housing: Features a galvanized steel enclosure with integrated fan cooling.
• Reliable Power Design: Equipped with a power supply designed for stable, long-term operation.
• LED Status Indicators: Provides power and network link indicators for convenient monitoring.
• Energy-Efficient Operation: Designed for low power consumption.
• Certifications: Listed certifications include CCC, CE, FCC, and RoHS.
• Professional Applications: Suitable for enterprise networks, industrial networking, fiber optic infrastructure, and managed Ethernet installations.
