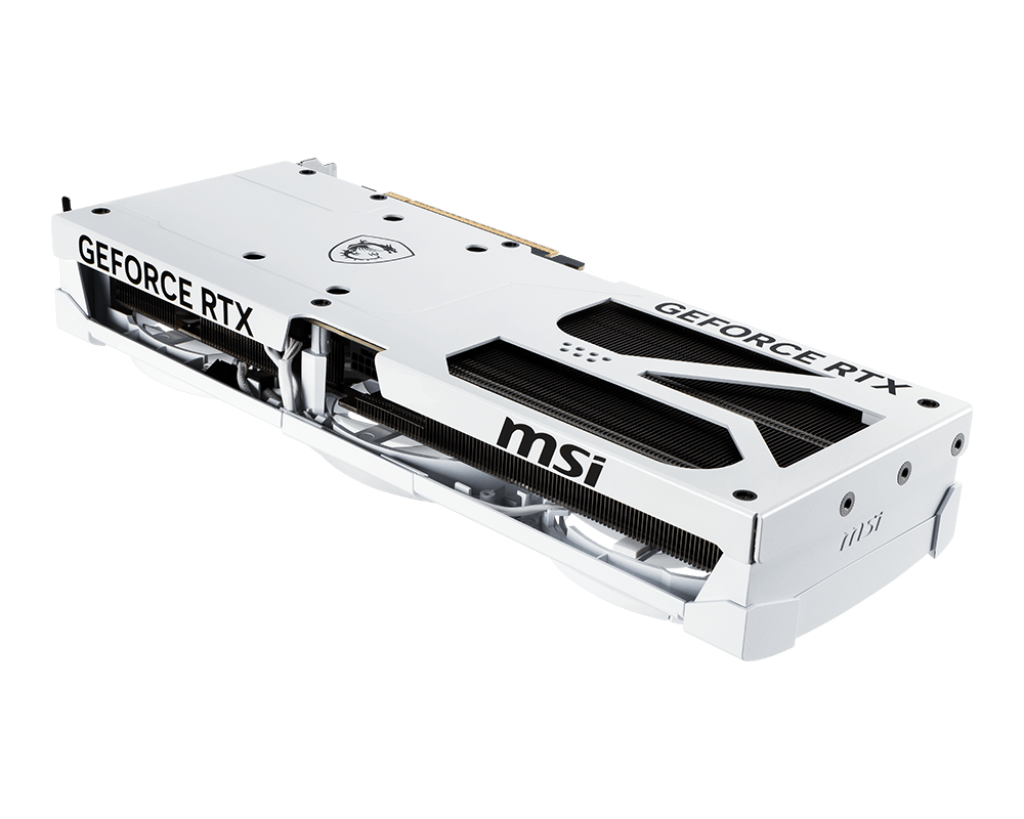

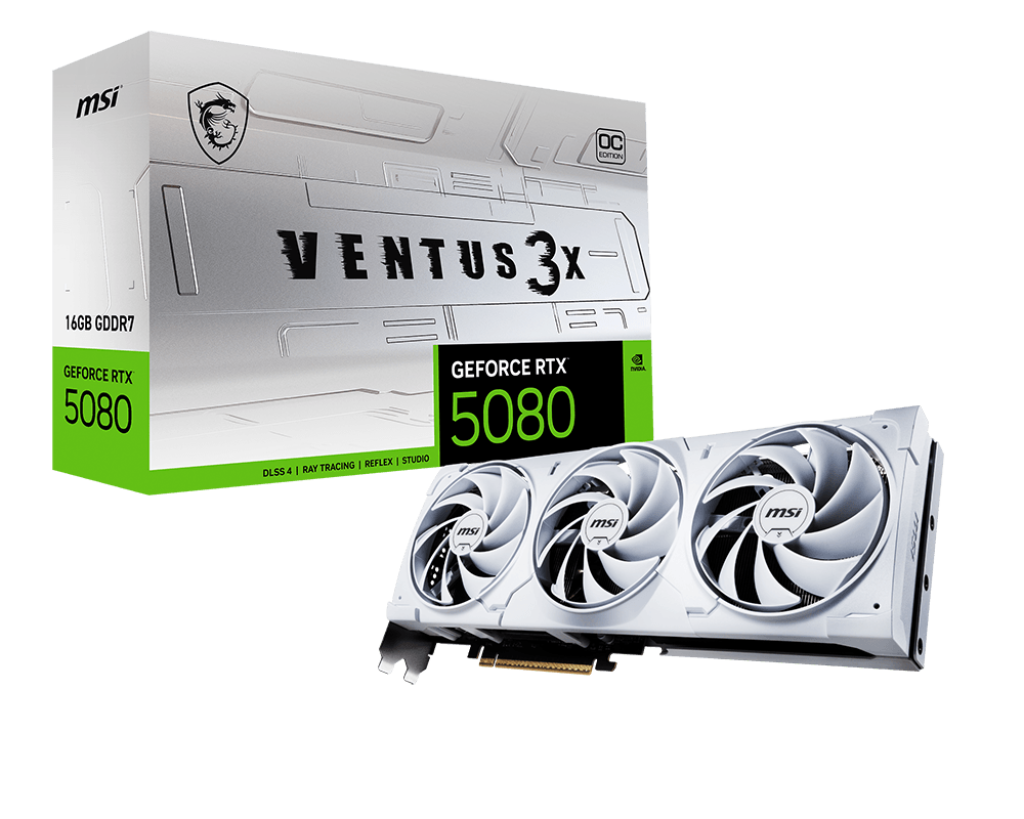

GPU Model: NVIDIA GeForce RTX 5080 16G VENTUS 3X OC WHITE
-
Memory: 16 GB GDDR7 on a 256-bit bus
-
Core Clock (Boost): ~2640-2655 MHz in OC mode (varies by variant / MSI Center boost)
-
CUDA Cores: 10,752
-
Interface: PCI-Express 5.0 x16
-

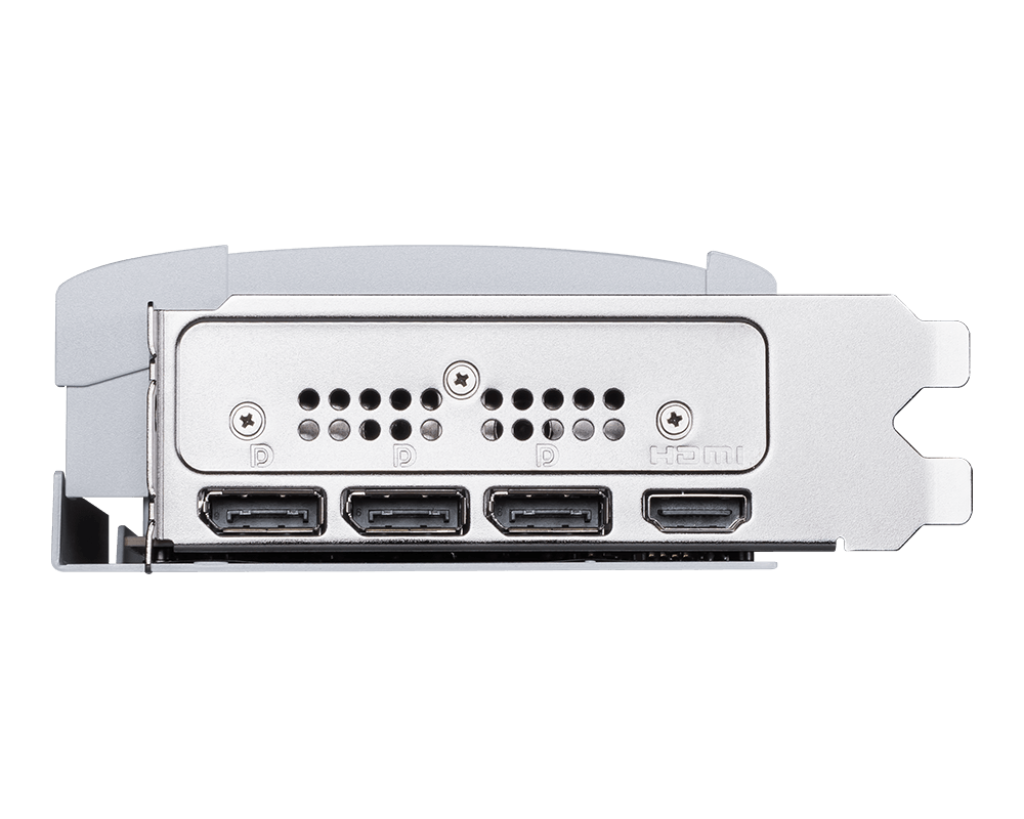

Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b
-
Resolution Support: Up to 7680×4320 (8K)
-
Dimensions: 303 × 121 × 49 mm (length × height × width)
-
Weight: ~1,084 g (card) / ~1,576 g (with packaging)
-

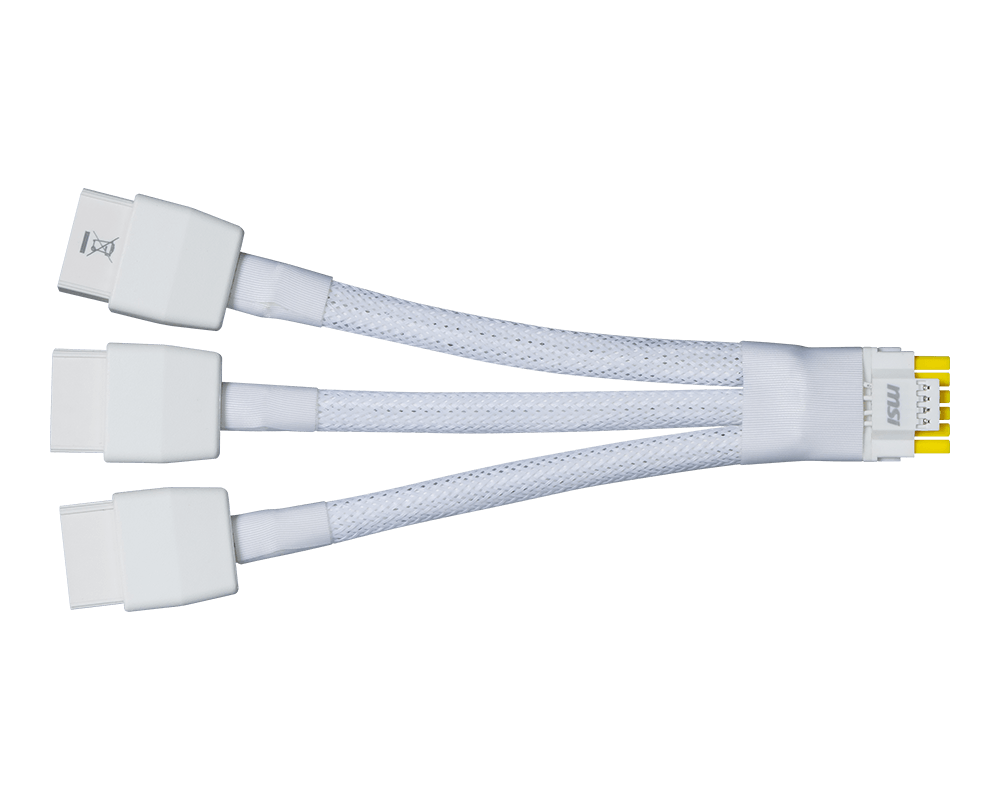

Power Requirements: Recommended PSU around 850 W; requires a 16-pin PCIe power connector (12V-2x6)
-

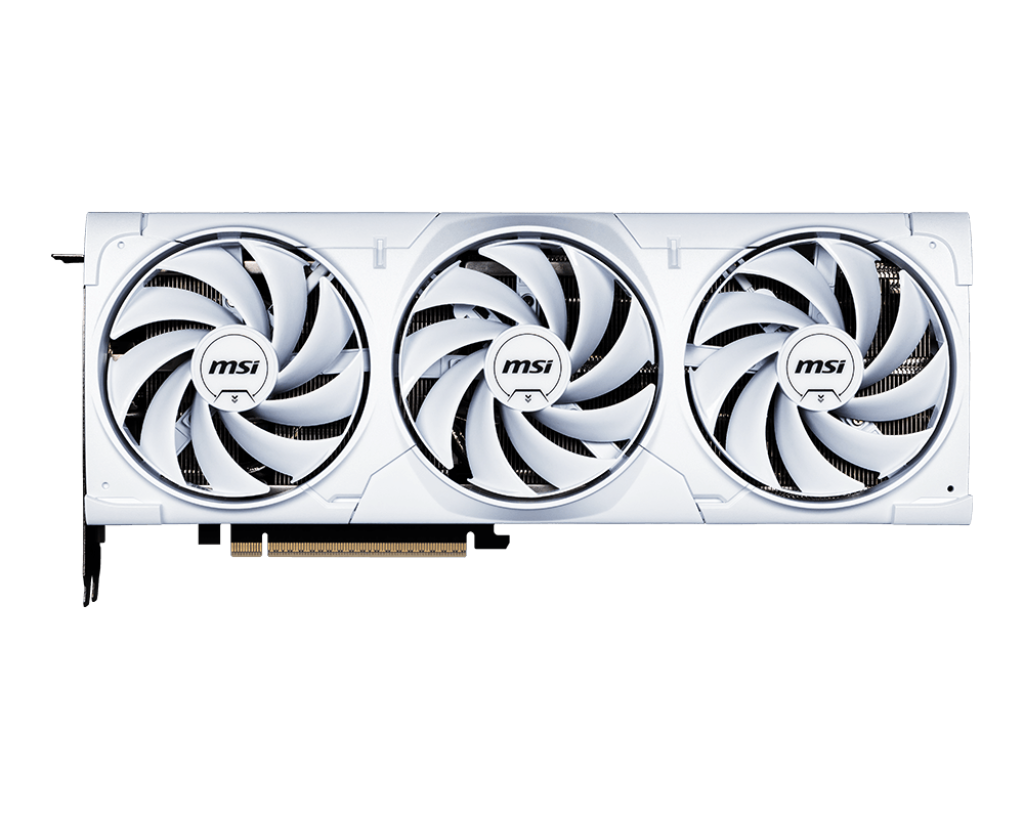

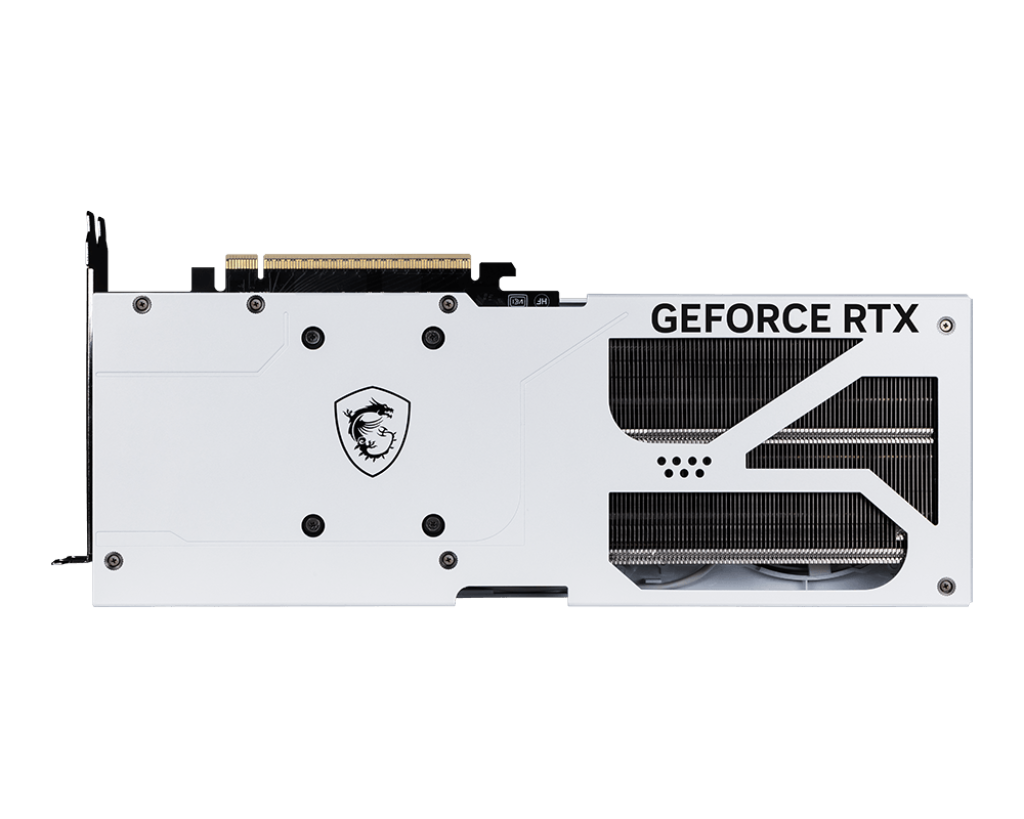

Cooling: Triple-fan cooling (TORX Fan 5.0), nickel-plated copper baseplate, Core Pipes, metal backplate, MSI Zero Frozr tech for quieter idle
-
APIs & Features: Supports DirectX 12 Ultimate, OpenGL 4.6, DLSS 4, Ray Tracing cores, NVIDIA Reflex, etc.
