GPU Architecture: NVIDIA Blackwell (GeForce RTX 5080), featuring DLSS 4 and advanced RTX features CUDA Cores: 10,752
-
Clock Speeds: Extreme Performance mode up to 2,655 MHz; Boost up to 2,640 MHz
-
Memory: 16 GB GDDR7, 30 Gbps, 256-bit memory bus
-

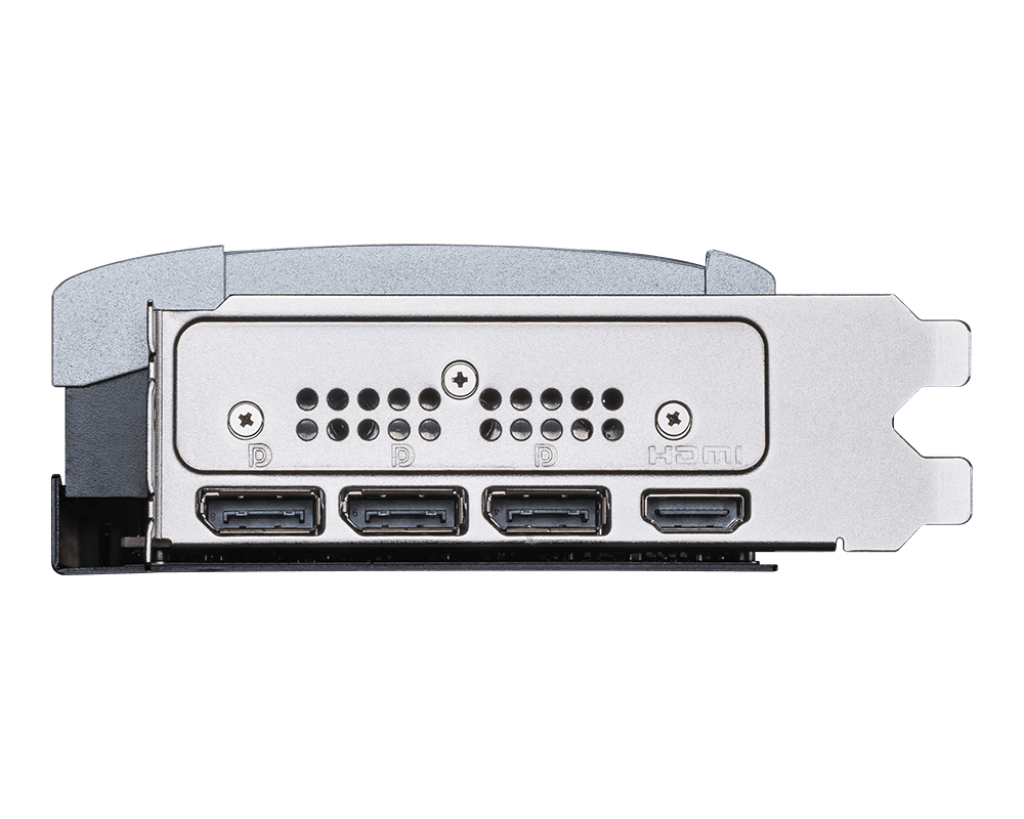

Display Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b (supports up to 8K 120 Hz with DSC and HDR)
-
PCIe Interface: PCIe 5.0 x16
-

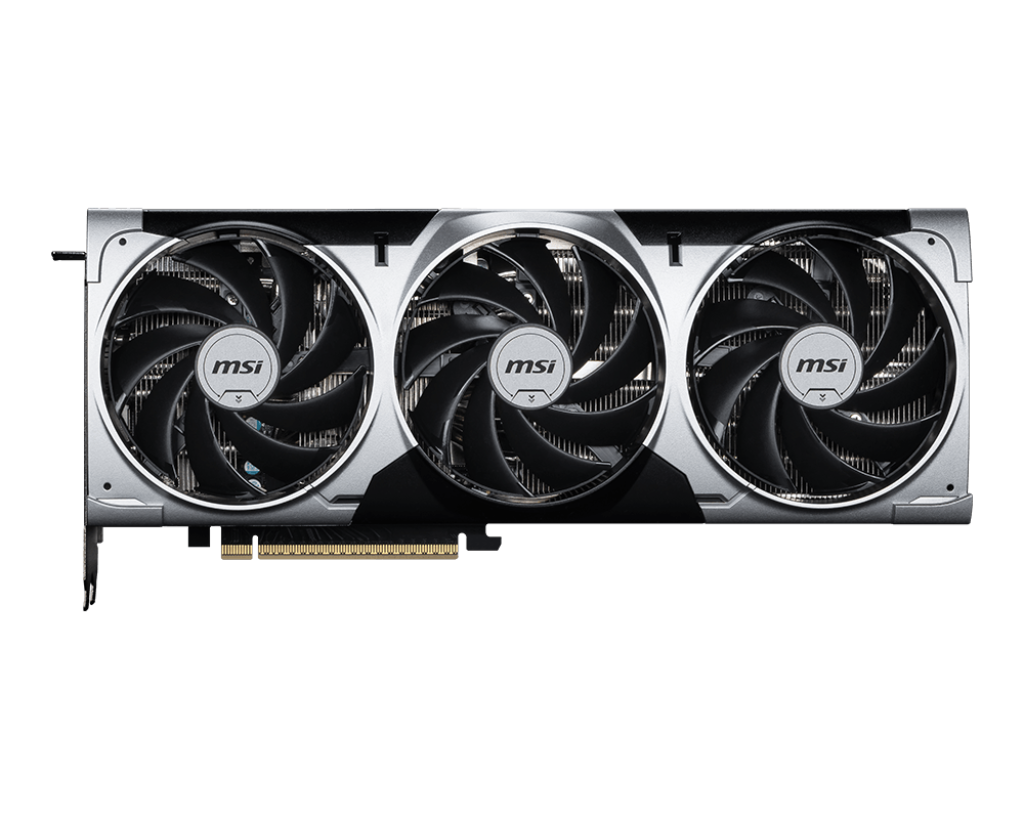

Cooling Design: Triple-fan TORX Fan 5.0 configuration with DrMOS power stages, metal backplate, Core Pipe, and Zero Frozr technology
-
Power Specs: TDP of 360 W; requires one 16-pin (ATX 3.1) power connector; 850 W PSU recommended
-
Dimensions & Weight: 303 × 121 × 49 mm; card weight ~1,105 g; package weight ~1,618 gAPIs & Features: Supports DirectX 12 Ultimate, OpenGL 4.6; includes G-SYNC, HDCP 2.3, DLSS 4, Ray Tracing 4th Gen, Tensor Cores 5th Gen, Reflex 2, Studio, Broadcast, MFG, ACE, GeForce SFF-Ready, and Video Encoder Gen 9
-

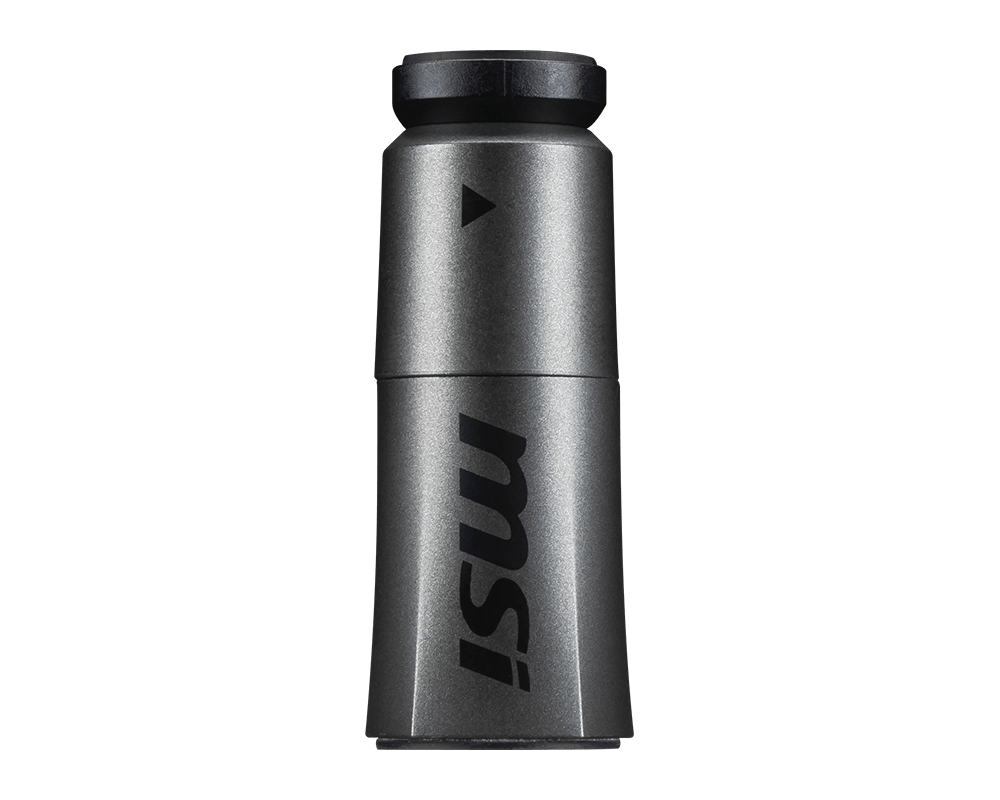

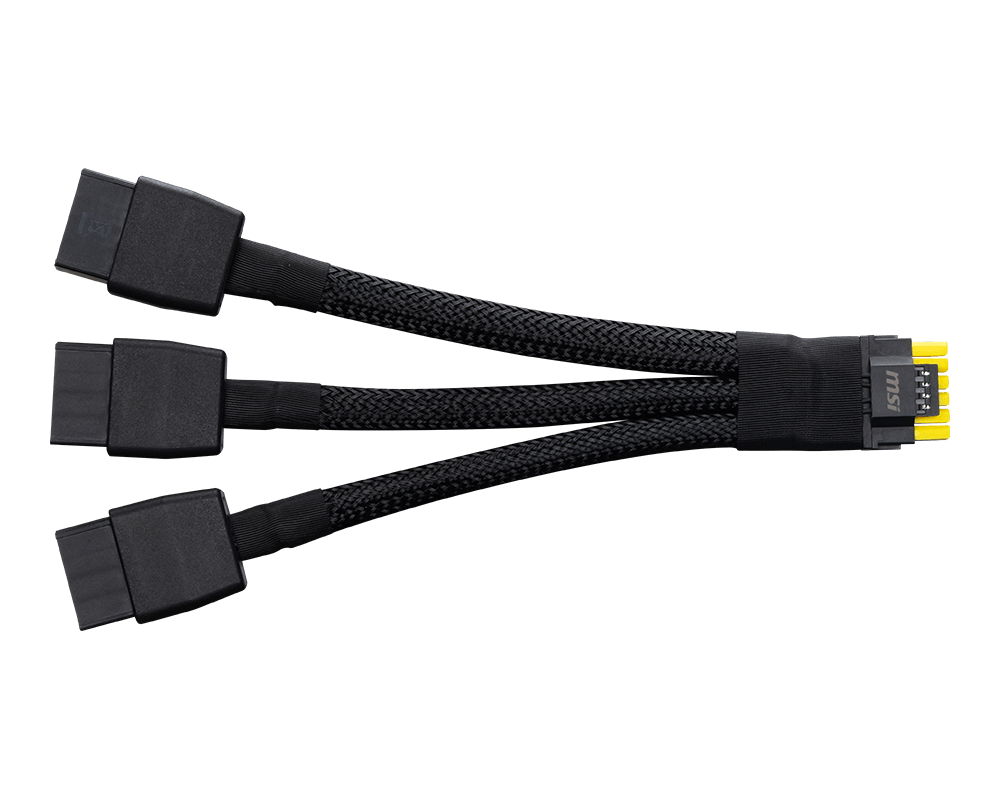

Included Accessories: Graphics card support bracket, 16-pin to 3× 8-pin power cable adapter; software: MSI Center, Afterburner, etc.
