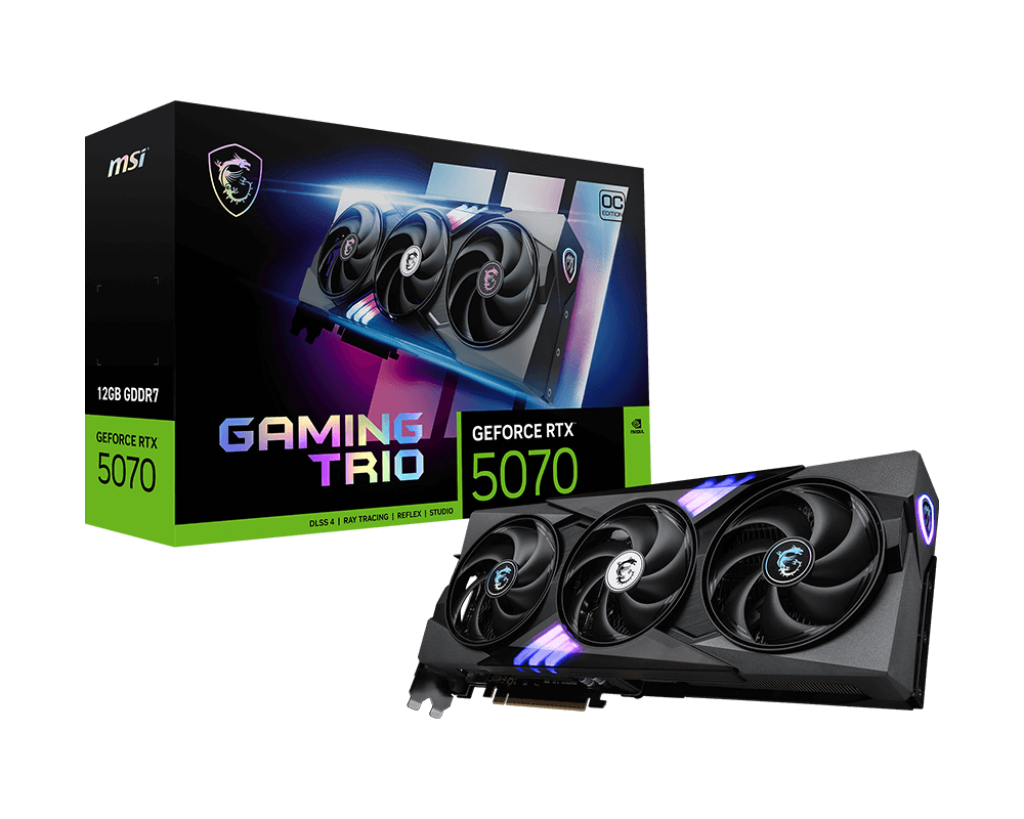

NVIDIA GeForce RTX 5070 – 12GB GDDR7, PCIe 5.0, TRI FROZR 4 Cooling
-
GPU: NVIDIA GeForce RTX 5070 (Blackwell architecture, GB205-300-A1)
-
CUDA Cores: 6,144
-
Base Clock: 2,325 MHz | Boost Clock: Up to 2,625 MHz (Extreme Performance via MSI Center)
-
Memory: 12GB GDDR7, 192-bit bus, 28 Gbps speed
-
Memory Bandwidth: 672 GB/s
-
Interface: PCI Express 5.0 x16
-

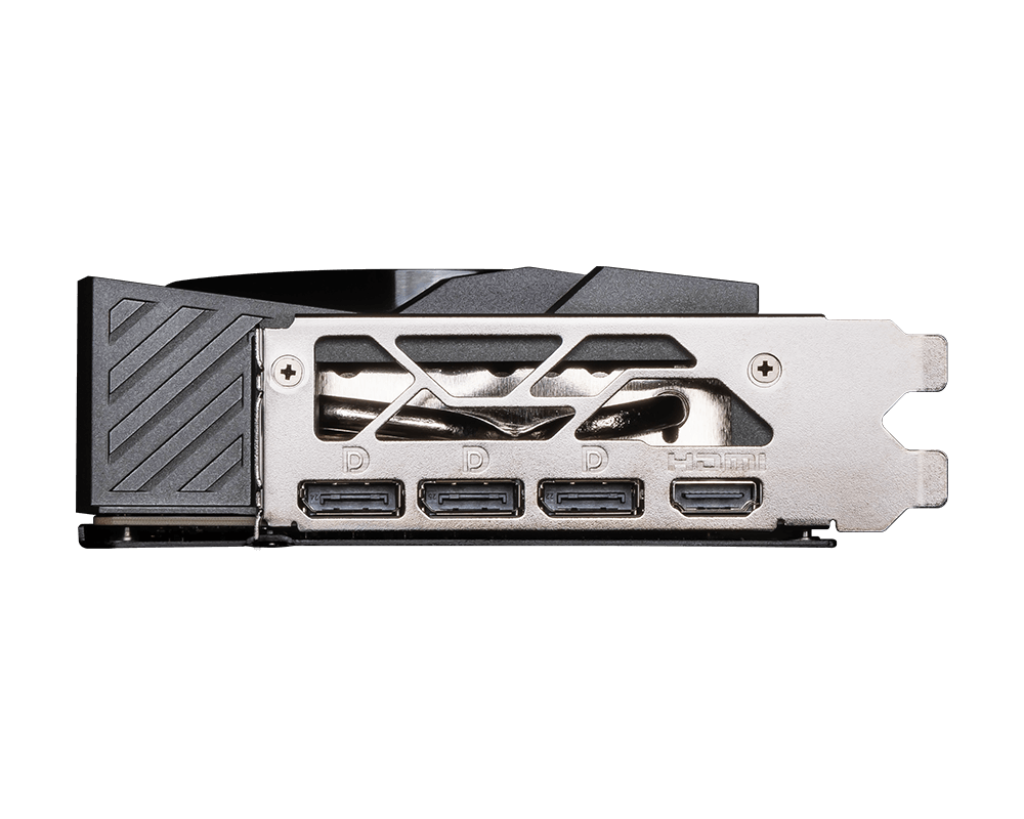

Display Outputs: 3 × DisplayPort 2.1b, 1 × HDMI 2.1b
-
Max Resolution: Up to 7680 × 4320 (8K)
-

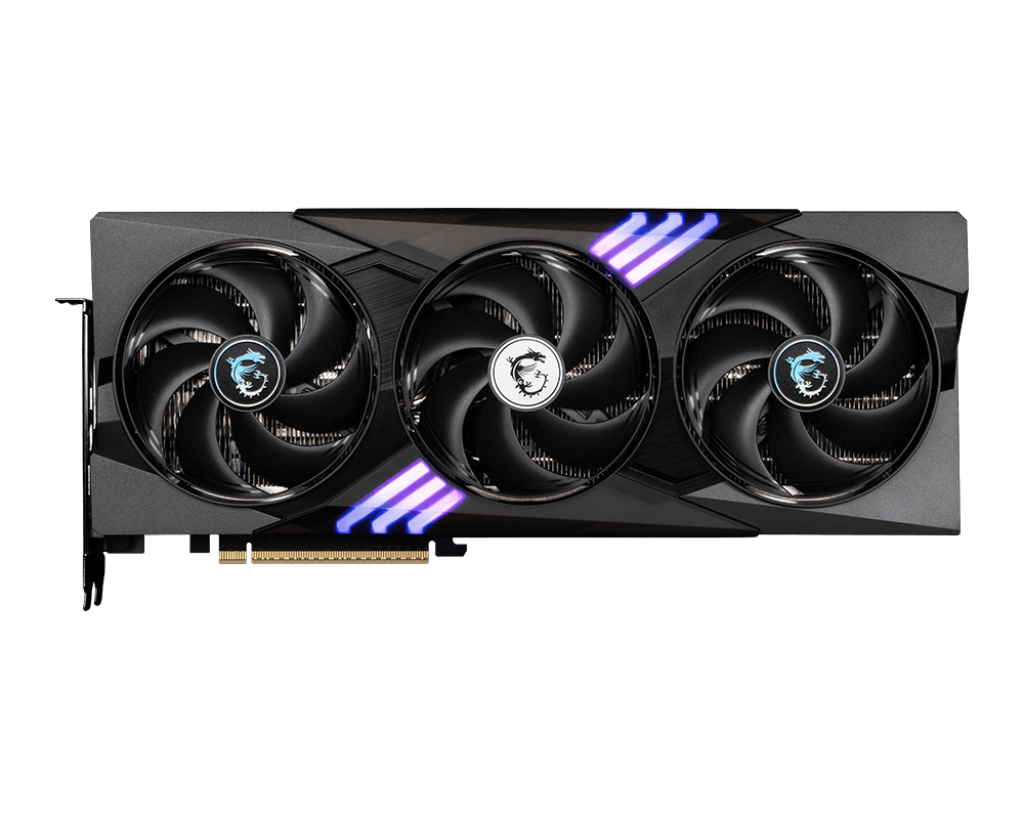

Cooling System: TRI FROZR 4 with STORMFORCE fans and nickel-plated copper baseplate
-

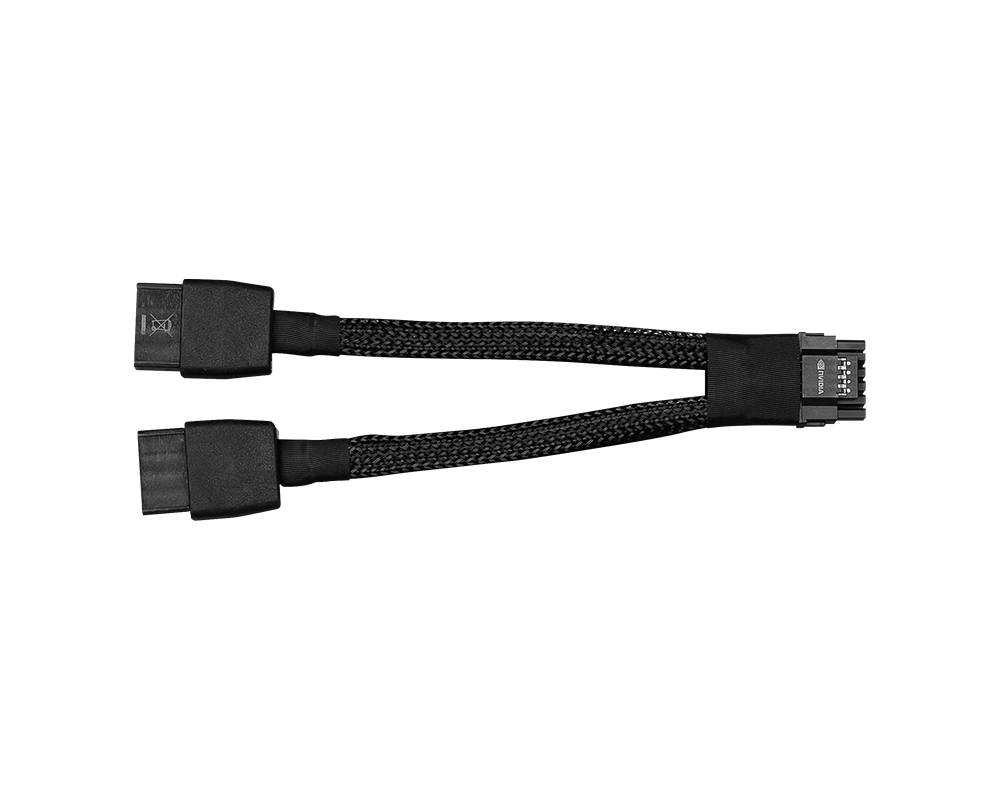

Power Connector: 1 × 16-pin (12VHPWR)
-
Power Consumption: 250W | Recommended PSU: 600W
-
Dimensions: 338 × 140 × 50 mm
-
Weight: 1,278 g (card only), 2,059 g (with accessories)
-
Key Features: DLSS 4, Real-Time Ray Tracing, NVIDIA Studio support, Dual BIOS (Gaming/Silent modes)
