GPU: NVIDIA GeForce RTX 5060 Ti (Blackwell architecture)
-
CUDA Cores: 4608
-
Boost Clock: ~2600 MHz (e.g. 2617 MHz in OC mode)
-
Memory: 8 GB GDDR7, 28 Gbps, 128‑bit bus
-
Memory Bandwidth: ~448 GB/s
-

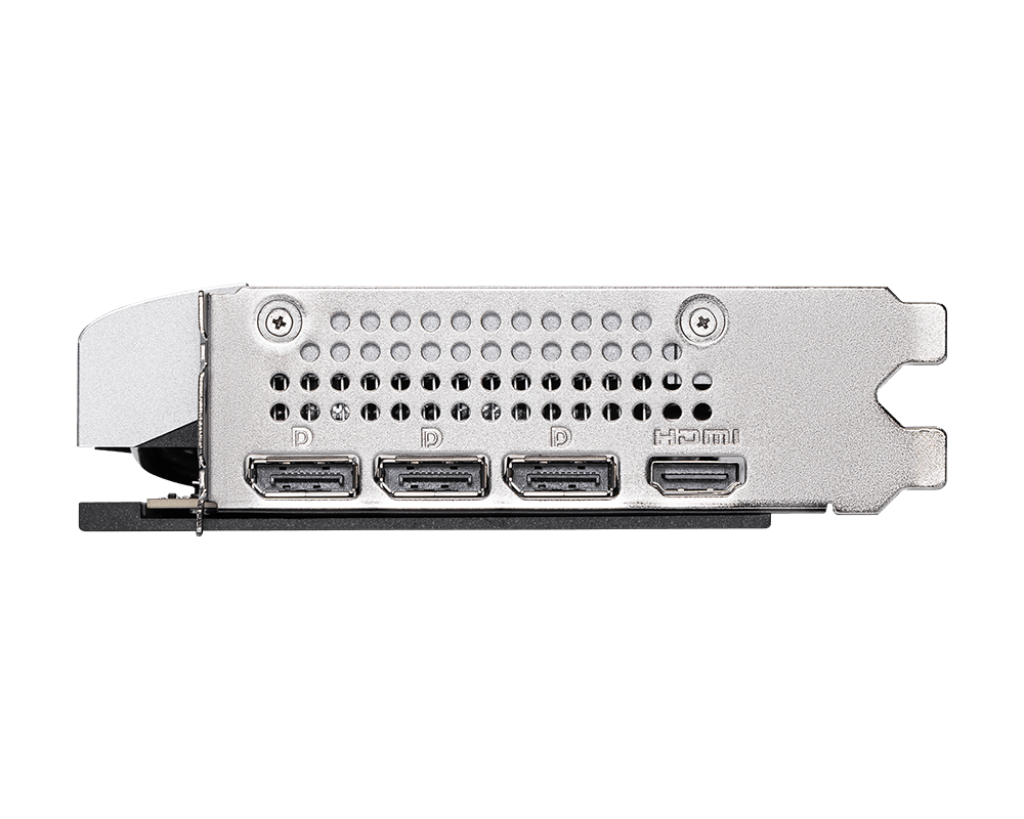

Display Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b
-
Interface: PCIe 5.0 ×16
-
Cooling System: Dual TORX / Stormforce dual‑fan thermal system
-
Power Consumption: 180 W (typical)
-
Power Connector: 1× 8‑pin PCIe
-
Recommended PSU: 600 W
-
Card Dimensions: 227 × 127 × 41 mm (2.5‑slot)
-
Weight: 573 g (card); 834 g (with packaging)
-
API Support: DirectX 12 Ultimate, OpenGL 4.6
-
Advanced Features: Ray Tracing, DLSS 4, NVIDIA Reflex
-
Warranty: 3‑year limited warranty
