GPU Architecture: NVIDIA GeForce RTX 3060 (Ampere), 3,584 CUDA cores
-
Core Clock (OC): Up to 1,807 MHz boost clock
-
Memory: 12 GB GDDR6 @ 15 Gbps, 192-bit memory bus
-
Interface: PCI Express Gen 4 x16
-

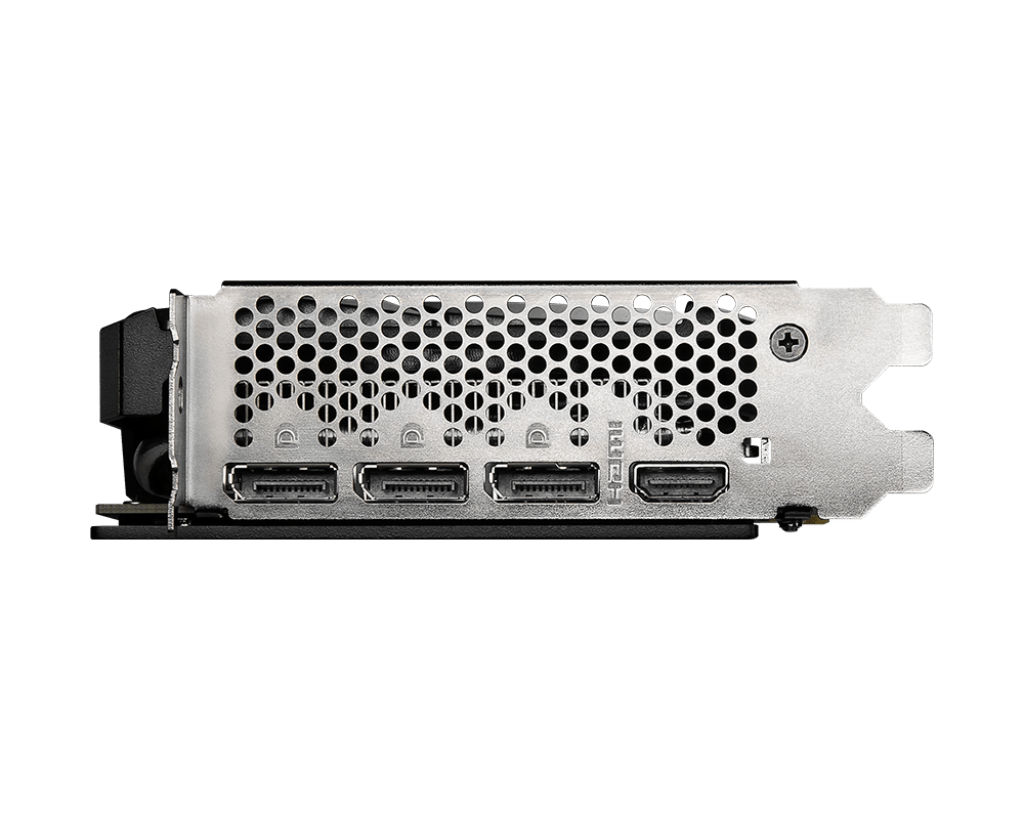

Display Outputs: 3× DisplayPort 1.4a, 1× HDMI 2.1 (supports up to 4K 120 Hz; up to 8K resolution)
-
Power: TDP 170 W; requires 1× 8-pin PCIe power connector; recommended PSU 550 W
-

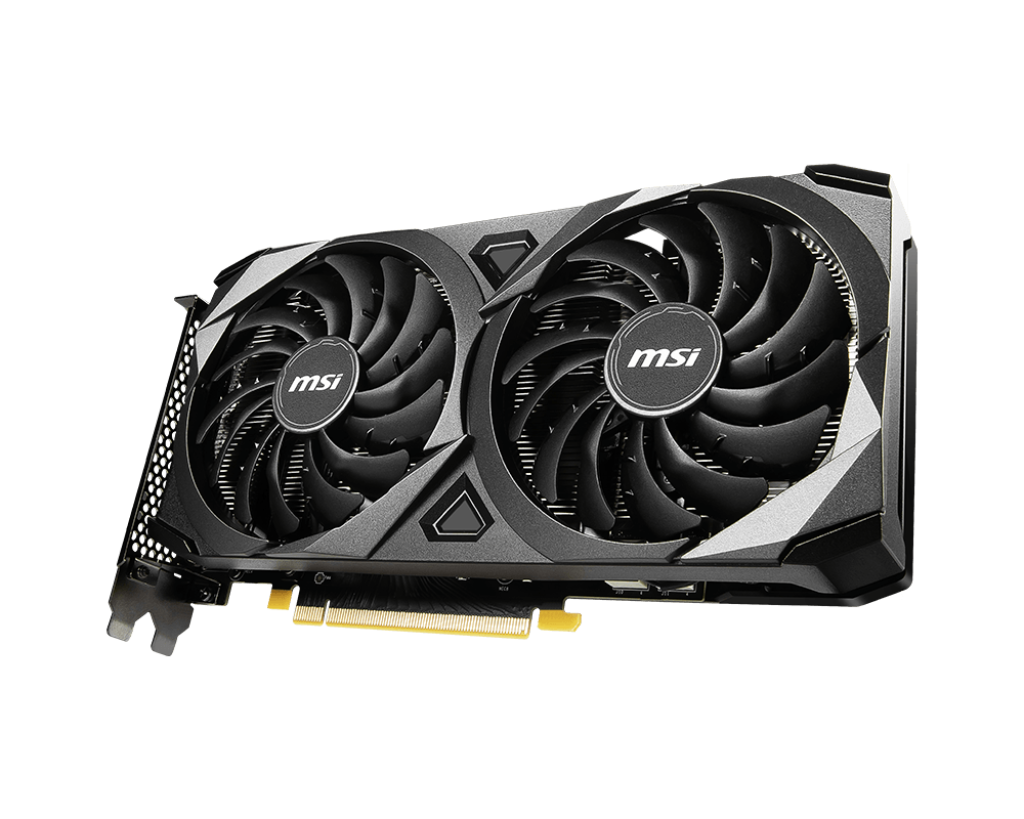

Cooling: Dual-fan design with TORX Fan 3.0 and Zero Frozr technology (fan-stop idle)
-
Dimensions: 235 × 124 × 42 mm; Weight: ~675 g (card), ~1,030 g (with packaging)
-
API & Features: DirectX 12, OpenGL 4.6, VR Ready, G-SYNC, Adaptive V-Sync, HDCP, up to 4 displays, max resolution 7680 × 4320
-
Additional Features: Thermal padding, custom PCB design, MSI Afterburner and Dragon Center support for overclocking and system optimization
