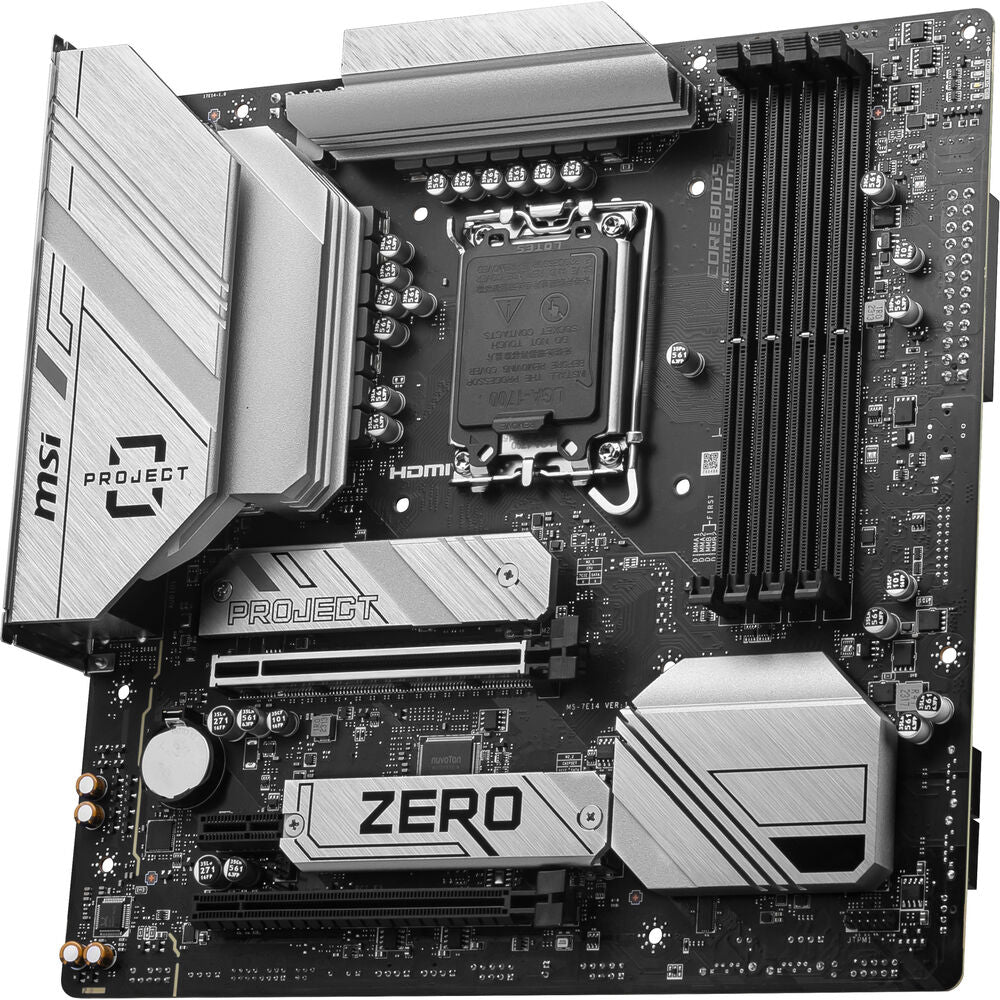

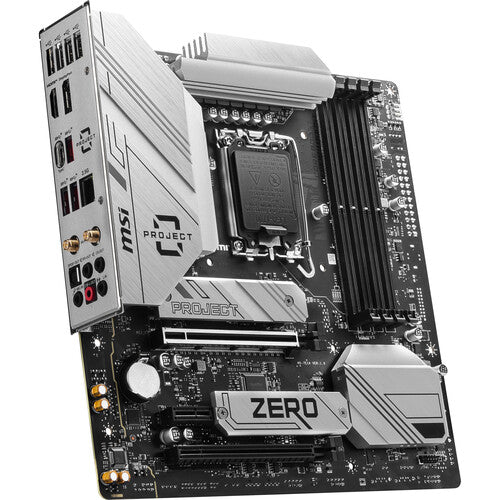

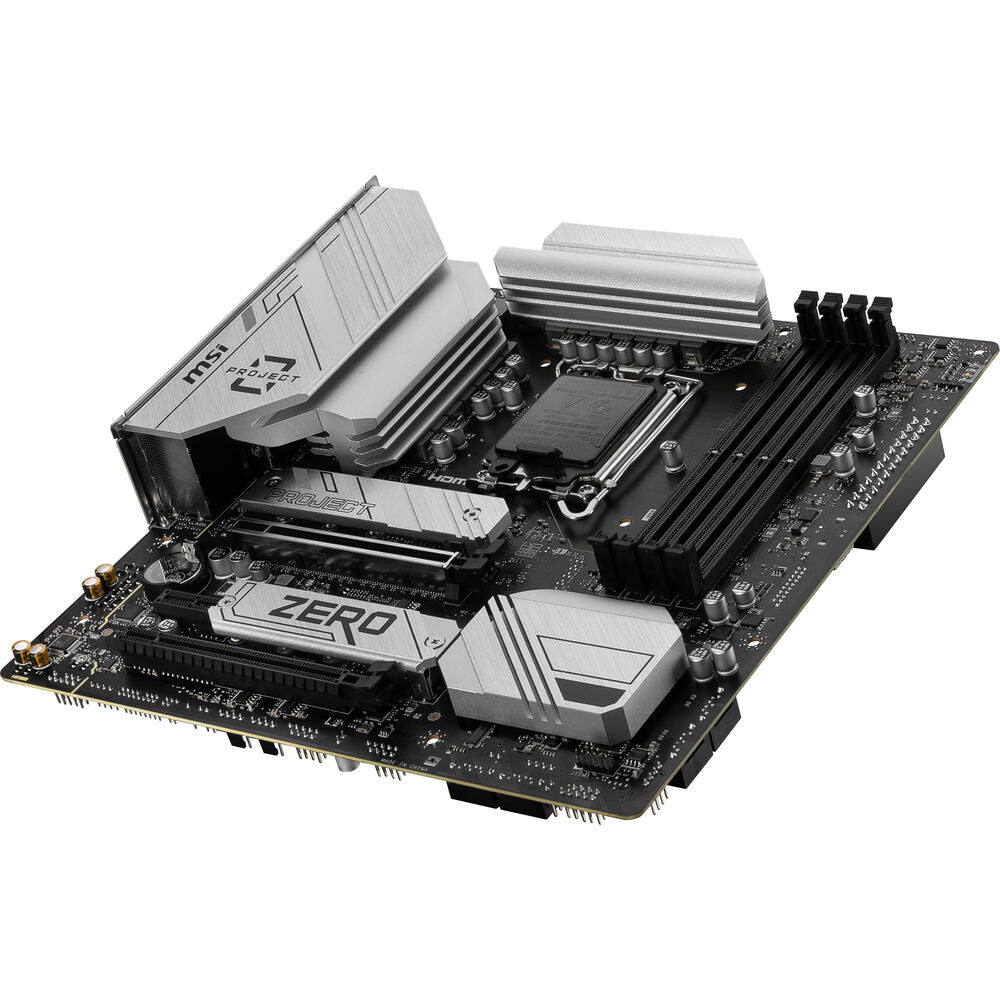

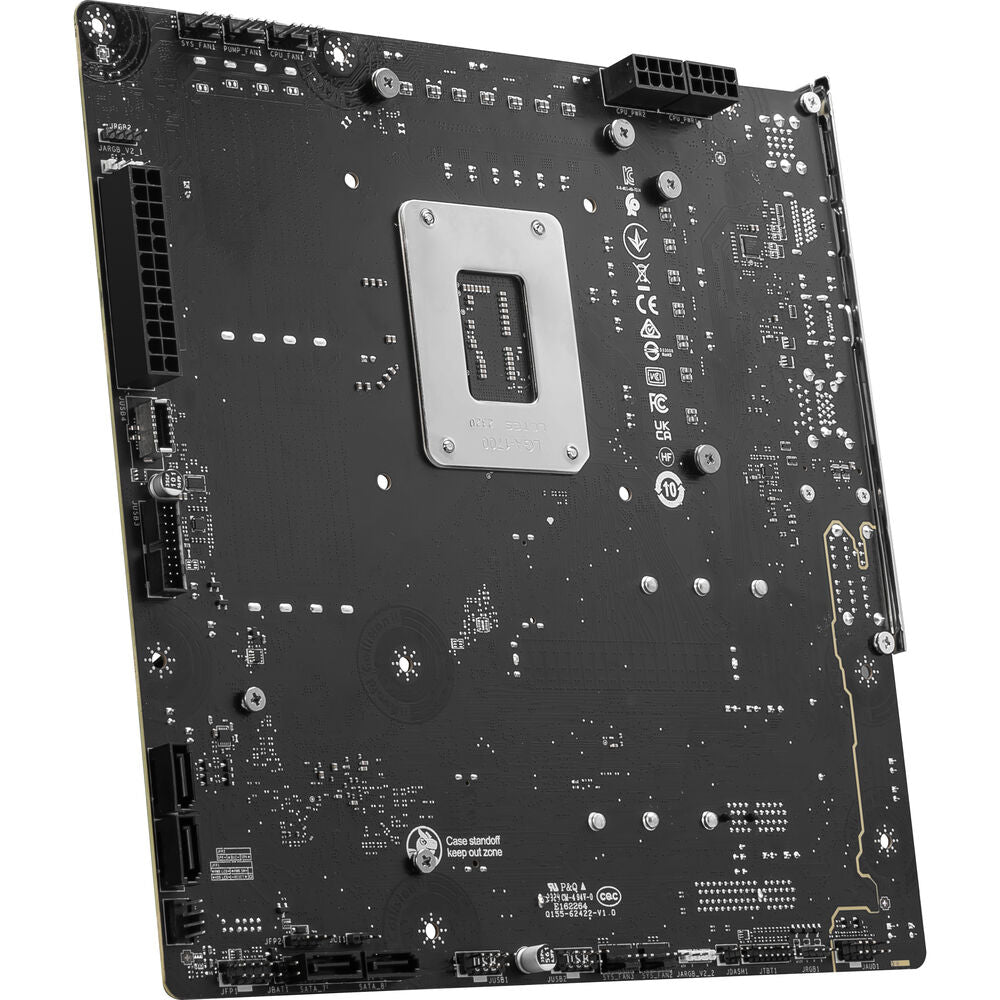

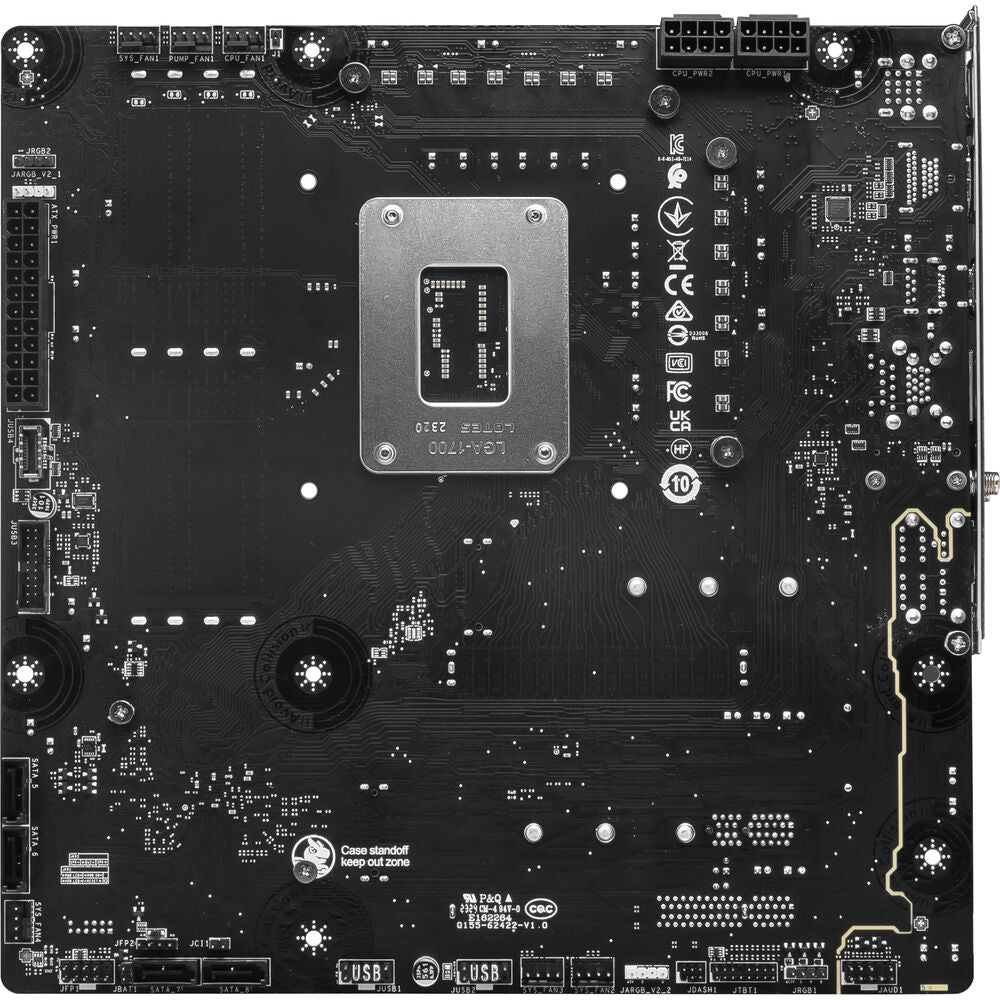

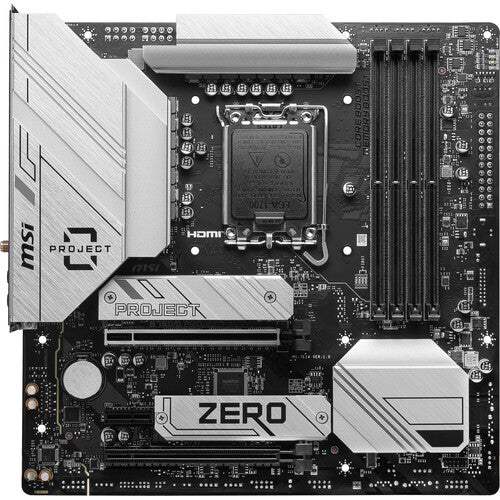

MSI B760M PROJECT ZERO WiFi Motherboard

Product Features:

• Processor Support: Intel 12th/13th Gen Core (LGA 1700)
• Power System: 12 Phase Duet Rail Power System (75A, DrMOS) VRM for high CPU core count power demands
• Cooling: 7W/mK MOSFET thermal pads, extended heatsink with heat-pipe, M.2 Shield Frozr, dedicated pump-fan cooling header, 6-layer server grade PCB
• Memory Support: 4 x DDR5 DIMM SMT slots enabling extreme memory overclocking speeds (1DPC 1R, 7800+ MHz)
• PCIe Slots: PCIe 5.0 x16 Steel Armor slot supports the primary graphics card
• Storage: 2 x M.2 Gen4 x4 64Gbps slots with Shield Frozr to prevent SSD thermal throttling; EZ M.2 Clips for tool-free installation
• Network Connectivity: Intel Wi-Fi 6E module with Bluetooth 5.3 & 2.5Gbps LAN

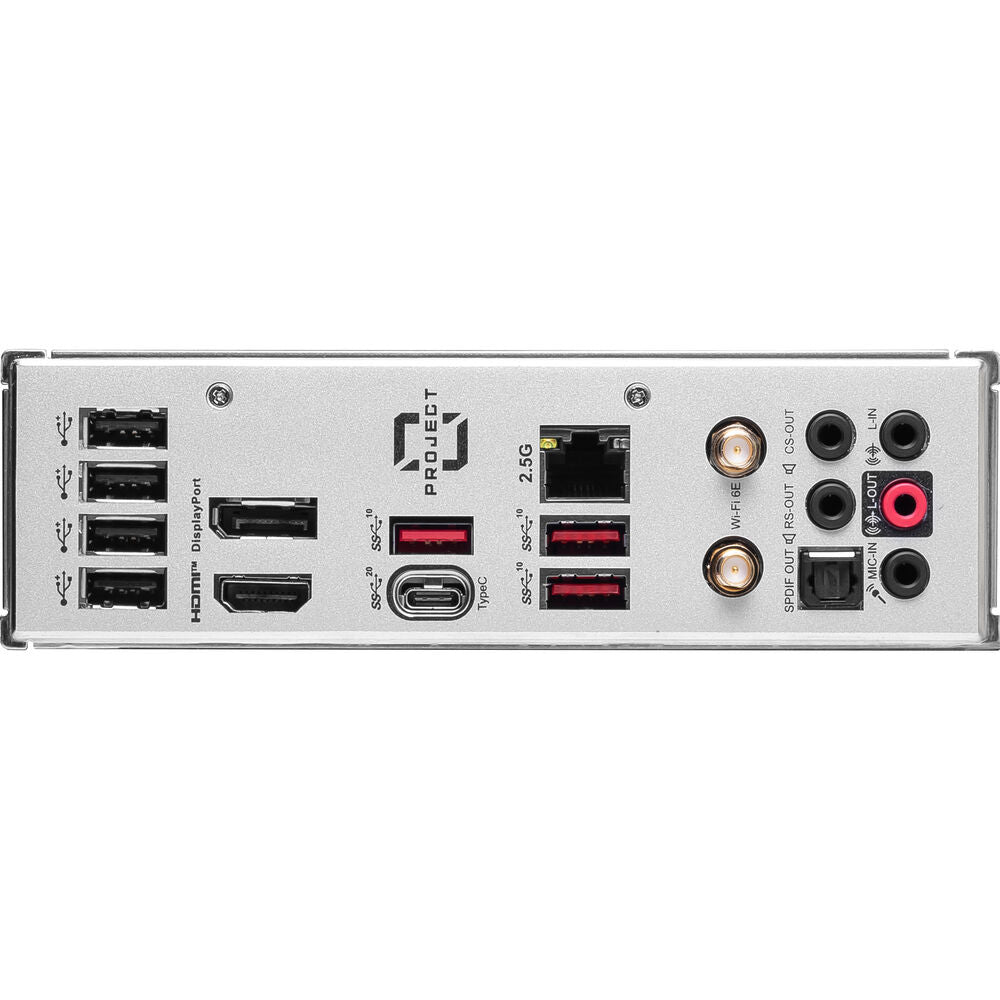

• Rear Ports: USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI 2.1, DP 1.4, 7.1 HD Audio with Audio Boost (supports S/PDIF output)
