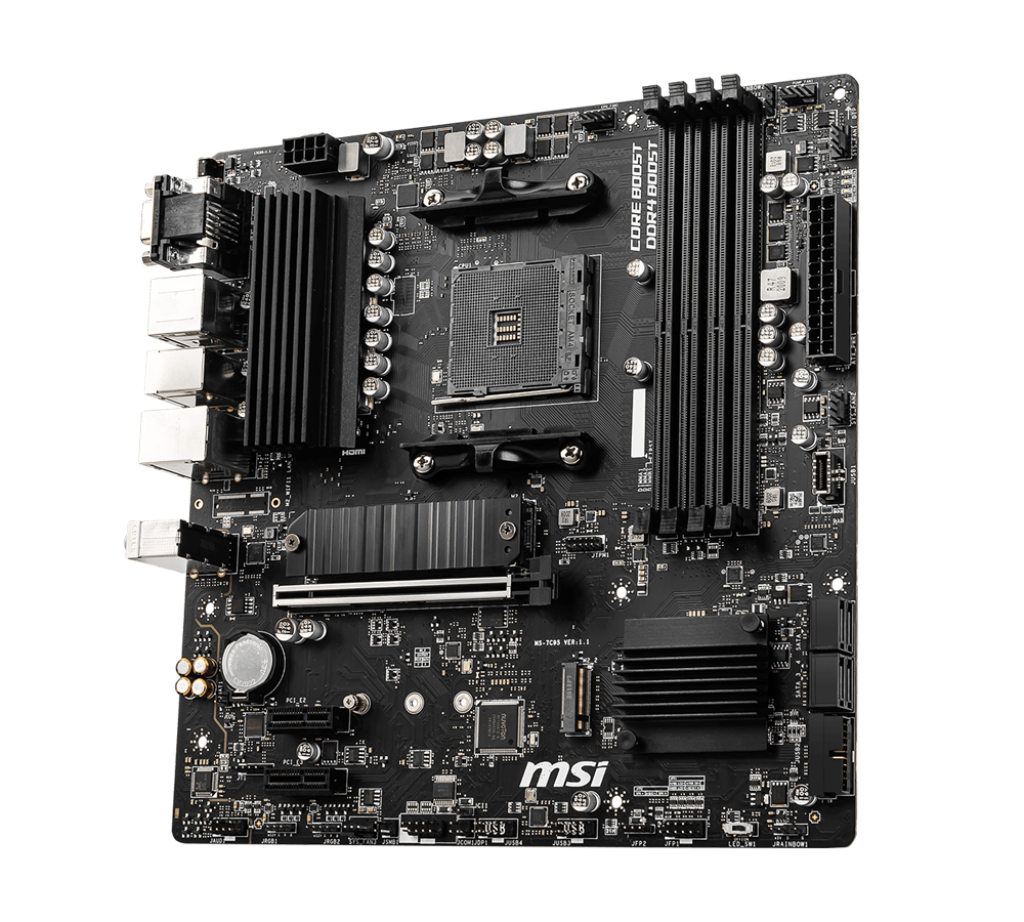

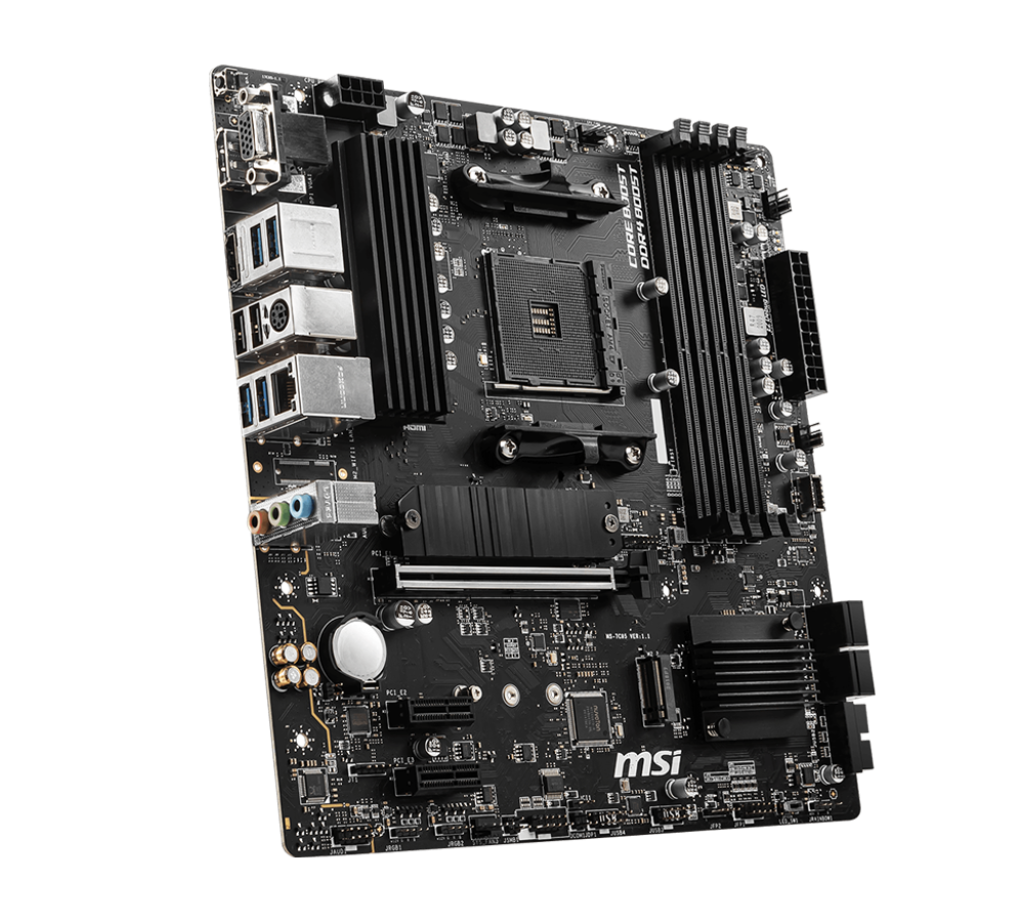

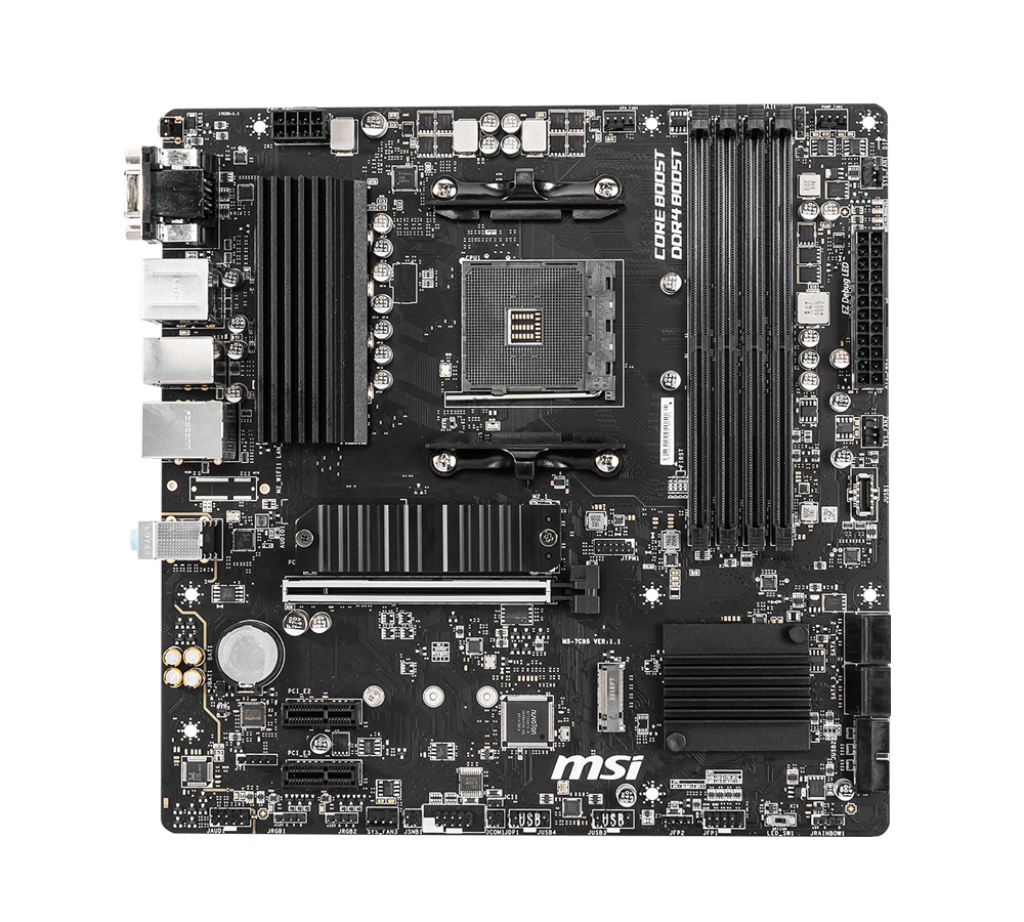

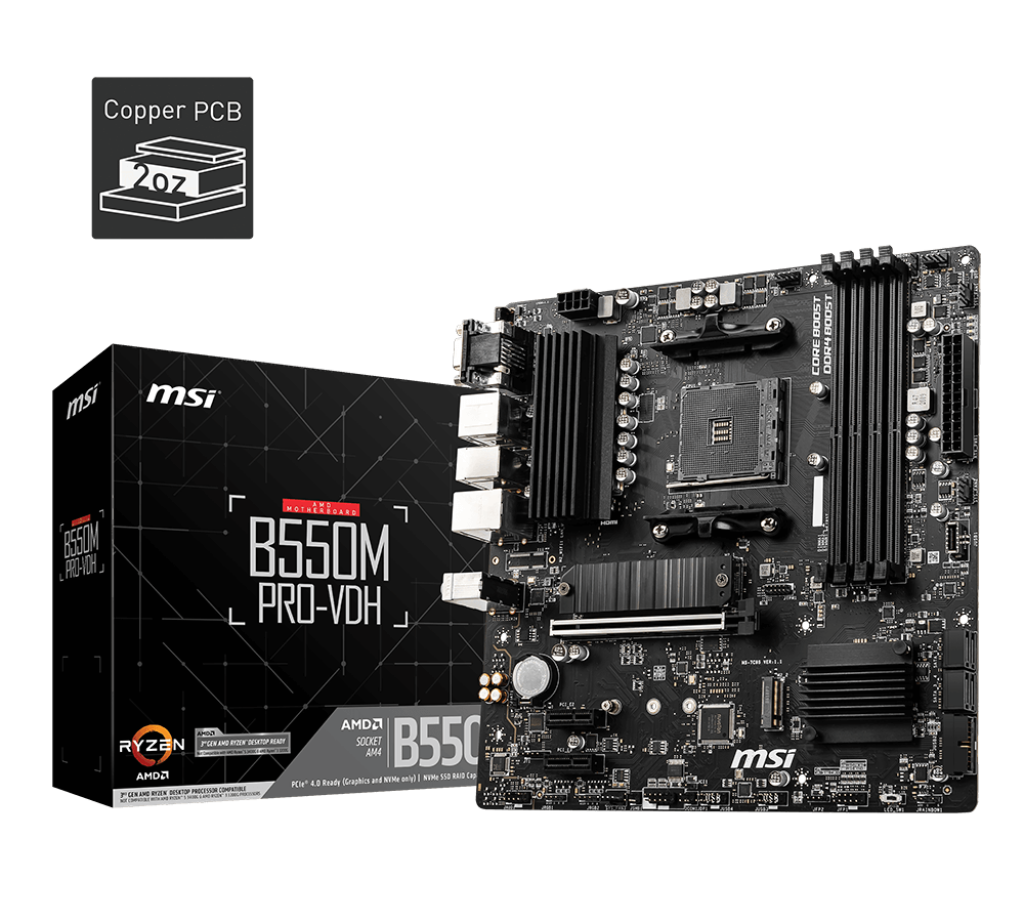

Form Factor & Chipset: Micro-ATX, Socket AM4, AMD B550 chipset; supports Ryzen™ 3000, 4000 G-Series, and 5000 Series CPUs (excluding Ryzen 3200G/3400G)
-
Memory: 4× DDR4 UDIMM, up to 128 GB; supports DDR4‑4400+ OC / 2133 JEDEC
-
Expansion Slots:
- 1× PCIe 4.0 x16 (CPU)
- 1× PCIe 3.0 x16 (x4 mode, chipset)
- 2× PCIe 3.0 x1 (chipset)
-
Storage:
- 1× M.2 Gen4 x4 (64 Gbps, CPU)
- 1× M.2 Gen3 x4 (32 Gbps, chipset)
- 4× SATA 6 Gb/s
- RAID 0/1/10 support (SATA); RAID 0/1 support (M.2 NVMe)
-
Video Outputs: 1× HDMI 2.1 (4K@60 Hz), 1× DisplayPort 1.4 (4K@60 Hz); requires processor graphics
-
Rear USB Ports:
- 1× USB 3.2 Gen 2 10 Gbps Type‑C
- 2× USB 3.2 Gen 1 5 Gbps Type‑A
- 4× USB 2.0
-
Networking: Realtek® RTL8111H 1 GbE LAN
-
Audio: Realtek® ALC892/ALC897 7.1‑Channel HD Audio
-
Internal Headers & I/O:
- 1× ATX_PWR
- 1× 8-pin CPU_PWR
- 1× CPU_FAN
- 1× Pump/Sys
- 3× SYS Fan
- 1× USB 3.2 Gen 1 Type‑C
- 2× USB 3.2 Gen 1
- 2× USB 2.0
- RGB headers
-
LED Features: 4× EZ Debug LEDs on PCB
-
Operating System: Windows 10/11 (64-bit) support
-
Dimensions: 9.6 × 9.6 in (24.4 × 24.4 cm)
