MOTOTRBO™ SLR 8000 Repeater
Overview: The MOTOTRBO™ SLR 8000 Repeater is designed to deliver reliable and high-performance voice and data communications across a variety of industries. Optimized for workplaces requiring robust, scalable communication systems, the SLR 8000 supports both analog and digital formats, seamlessly integrating voice and data. Whether you need simple conventional systems or advanced trunking, the SLR 8000 has the flexibility to meet all of your needs.
Key Features:
-
High Performance: Offers 100W RF output power and excellent receiver sensitivity, covering large areas with ease.
-
Digital & Analog Compatibility: Supports both analog conventional systems and MOTOTRBO™ digital networks, including IP Site Connect, Capacity Plus, and Connect Plus.
-
Versatility: The SLR 8000 integrates with various MOTOTRBO system architectures and supports both conventional and trunked systems.
-
Reliability: Built for continuous operation, even at full 100W transmit power. With a robust design validated through Motorola’s Accelerated Life Testing (ALT) program, it ensures reliability in any environment.
-
Advanced Features: Includes internal monitoring circuitry for parameters such as input voltage, output power, and module temperatures, accessible via a front panel or remote management interface.
-
Flexible Installation: Can be mounted in a 19" rack with no requirement for ventilation above or below. Offers internal preselector and antenna relay module options.
-
Power Options: Operates on AC or DC power with built-in battery backup, ensuring uninterrupted performance.
-
Comprehensive Support: Includes five years of service coverage, providing expert repair, software updates, and proactive technical support.

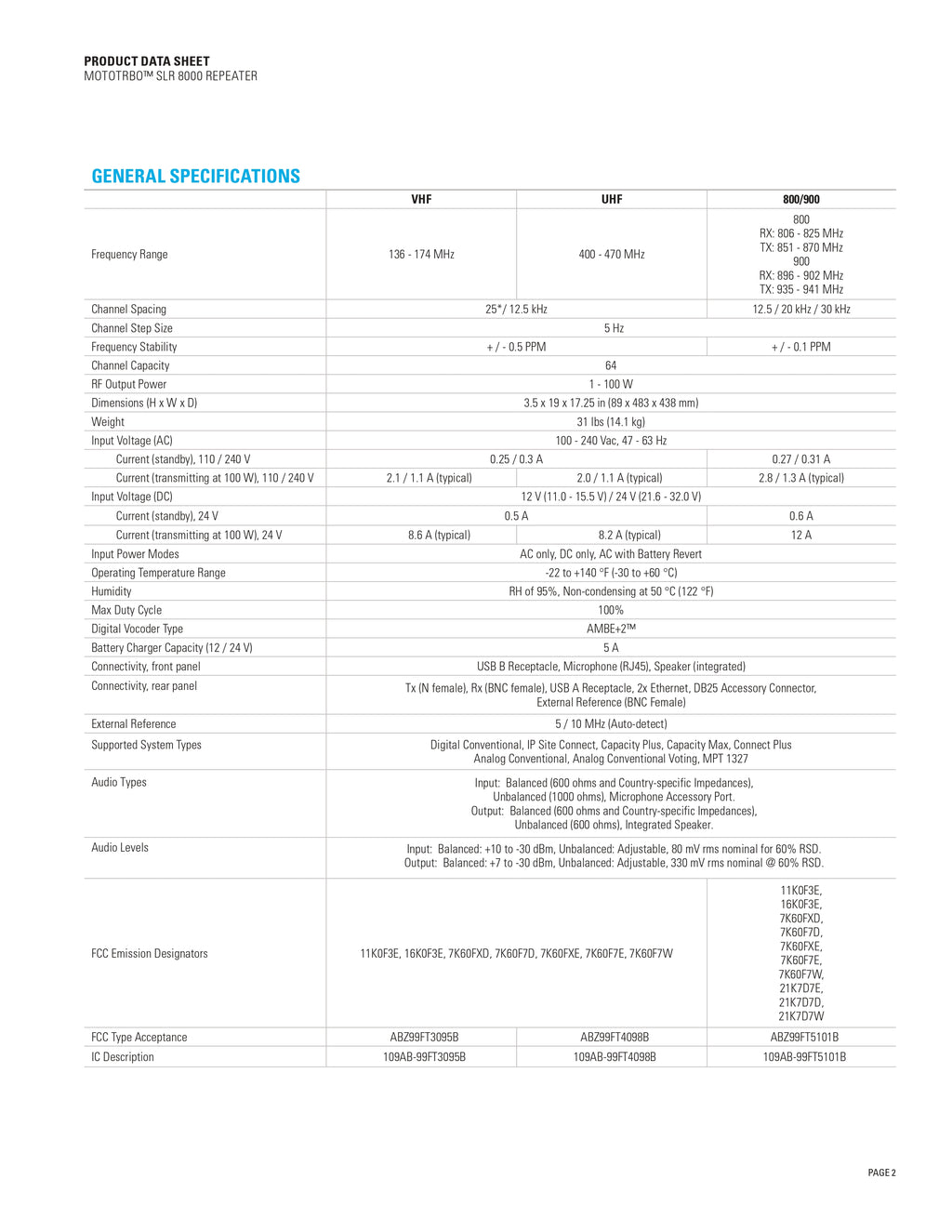

General Specifications:
-
Frequency Range: VHF: 136 - 174 MHz, UHF: 400 - 470 MHz, 800 MHz: 806 - 825 MHz, 900 MHz: 896 - 902 MHz
-
Channel Spacing: 25kHz / 12.5kHz (VHF, UHF), 12.5/20/30kHz (800/900 MHz)
-
RF Output Power: 1 - 100W
-
Receiver Sensitivity: 0.3 µV (VHF, typical), 0.28 µV (UHF, typical)
-
Dimensions (H x W x D): 3.5 x 19 x 17.25 in (89 x 483 x 438 mm)
-
Weight: 31 lbs (14.1 kg)
-
Input Voltage: 100 - 240 Vac (AC), 12 V or 24 V DC
-
Operating Temperature: -22°F to +140°F (-30°C to +60°C)
-
Humidity: RH of 95%, non-condensing at 50°C (122°F)
-
Max Duty Cycle: 100%
Additional Features:
-
Audio Types: Balanced and unbalanced audio options with microphone and speaker input/output ports
-
System Types: Digital Conventional, IP Site Connect, Capacity Plus, Capacity Max, Connect Plus, Analog Conventional
-
External Reference: 5 / 10 MHz (Auto-detect)
-
FCC Emission Designators: 11K0F3E, 16K0F3E, 7K60FXD, and more
-
Digital Vocoder Type: AMBE+2™
Applications: Ideal for mission-critical communication needs in various industries such as manufacturing, public safety, transportation, and logistics. The MOTOTRBO™ SLR 8000 ensures seamless, high-quality communication, whether operating in conventional or trunked systems.
Product Meets: ETSI 300-086, ETSI 300-113, TIA/EID603D, CE Marked, RoHS2-Compliant, UL Listed, Digital Protocol- ETSI 102 361-1, -2, -3, -4
