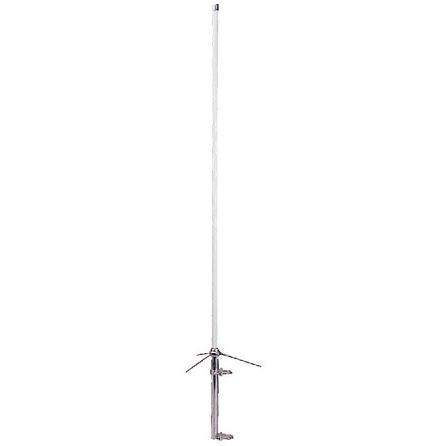

UHF Fiberglass Omni Antenna 406-512 MHz - 6.7 dBi Gain, SO-239 Connector
Overview: The UHF Fiberglass Omni Antenna is designed for high-performance communication systems operating in the 406-512 MHz UHF frequency range. With a 6.7 dBi gain, this antenna provides reliable and efficient signal coverage, perfect for a wide range of industrial, commercial, and public safety applications. Its rugged fiberglass construction ensures long-lasting durability, and the SO-239 connector makes it compatible with most UHF communication systems. Whether you're enhancing coverage in remote areas or optimizing performance in urban environments, this antenna is the ideal solution.
Key Features:
-
Frequency Range: 406-512 MHz (UHF)
-
Gain: 6.7 dBi for superior signal strength and coverage
-
Impedance: 50 Ohms for efficient power transfer
-
Connector: SO-239 (widely compatible with UHF radios)
-
Pattern: Omnidirectional for full 360° horizontal coverage
-
Power Rating: 200W, handling high power transmissions
-
Vertical Beamwidth: 25° for focused vertical coverage
-
VSWR: 1.5:1 for optimized signal transmission and minimal loss
-
Fiberglass Construction: White finish for durability in outdoor environments
-
Tuning Required: Yes, for optimal frequency performance
Applications:
- UHF communication systems in industrial, commercial, and public safety sectors
- Effective for use in both rural and urban environments that require reliable, omnidirectional coverage
- Ideal for outdoor use in remote locations or any area needing consistent and efficient communication
Installation: This antenna can be easily mounted to standard antenna poles or masts using appropriate mounting hardware (sold separately). Tuning is required to achieve optimal performance for specific frequency ranges, which can be done by adjusting the antenna elements accordingly.
Note: Designed for optimal performance in the UHF 406-512 MHz frequency range, this antenna offers high-quality, reliable signal coverage for various communication needs.
