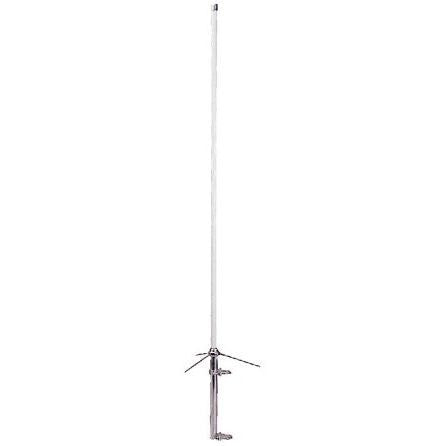

Model: LT-ANTL144-174-6.7 Vertical Fiberglass Base Antenna
-
Frequency Range: 144-174 MHz (VHF Band)
-
Antenna Gain: 6.7 dBd for superior signal performance
-
Polarization: Vertical for reliable omnidirectional communication
-
Impedance: 50 Ω for efficient power transmission
-
VSWR: Less than 1.5:1 for optimal signal clarity
-
Power Capacity: 200 W, ensuring high-power handling
-
Connector: SO-239 for reliable connectivity
-
Design: 7/8λ over 7/8λ design for enhanced performance
-
Length: 2.95 meters (2 sections) for an optimal range
-
Weight: Approximately 1.0 Kg for manageable installation
-
Max Wind Resistance: 130 mph (55 m/sec) for robust durability in extreme weather
-

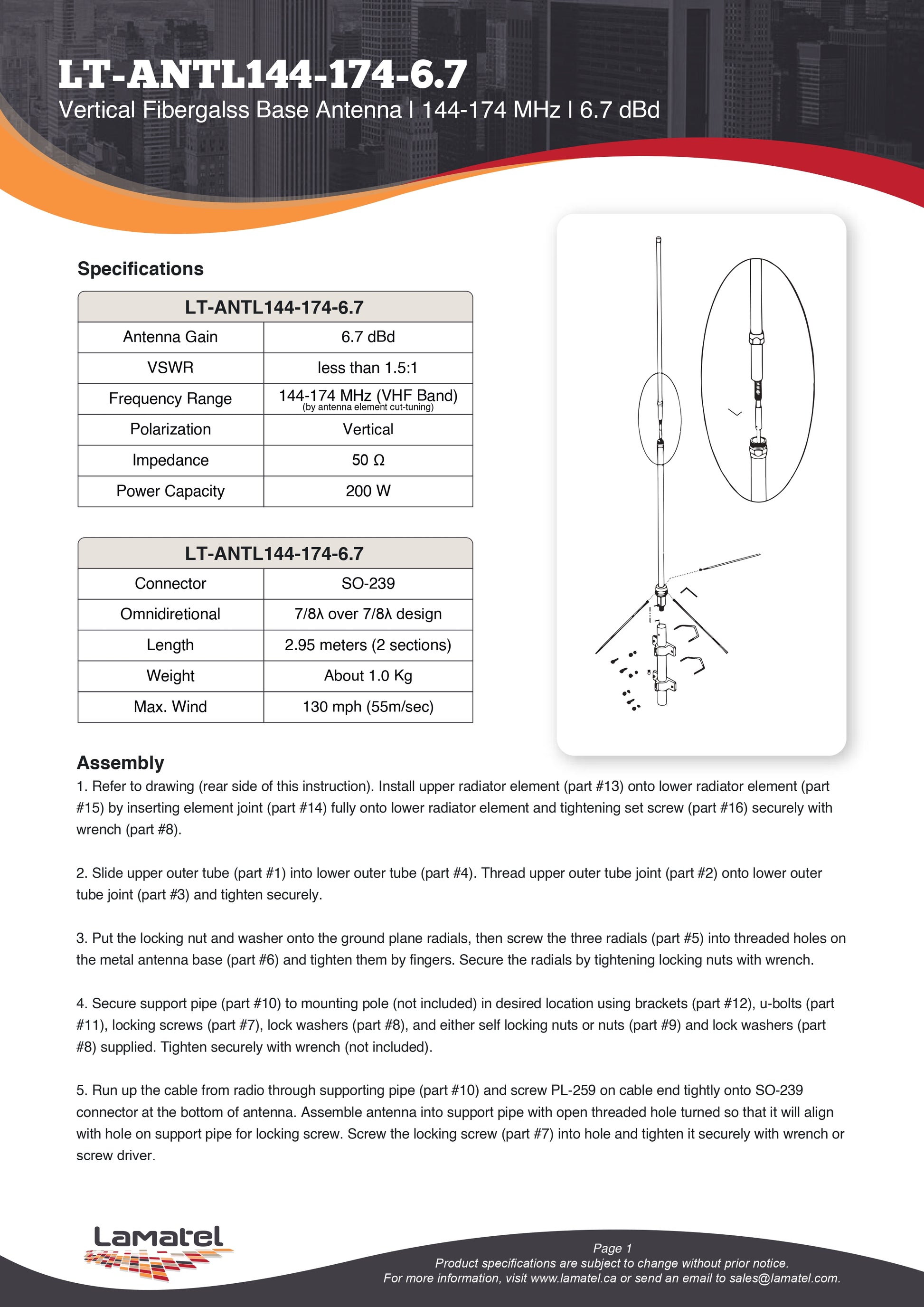

Assembly Instructions: Includes step-by-step assembly instructions for easy installation (see manual for full details)
-
Mounting: Supports installation onto mounting pole (not included), with brackets, u-bolts, and locking screws included
-
Connector Type: Omnidirectional coverage via SO-239 connector
-
Durability: Built to withstand harsh environmental conditions and high wind speeds
-
Application: Ideal for VHF communication systems, base stations, and fixed-location installations
