- Features:
- Compact, low-loss design for efficient operation
- Temperature compensated over the range of -20ºC to +50ºC for stable performance in varying environments
- Extruded aluminum cavities and solid-shield copper-jacketed intercabling for durability and reliability
- Can be adjusted in the field by qualified engineers or personnel
- Rated at 50 Watts continuous duty with excellent electrical performance
- Maximum VSWR of 1.4:1 over the entire tuning range
- Specifications:
-

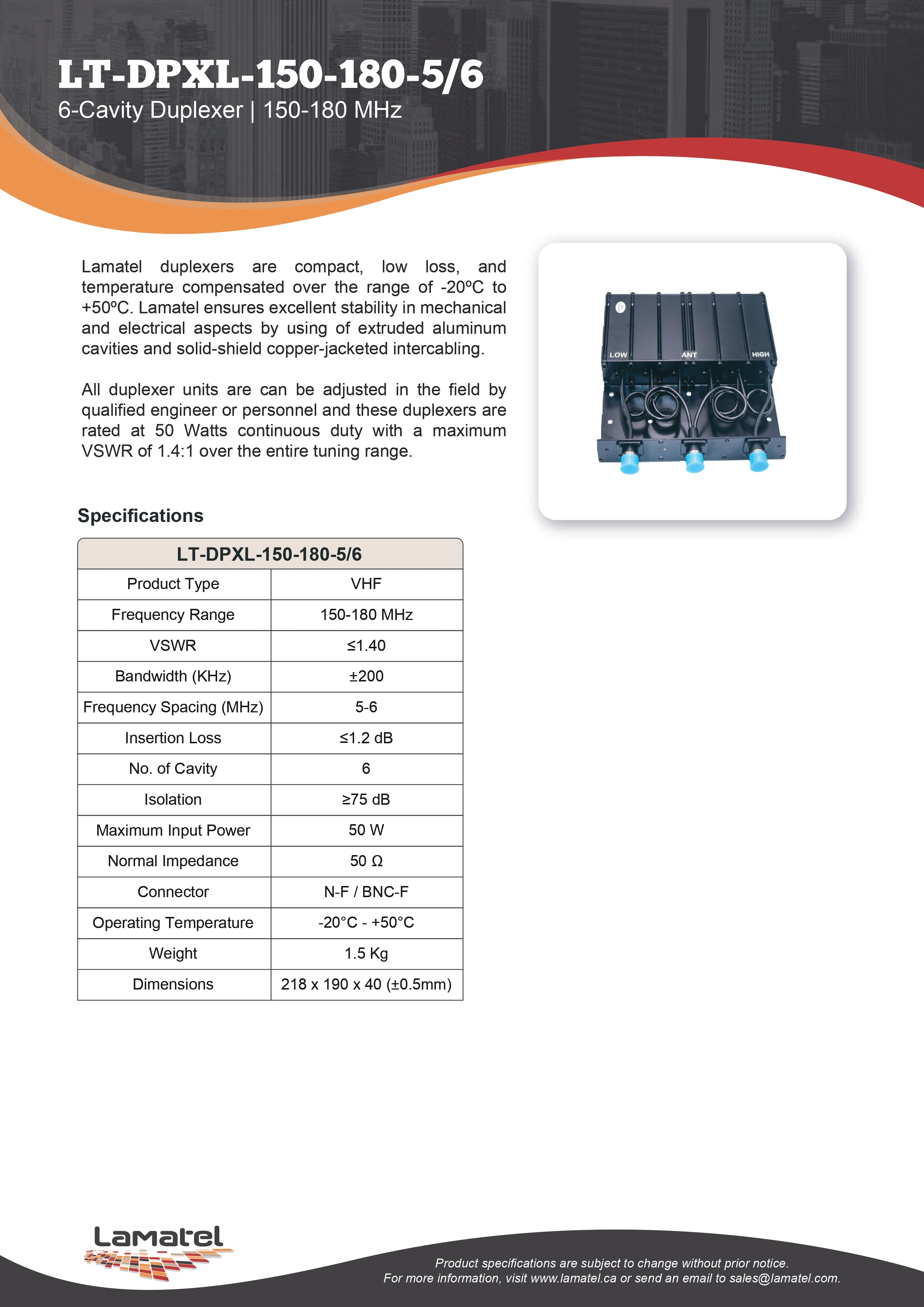

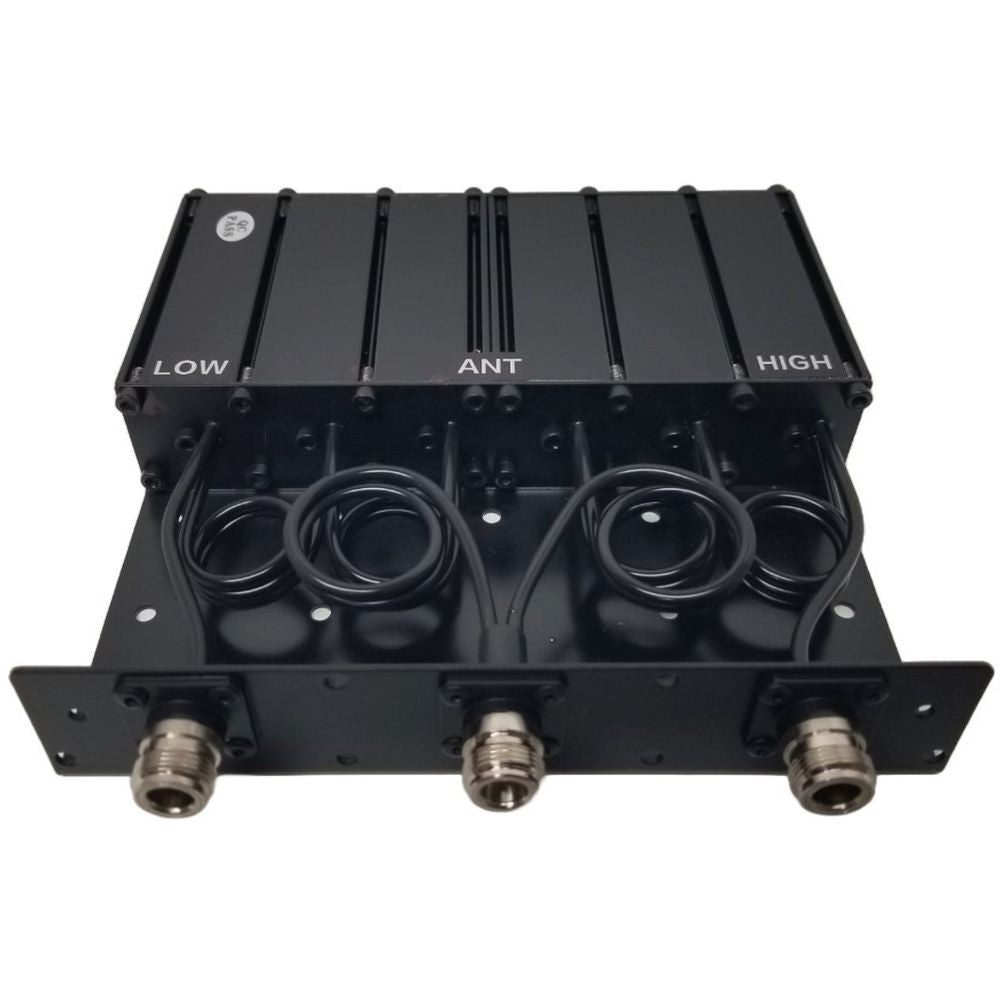

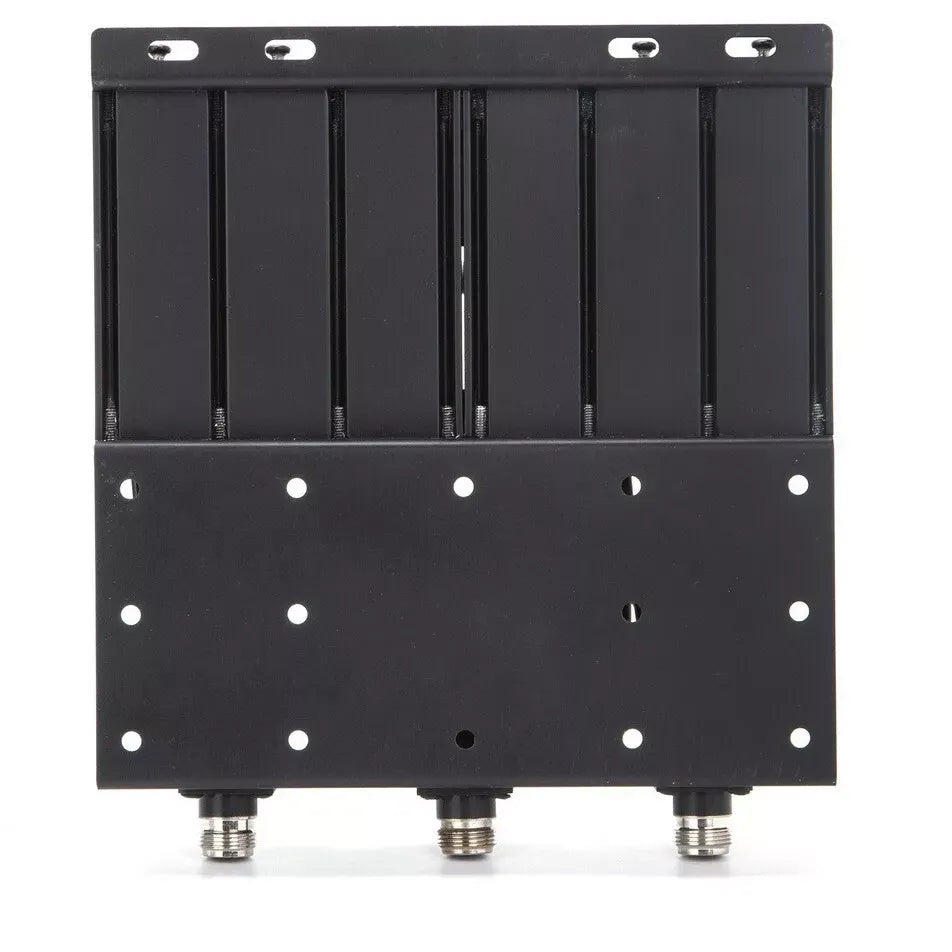

Model: LT-DPXL-150-180-5/6
-
Product Type: VHF Duplexer
-
Frequency Range: 150-180 MHz
-
VSWR: ≤ 1.40
-
Bandwidth: ±200 KHz
-
Frequency Spacing: 5-6 MHz
-
Insertion Loss: ≤ 1.2 dB
-
No. of Cavities: 6
-
Isolation: ≥75 dB
-
Power Rating: 50 W continuous duty
-
Normal Impedance: 50 Ω
-
Connector: N-F / BNC-F
-
Operating Temperature: -20°C to +50°C
-
Weight: 1.5 Kg
-
Dimensions: 218 x 190 x 40 (±0.5mm)
