MOTOROLASKU: F22H
Price:
275,000 IQD
Contact us

Description

  • Frequency range: 144–174 MHz (adjustable via cutting chart)
  • Gain: 6.7 dB
  • Maximum power input: 350 W
  • Impedance: 50 Ω
  • VSWR: Less than 1.5:1

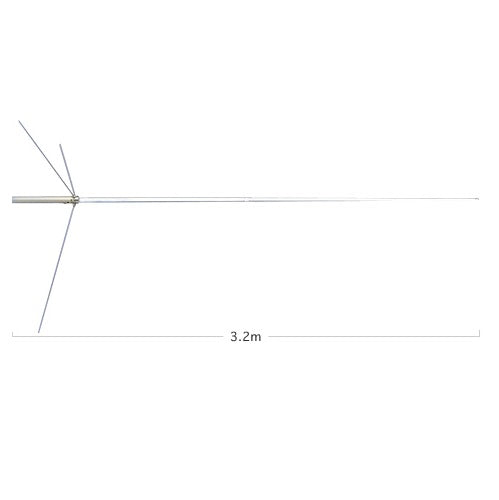

  • Length: 3.2 m
  • Weight: 1.3 kg
  • Rated wind velocity: 50 m/sec

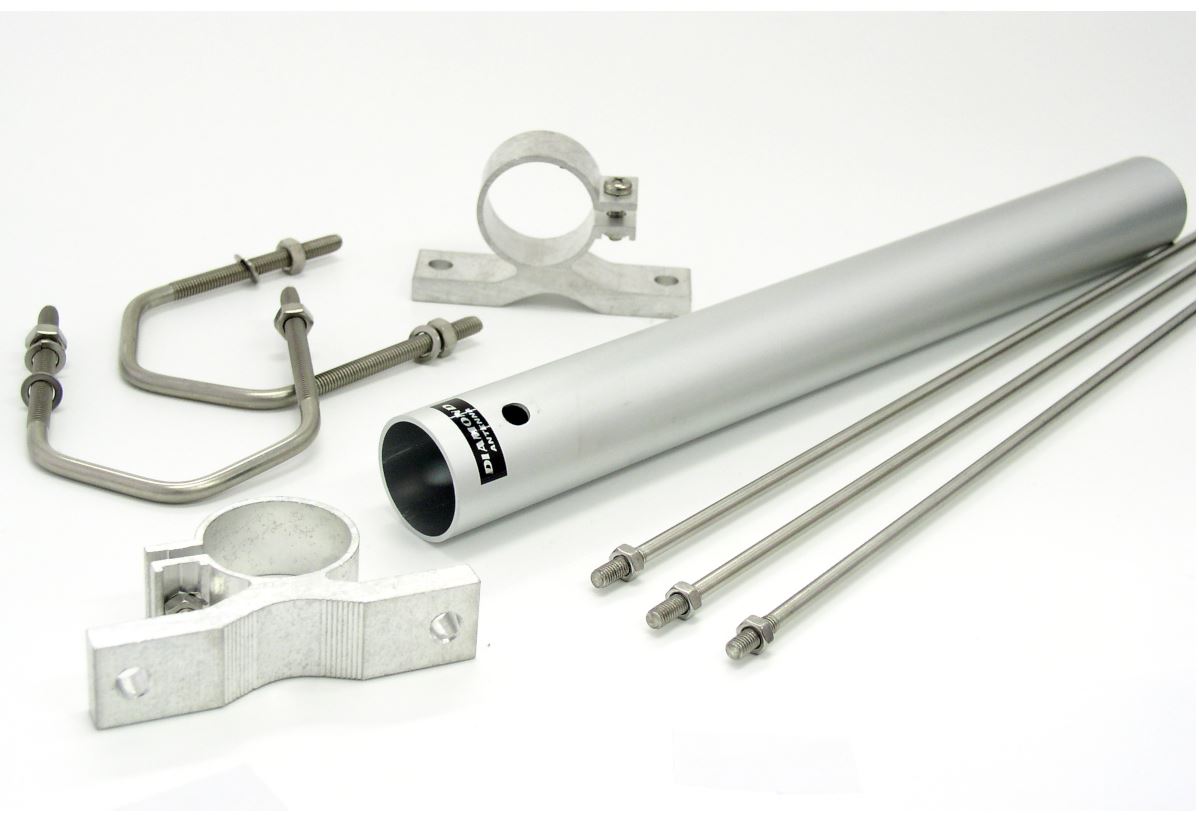

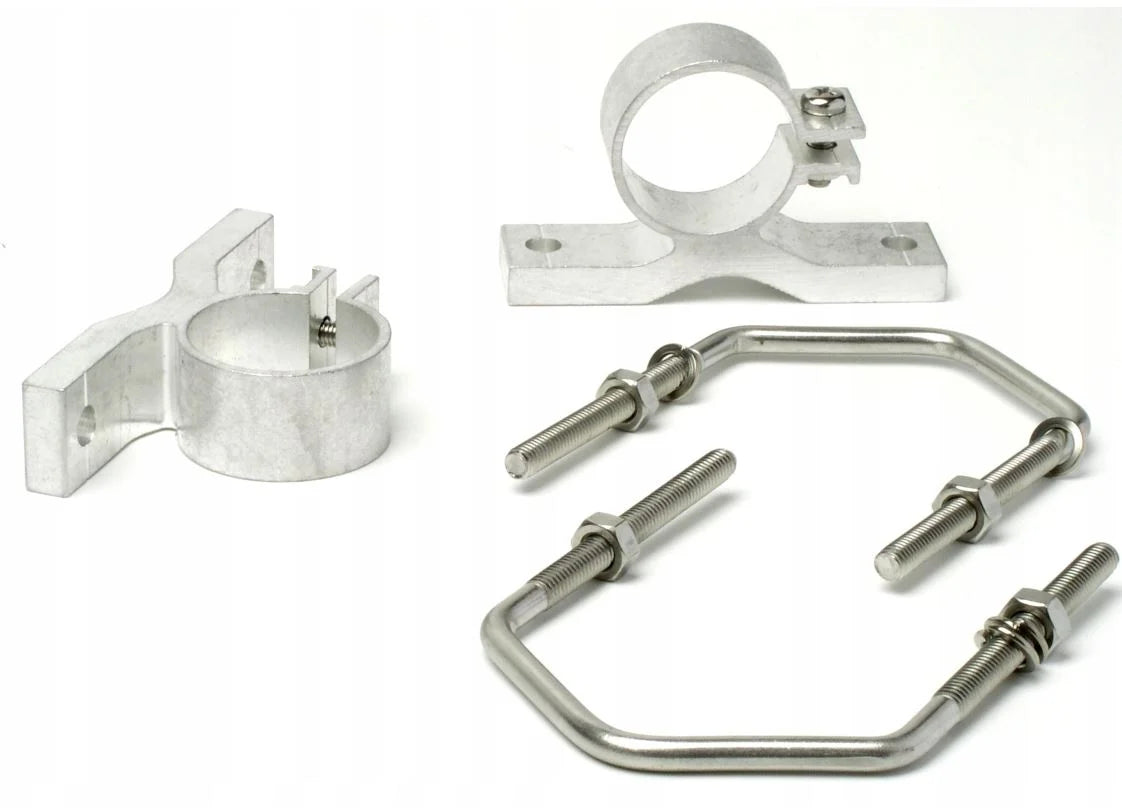

  • Mast diameter accepted: 30–62 mm

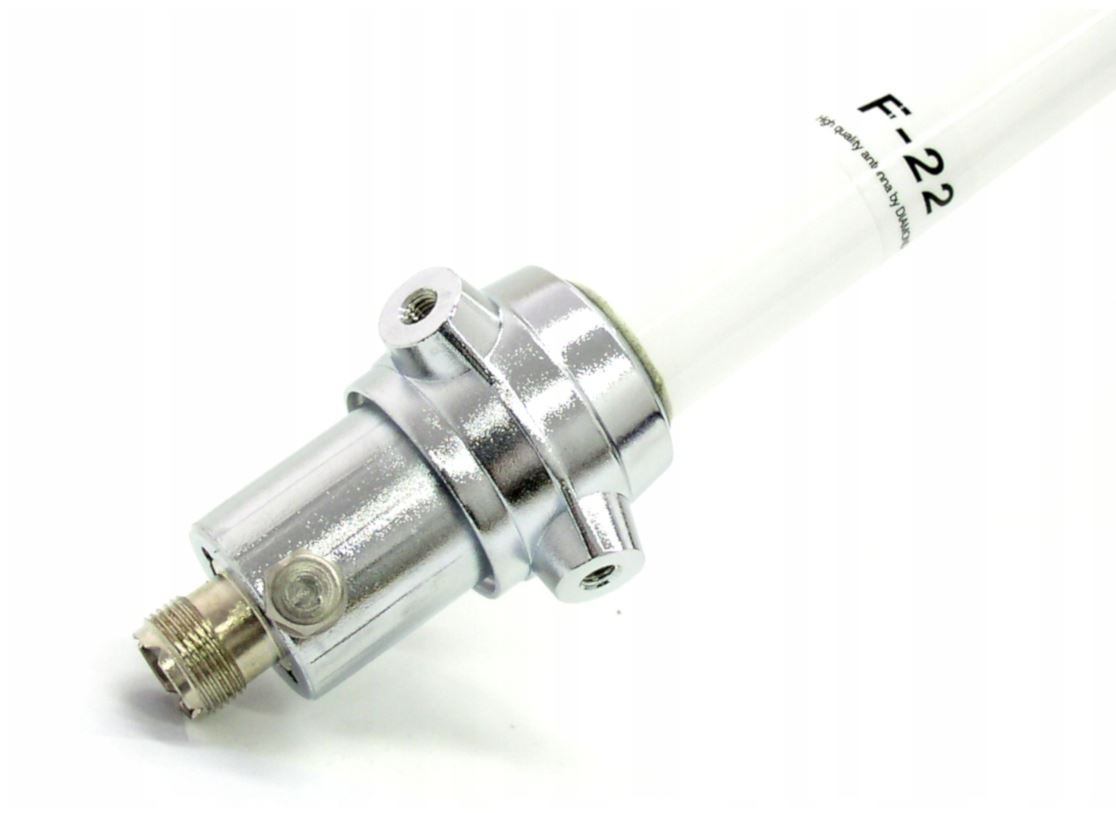

  • Connector: MJ (UHF Female / SO-239)

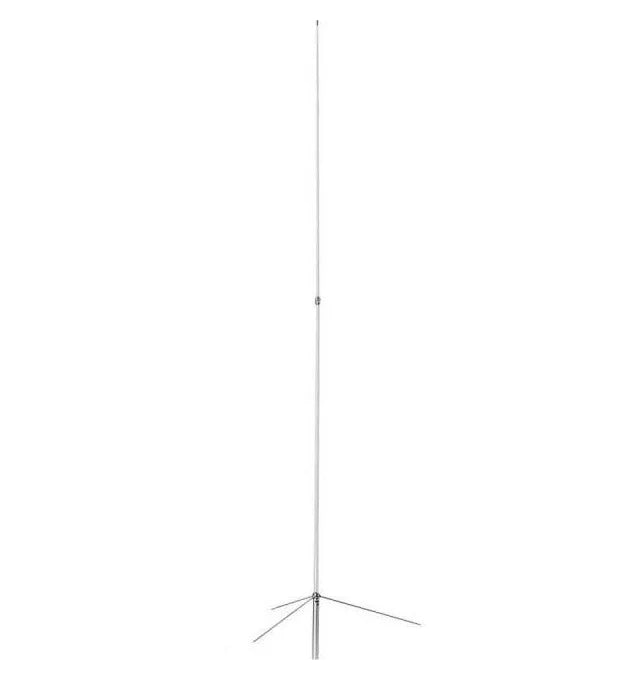

  • Type: Omnidirectional 2×7/8 λ with FRP outer shell
  • Polarization: Vertical
  • Construction: Fiberglass radome with overlapping outer shells for added strength

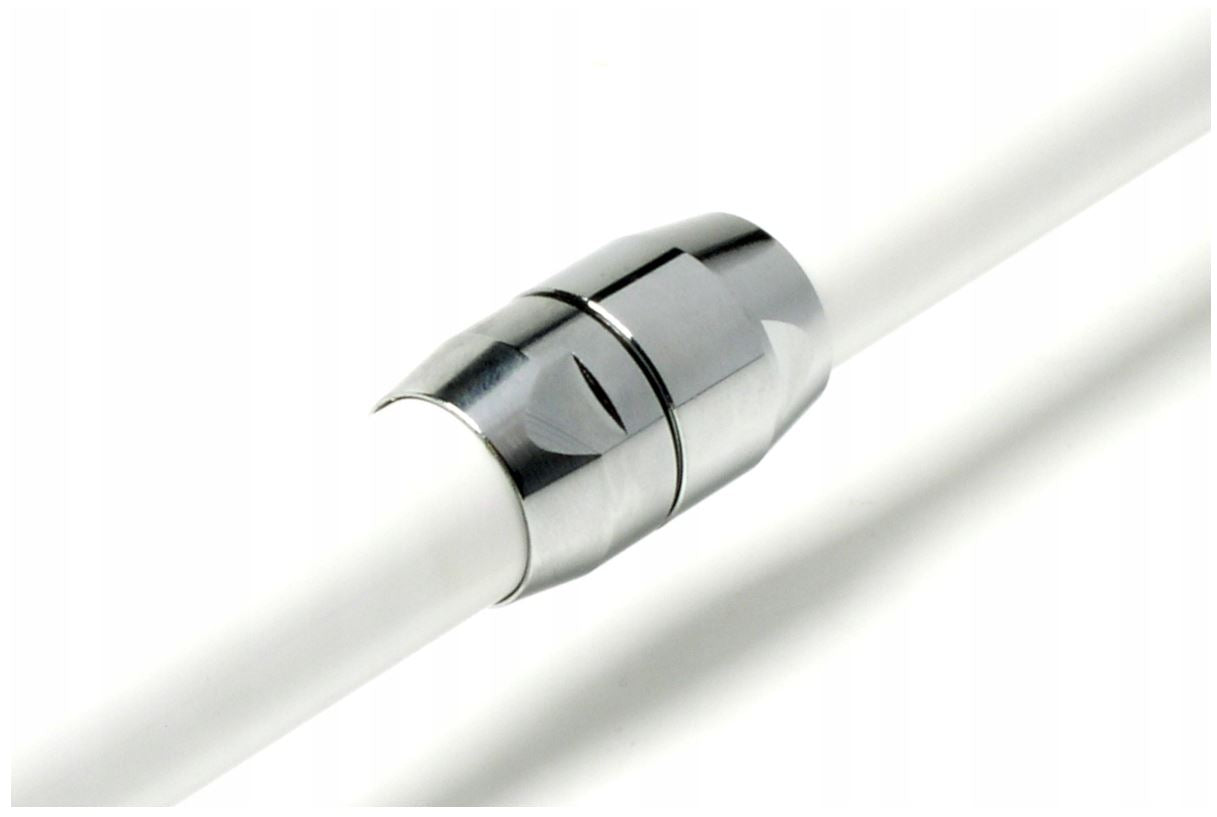

  • Features: Strong waterproof joint couplings and stainless steel hardware
  • Installation: Factory adjusted, no tuning required
  • Lightning protection: Direct ground
