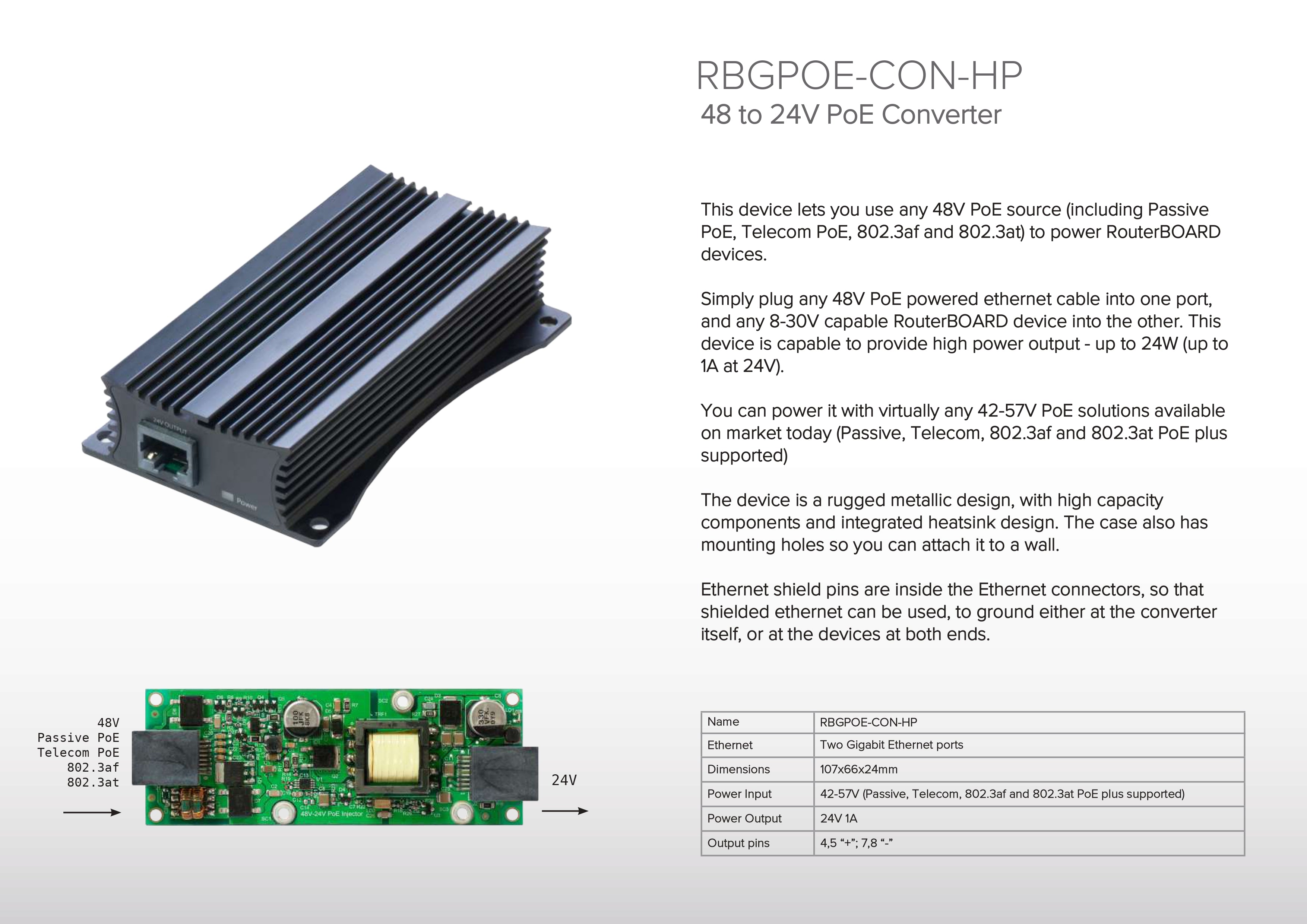

Product Description
The MikroTik RBGPOE-CON-HP is a powerful PoE converter that allows you to use any 48V PoE source—including Passive PoE, Telecom PoE, 802.3af, and 802.3at—to power 24V RouterBOARD devices. Designed with high-power output and robust construction, this converter is perfect for a wide range of networking setups.
Key Features:
- Converts 48V PoE input to 24V output for RouterBOARD devices
- Supports Passive PoE, Telecom PoE, 802.3af, and 802.3at standards
- Delivers up to 24W output power (1A at 24V)
- Accepts a wide input voltage range: 42-57V
- Two Gigabit Ethernet ports for high-speed data transmission
- Integrated heatsink design with rugged metallic housing
- Shielded Ethernet support with grounding at either end
- Wall-mountable with pre-drilled mounting holes
Additional Specifications:
- Product code: RBGPOE-CON-HP
- Dimensions: 107 x 66 x 24 mm
- Power input: 42-57V from any Passive, Telecom, 802.3af, or 802.3at PoE source
- Power output: 24V 1A (up to 24W)
- Output pins: 4,5 “+”; 7,8 “-”
