Product Description

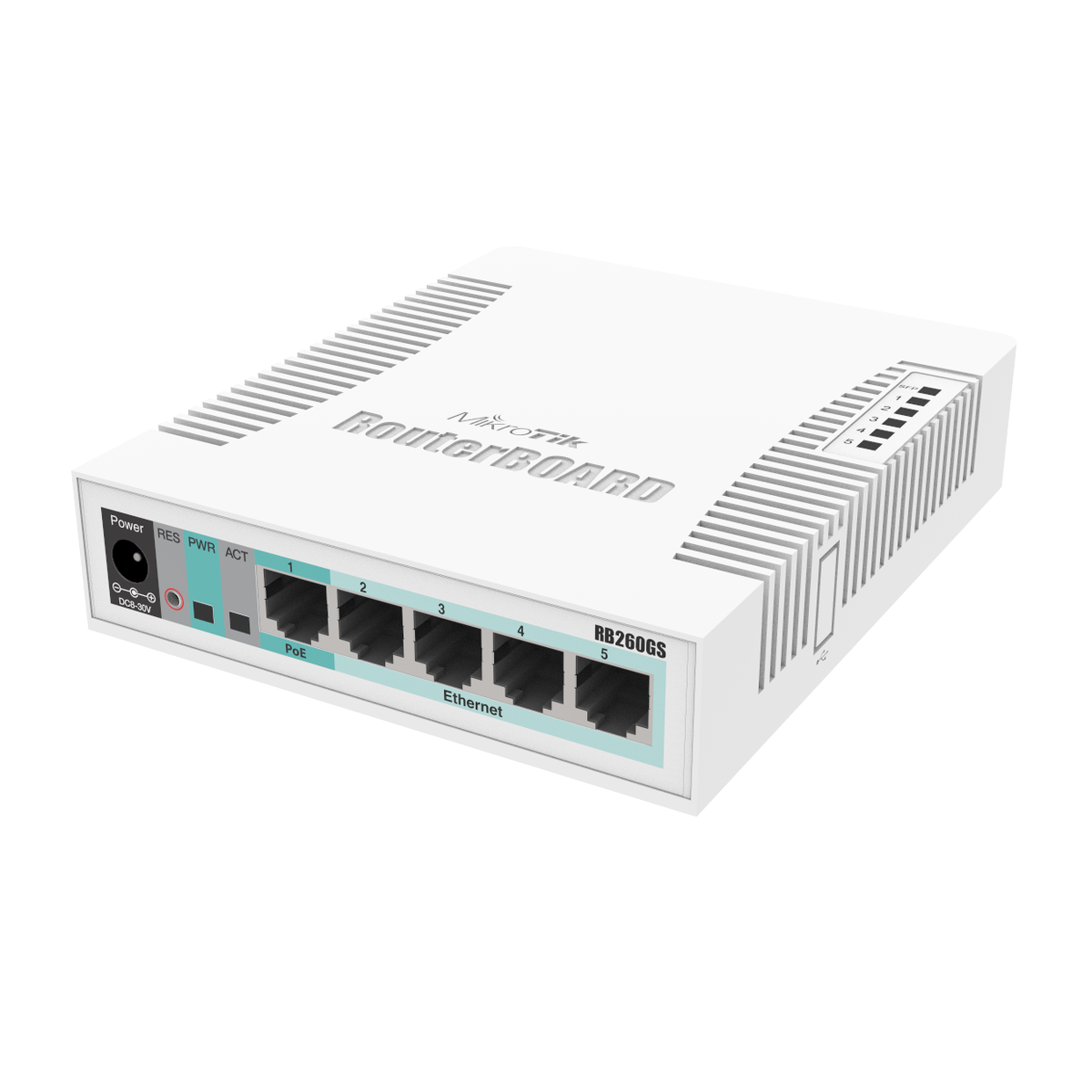

The MikroTik RB260GS series is a compact and cost-effective SOHO smart switch designed for small office or home environments. It includes two models: the RB260GS and the RB260GSP. Both models feature five Gigabit Ethernet ports and one SFP cage for fiber connectivity. The RB260GSP model adds passive PoE output on ports 2 through 5, allowing you to power compatible devices directly through the switch using the same input voltage.
Switching is handled by a reliable Atheros AR8327 switch chip, and the devices run MikroTik’s SwOS – a lightweight operating system designed specifically for managed switches. SwOS offers an easy-to-use web interface with a wide range of features including port-to-port forwarding control, MAC filtering, VLAN configuration, traffic mirroring, bandwidth limiting, and basic layer 2 management options.
Key Features:
- Five Gigabit Ethernet ports with Atheros AR8327 switch chip

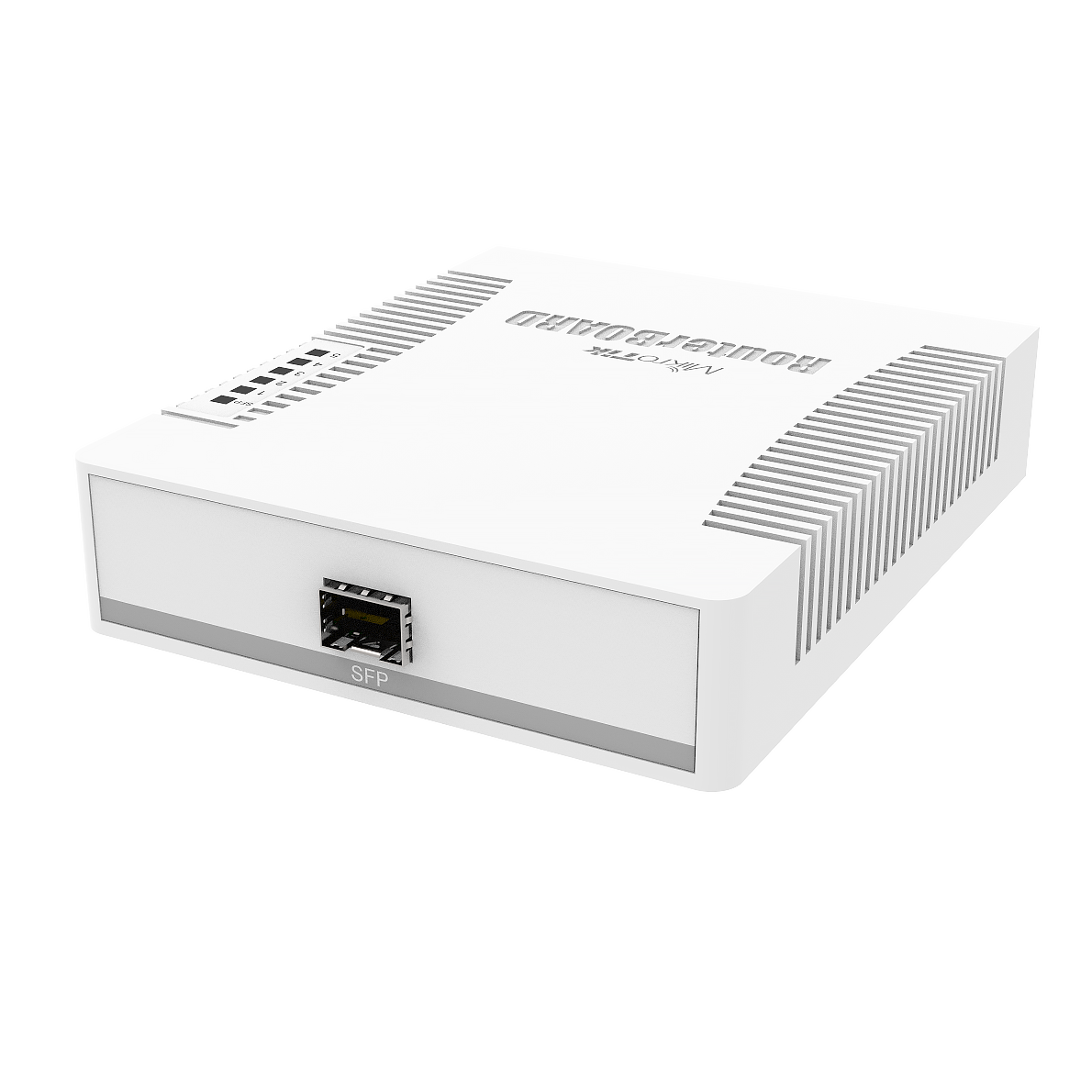

- One SFP cage with DDMI support (SFP module not included)
- RB260GSP model includes passive PoE output on ports 2–5 (max 1A per port)
- Operates on 8–30V DC via PoE or power jack
- Compact and durable with hardware watchdog
- Web-based SwOS interface for configuration and management
- Recommended SFP modules: S-85DLC05D, S-31DLC20D, S-35/53LC20D (not included)
- Operating temperature: -25°C to +65°C
