Product Description

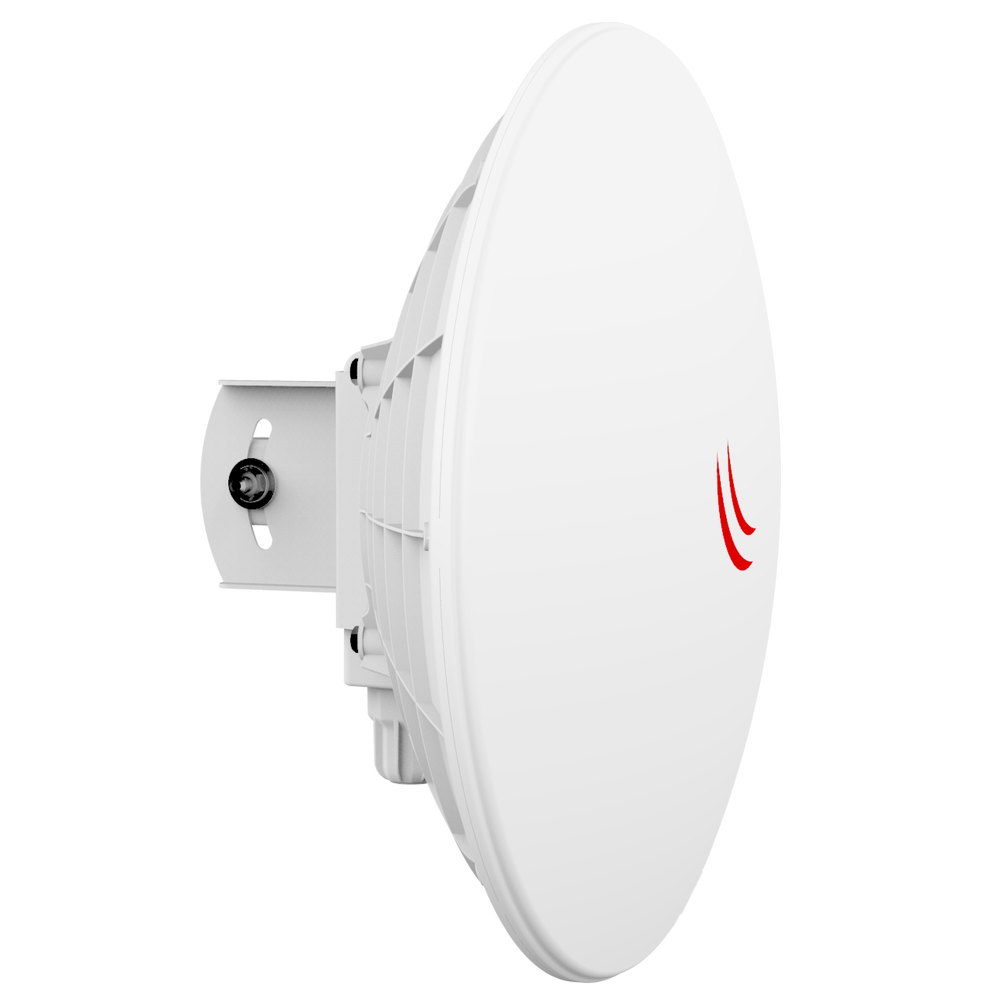

The MikroTik DynaDish 5 is a powerful and compact 802.11ac outdoor wireless device with an integrated high-gain dish antenna. Designed for long-range, point-to-point wireless links, it offers reliable performance in a simple, all-in-one form factor.
Key Features:
- Integrated 5 GHz dual-chain radio with 25 dBi gain and 8° beam width
- Ideal for long-distance point-to-point wireless connections
- Powered by a 720 MHz Qualcomm QCA9557 CPU with QCA9892 wireless chip
- 128 MB DDR2 RAM and one 10/100/1000 Gigabit Ethernet port
- Supports 802.11ac wireless standard with 20/40/80 MHz channel widths
- PoE input supported: 11V–60V passive or 802.3af/at (with unshielded cable)
- Voltage and PCB temperature monitoring included
- Maximum power consumption: 9W
- Compact size: 404 mm diameter, 175 mm height (excluding mount)
- Operating system: RouterOS with license level 3
Wireless Performance:
- Tx power: Up to 31 dBm on lower data rates
- Rx sensitivity: As low as -96 dBm depending on modulation
- Horizontal and vertical polarization supported

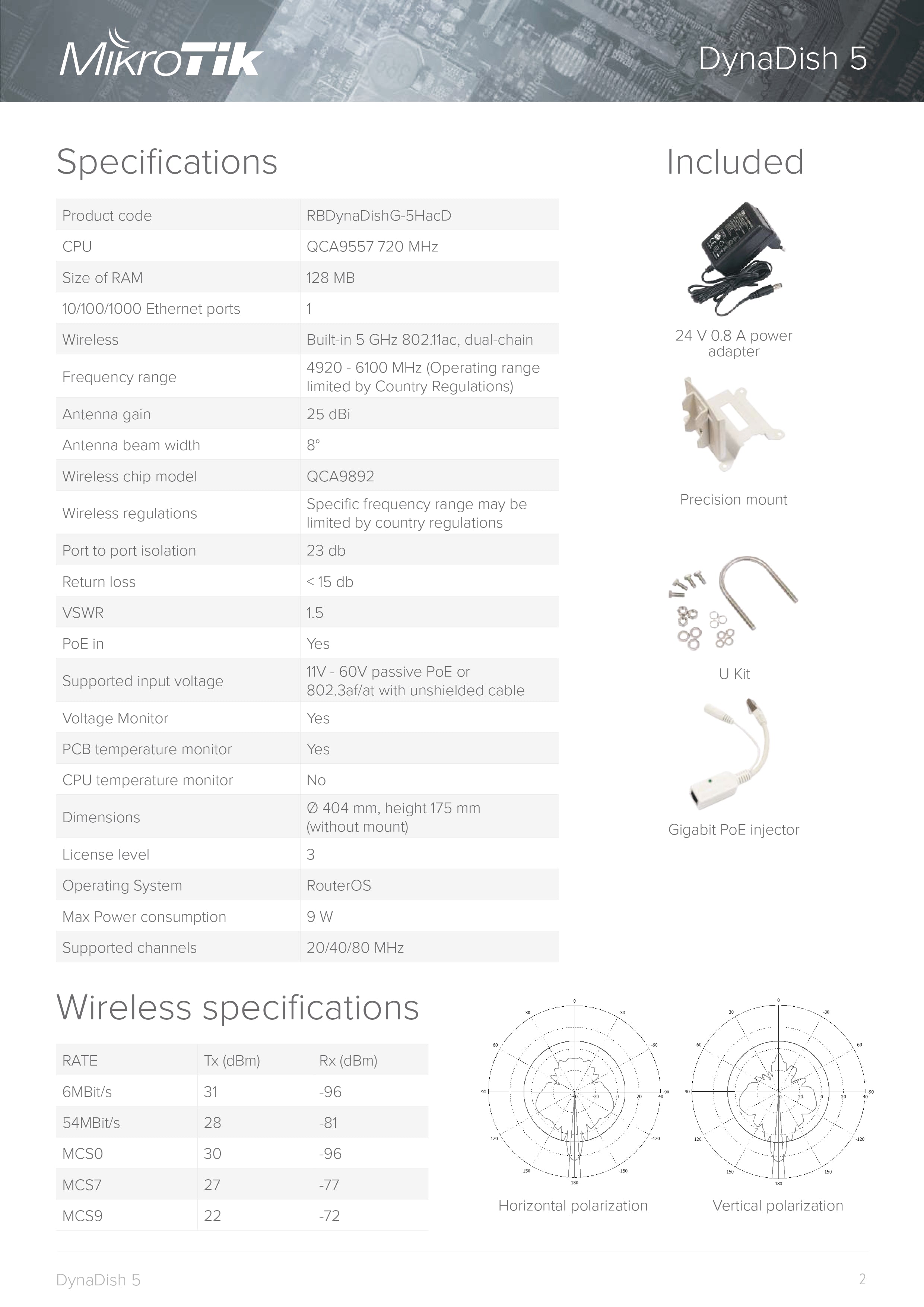

Additional Specifications:
- Product code: RBDynaDishG-5HacD
- Frequency range: 4920 – 6100 MHz (subject to country regulations)
- Port-to-port isolation: 23 dB
- Return loss: Less than 15 dB
- VSWR: 1.5
- Included accessories: 24V 0.8A power adapter, precision mount, U Kit, Gigabit PoE injector
