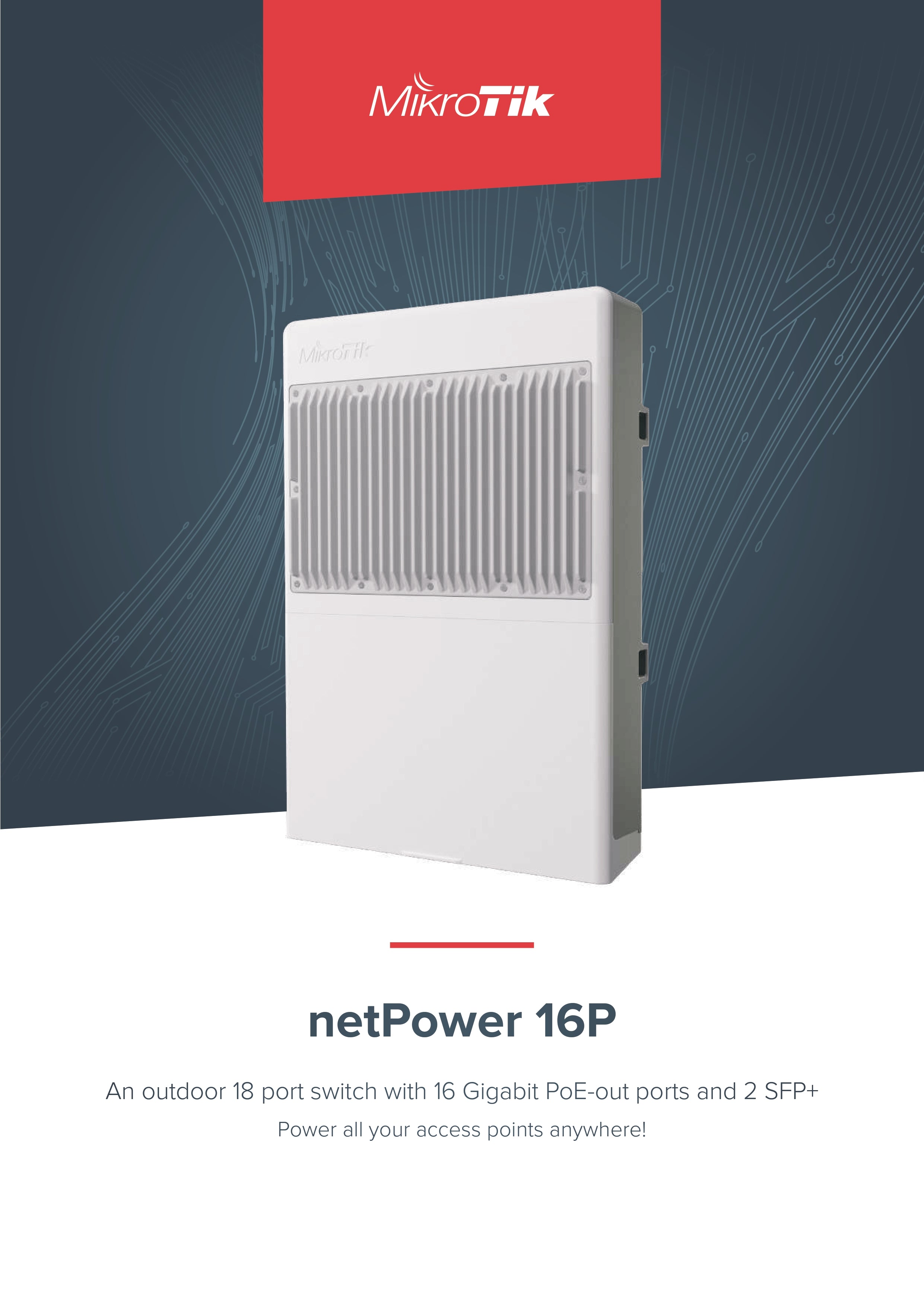

netPower 16P

An outdoor 18-port switch with 16 Gigabit PoE-out ports and 2 SFP+.

Power all your access points anywhere!

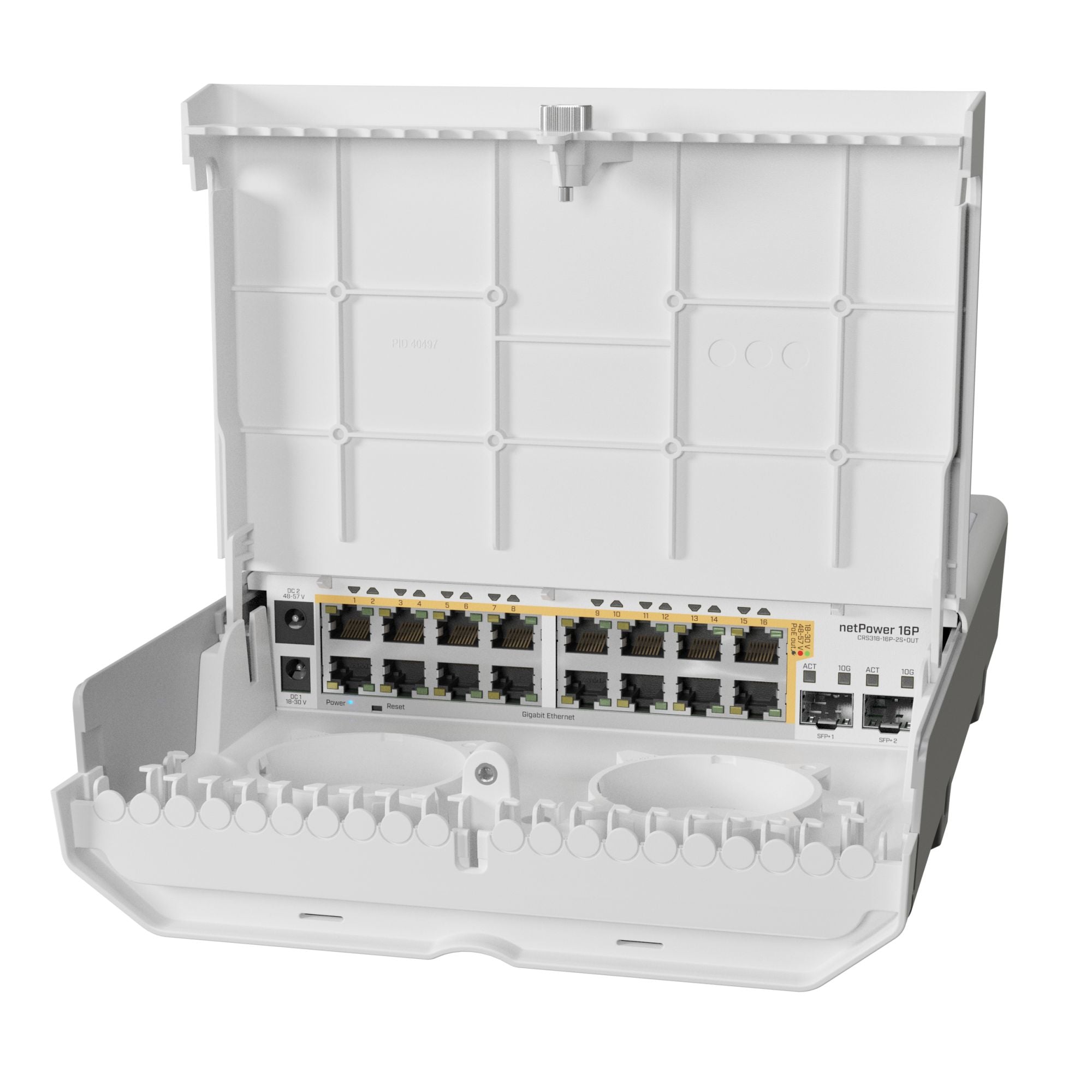

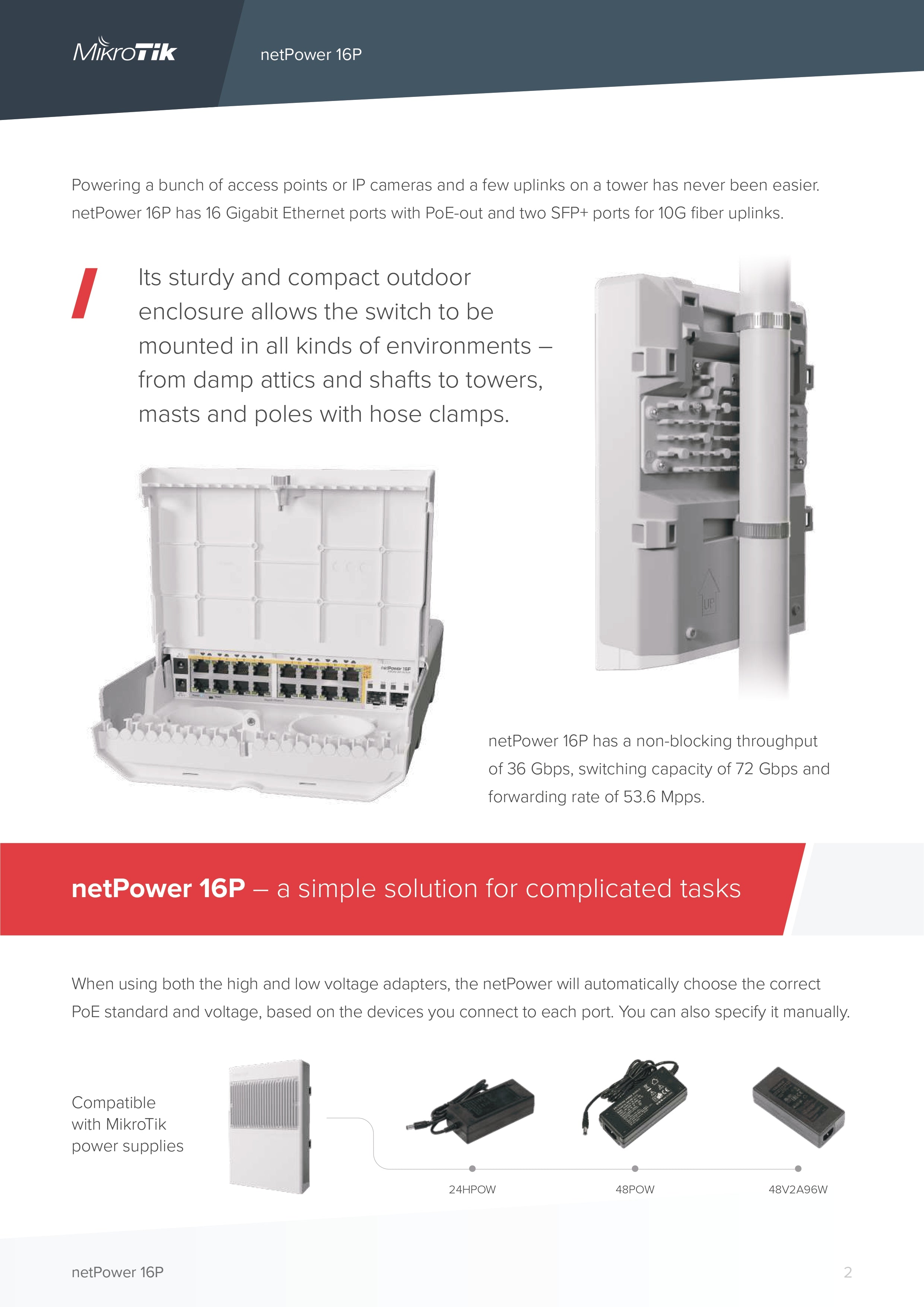

Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.

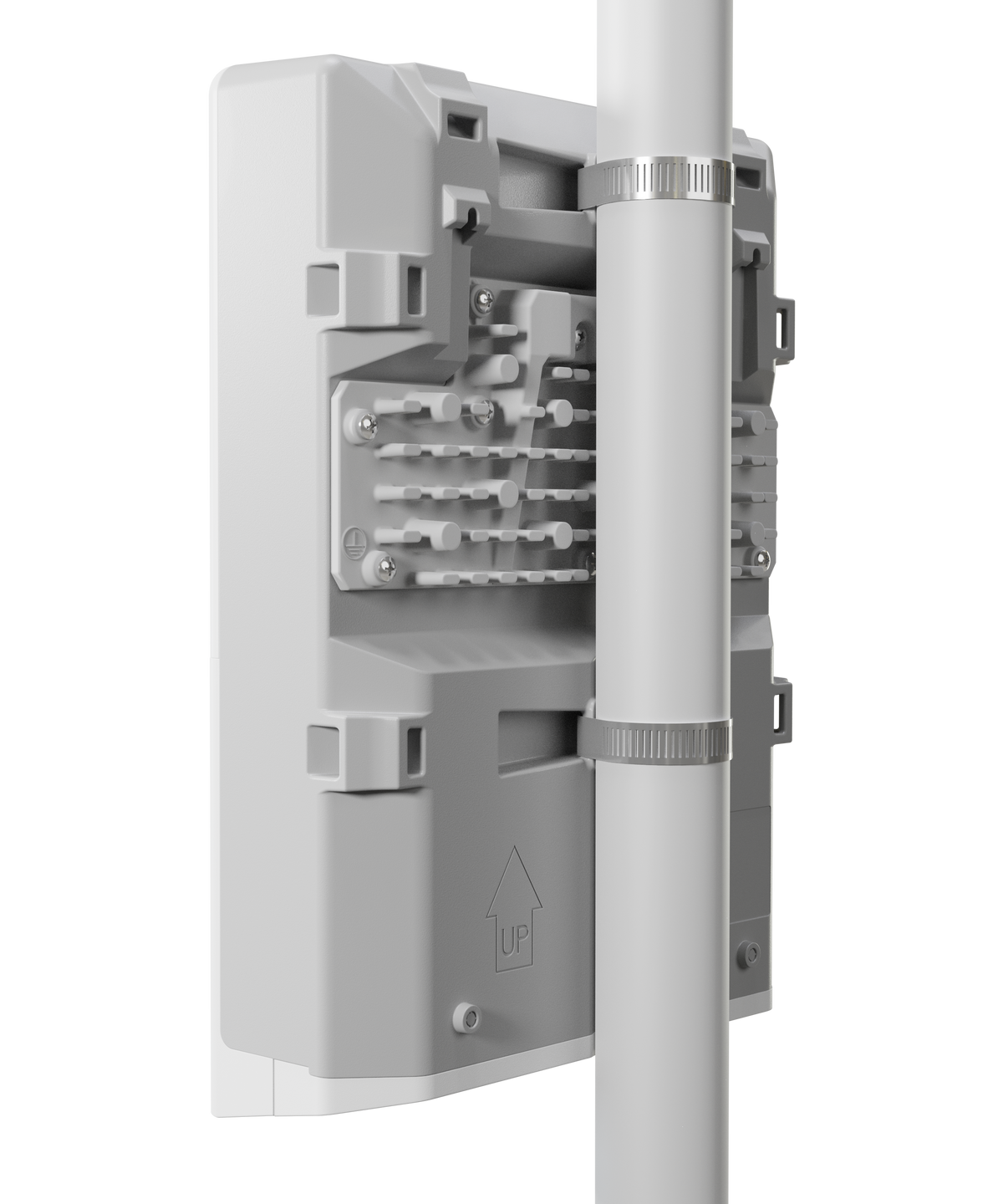

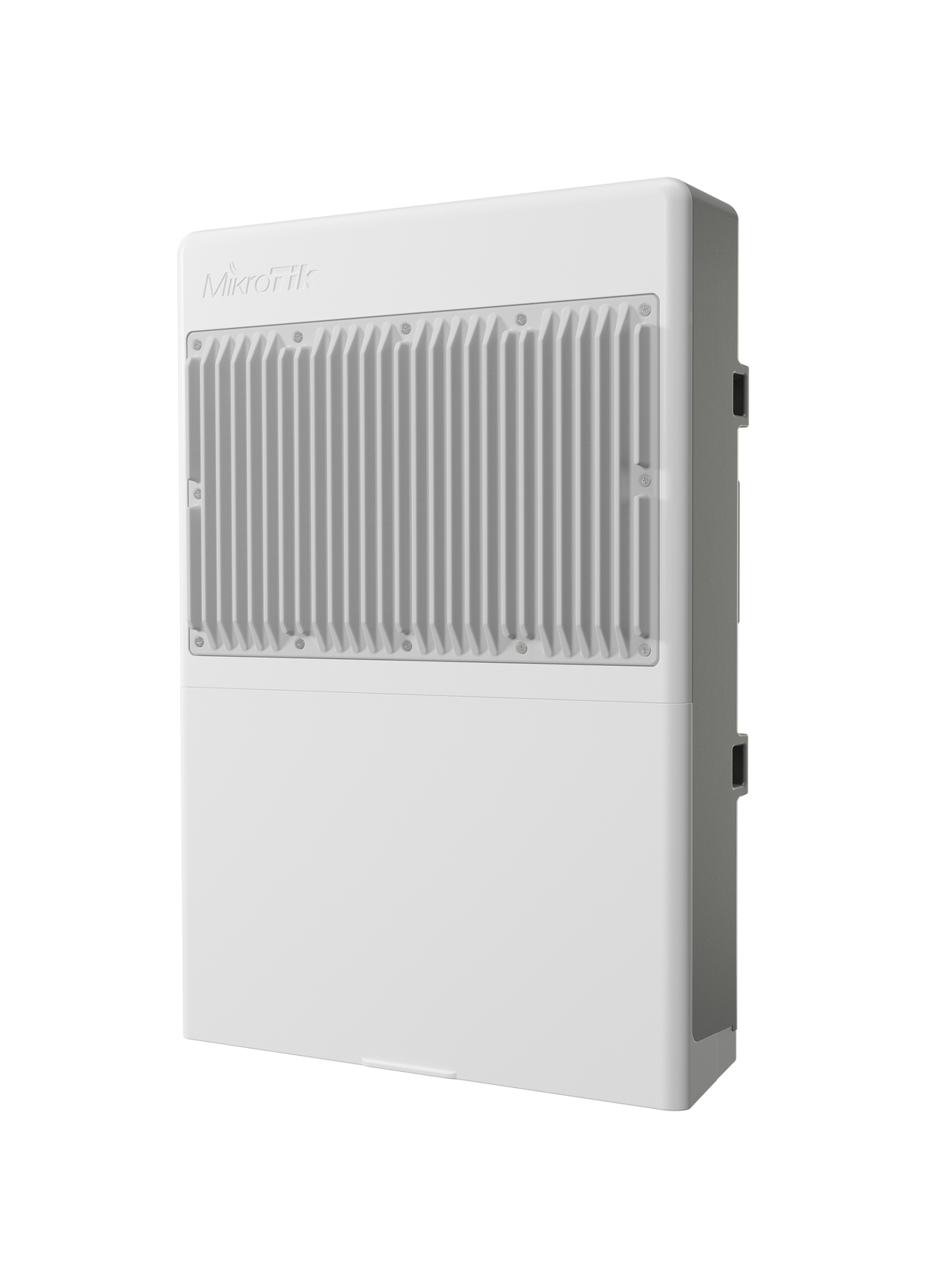

Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments – from damp attics and shafts to towers, masts and poles using hose clamps.

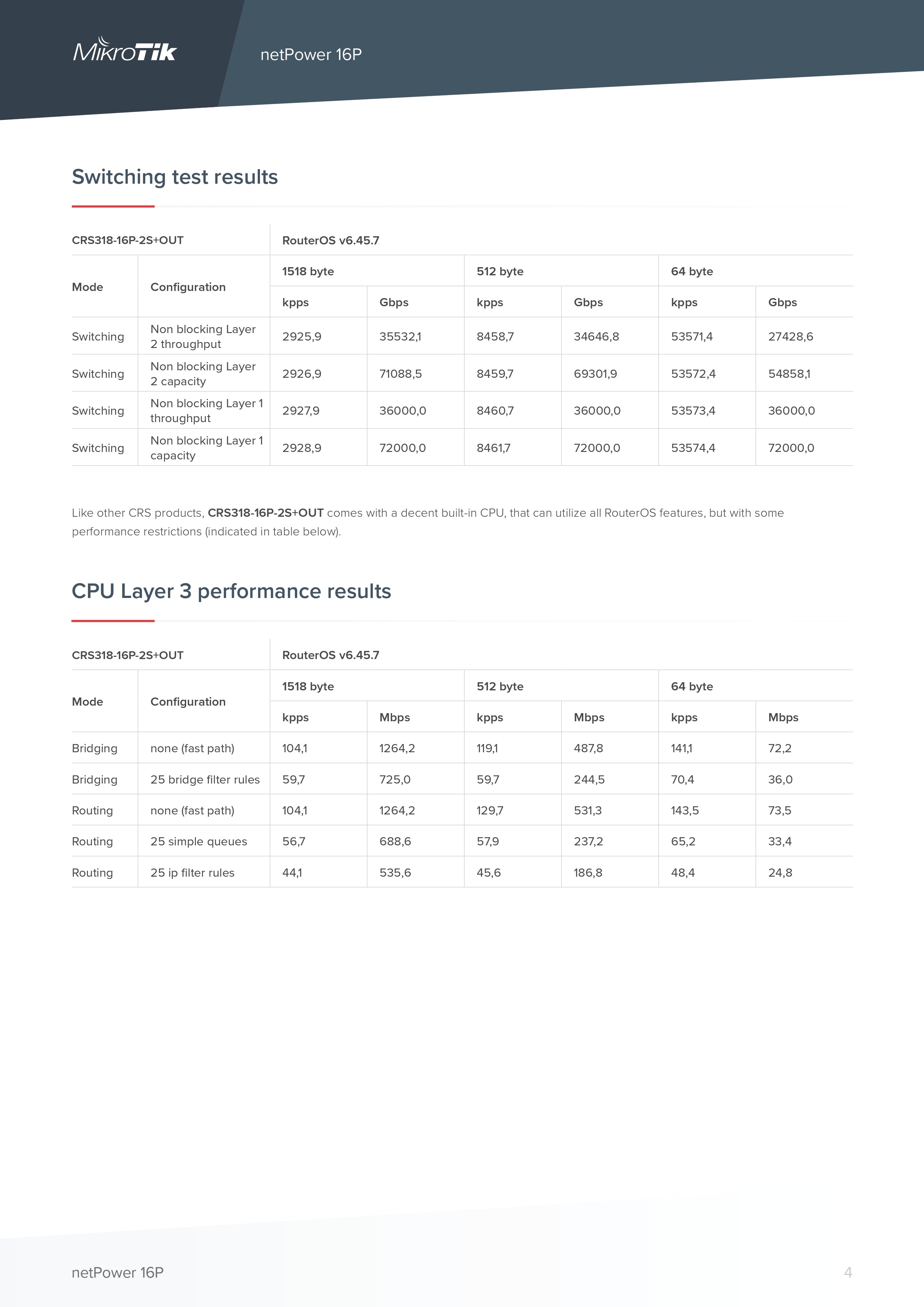

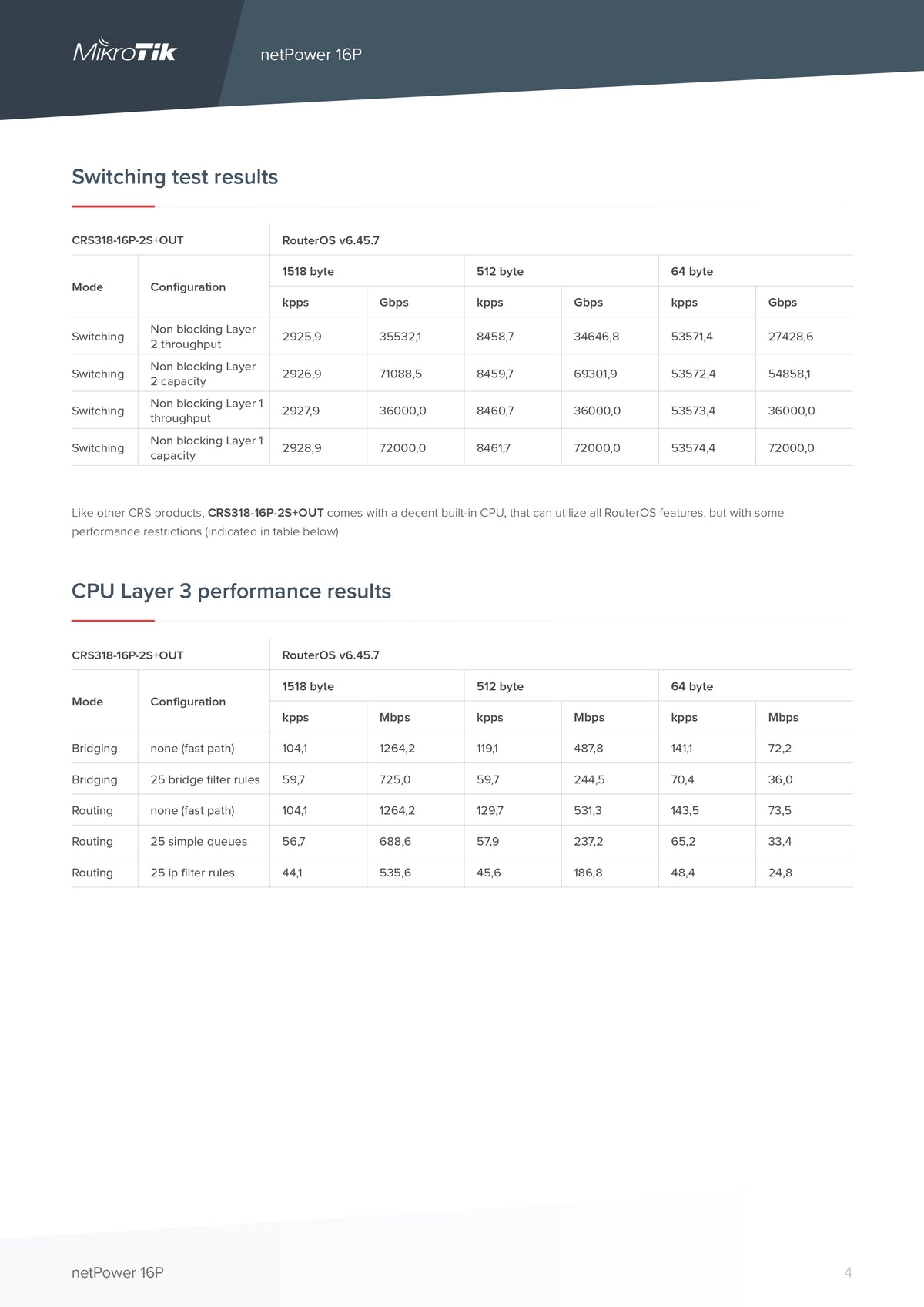

netPower 16P offers a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and a forwarding rate of 53.6 Mpps – a simple solution for complicated tasks.

When using both the high and low voltage inputs, the switch intelligently chooses the correct PoE standard and voltage based on the devices connected. Manual configuration is also possible.

Compatible with MikroTik power supplies: 24HPOW, 48POW, 48V2A96W.

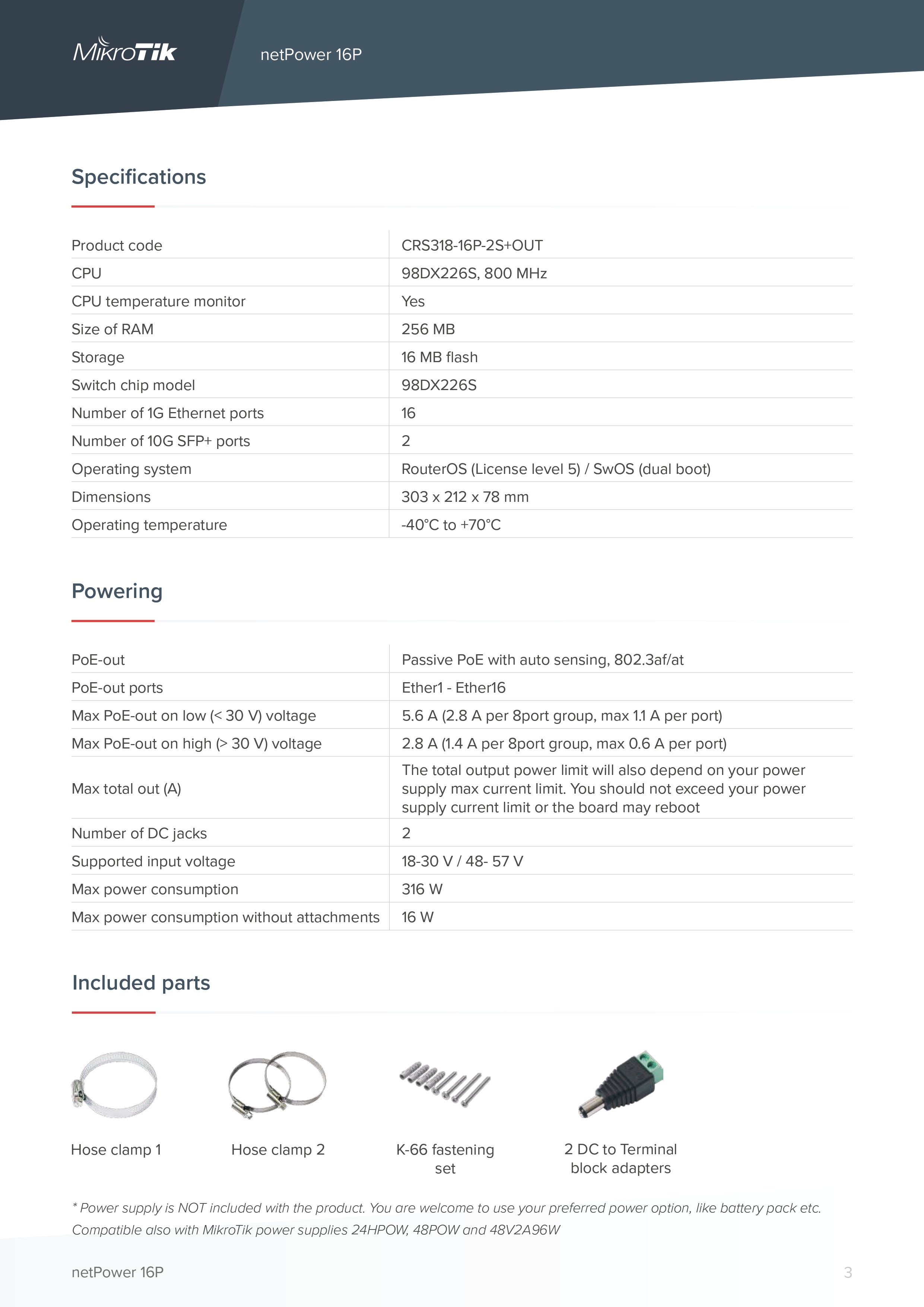

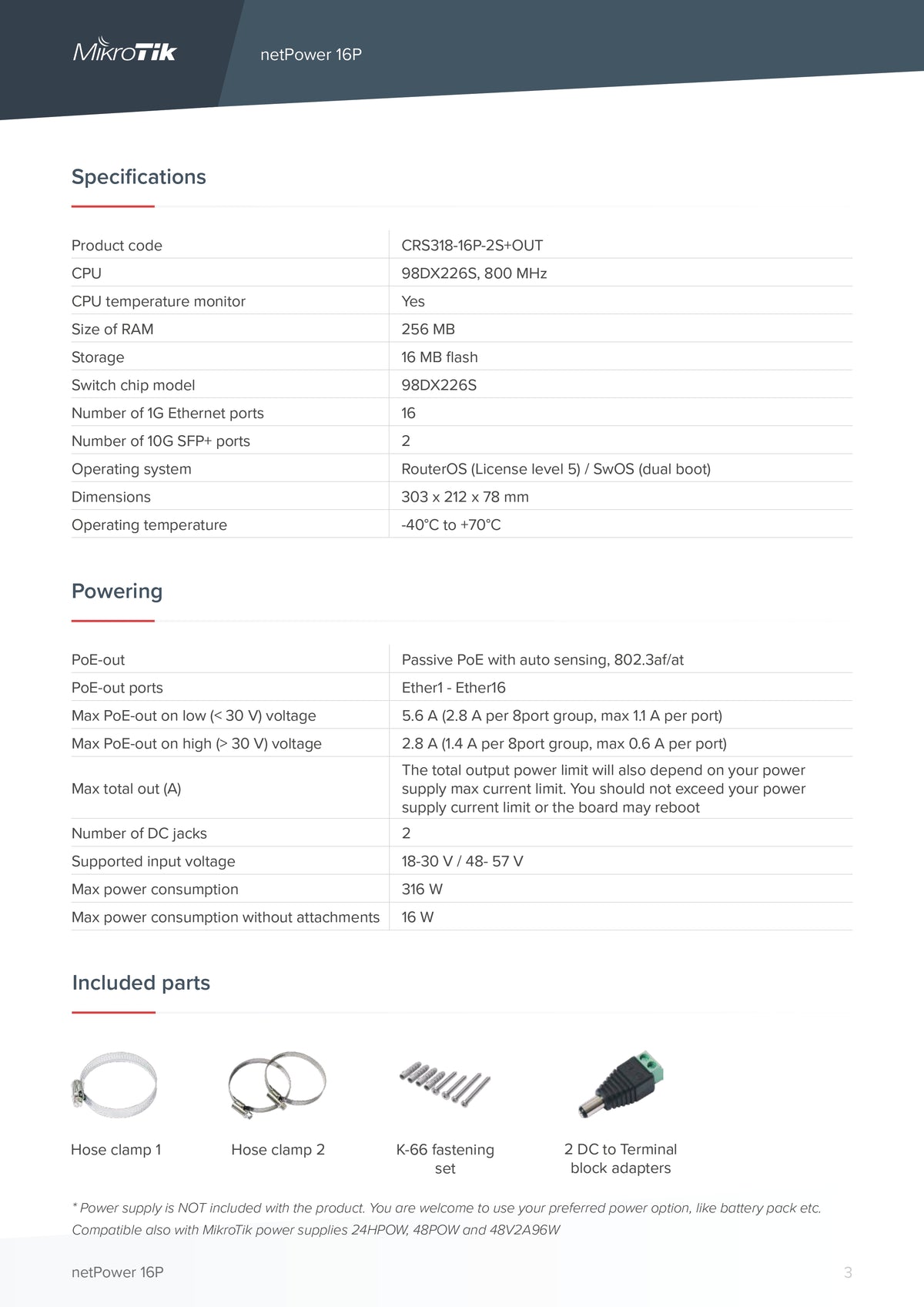

Specifications

• Product code: CRS318-16P-2S+OUT
• CPU: 98DX226S, 800 MHz (with temperature monitor)
• RAM: 256 MB
• Storage: 16 MB flash
• Switch chip model: 98DX226S
• 1G Ethernet ports: 16
• 10G SFP+ ports: 2
• PoE-out: Passive PoE with auto sensing, 802.3af/at
• PoE-out ports: Ether1 – Ether16
• Max PoE-out (low voltage): 5.6 A total (2.8 A per 8-port group, 1.1 A max per port)
• Max PoE-out (high voltage): 2.8 A total (1.4 A per 8-port group, 0.6 A max per port)
• DC jacks: 2
• Input voltage: 18–30 V / 48–57 V
• Max power consumption: 316 W
• Without attachments: 16 W
• Dimensions: 303 x 212 x 78 mm
• Operating temperature: -40°C to +70°C
• Operating system: RouterOS (License level 5) / SwOS (dual boot)

Included Parts

• 2x Hose clamps
• K-66 fastening set
• 2x DC to terminal block adapters
• *Power supply not included. Compatible with MikroTik 24HPOW, 48POW, and 48V2A96W
