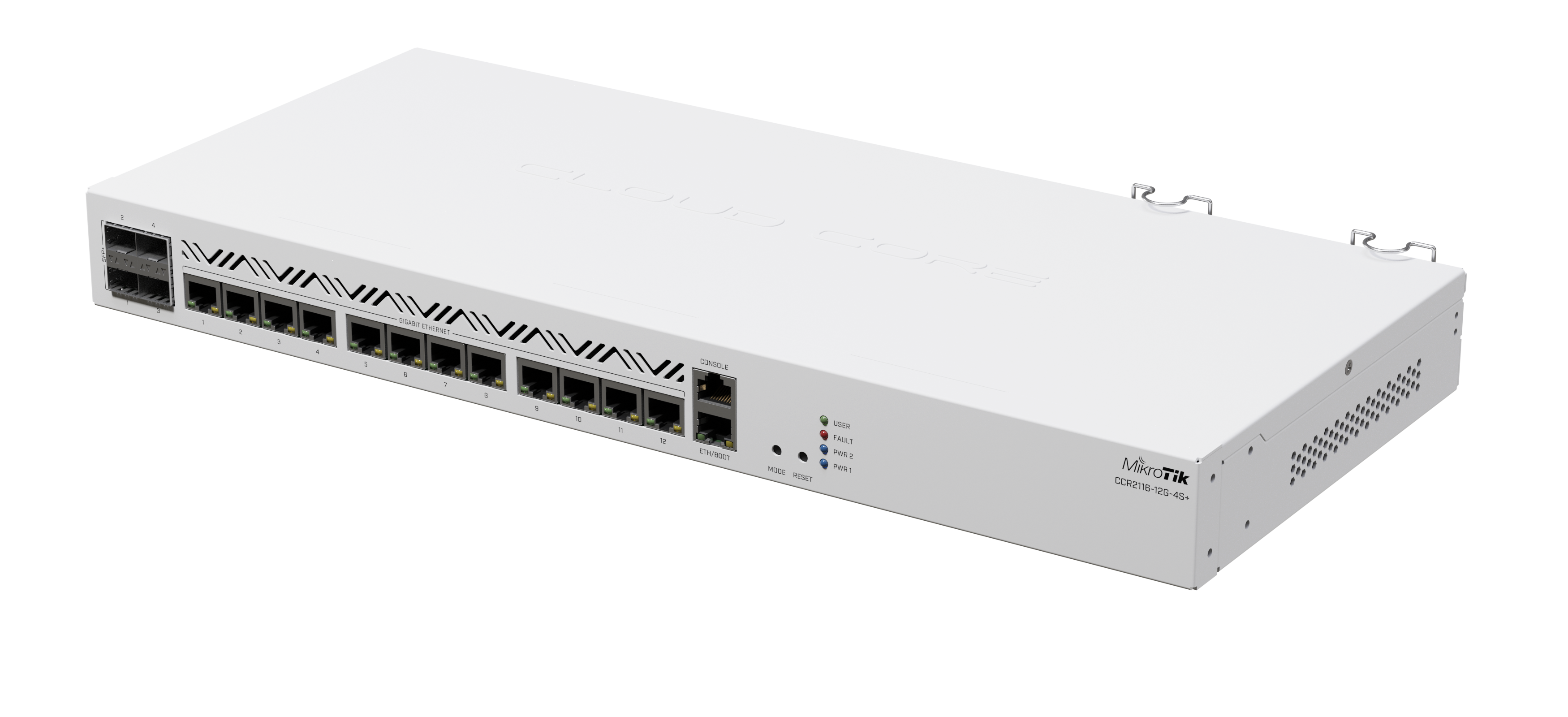

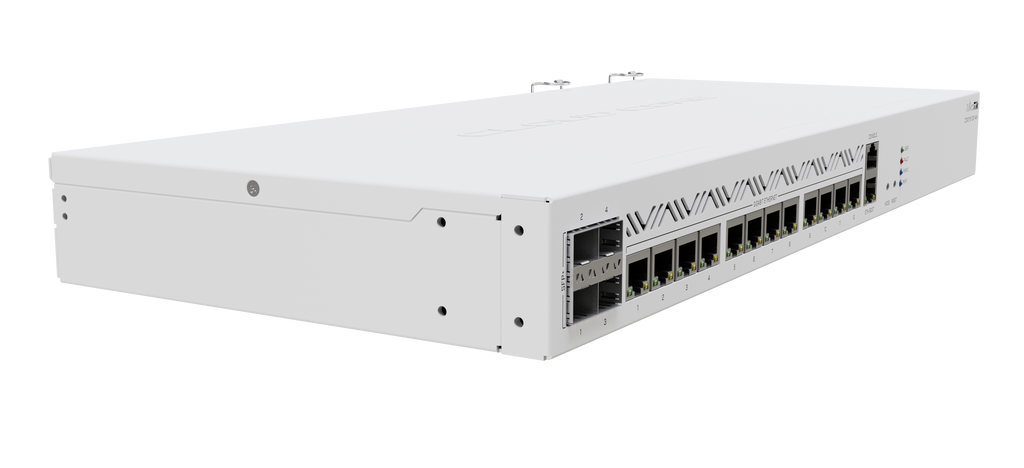

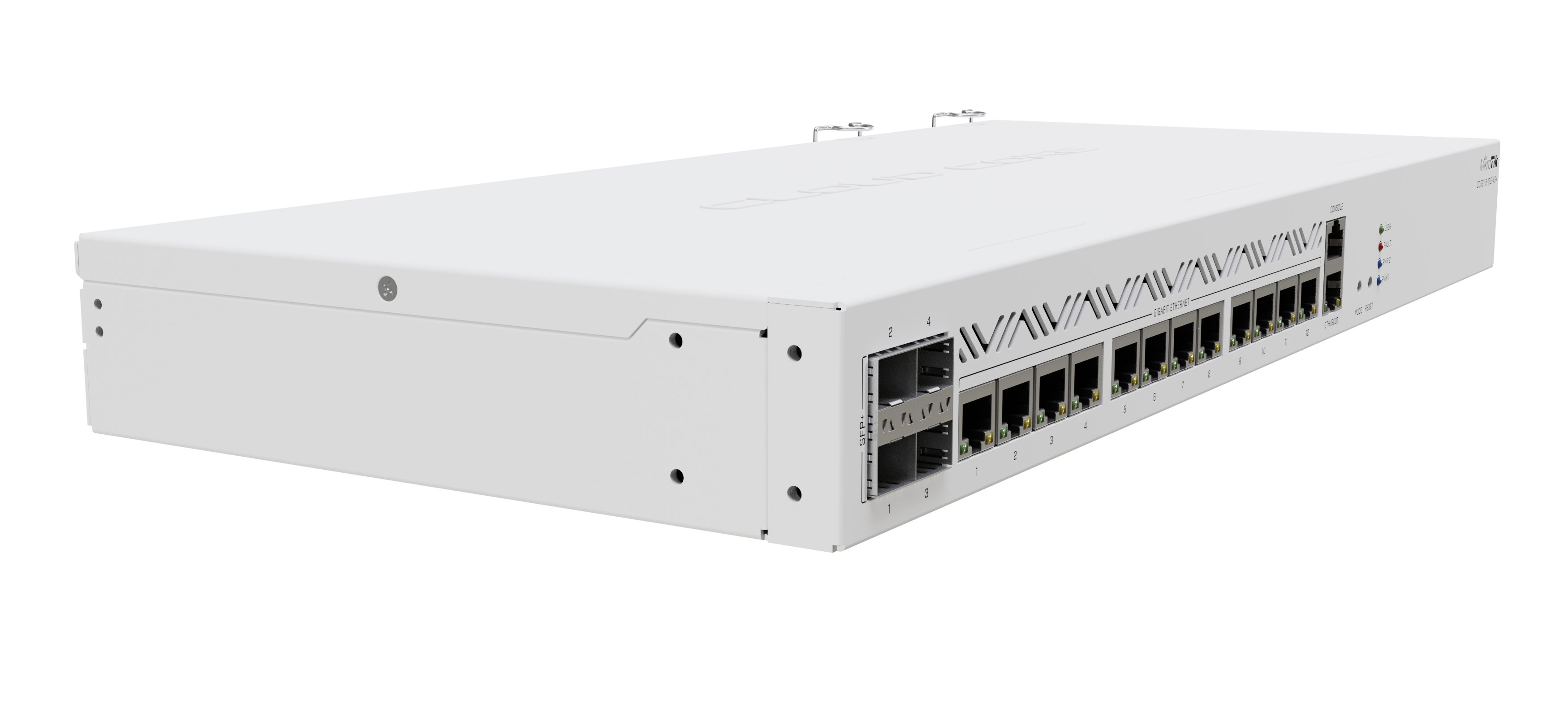

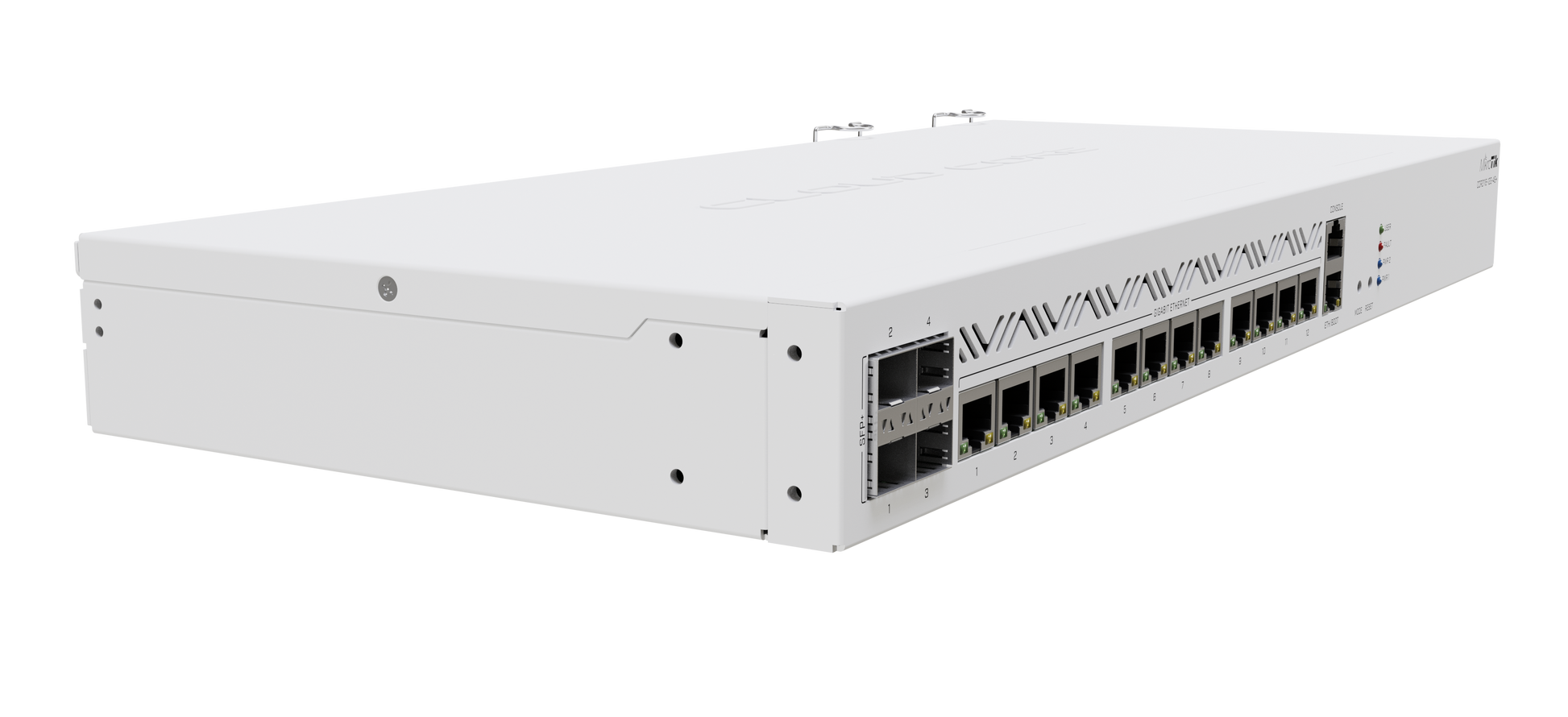

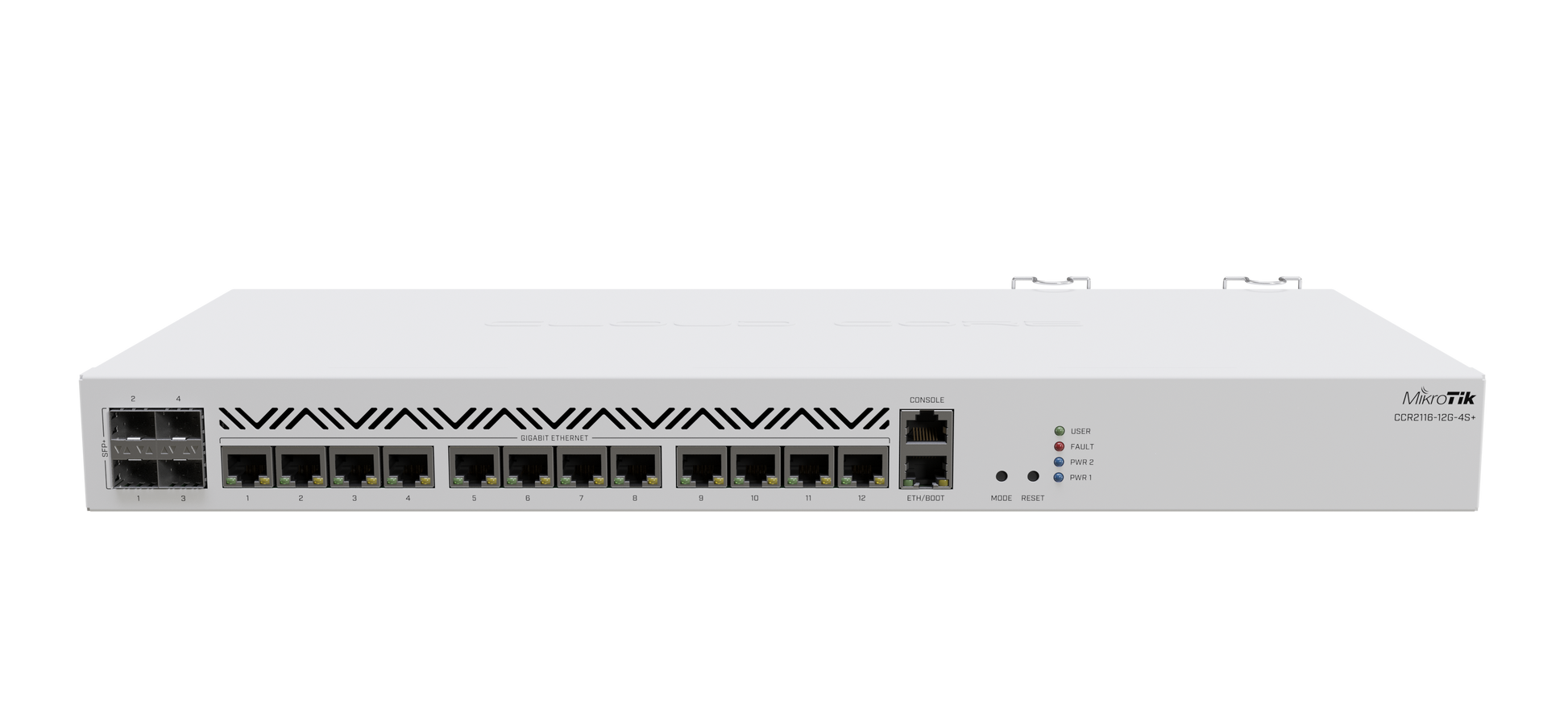

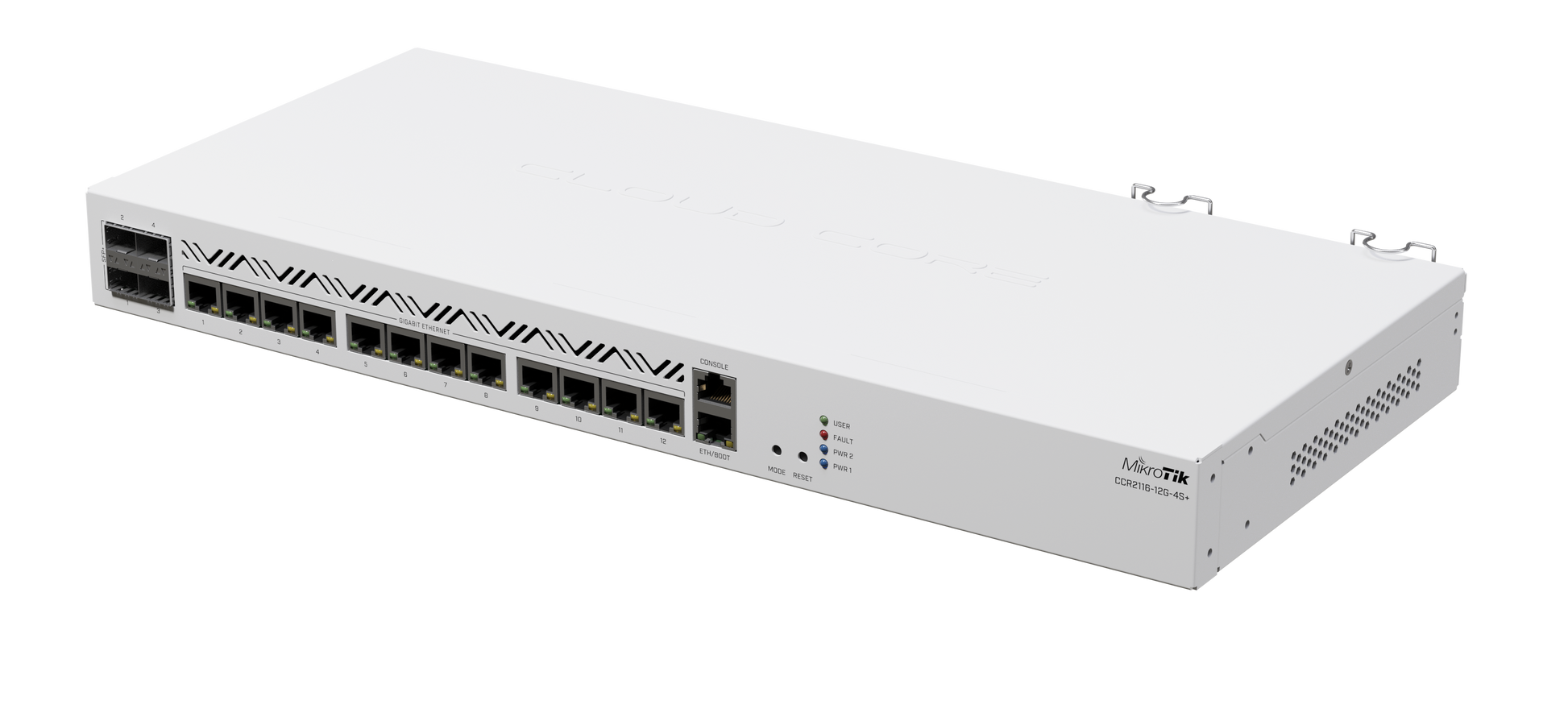

MikroTik CCR2116‑12G‑4S+ 16‑Core 2 GHz Cloud Core Router – 13× GbE, 4× 10Gb SFP+, 16 GB RAM, Dual PSU, Layer‑3 Offload

 Description

This MikroTik high-performance rackmount router is designed for enterprise networks, ISPs, and demanding professional networking environments. Powered by a 16-core ARM 64-bit processor running at 2GHz and 16GB DDR4 RAM, it delivers powerful performance for advanced routing, network management, and high-speed data processing. Featuring 13 Gigabit Ethernet ports, 4 × 10G SFP+ ports, M.2 SSD expansion, and RouterOS v7, it provides flexible connectivity, hardware-accelerated routing, and reliable operation in a compact 1U rackmount design.

Key Features

• Powerful 16-Core Processor: ARM 64-bit AL73400 processor with 16 cores running at 2GHz for demanding routing and networking applications.
• High-Performance Memory: 16GB DDR4 RAM for efficient multitasking and handling intensive network workloads.
• Built-in Storage: 128MB NAND storage for operating system files and configuration data.

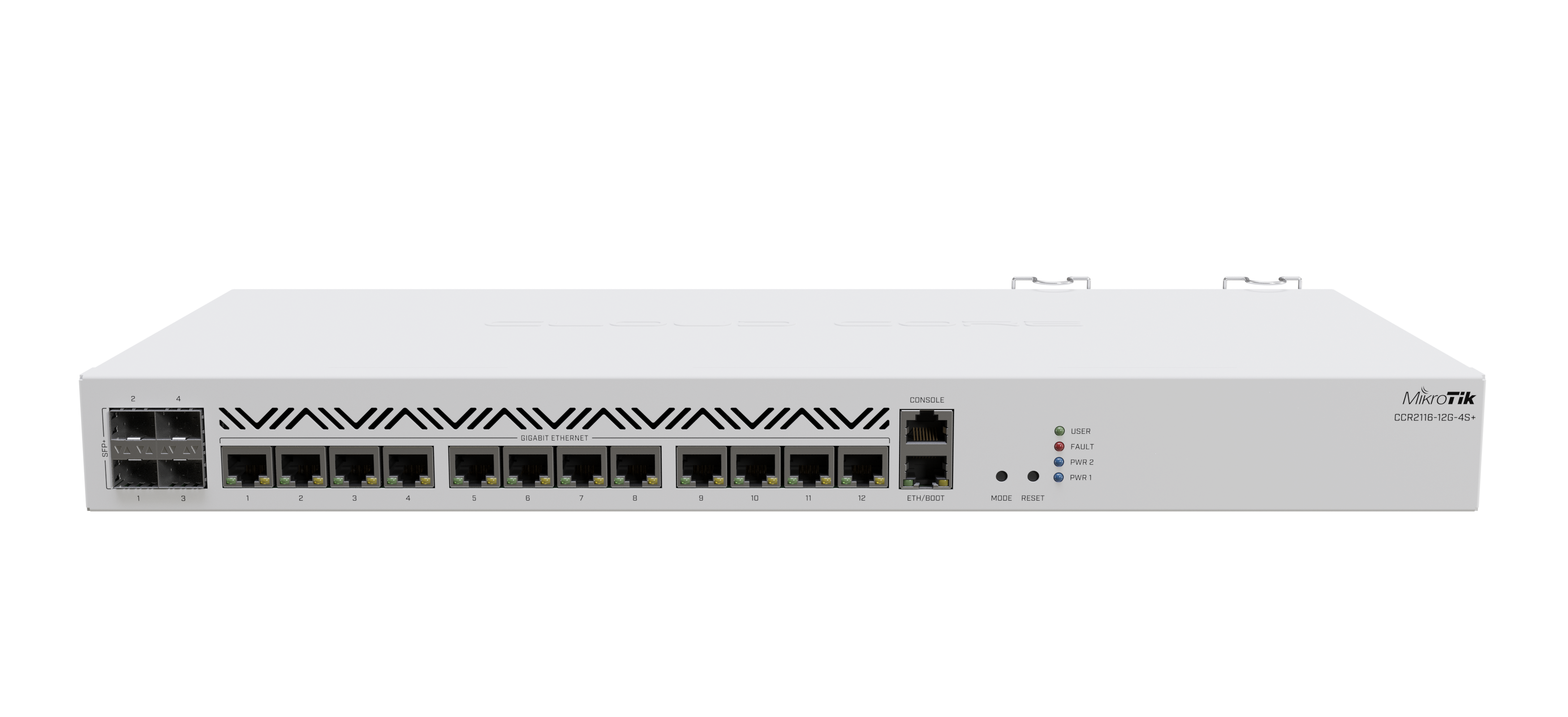

• Gigabit Ethernet Connectivity: 13 × Gigabit RJ45 Ethernet ports, including 12 ports connected through the Marvell 98DX3255 switch chip and one dedicated CPU-connected management port.
• High-Speed Fiber Connectivity: 4 × 10G SFP+ ports with dedicated full-duplex connections to the switch chip for high-bandwidth network applications.
• M.2 SSD Expansion: One M.2 slot with PCIe 3.0 x4 interface supporting compatible SSDs up to 8TB.
• Advanced Operating System: Runs on MikroTik RouterOS v7 with a Level 6 license for professional routing, network configuration, and management.
• Layer 3 Hardware Offloading: Supports hardware-accelerated Layer 3 routing for efficient traffic processing and improved network performance.
• Hardware-Accelerated IPsec: Provides accelerated IPsec processing for secure VPN connections and encrypted network communication.
• Advanced Network Management: Supports routing, firewall configuration, VPN, VLANs, and bandwidth management for professional networking environments.

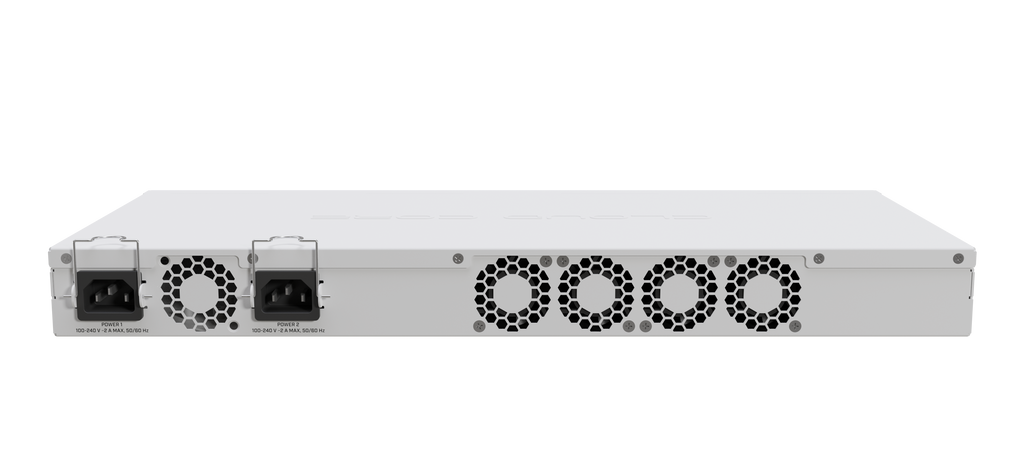

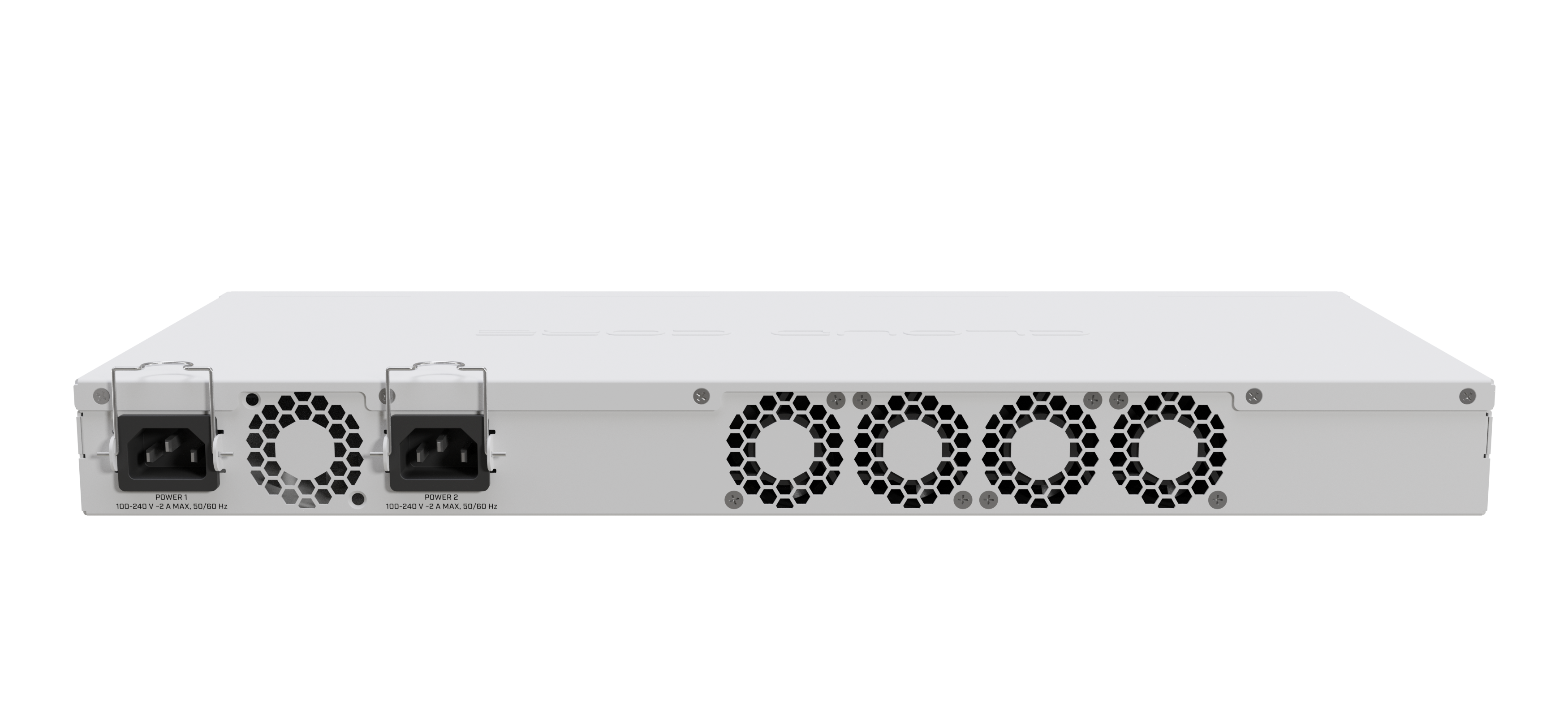

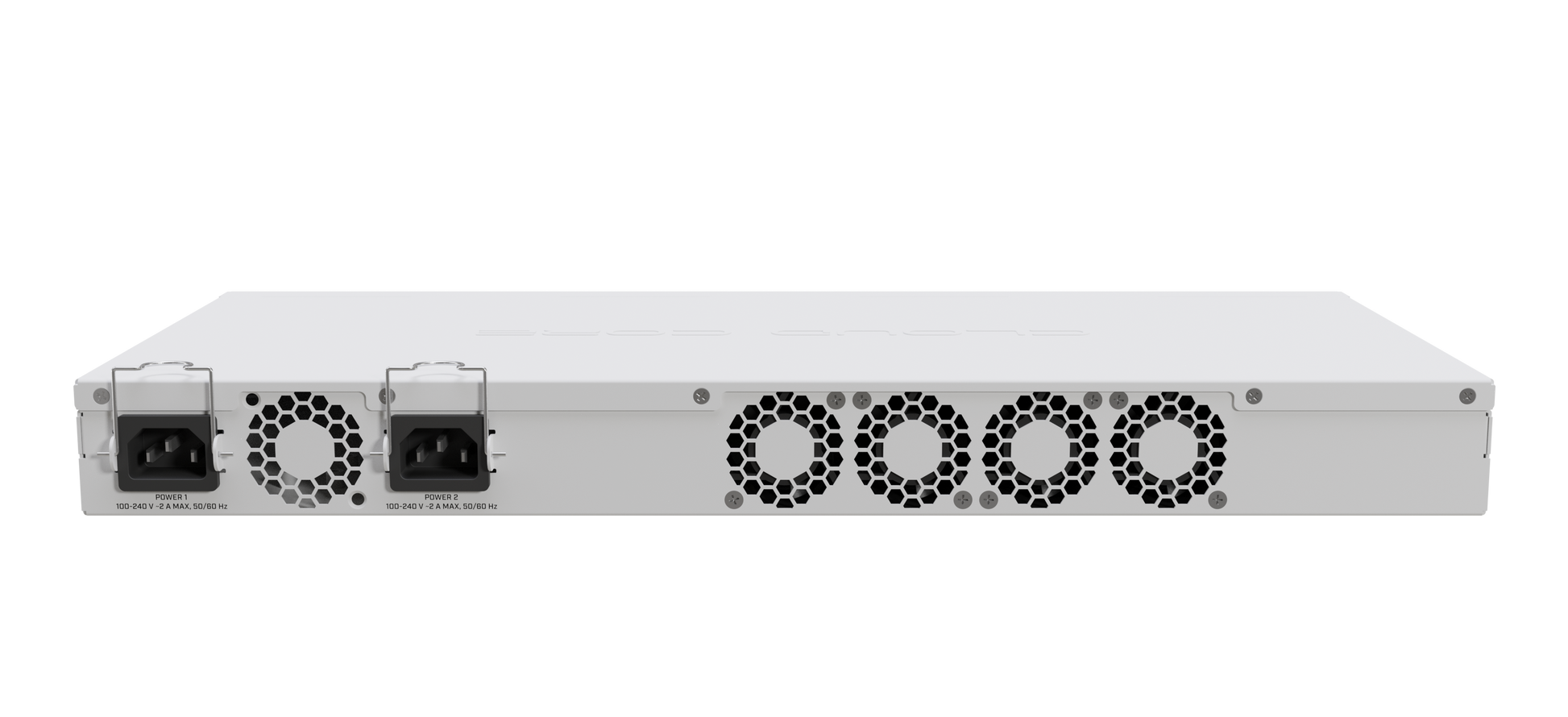

• Redundant Power Supplies: Dual 100–240V AC power supplies with redundancy support for improved system reliability.
• Power Consumption: Approximately 60W idle power consumption and up to 83W maximum power consumption.
• Efficient Cooling System: Equipped with four internal cooling fans for effective heat management during demanding network operations.
• Wide Operating Temperature: Tested for operation in temperatures ranging from -20°C to +60°C.
• Long-Term Reliability: Estimated MTBF of approximately 200,000 hours at 25°C.
• Professional Rackmount Design: Compact 1U rackmount chassis measuring 443 × 199 × 44mm, suitable for server racks and enterprise network cabinets.
• Certified Quality: Complies with CE, FCC, EAC, and RoHS standards.
• Enterprise Networking Solution: Ideal for ISPs, data centers, enterprise networks, high-speed routing, and professional IT infrastructure.
• Package Contents: Includes two IEC power cords, rackmount ears, and a K-57 mounting kit.
