MikroTik Cloud Core Router | 12x 10G SFP+ | 2x 25G SFP28 | 1x Gigabit | 4-Core CPU | 4GB RAM | Dual AC PSU | RouterOS L6

CCR2004-1G-12S+2XS

The Connectivity Router - your best companion when it comes to SFP+ and SFP28 management!
10 and 25 Gbps ports in a single device to make your life easier.

CCR2004-1G-12S+2XS

The “Improvise. Adapt. Overcome.” mindset can be very helpful, but sometimes you simply need a device that works and solves the problem without additional tinkering. The CCR2004-1G-12S+2XS does just that – forget about all connectivity troubles and expand your setup in any way you please.

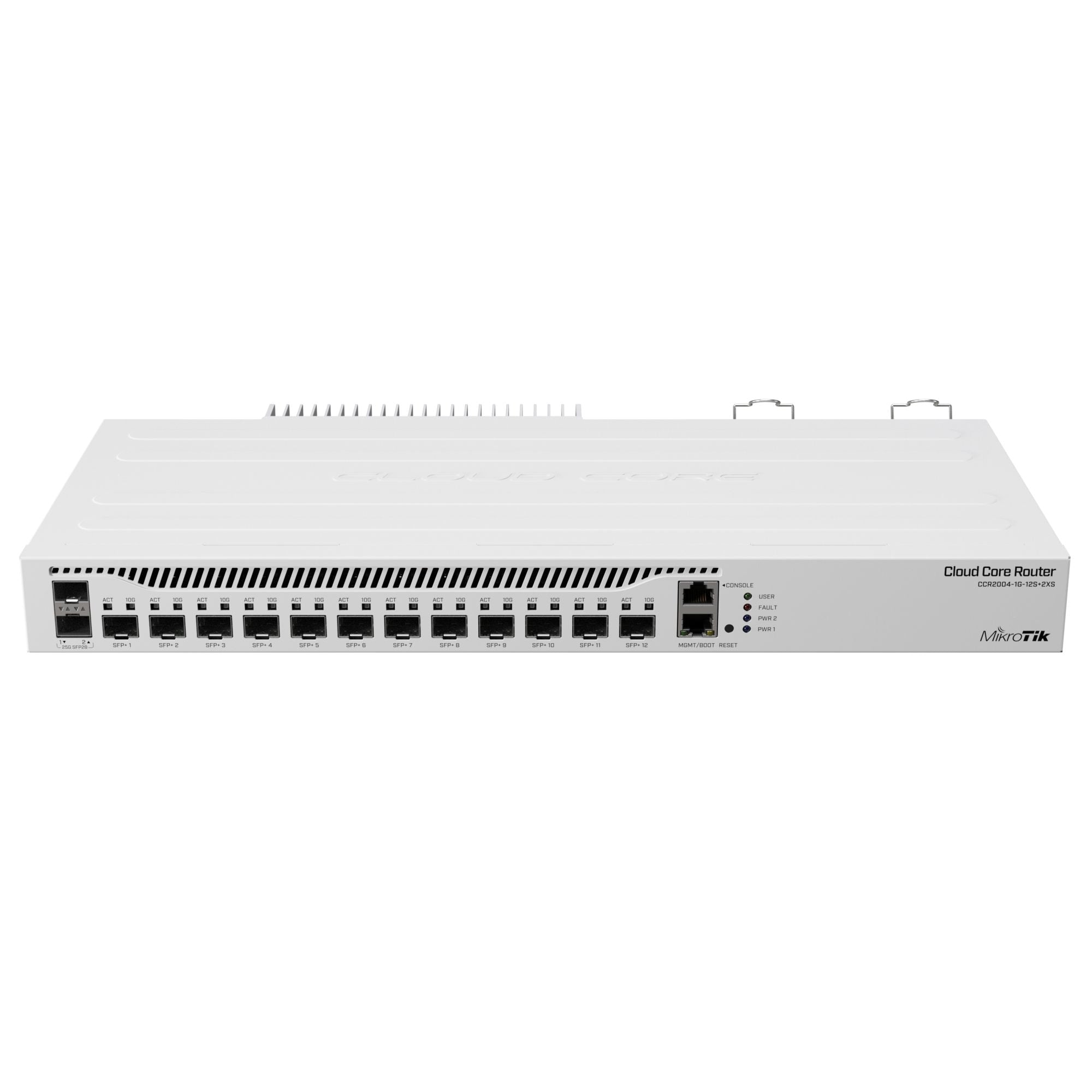

Connectivity? You got it! This handy router features 12 x 10G SFP+ and 2 x 25G SFP28 ports.
This is our router with the most powerful single-core performance so far. It provides incredible results in single tunnel (up to 2.3 Gbps) and BGP feed processing.

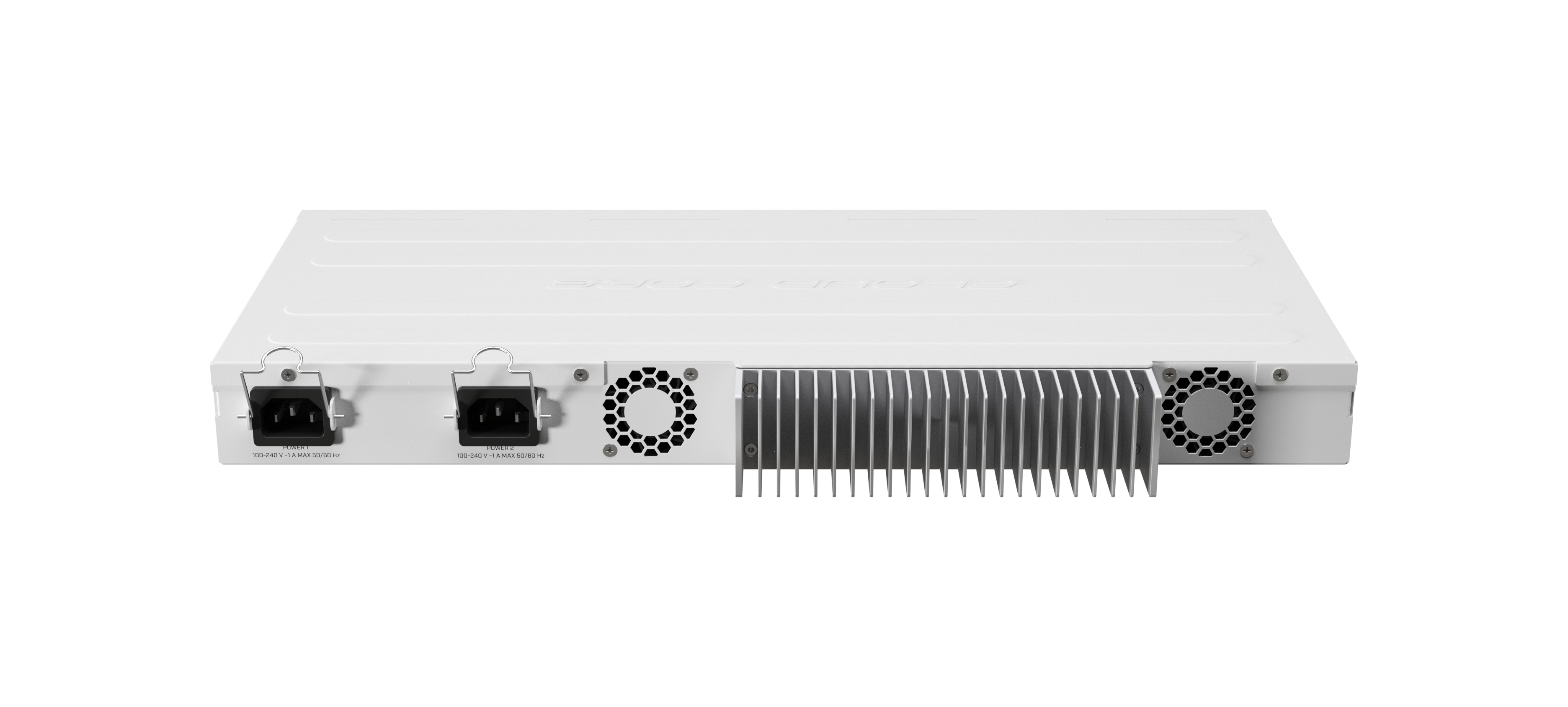

Be prepared for anything: 10G, 40G and now 25G! Paired with such MikroTik multiport products as CRS317-1G-16S+RM, CRS312-4C+8XG-RM and CRS326-24S+2Q+RM, your networking setup will know no bounds. Performance-wise, CCR2004-1G-12S+2XS is on par with the renowned CCR1009/CCR1016 routers. And with dual redundant power supply you can forget about unexpected downtime!

With its elaborate port configuration, the new CCR2004-1G-12S+2XS is the perfect addition to any professional networking arsenal – it will save you tons of time in some tricky situations!

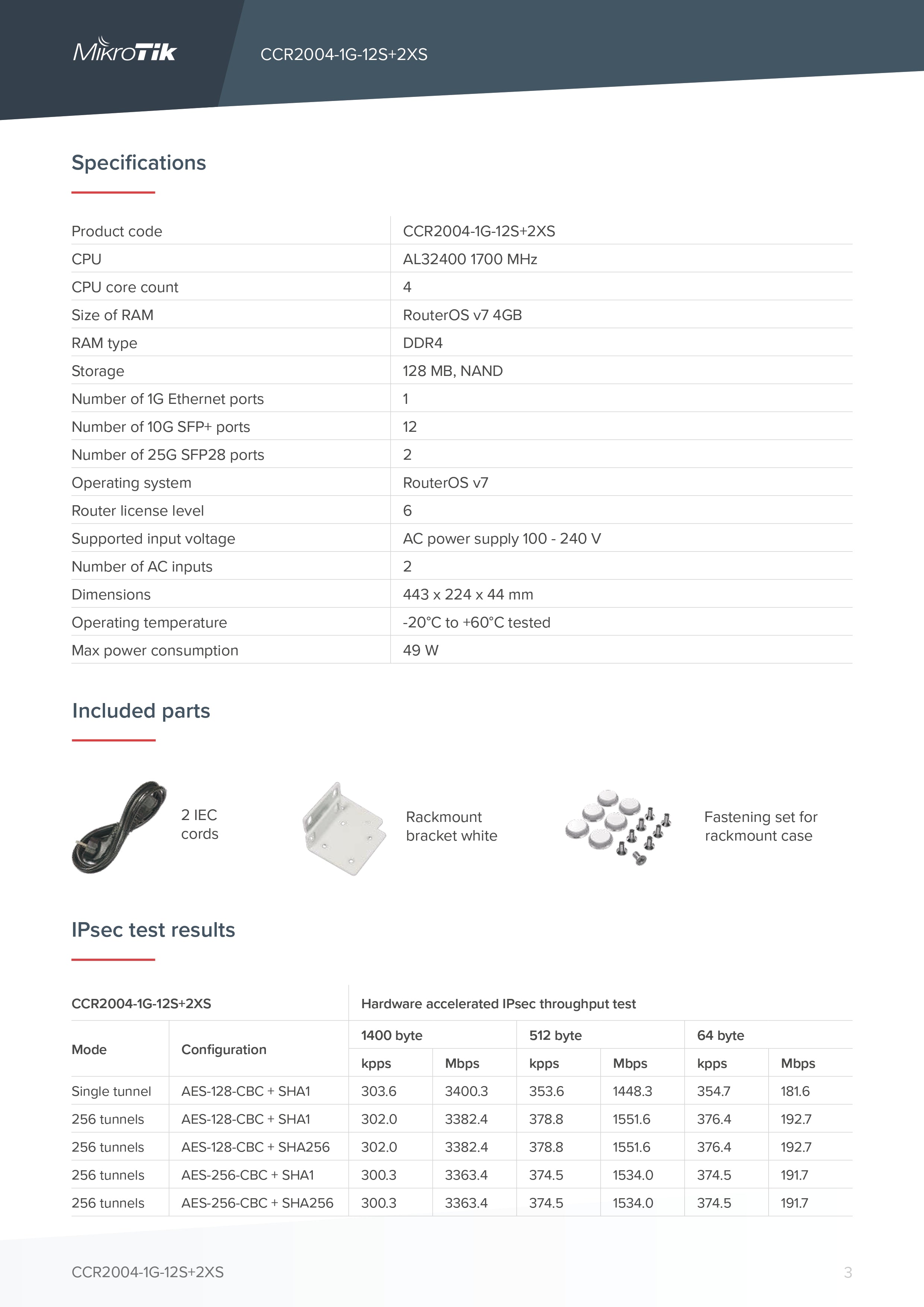

Specifications

• Product code: CCR2004-1G-12S+2XS
• CPU: AL32400 1700 MHz, 4-core
• RAM: 4 GB DDR4
• Storage: 128 MB NAND
• Ethernet ports: 1 x 1G
• 10G ports: 12 x SFP+
• 25G ports: 2 x SFP28
• Operating system: RouterOS v7
• License level: 6
• Supported input voltage: 100 - 240 V AC
• AC inputs: 2 (redundant power supply)
• Dimensions: 443 x 224 x 44 mm
• Operating temperature: -20°C to +60°C
• Max power consumption: 49 W

IPsec Test Results

Mode	1400 byte (Mbps)	512 byte (Mbps)	64 byte (Mbps)
Single tunnel AES-128-CBC + SHA1	3400.3	1448.3	181.6
256 tunnels AES-128-CBC + SHA1	3382.4	1551.6	192.7
256 tunnels AES-128-CBC + SHA256	3382.4	1551.6	192.7
256 tunnels AES-256-CBC + SHA1	3363.4	1534.0	191.7
256 tunnels AES-256-CBC + SHA256	3363.4	1534.0	191.7

Included Parts

• 2 x IEC cords
• Rackmount bracket (white)
• Fastening set for rackmount case
