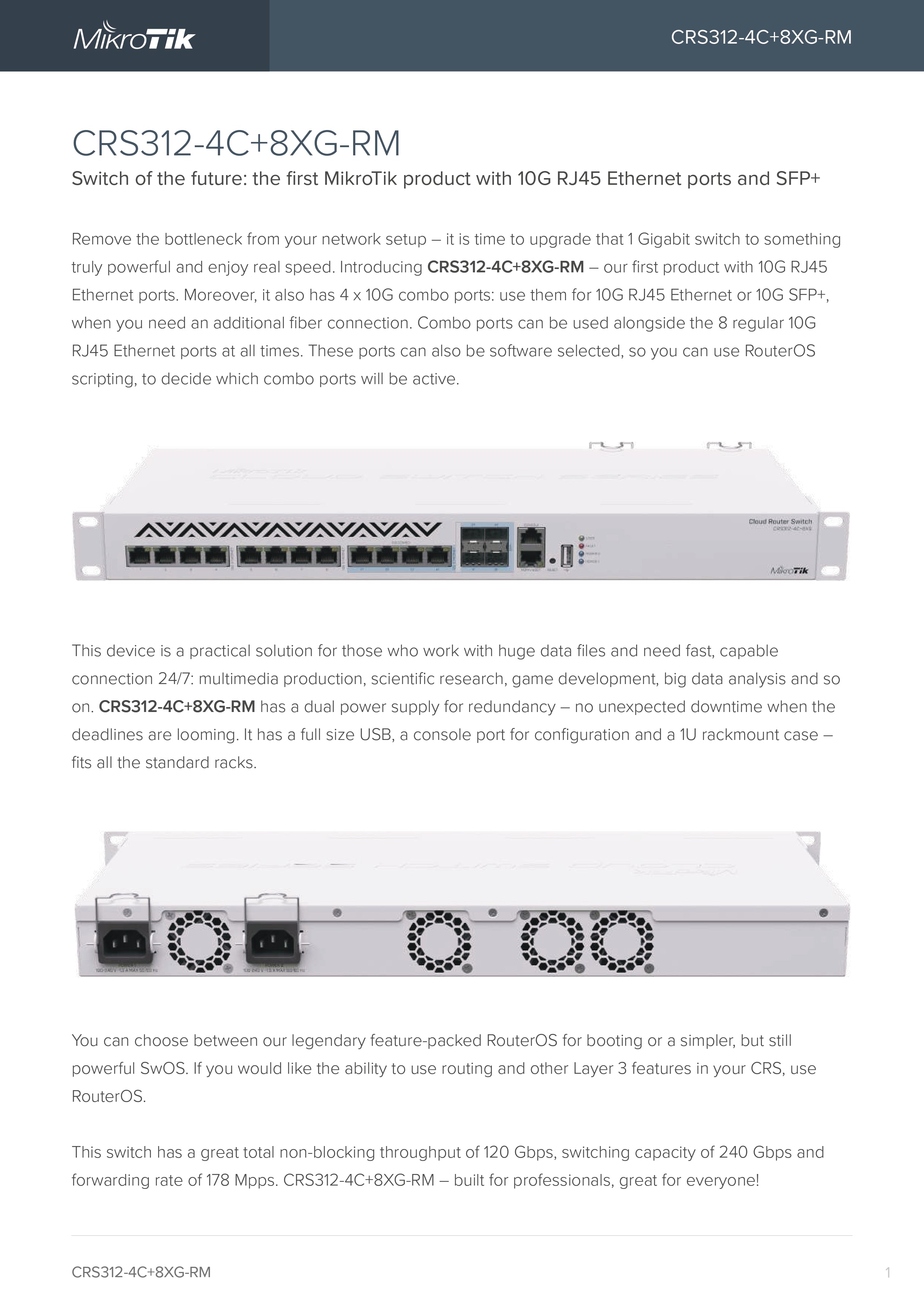

CRS312-4C+8XG-RM

Switch of the future: the first MikroTik product with 10G RJ45 Ethernet ports and SFP+.

Remove the bottleneck from your network setup – it is time to upgrade that 1 Gigabit switch to something truly powerful and enjoy real speed. Introducing CRS312-4C+8XG-RM – our first product with 10G RJ45 Ethernet ports.

It also features 4 x 10G combo ports: use them as 10G RJ45 Ethernet or switch to 10G SFP+ for fiber connectivity. Combo ports can be used in conjunction with the 8 dedicated 10G RJ45 ports, and are software selectable, so you can use RouterOS scripting to define which interfaces are active.

This device is ideal for professionals handling massive data workloads like multimedia production, scientific computing, game development, or big data analytics. With a redundant dual power supply, the CRS312-4C+8XG-RM ensures continuous uptime, even under pressure.

It includes a full-size USB port, a console port for configuration, and a 1U rackmount case that fits standard racks perfectly.

You can choose between RouterOS for advanced Layer 3 capabilities or SwitchOS for a simpler, streamlined switching solution. With a total non-blocking throughput of 120 Gbps, switching capacity of 240 Gbps, and forwarding rate of 178 Mpps, this switch is built for high-performance networks.

Specifications

• Product code: CRS312-4C+8XG-RM
• CPU: QCA9531, 650 MHz
• RAM: 64 MB
• Storage: 16 MB Flash
• 10/100 Ethernet ports: 1
• 10G RJ45 Ethernet ports: 8
• Combo 10G RJ45/SFP+ ports: 4
• Supported input voltage: 100 – 240 V AC
• Redundant power supply: Yes
• USB port: USB Type-A
• Serial port: RJ45
• Dimensions: 443 x 183 x 44 mm
• Operating temperature: -30°C to +70°C
• Operating system: RouterOS or SwitchOS (License level 5)
• Max power consumption: 60 W

Included Parts

• 2x IEC Power Cords
• Rackmount Ears
• Screw and Feet Kit (K57)
