- High Frequency Online UPS with 1Ph Input / 1Ph Output
- Available models: 3KVA/2.7KW
- Wide input voltage range: 90–285Vac, 40–70Hz frequency
- 0ms transfer time between mains and battery mode
- Output power factor: 0.9 with sinusoidal wave output
- Output harmonic distortion: ≤4% at full resistive load
- Overload protection with automatic bypass and alarm
- Efficiency ≥90% in normal mode operation
- Internal batteries: 6x12V9Ah

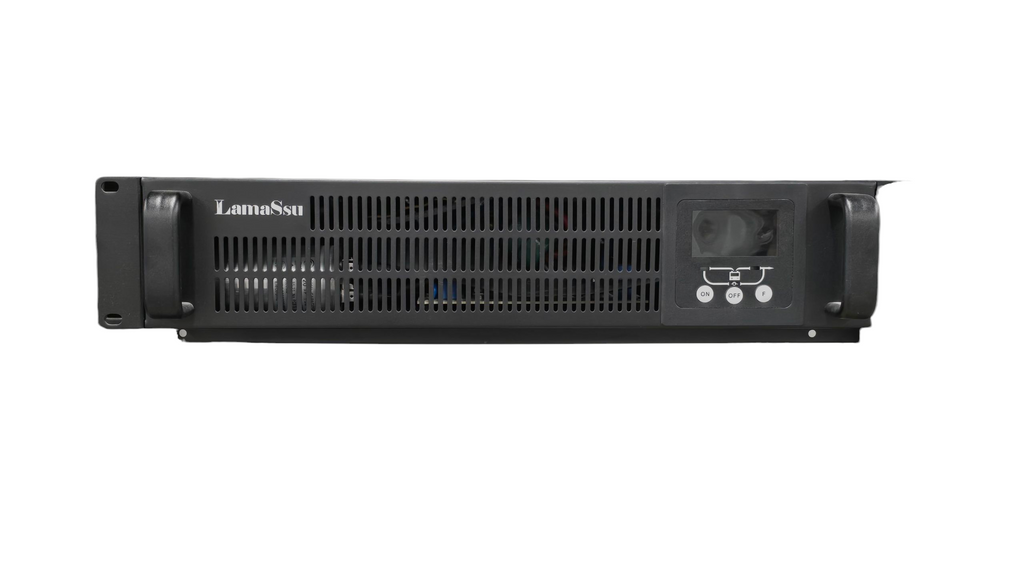

- Standard 19-inch rackmount design; compact and space-saving
- Mobile smart monitoring card support with real-time APP monitoring
- Built-in input surge protection and strong anti-interference
- Automatic input power factor correction and zero/fire line detection
- Low noise level: ≤50dB; operating temp: 0°C ~ 40°C
- Ideal for servers, data centers, telecom, hospitals, offices, and home use
