Description
This KOCOM bundle includes the high-resolution 2MP AHD Door Camera KC-MC30M and the 7-inch Full Touchscreen Videophone Monitor KCV-T701SM. Designed for secure and convenient residential or commercial entry management, the KC-MC30M door camera provides crisp video day or night with a wide adjustable viewing angle. The KCV-T701SM videophone features a bright 7" LCD full touch screen compatible with various HD CCTV standards, offering multi-monitor support and user-friendly access control.

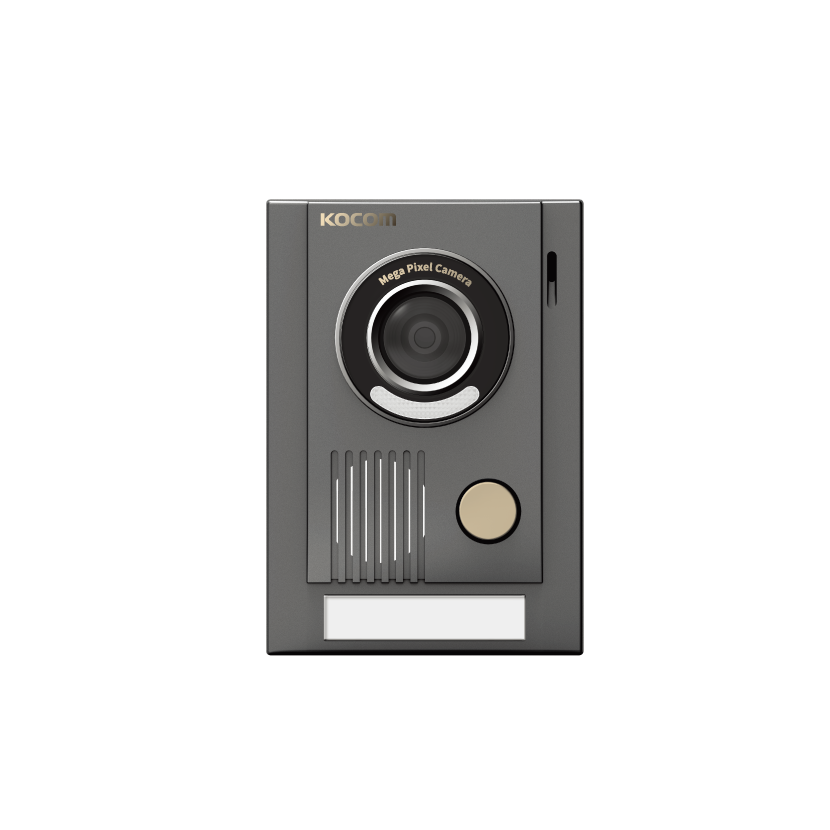

Key Features - KC-MC30M Door Camera
• 2MP AHD high-resolution camera for clear video
• Night-time visitor identification with LED illumination (0.1 lux minimum)
• 100° adjustable viewing angle
• Durable metal surface-mount design
• Powered by monitor with 4-wire connection
Specifications - KC-MC30M Door Camera
| Model | KC-MC30M |
| Camera Resolution | 2 Megapixels (AHD) |
| Viewing Angle | 100° (adjustable) |
| Illumination | 0.1 lux (LED ON) |
| Power Supply | DC 12V ±1V (from monitor) |
| Power Consumption | Max. 3W |
| Wiring | 4-wire |
| Mount Type | Surface mount |
| Body Material | Metal A/L |
| Dimensions (W×H×D) | 110 × 158 × 39 mm |

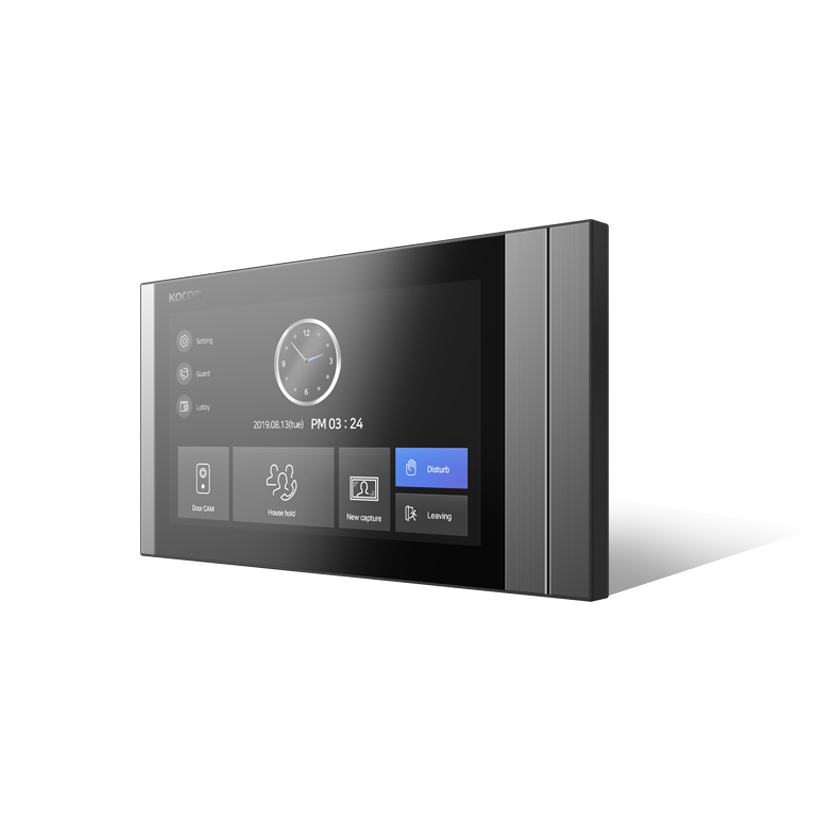

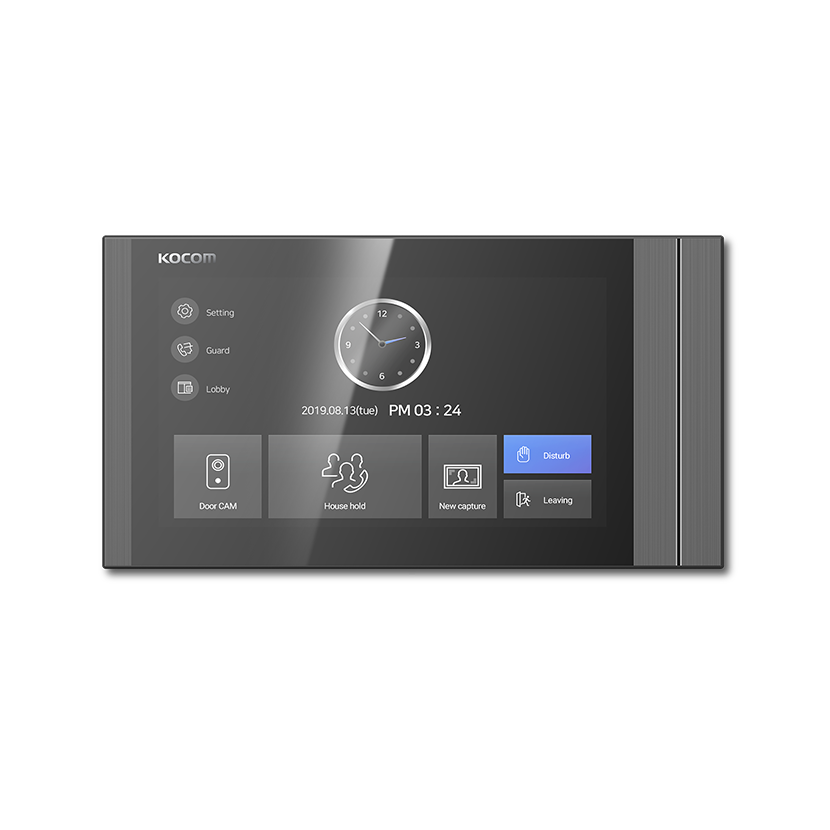

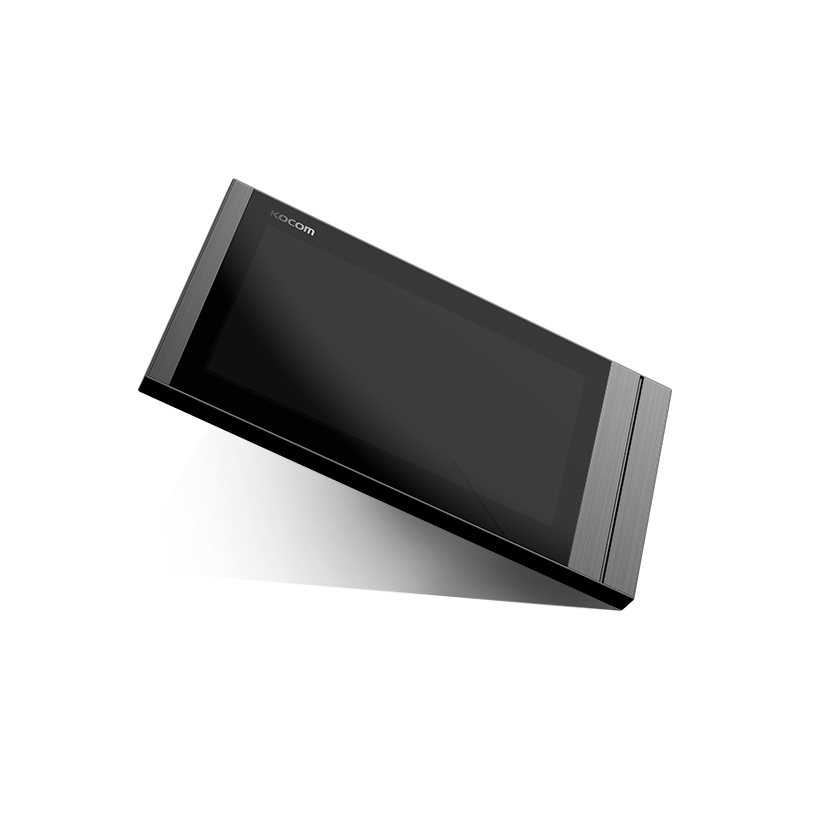

Key Features - KCV-T701SM Videophone Monitor
• 7-inch 1024×600 resolution full touch LCD screen
• Compatible with 1080p Full HD AHD, TVI, and CVI CCTV systems
• Supports up to 2 door cameras and 4 monitors simultaneously
• Auto still image capture with up to 32 images stored internally
• User-friendly GUI with full capacitive touch control
• Max wiring distance 100m (UTP CAT5e or coaxial cable)
• Supports multi-family apartment systems (KLP-C420 compatible)
Specifications - KCV-T701SM Videophone Monitor
| Model | KCV-T701SM (AC/DC types available) |
| Display | 7" LCD, 1024×600 resolution, full touch |
| CCTV Compatibility | Analog HD (AHD, TVI, CVI), 720p / 1080p |
| Power Supply | AC 100-240V~ 50/60Hz or DC 14-15V 2A |
| Power Consumption | 2.65W standby, 9.1W max load |
| Connections | Up to 2 door cameras, 4 monitors via KIP-32G |
| Mount Type | Surface mount |
| Dimensions (W×H×D) | 218 × 119 × 22 mm (AC) / 18 mm (DC) |
| Max Wiring Distance | 100 m (UTP CAT5e or coaxial) |
| Special Features | Multi-monitor connection, auto image capture, GUI touch interface |
In the Box
• KC-MC30M Door Camera
• KCV-T701SM Videophone Monitor
• Mounting Hardware and Power Adapter(s)
• User Manuals
