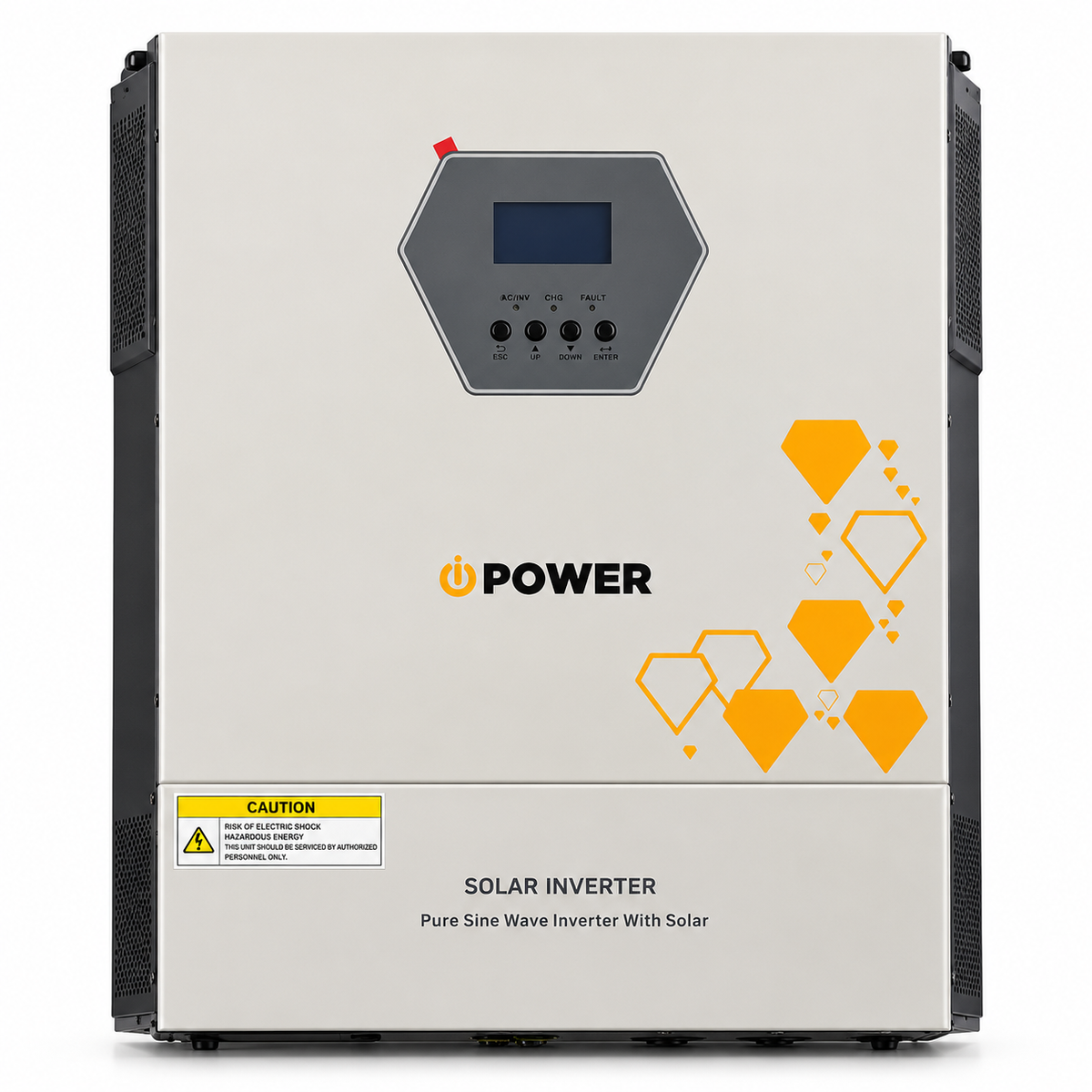

iPower GA11048SMHB 11KW 48V Solar Inverter, Dual 7500W PV MPPT, Pure Sine Wave, BMS Lithium Support & 9-Unit Parallel

Description

The iPower GA11048SMHB 11KW 48V Solar Inverter is a high-performance solar inverter designed for residential, commercial, and professional solar power applications. Featuring 11KW / 11000VA power capacity, a 48V DC battery system, and Pure Sine Wave output, it delivers stable and reliable power for demanding electrical loads. With dual PV inputs supporting up to 2 × 7500W, a wide 60–500V DC MPPT range, BMS communication for lithium batteries, and parallel operation with up to 9 units, it provides efficient solar energy management and scalable power solutions.

Key Features

• 11KW High Power Capacity: Delivers 11000W / 11000VA rated power for demanding residential, commercial, and professional applications.
• 48V DC Battery System: Designed to operate with compatible 48V battery systems for energy storage and backup power.
• Dual PV Input Support: Features dual solar PV inputs with up to 7500W maximum power per input.
• 15000W Maximum PV Capacity: Supports a combined maximum solar input capacity of 2 × 7500W for large solar arrays.
• Wide MPPT Voltage Range: Supports a 60–500V DC MPPT range for efficient solar energy tracking and power conversion.
• Pure Sine Wave Output: Provides clean and stable AC power suitable for compatible sensitive electronic devices and electrical appliances.
• Parallel Operation: Supports connecting up to 9 compatible inverter units in parallel for expandable power capacity.
• Lithium Battery Compatibility: Features BMS communication for integration with compatible lithium battery systems.
• High Output Current: Supports a maximum output current of 47A according to the specified electrical rating.
• Wide AC Input Range: Supports an AC input voltage range of 170–280V for flexible power connectivity.
• Advanced MPPT Technology: Helps optimize solar energy extraction from connected panels under varying sunlight conditions.
• IP21 Protection Rating: Provides protection against solid objects larger than 12.5mm and vertically falling water drops.
• Expandable Solar Power System: Parallel connection capability allows future expansion to meet increasing power requirements.
• Efficient Energy Management: Designed for power conversion and integration between solar panels, battery storage, and connected electrical loads.
• Backup Power Applications: Suitable for compatible backup power systems requiring high-capacity inverter performance.
• Off-Grid Solar Applications: Suitable for compatible off-grid solar installations and battery-based power systems.
• Residential and Commercial Use: Ideal for homes, offices, businesses, and high-demand solar energy installations.
• Professional Solar Solution: Combines high output capacity, dual PV inputs, lithium battery communication, and parallel operation for scalable solar power systems.
• Product Identification: Brand: iPower | Model: GA11048SMHB | Product Code: SUB-GA11048SMHB.
