Hikvision Pro Fingerprint Terminal with 2.4" LCD, Multi-Auth (Fingerprint, Card, PIN), Wi-Fi, Bluetooth, PoE, IP65, Web Configuration
Hikvision Pro Fingerprint Terminal with 2.4" LCD, Multi-Auth (Fingerprint, Card, PIN), Wi-Fi, Bluetooth, PoE, IP65, Web Configuration
Low stock

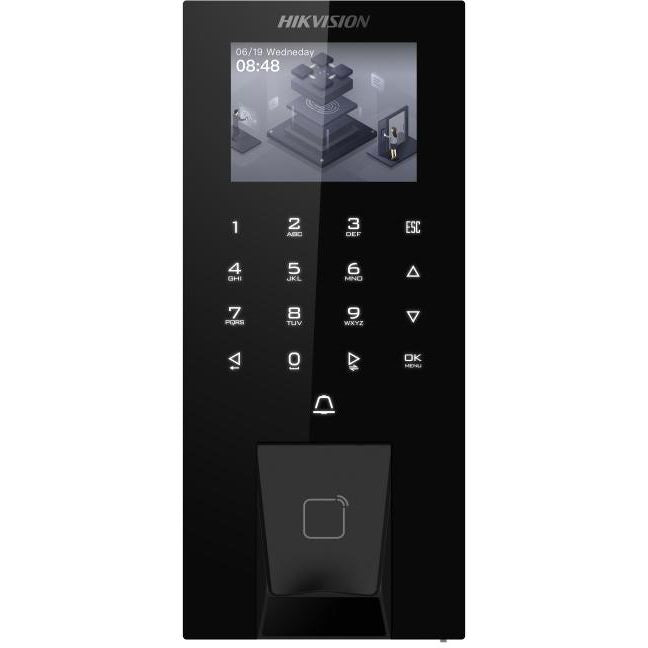

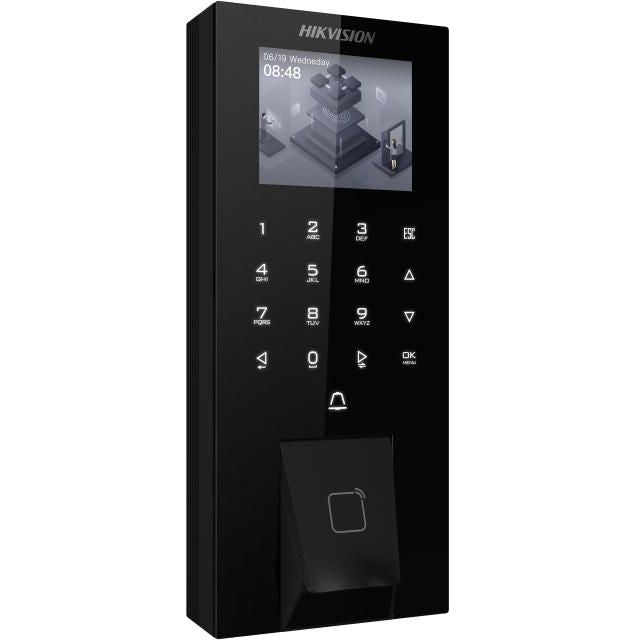

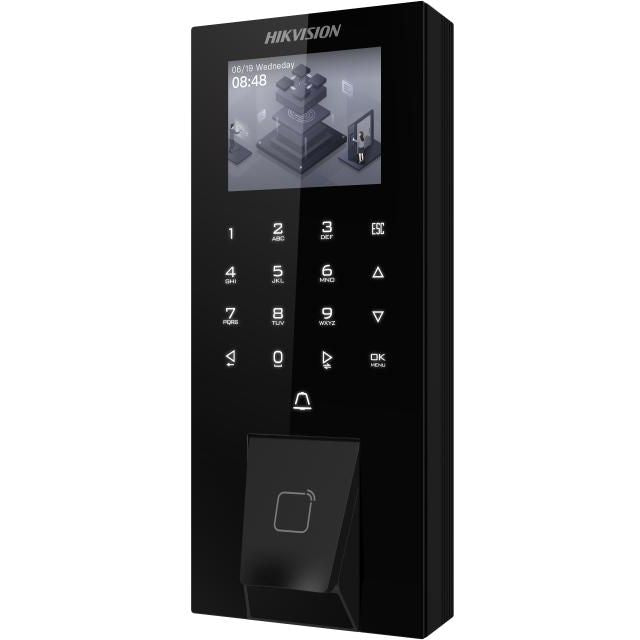

DS-K1T807MBFWX-E1 Pro Fingerprint Terminal for Secure Multi-Method Access Control
The DS-K1T807MBFWX-E1 is a professional-grade fingerprint terminal designed for secure and convenient access control. It features a 2.4-inch LCD touchscreen and supports multiple authentication methods including fingerprint, M1 card, PIN, Bluetooth, and Wi-Fi. This terminal offers easy web-based configuration and supports both wired and wireless network connections with PoE power capability. Its IP65 rating ensures reliable performance indoors or outdoors.
Key Features
• 2.4-inch LCD screen with 320 × 240 resolution
• Supports fingerprint, M1 card, PIN, Bluetooth, and Wi-Fi authentication
• Large storage capacity: up to 5000 fingerprints, 5000 cards, and 150,000 event logs
• Configuration via web client with ISAPI and ISUP 5.0 protocol support
• Wired Ethernet and Wi-Fi (AP mode) connectivity
• Powered by 12 VDC or PoE with support for door lock power supply
• Interfaces include RS-485, Wiegand, USB, alarm inputs/outputs, and tamper detection
• Durable IP65-rated design suitable for indoor and outdoor use
• Multi-language support and wall-mount installation
Specifications
| System | Linux OS, 64MB ROM, 64MB RAM, 640 MHz CPU |
|---|---|
| Display | 2.4-inch LCD, 320 × 240 resolution |
| Audio | Audio output supported |
| Network | ISAPI & ISUP 5.0 protocols, Wired Ethernet (RJ-45 10/100M), Wi-Fi 2.4G (802.11b/g/n), Bluetooth |
| Interfaces | 1 RJ-45, 1 Lock control, 1 Exit button, 1 Door contact input, 2 Alarm inputs, 1 Tamper, 1 Alarm output, 1 RS-485 (Half duplex), 1 Wiegand (W26, W34), 1 USB |
| Capacity | Fingerprint: 5000, Card: 5000, Event logs: 150,000 |
| Authentication | M1 card, Optical fingerprint module, Card reading distance 0-5 cm, Fingerprint recognition & comparing < 1 s, FAR ≤ 0.001%, FRR ≤ 0.01% |
| Power | 12 VDC (battery-supported bracket), PoE supported, Power consumption ≤ 6 W |
| Environment | Operating temperature -30 °C to 60 °C (-22 °F to 140 °F), Humidity 0-90% (non-condensing) |
| Physical | Dimensions: 172 × 76 × 27.5 mm (6.77" × 2.99" × 1.08"), Net weight: 0.377 kg (0.831 lb), Wall mount installation |
| Other | IP65 protection, Multi-language support, Keypad support |
