| Parameter |
Details |

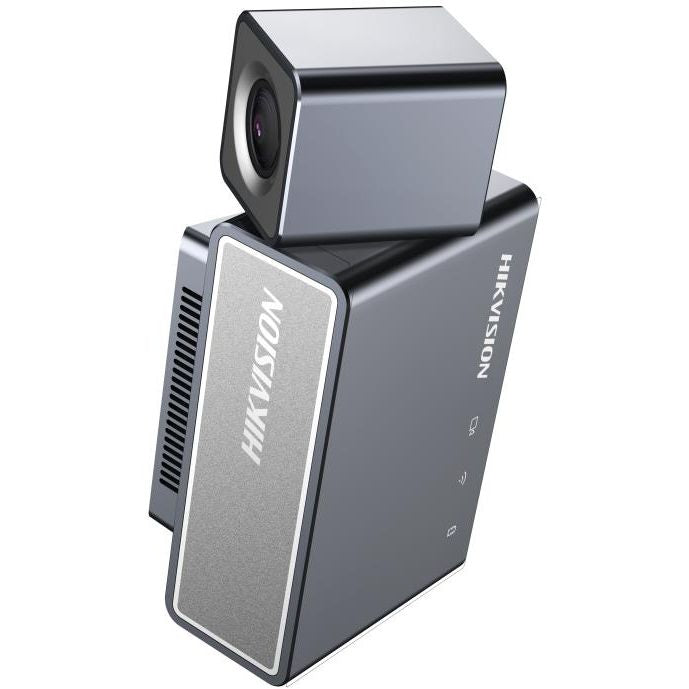

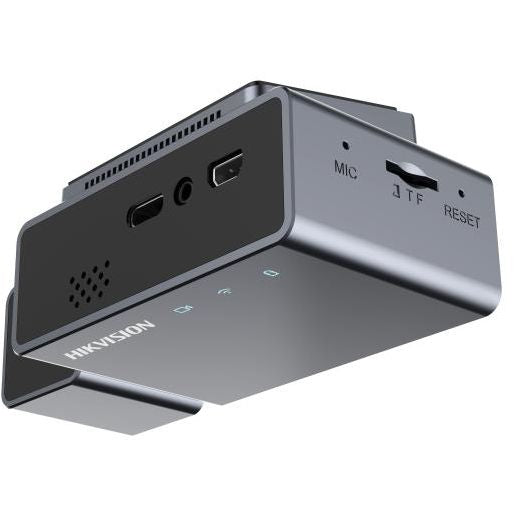

| Model |
AE-DC8222-C8PRO |
| Video Resolution |
3000×1688P@30fps, 3000×1688P@25fps+1080P@25fps, 2560×1440P@60fps |
| Max Resolution |
3000×1688@30fps |
| Video Compression |
H.265 |
| Field of View (Front) |
151°(D), 127°(H), 67°(V) |

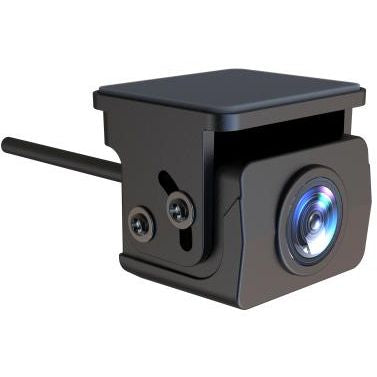

| Field of View (Rear) |
124°(D), 102°(H), 53°(V) |
| Lens Aperture |
F1.55 |
| Display |
2.45” IPS, 240×320 resolution |
| Sensor |
CMOS Image Sensor, G-Sensor for shock detection |
| Storage |
TF Card (microSD), 32GB – 256GB supported |
| Local Storage |
Yes |
| Voice Recognition |
Supported |
| ADAS Functions |
Traffic light alert, speed recognition, front car start reminder |
| Connectivity |
WiFi built-in, GPS enabled |
| Power Interface |
Type-C |
| 4G Box |
Yes (optional) |
| Power Supply |
5V / 2A |
| Operating Temperature |
-20°C to 70°C |
| Humidity Range |
0% to 95% |
| OSD |
Time, Date, and other overlay info |
| Image Format |
JPG |
| Camera Dimensions |
104.6 × 49.2 × 39.4 mm (4.12" × 1.94" × 1.55") |
| Camera Weight |
≈152g |
| Online Upgrade |
Supported |
