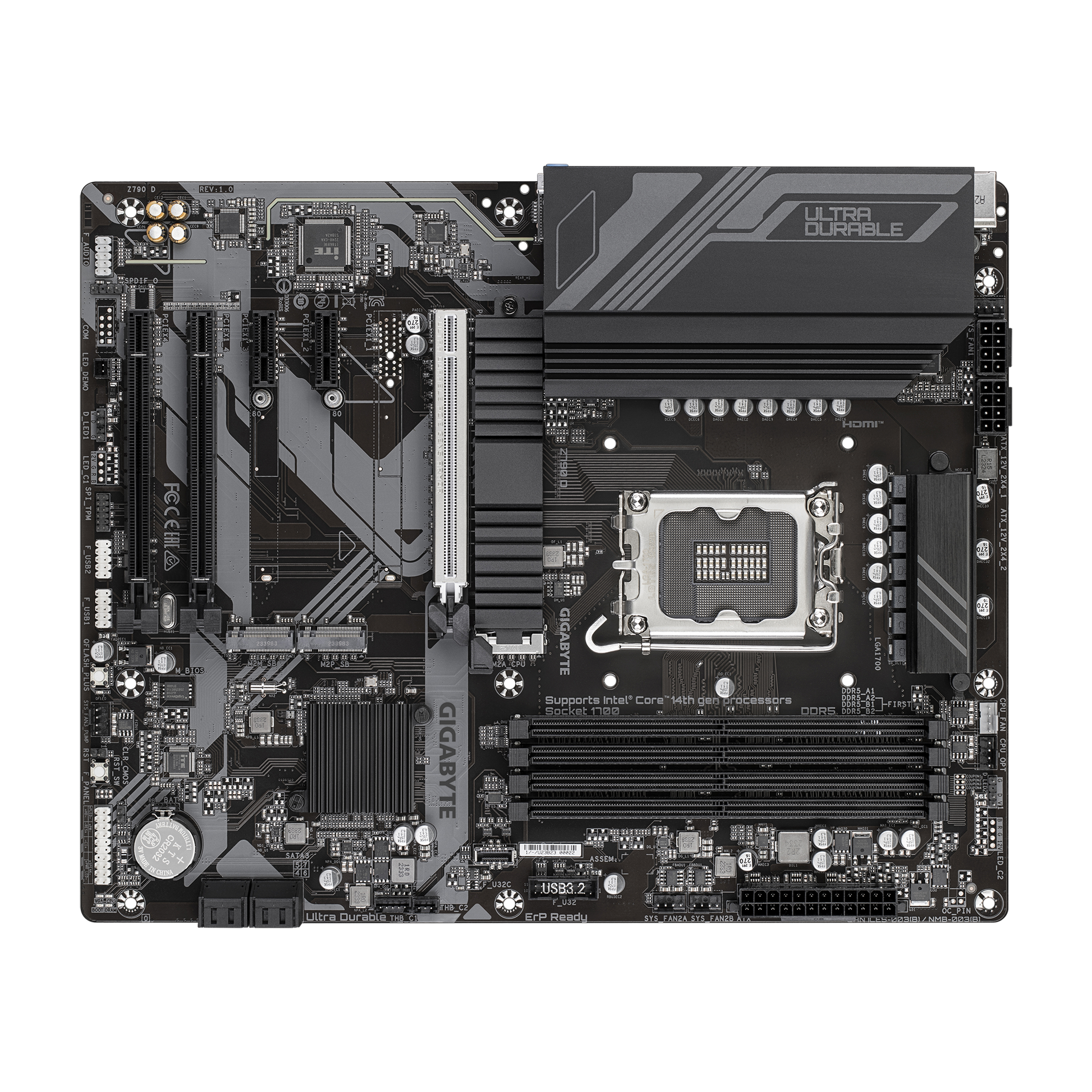

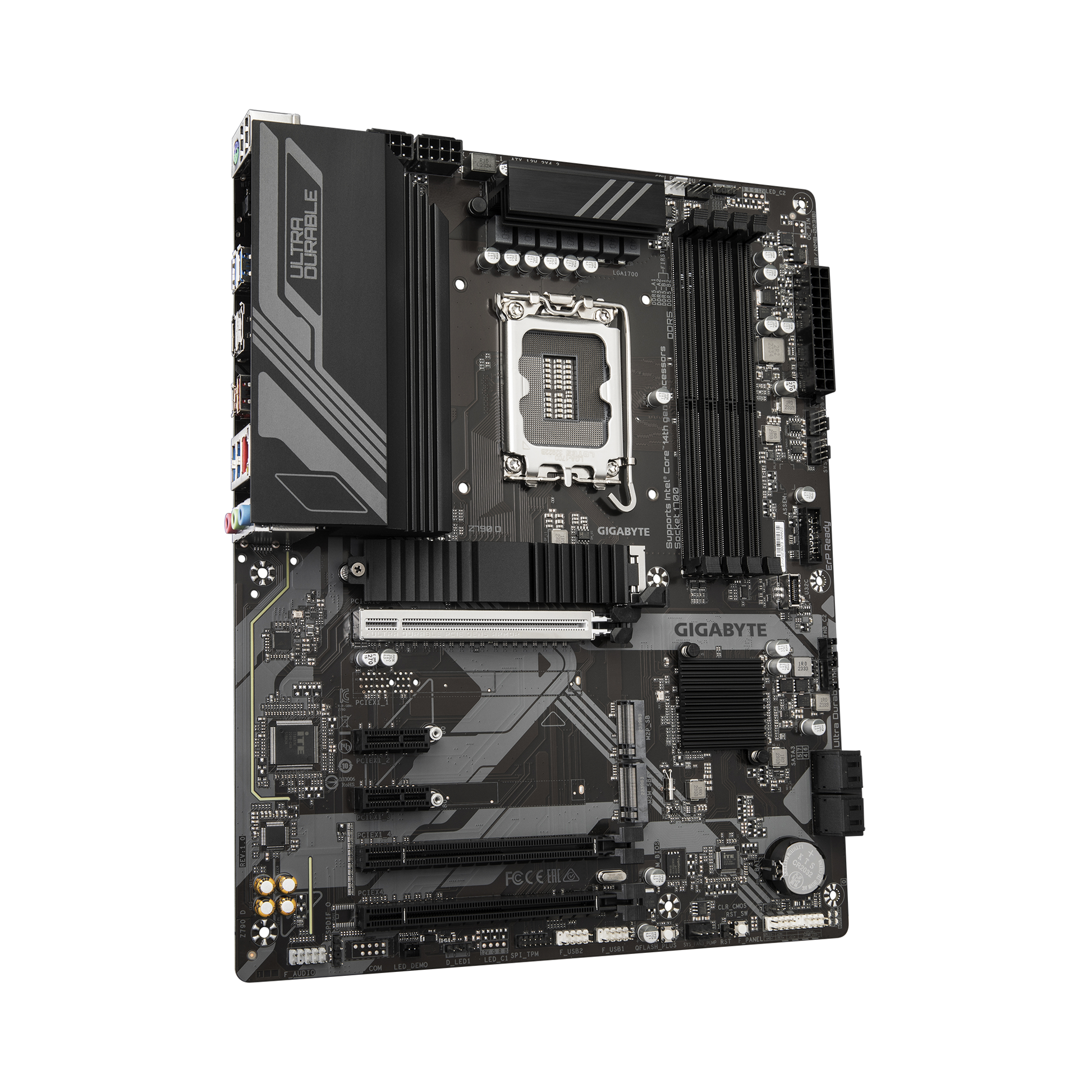

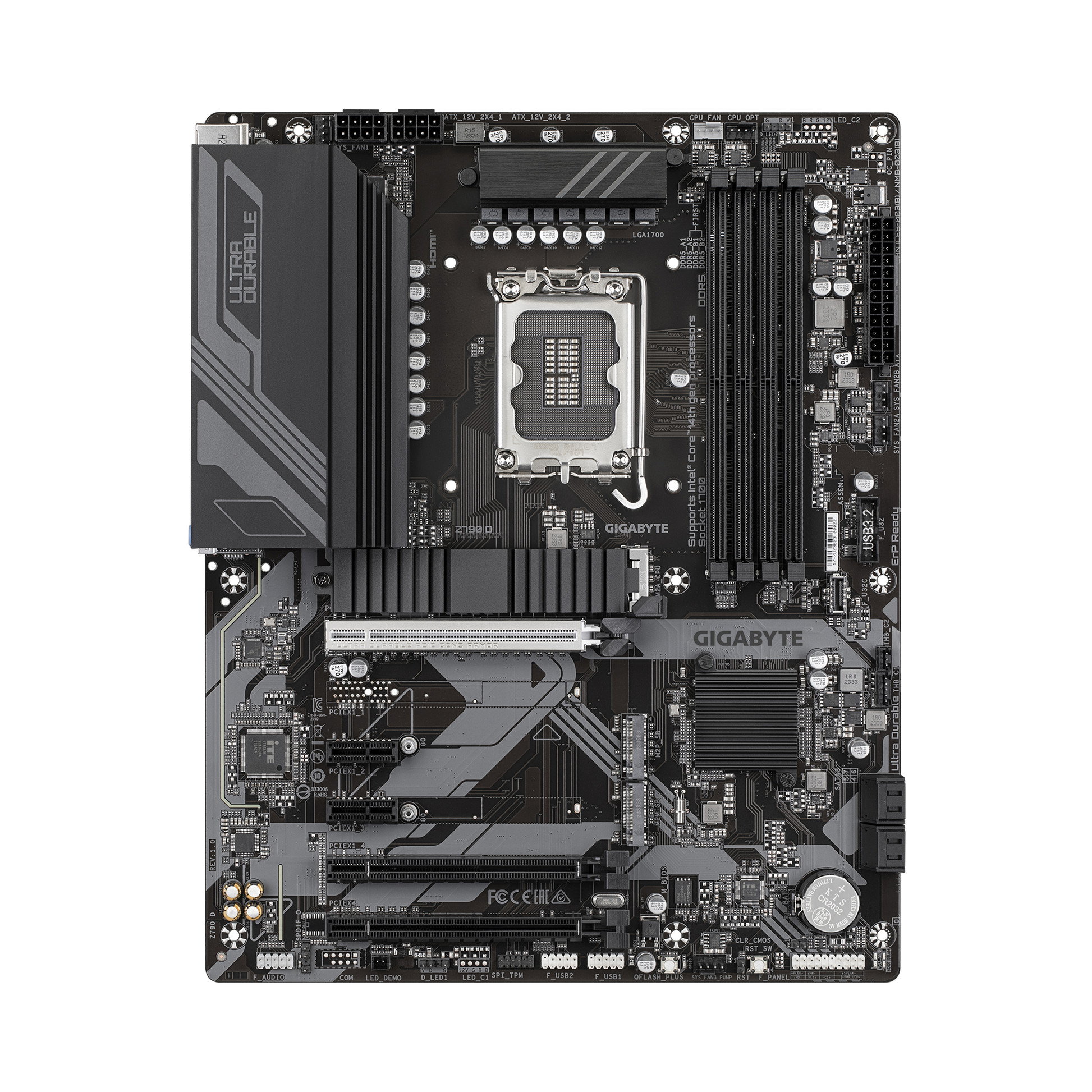

- Socket: LGA 1700 – supports Intel 12th/13th/14th Gen Core, Pentium Gold & Celeron CPUs
- Chipset: Intel Z790
- Power Design: Twin 12+1+1 digital VRM (6+6 phases parallel) on 6‑layer PCB with 2× copper
- Memory: 4× DDR5 DIMM, dual-channel, XMP 3.0 support, up to DDR5 7600+ OC, max capacity 256 GB
- Expansion Slots: 1× PCIe 5.0×16 (CPU), 1× PCIe 4.0×4, 3× PCIe 3.0×1; PCIe EZ‑Latch quick-release
- Storage: 3× M.2 PCIe 4.0×4 (with Thermal Guard), 4× SATA 6 Gb/s; RAID 0/1/5/10 support
- Networking: Realtek 2.5 GbE LAN
- Video Outputs: 1× HDMI, 1× DisplayPort

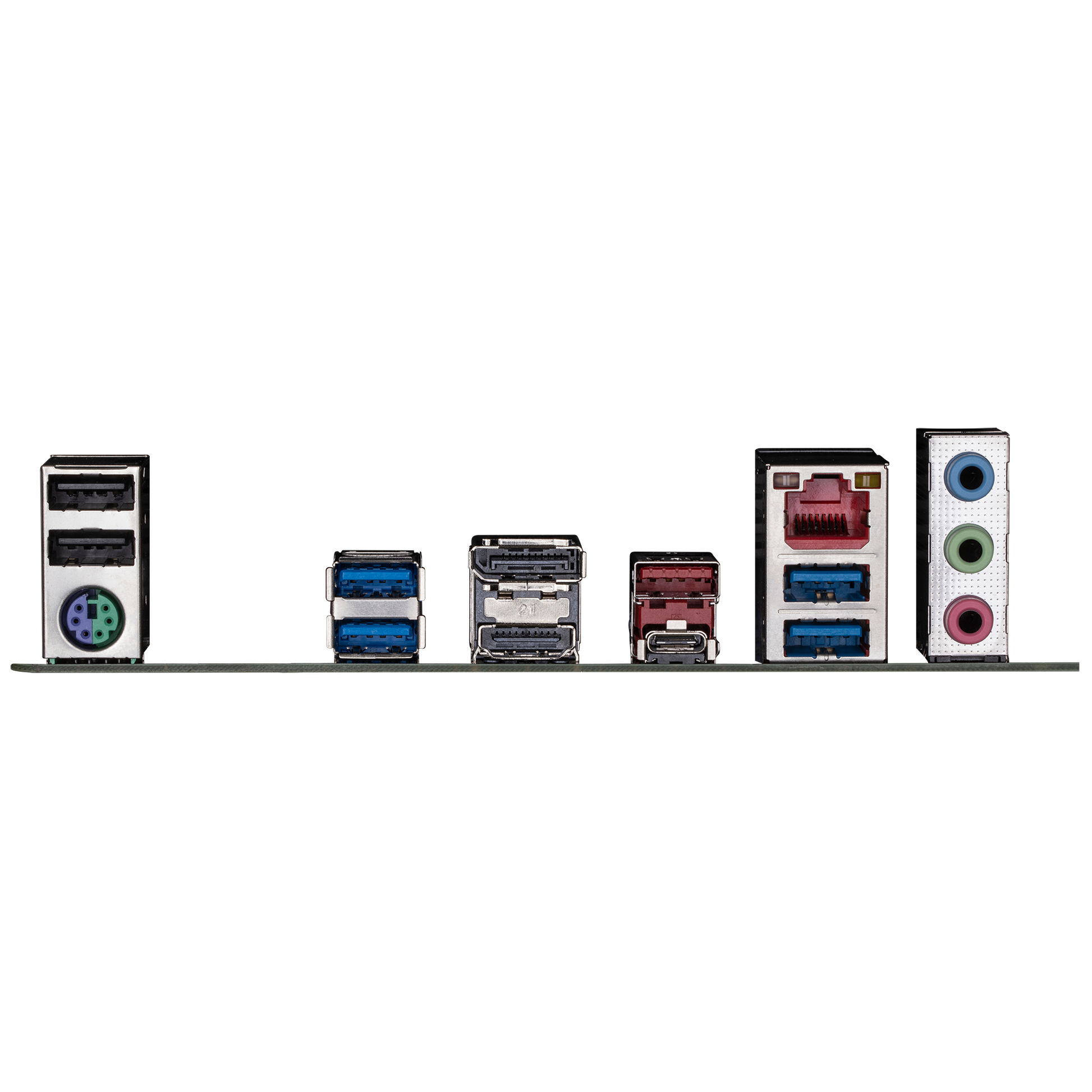

- USB Connectivity: Rear – USB‑C 10 Gb/s, USB 3.2 Gen 2; Front – USB‑C Gen 1 + other USB 3.2 Gen 1/USB 2.0
- Audio: Hi‑Fi audio codec with high-end audio caps
- Cooling: Advanced thermal design with enlarged MOSFET & M.2 heatsinks, Smart Fan 6 hybrid headers
- BIOS & Features: Q‑Flash Plus, Multi‑Key Quick Mode, PCIe Armor, RGB Fusion, Smart Fan 6, Ultra Durable build
- Form Factor: ATX, ~305 × 244 mm
- Ideal for high-performance builds with DDR5 overclocking, PCIe 5.0 GPUs, and multiple M.2 drives
