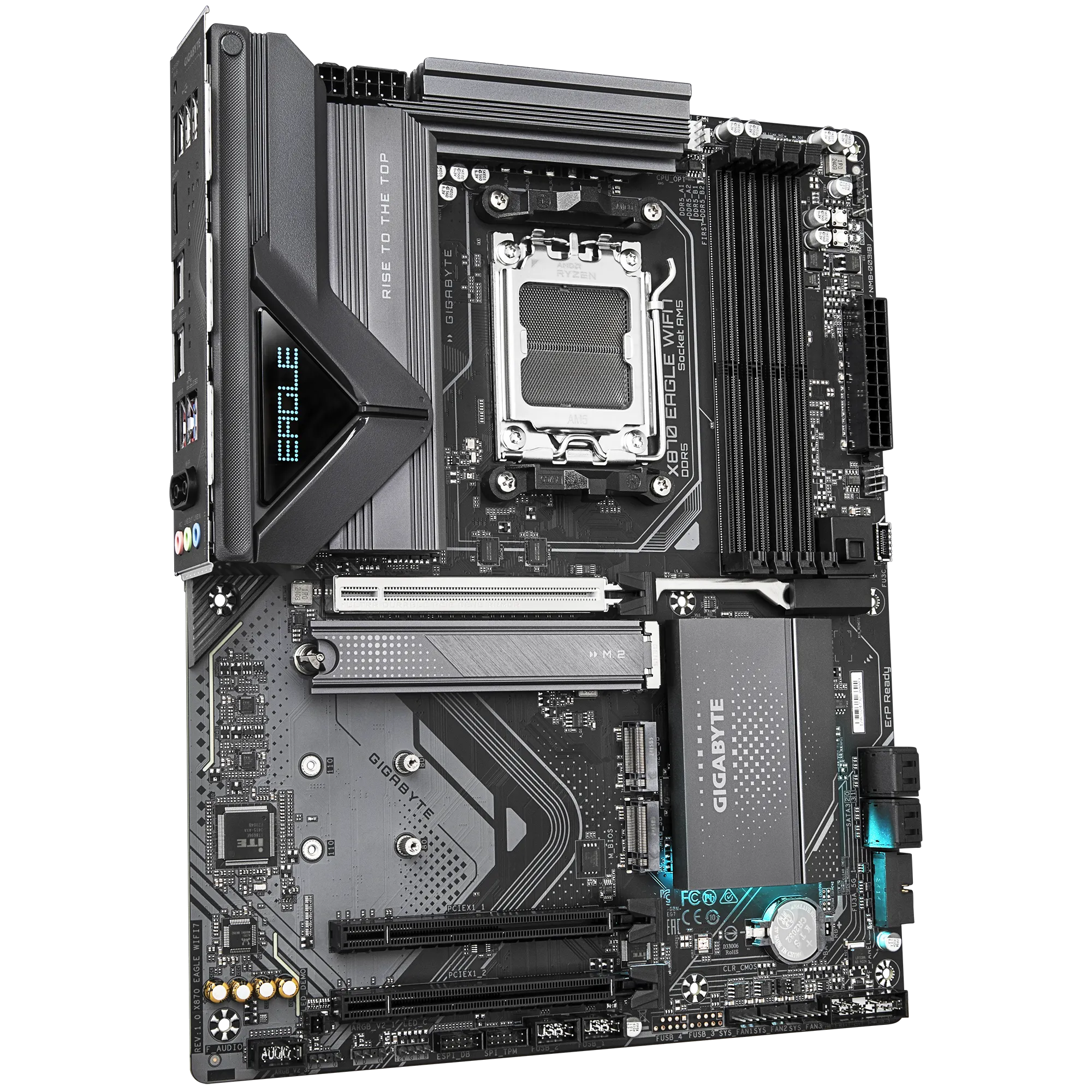

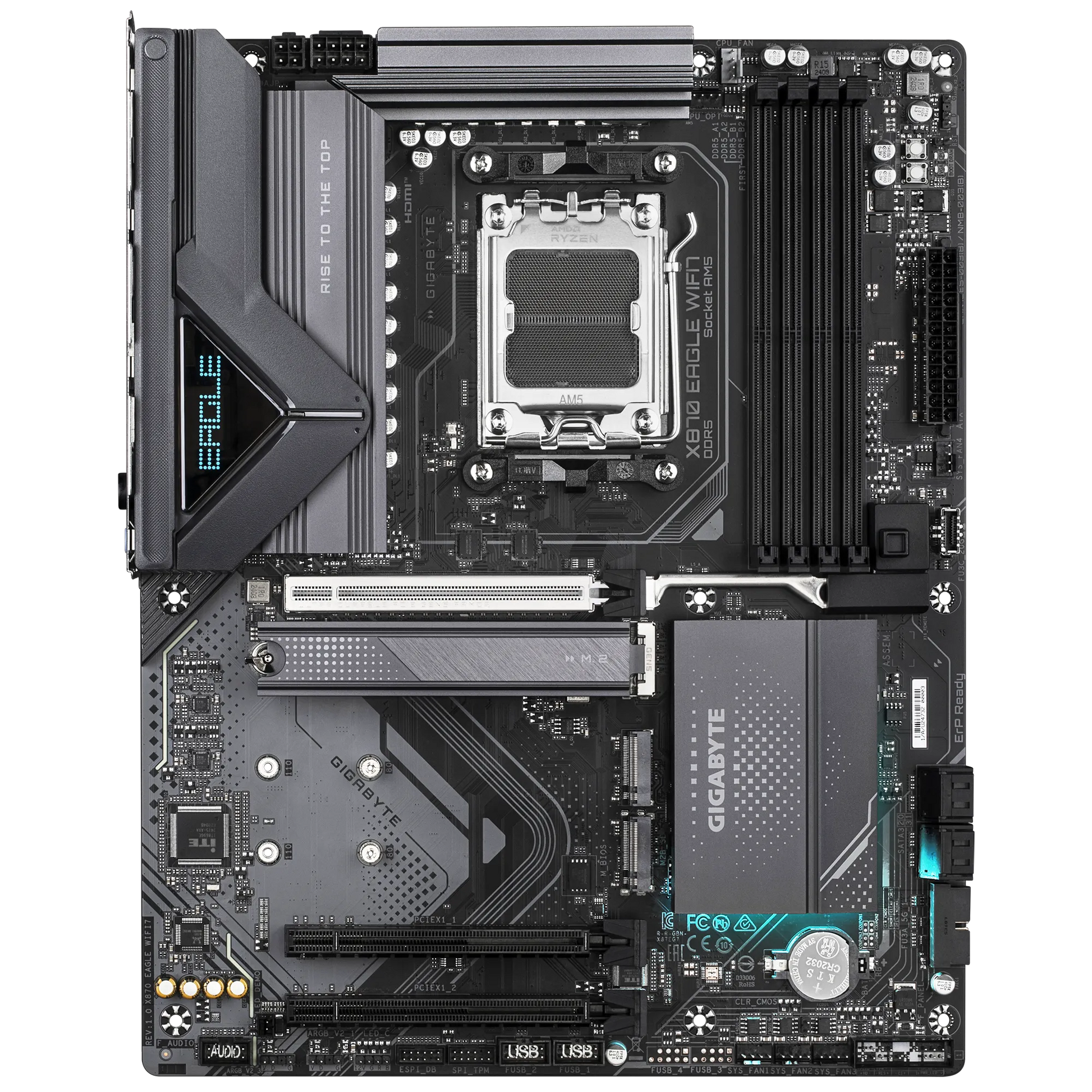

CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Processors (Socket AM5)
-
Chipset: AMD X870
-
Memory: 4× DDR5 DIMM slots (Dual Channel), supports AMD EXPO™ Memory Modules
-
VRM Design: Digital Twin 14+2+2 Phases with Premium Chokes and Capacitors
-
Storage:
- 3× M.2 slots (1× PCIe 5.0 x4, 2× PCIe 4.0 x4)
- 4× SATA 6Gb/s ports
-
Expansion Slots:
- 1× PCIe 5.0 x16 slot with Ultra Durable PCIe Armor
- 2× PCIe 3.0 x1 slots
-
Networking:
- 2.5GbE LAN
- Wi-Fi 7 with Ultra-High Gain Antenna
-

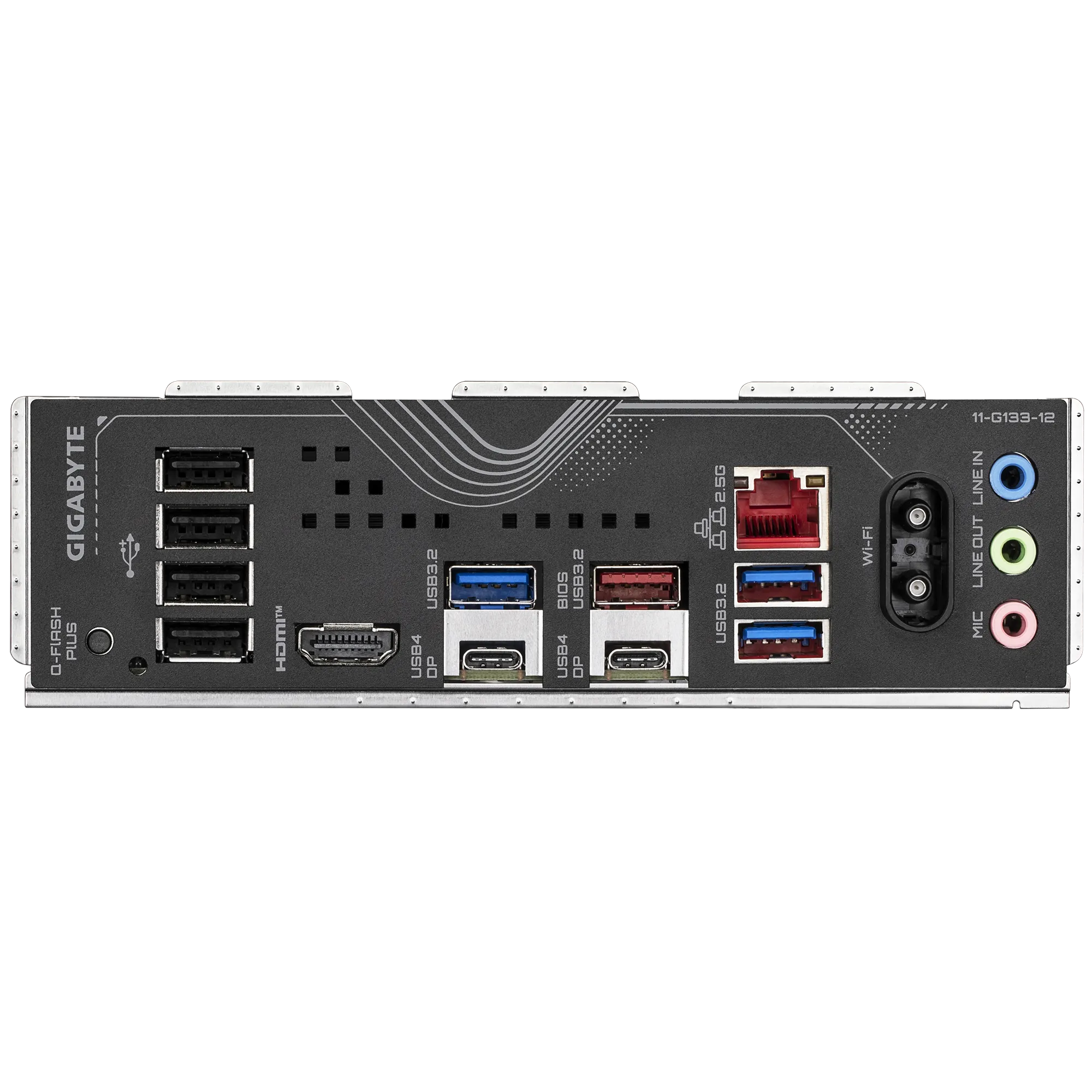

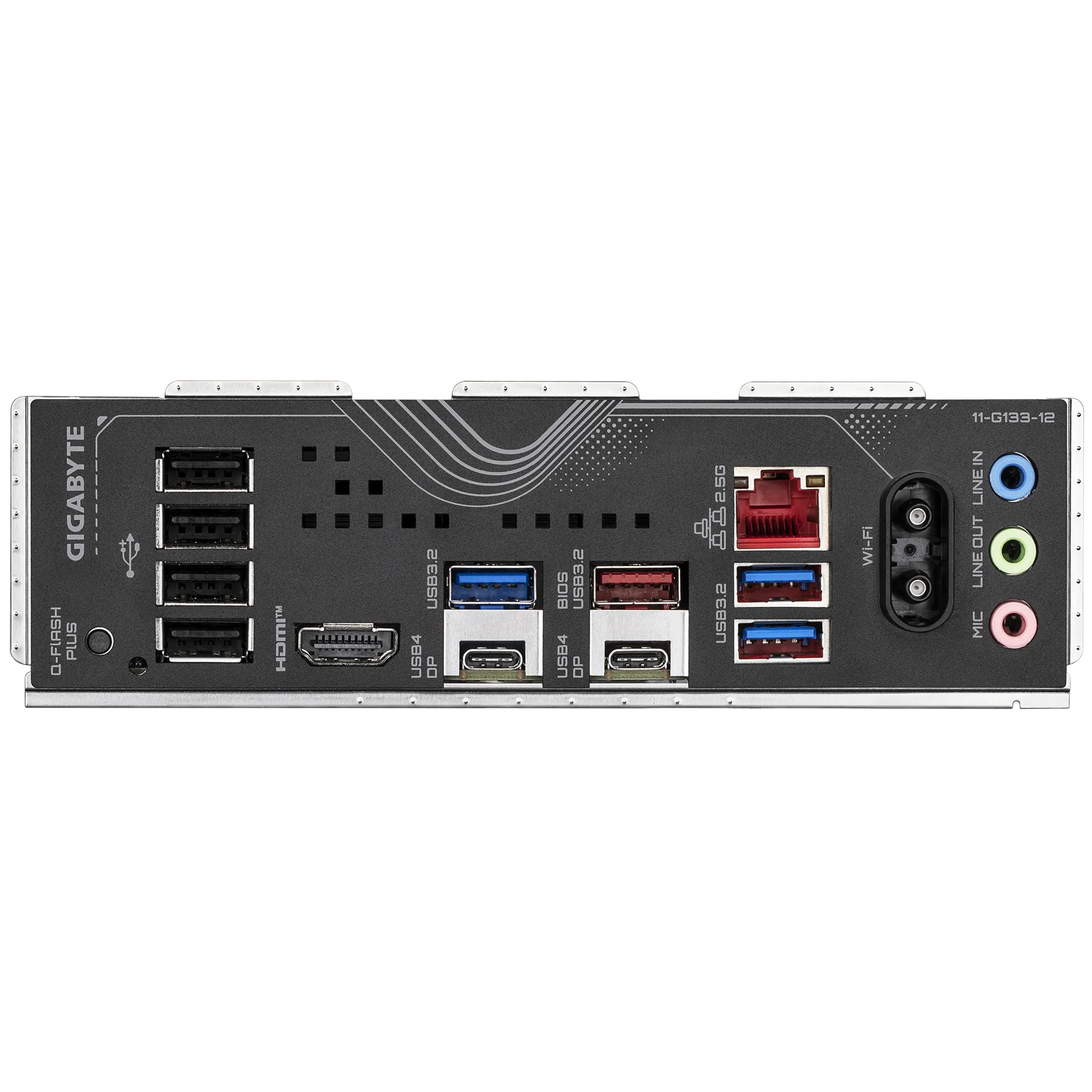

USB Ports:
- Dual USB4 Type-C with DisplayPort Alternate Mode
- Multiple USB 3.2 Gen2/Gen1 and USB 2.0 ports
-
Audio: Realtek ALC1220 HD Audio Codec with Audiophile Grade Capacitors
-
Cooling Solutions:
- VRM Thermal Armor Advanced
- M.2 Thermal Guard
- Smart Fan 6 with 6× PWM/DC Fan Headers and Dual Fan Curve Mode
-
DIY Friendly Features:
- EZ-Latch Plus: Quick Release & Screwless Design for PCIe and M.2 slots
- EZ-Latch Click: Screwless M.2 Heatsink Design
- Q-Flash Auto Scan Button
-
Form Factor: ATX
