- Supports AMD Ryzen™ 7000 / 8000 / 9000 Series Processors (Socket AM5)
- AMD B650 chipset with 5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5: 2× DIMM slots, up to 128GB, supports AMD EXPO™ & Intel® XMP
- Memory speeds up to DDR5-7200 (OC) and beyond
- 1× PCIe 4.0 x16 slot with EZ-Latch quick release
- 1× PCIe 4.0 x4 M.2 slot (2280) for NVMe SSDs
- 4× SATA 6Gb/s ports; supports RAID 0, 1, 10

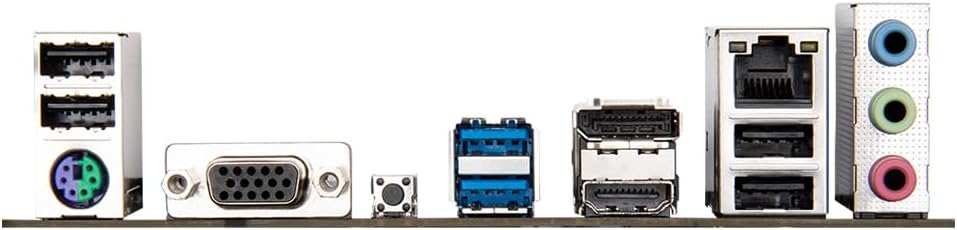

- Integrated graphics outputs: HDMI (4096×2160@60Hz), DisplayPort 1.4 (3840×2160@144Hz), D-Sub (1920×1200@60Hz)
- Realtek® GbE LAN (10/100/1000 Mbps)
- Realtek® Audio CODEC with 8-channel HD Audio, Audio Noise Guard, and high-end audio capacitors
- Smart Fan 6: 3× PWM/DC fan headers, multiple temperature sensors, dual fan curve mode, FAN STOP
- RGB Fusion: 1× Addressable LED header, 1× RGB LED header
- Q-Flash Plus: Update BIOS without installing CPU, memory, or graphics card
- Form Factor: Micro ATX (mATX)
