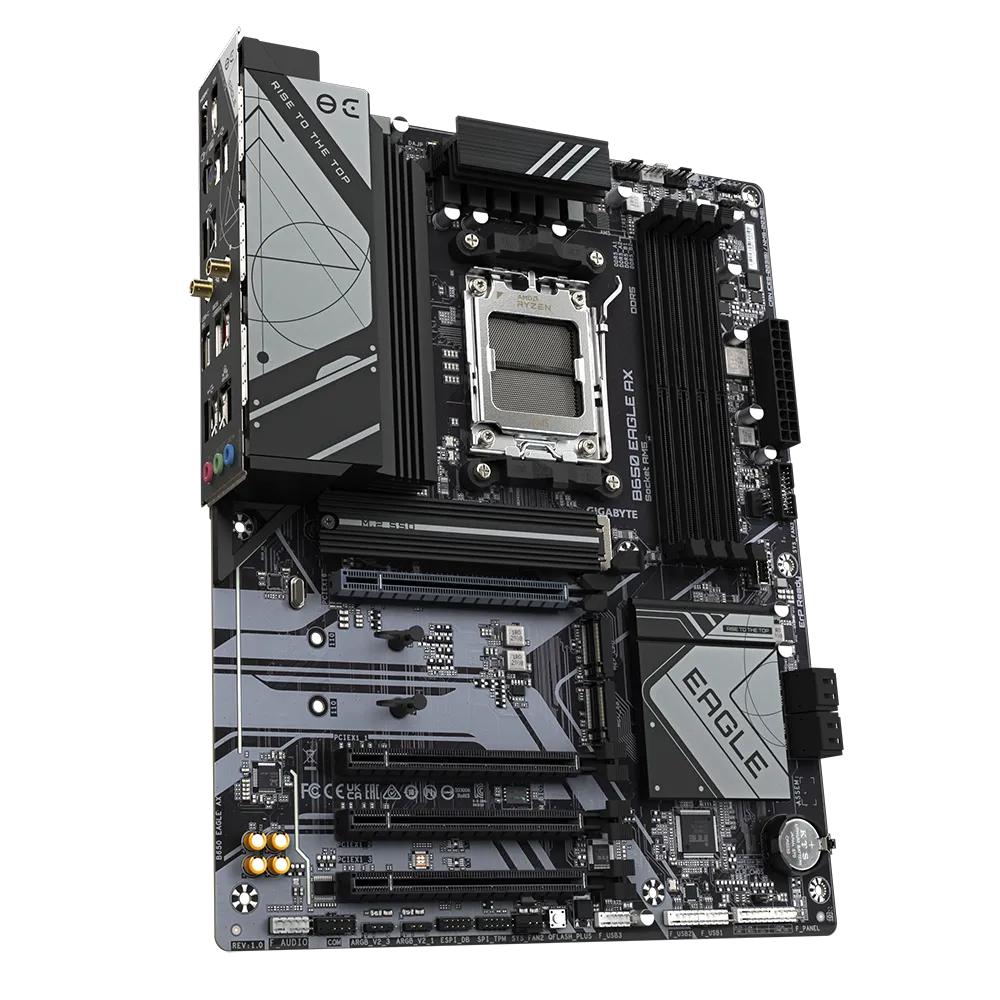

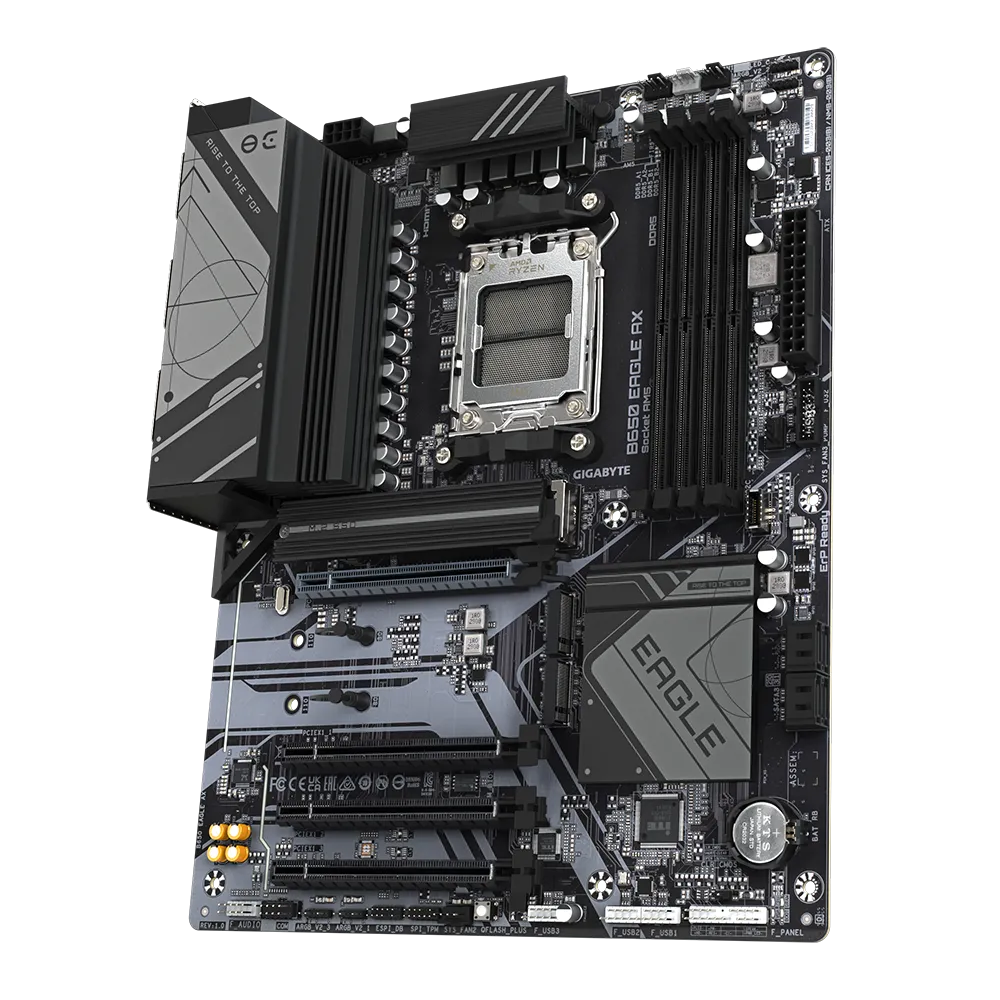

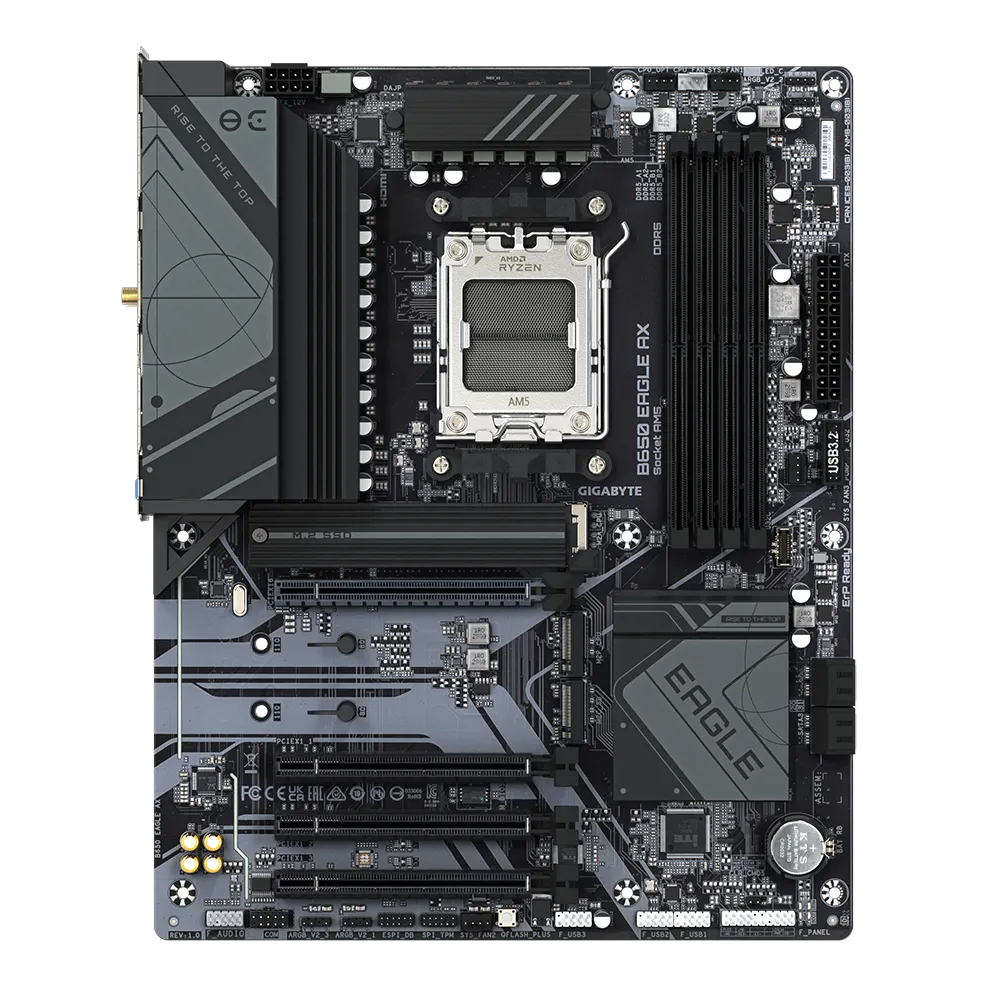

CPU Support: AMD Ryzen™ 7000 / 8000 / 9000 Series Processors (Socket AM5)
-
Chipset: AMD B650
-
Memory: 4× DDR5 DIMM slots (Dual Channel), supports AMD EXPO™ & Intel® XMP Memory Modules
-
VRM Design: 12+2+2 Phases Digital VRM Solution
-
Storage:
- 3× M.2 slots (1× PCIe 5.0 x4, 2× PCIe 4.0 x4)
- 4× SATA 6Gb/s ports
-
Expansion Slots:
- 1× PCIe x16 slot with EZ-Latch Quick Release Design
- 2× PCIe x1 slots
-
Networking:
- Wi-Fi 6E (802.11ax) with dedicated 6GHz band
- Gigabit Ethernet LAN
-

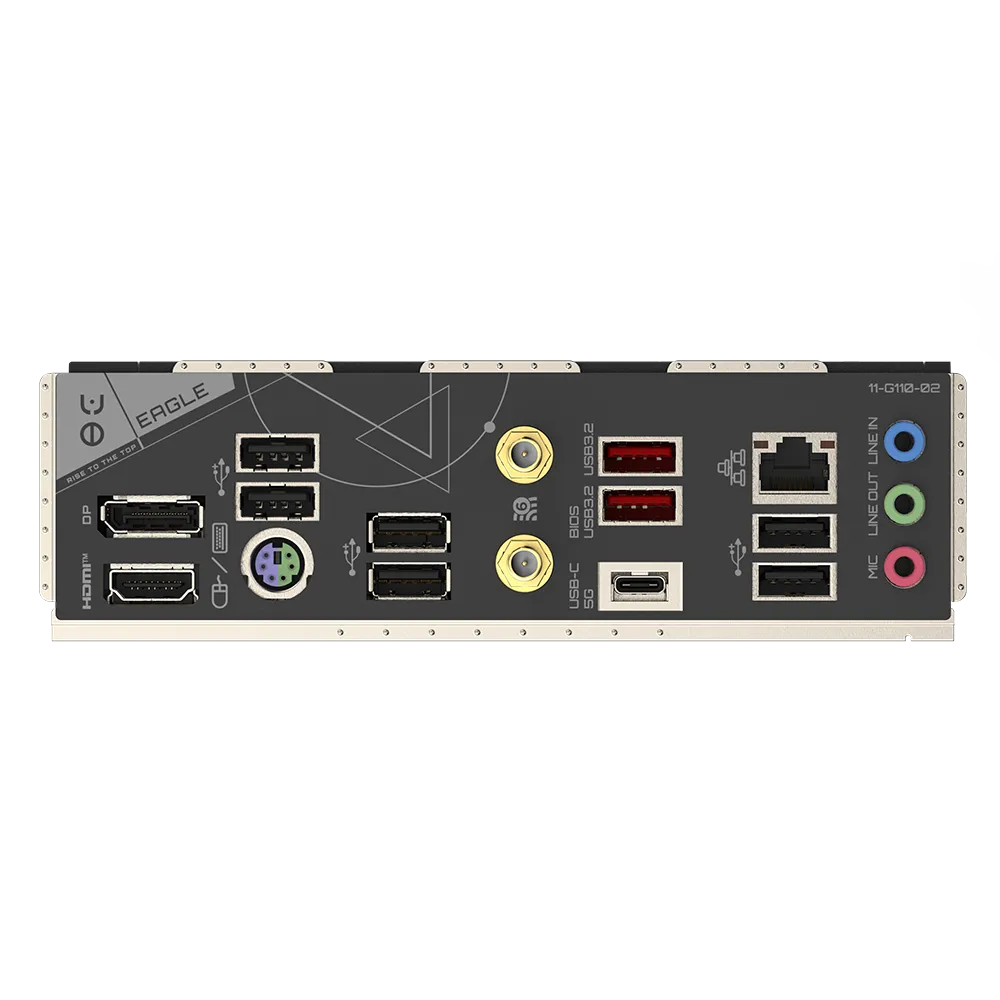

USB Ports:
- Rear: 2× USB 3.2 Gen2, 1× USB 3.2 Gen1 Type-C®, 6× USB 2.0
- Front: USB 3.2 Gen1 Type-C®
-
Display Outputs: 1× DisplayPort, 1× HDMI
-
Audio: 8-Channel HD Audio with High-End Audio Capacitors and Audio Noise Guard
-
Cooling Solutions:
- Advanced Thermal Design with Fully Covered MOSFET Heatsinks
- M.2 Thermal Guard
- Smart Fan 6 with Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
-
DIY Friendly Features:
- EZ-Latch: Quick Release Design for PCIe x16 Slot
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory, and Graphics Card
-
RGB Lighting: RGB FUSION with 3× Addressable LED Headers and 1× RGB LED Header
-
Form Factor: ATX
