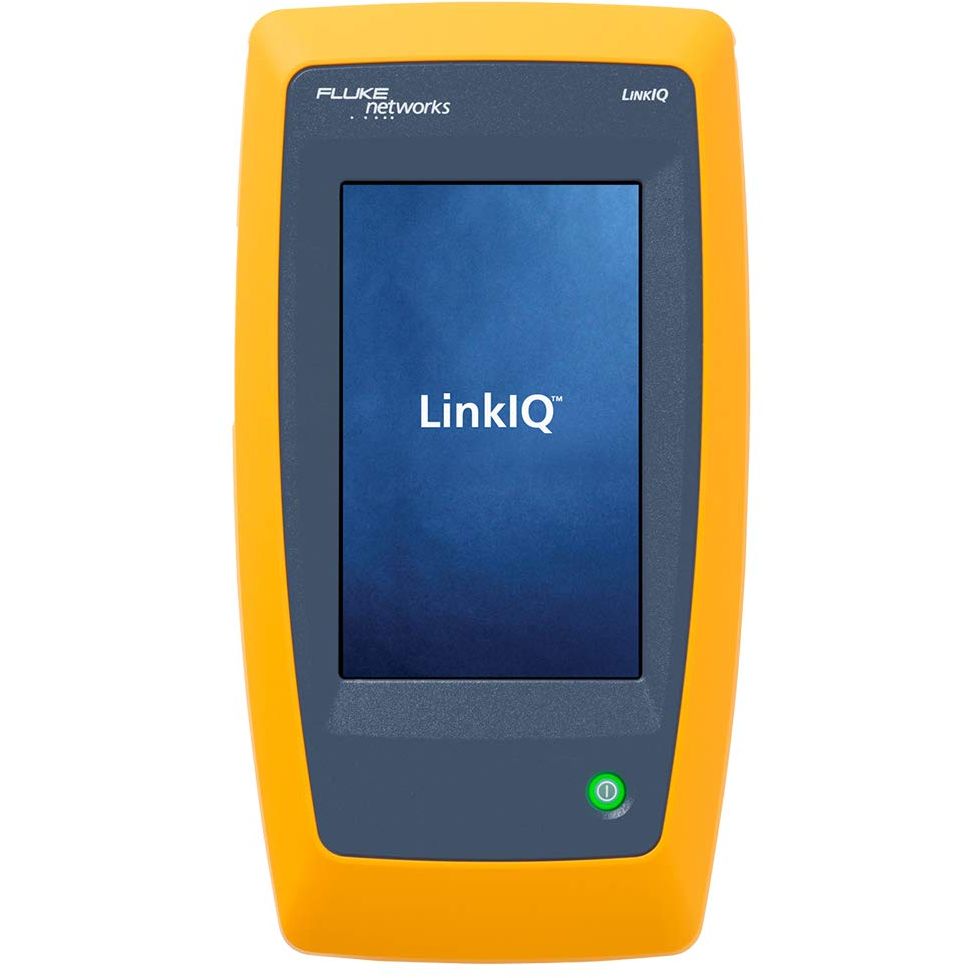

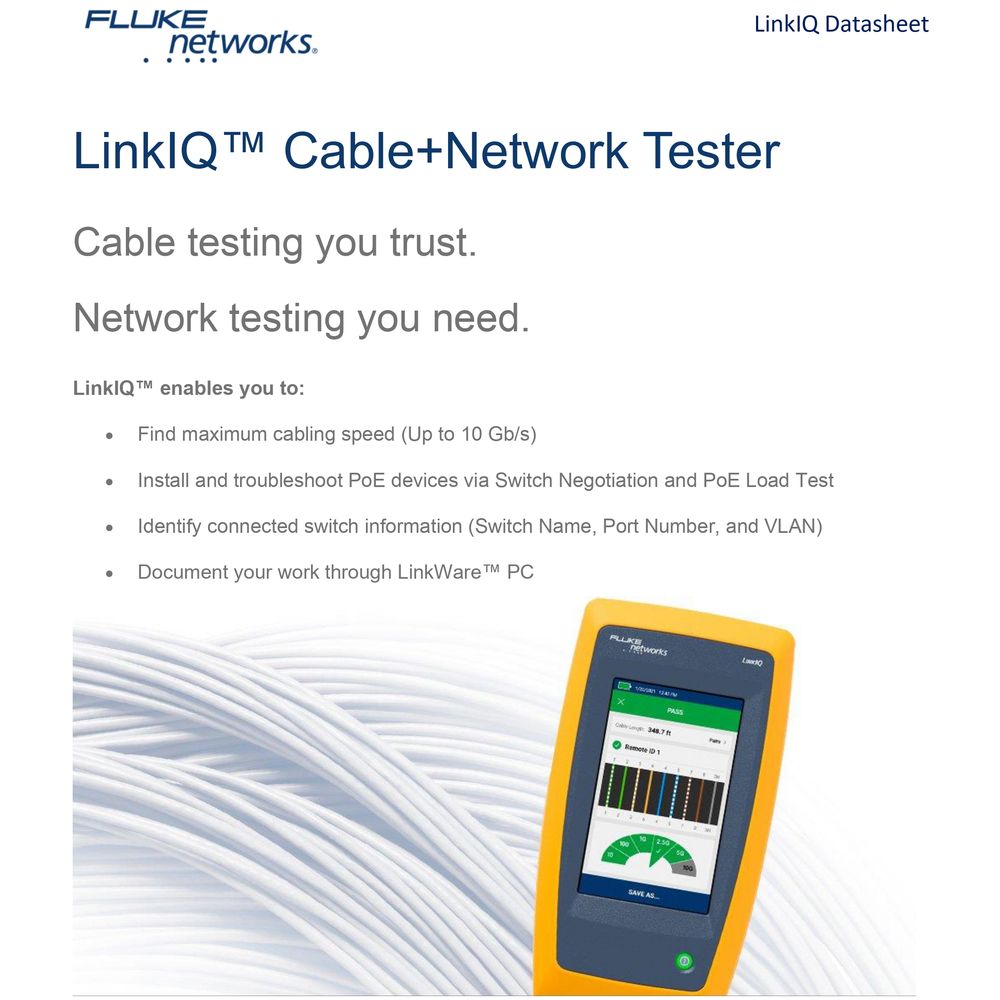

Fluke Networks LinkIQ™ Cable + Network Tester
Trusted Cable Testing. Essential Network Diagnostics.

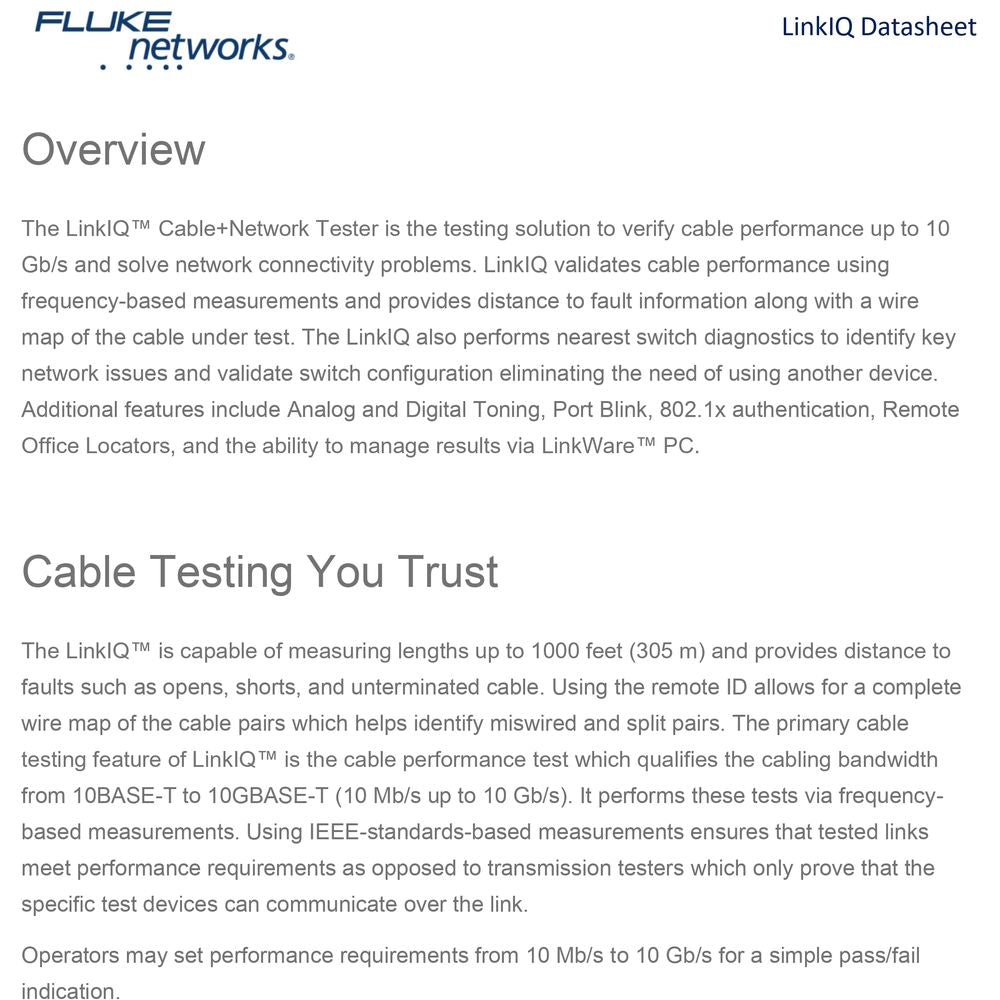

The Fluke Networks LinkIQ™ Cable+Network Tester is the ideal solution to verify cable performance up to 10 Gb/s and troubleshoot network connectivity issues. It combines cable performance validation using frequency-based measurements with switch diagnostics, helping professionals identify key issues quickly.

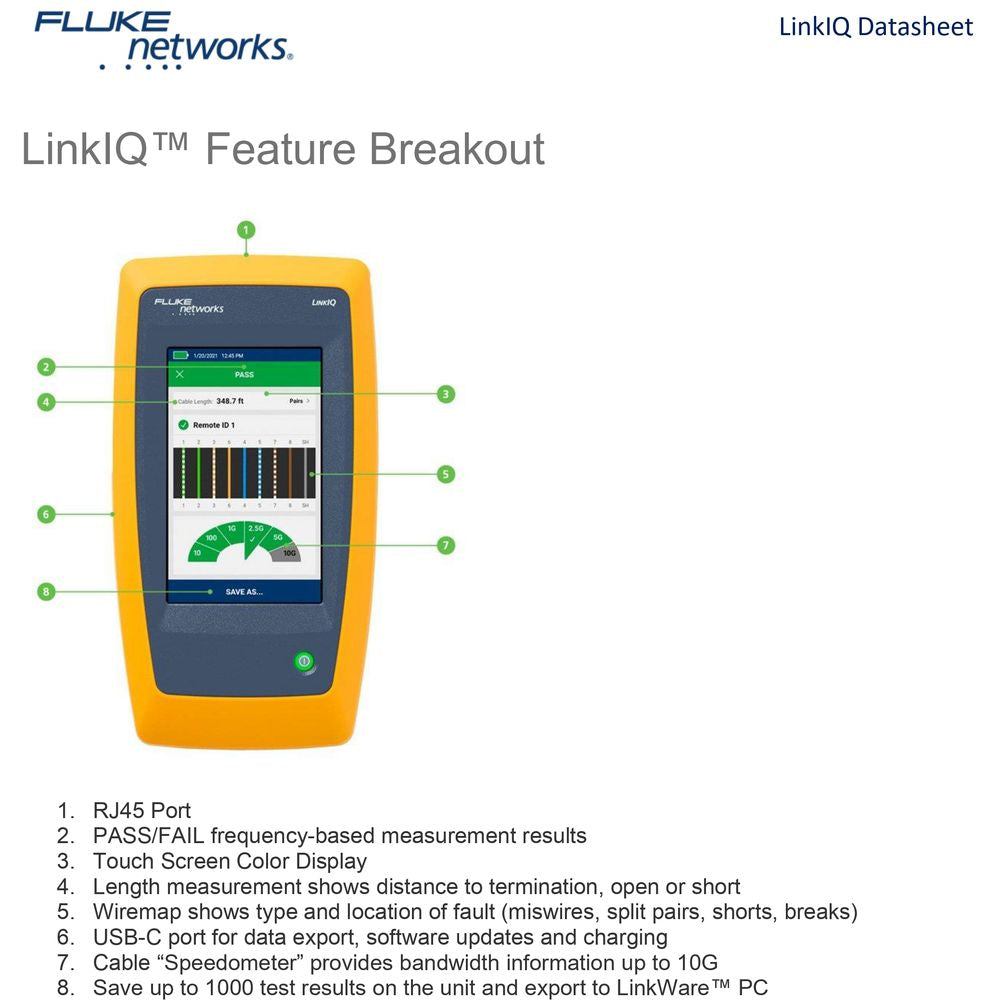

Key Features

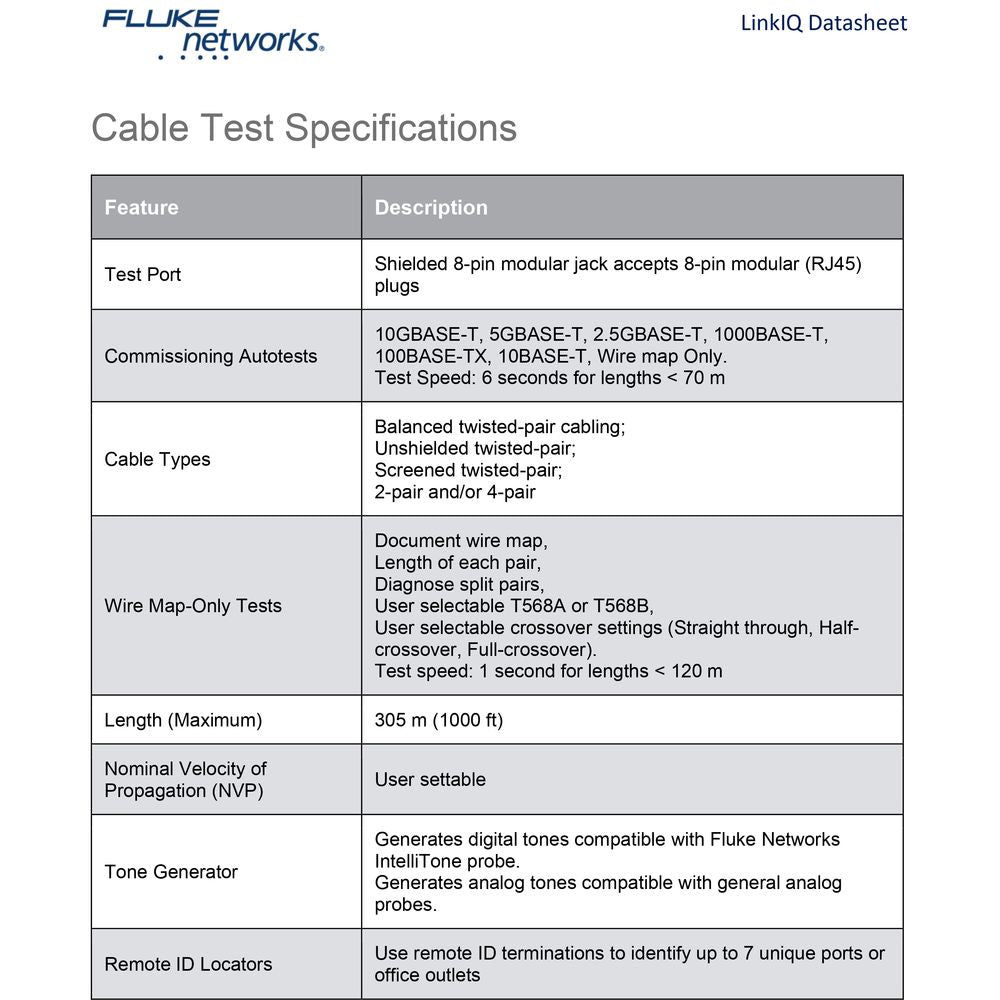

- Verifies cable performance up to 10 Gb/s (10GBASE-T)
- Measures cable lengths up to 1000 feet (305 m)

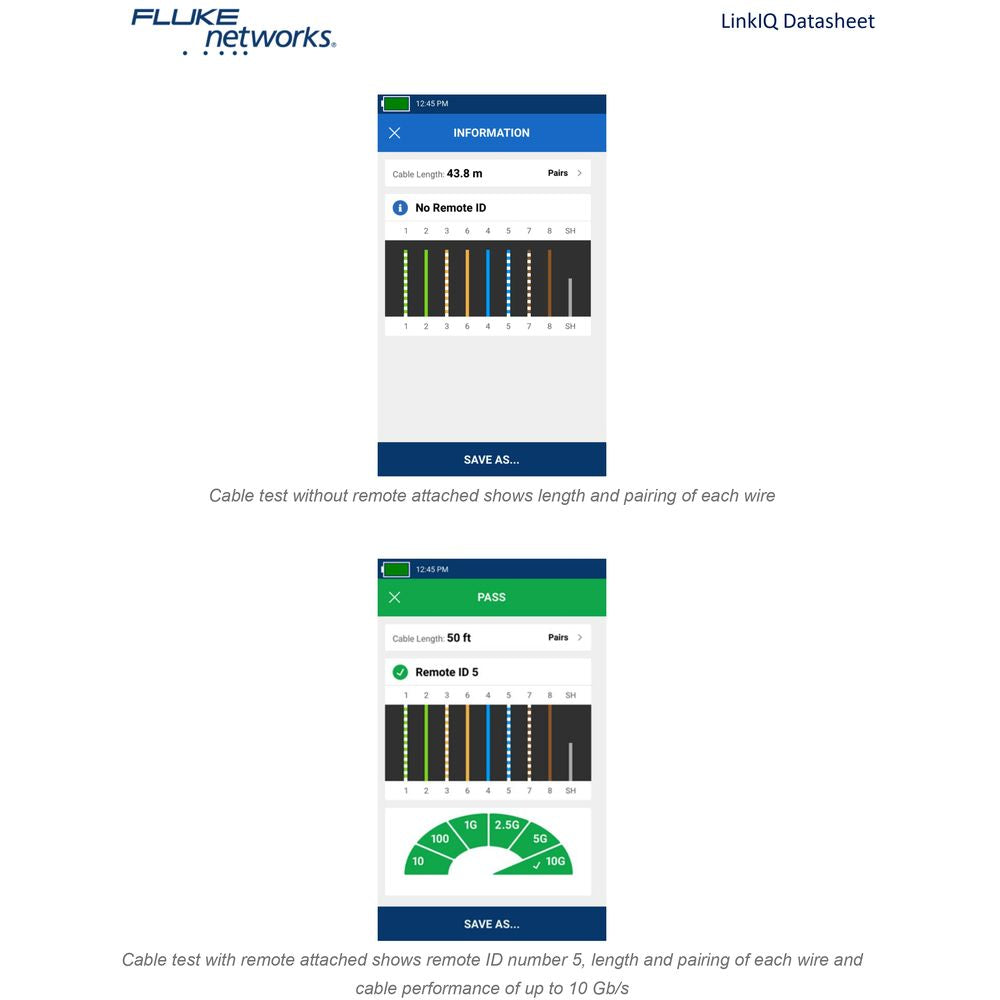

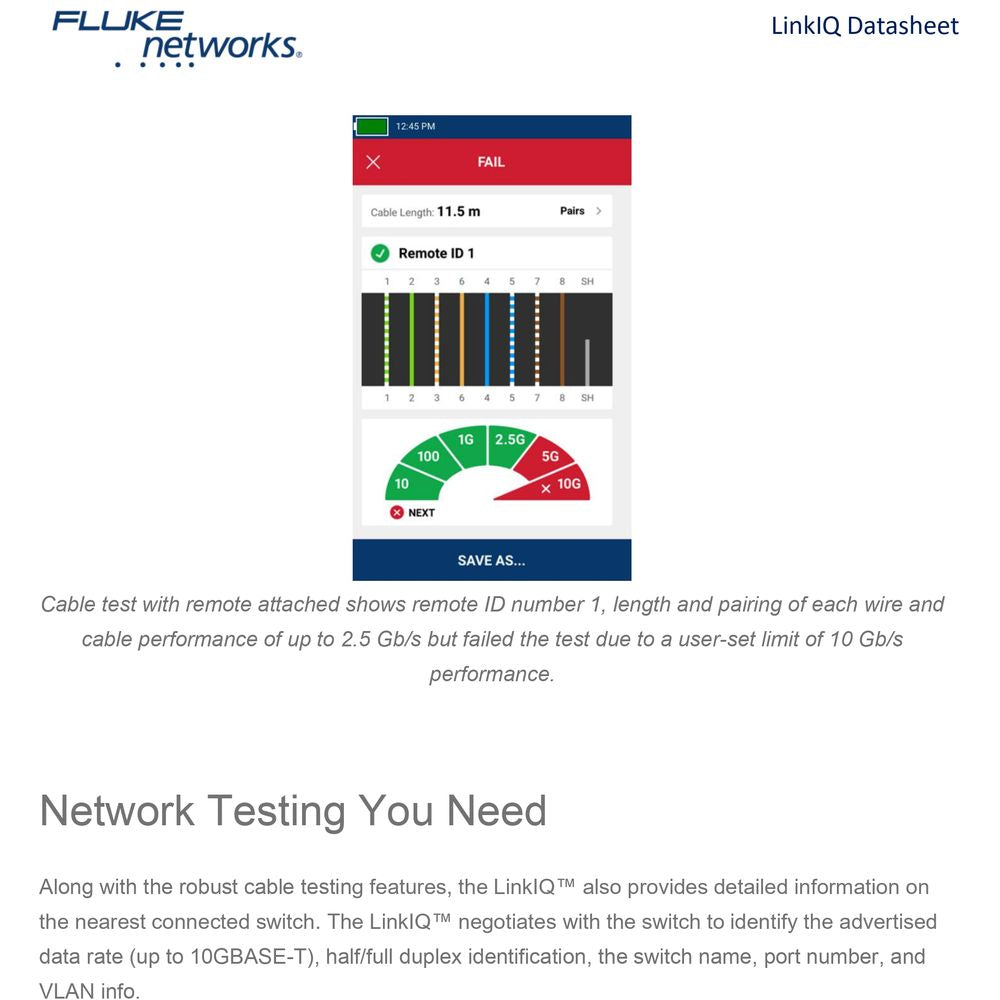

- Displays wiremap and identifies faults like miswires, split pairs, opens, and shorts

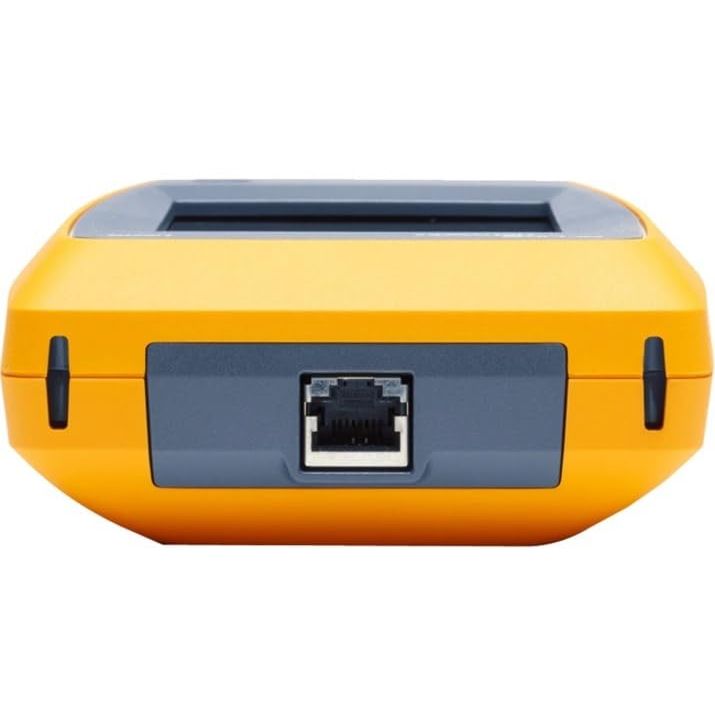

- Tests RJ45, RJ11, and coaxial cables without adapters
- Performs in-depth PoE load testing with class detection
- Detects Ethernet services (10/100/1000BASE-T)

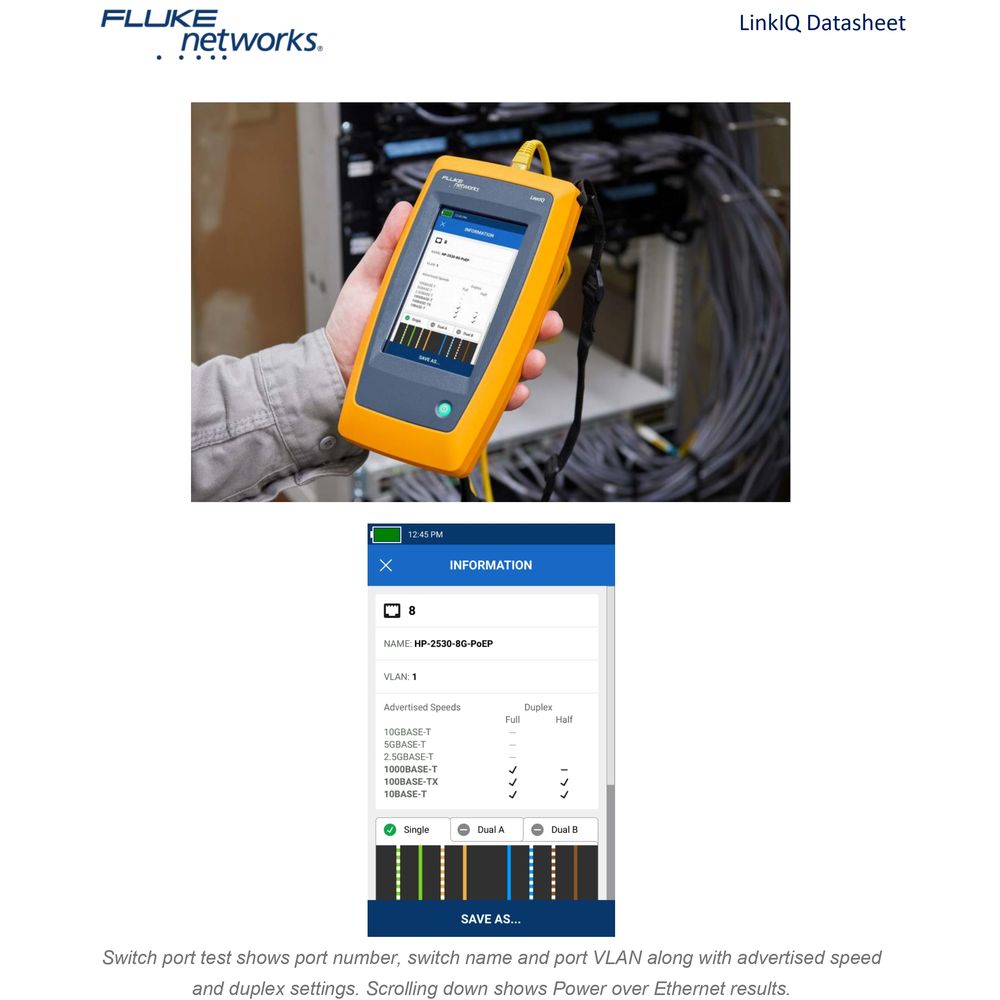

- Identifies connected switch name, port number, VLAN, and advertised speeds

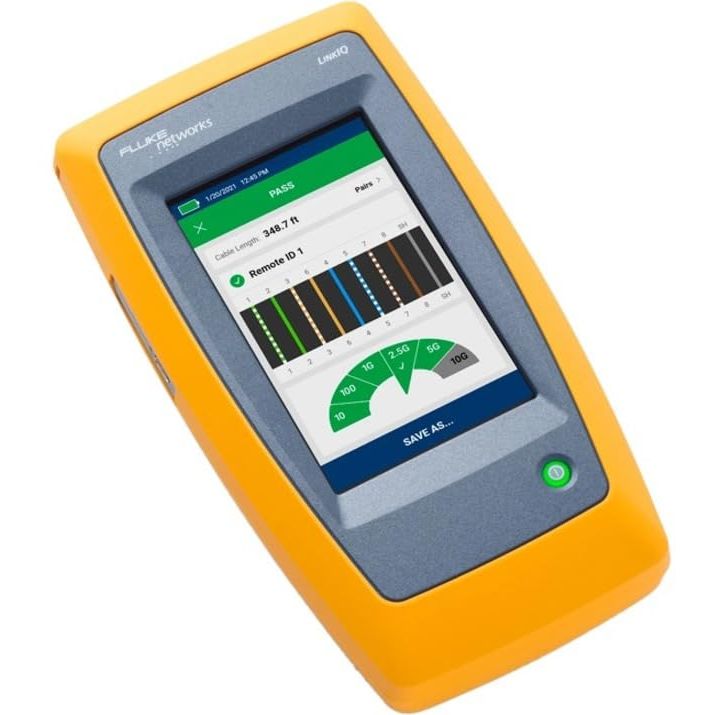

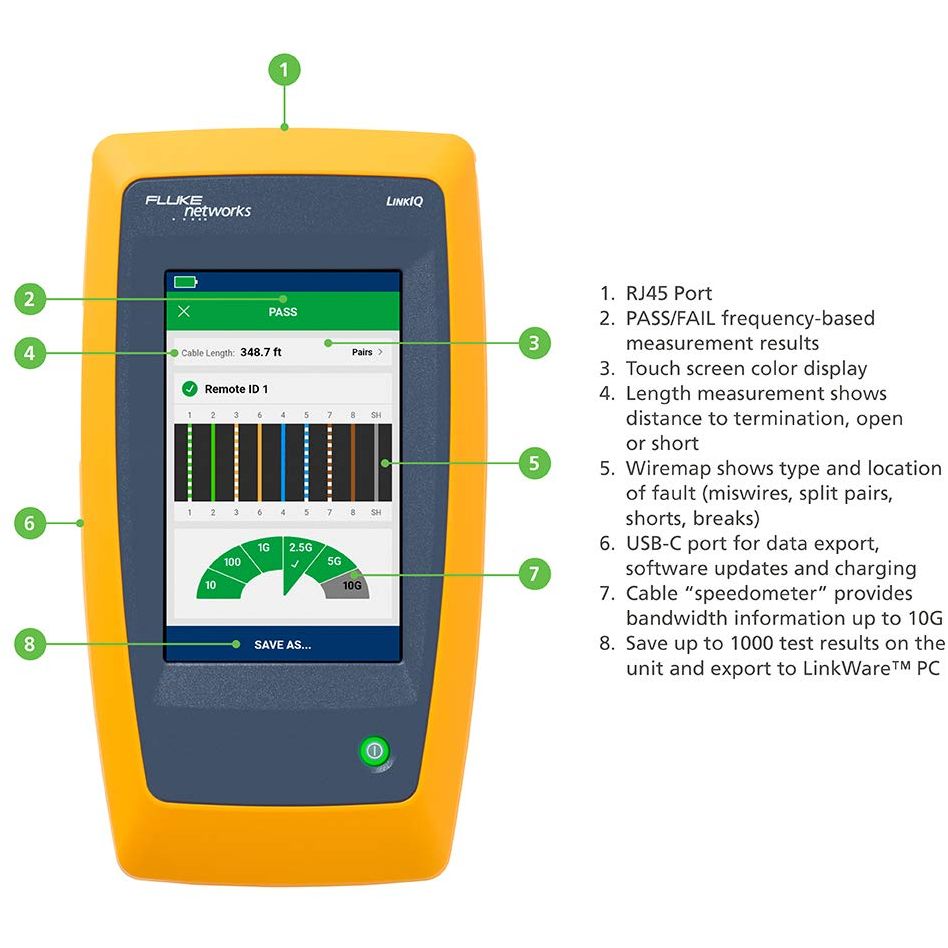

- Touchscreen color display with PASS/FAIL result indicators
- USB-C port for data export, software updates, and charging

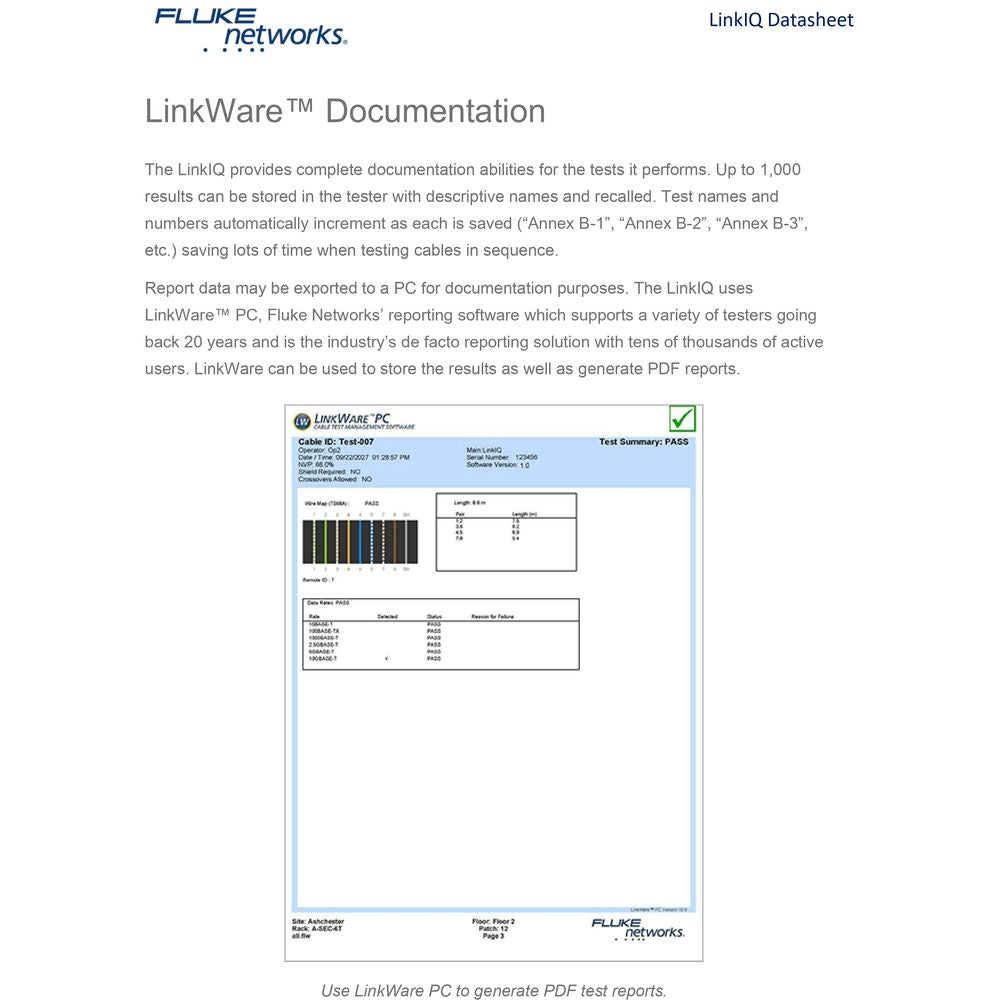

- Save up to 1000 test results and manage via LinkWare™ PC software

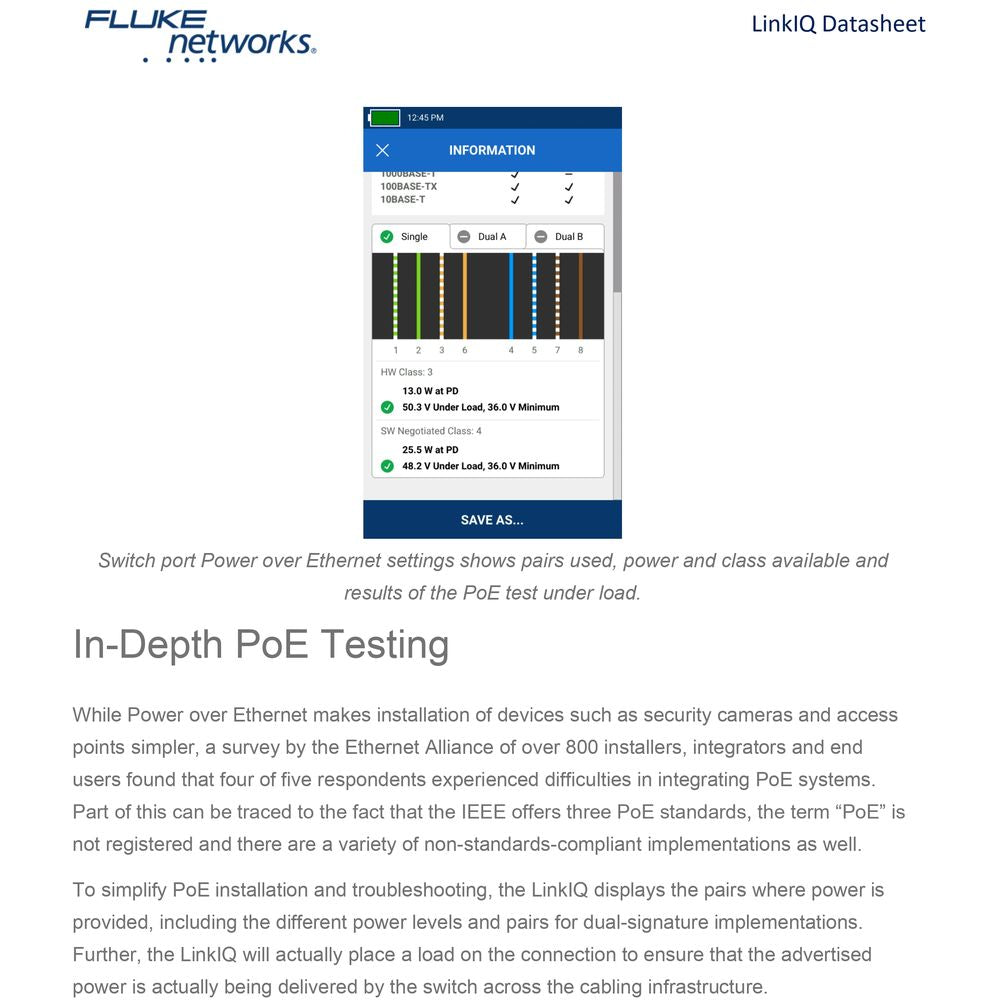

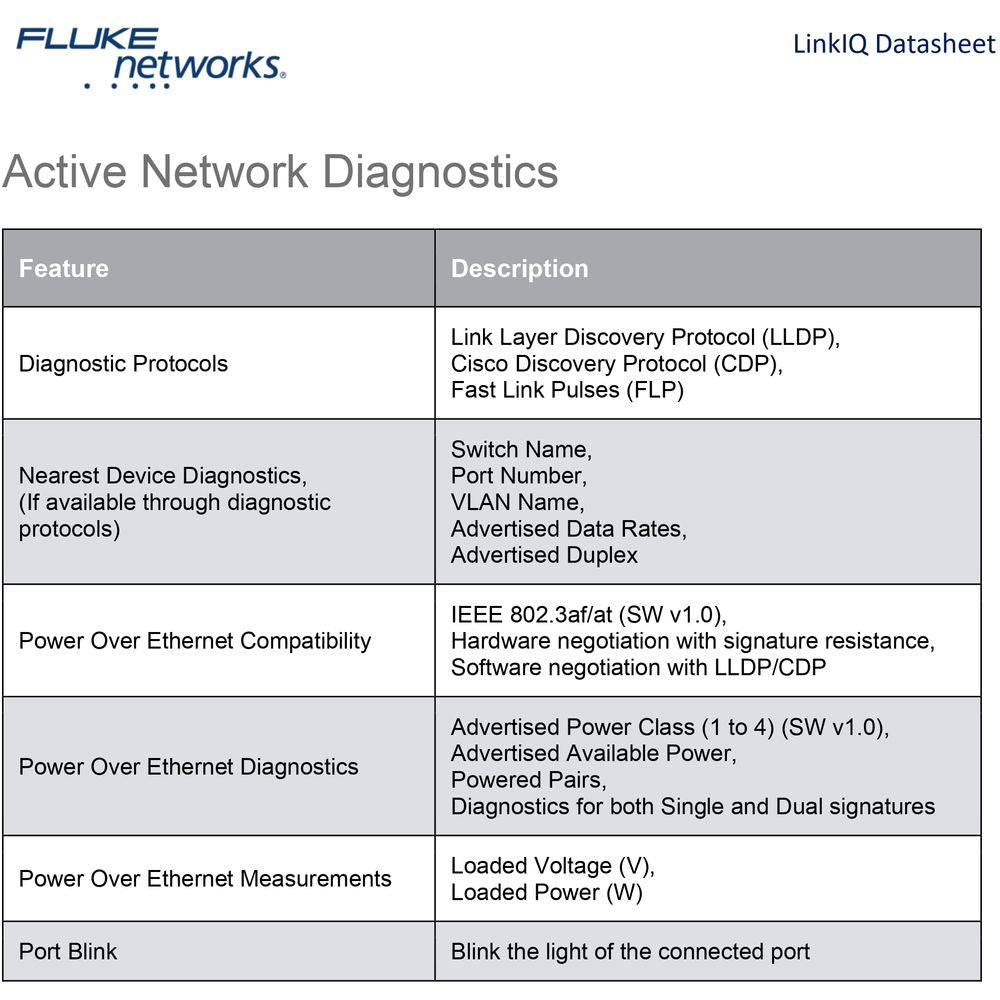

Advanced PoE Testing

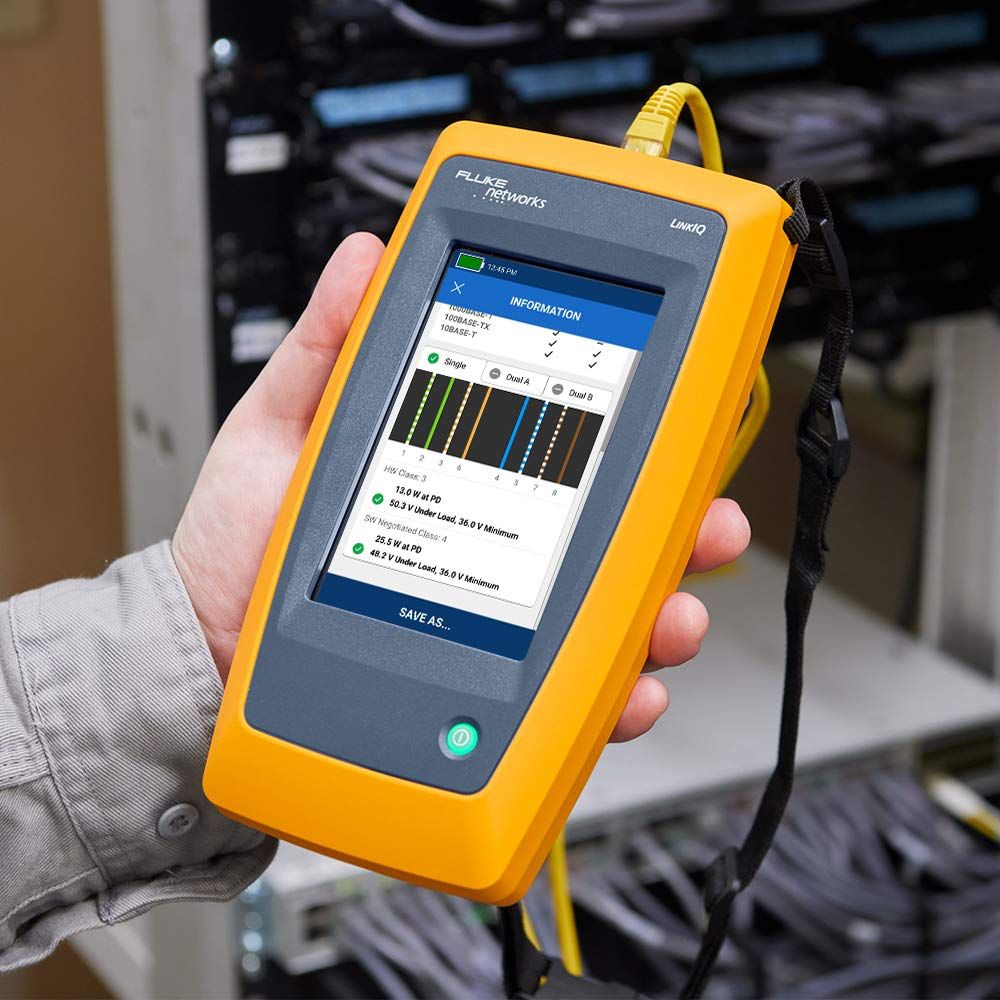

LinkIQ™ simplifies PoE troubleshooting by detecting which wires provide power, measuring voltage under load, and determining the class of PoE available. It supports single and dual-signature PoE implementations, ensuring compatibility with various standards and devices.
Applications
- IT network diagnostics
- Structured cabling verification
- PoE device installation and troubleshooting
- Switch port identification and network mapping

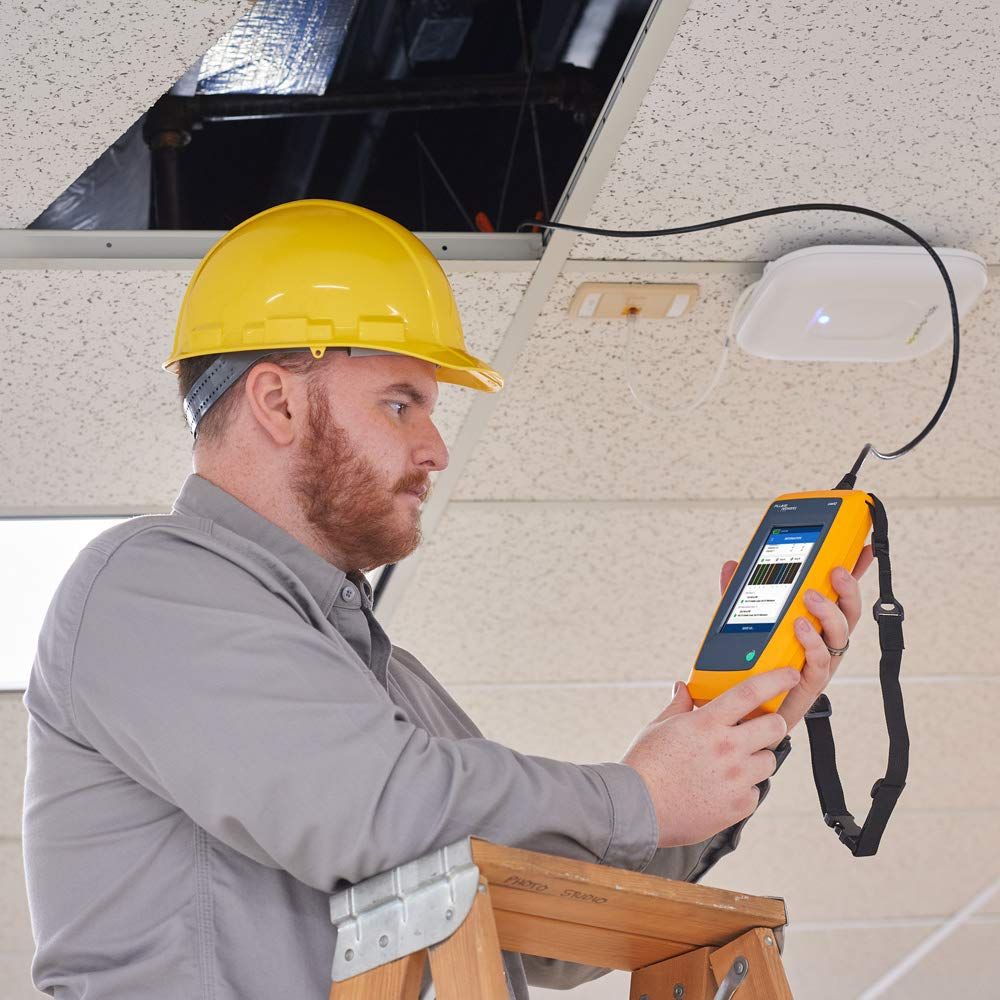

- Security camera and access point deployments

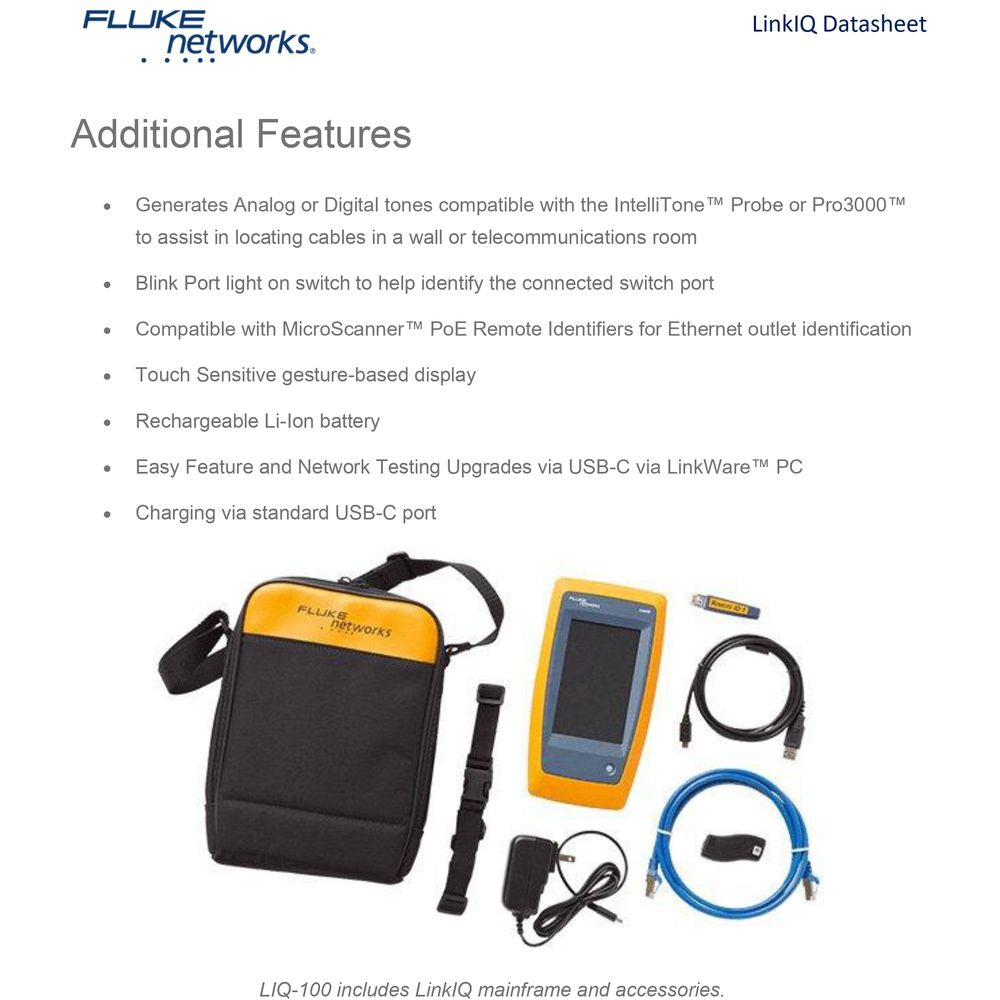

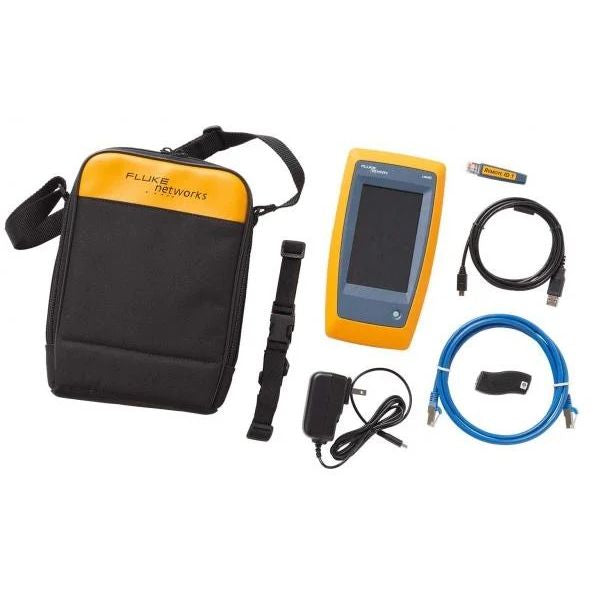

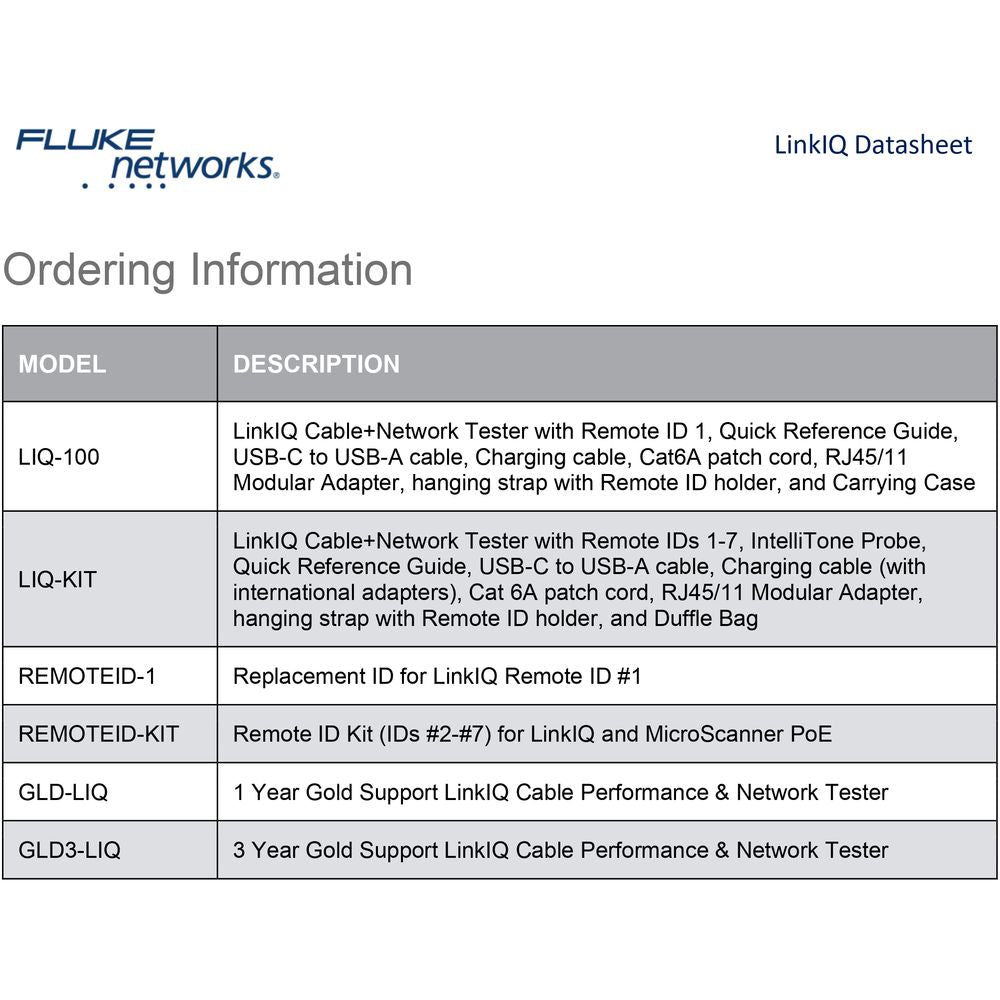

Included in the Package
- LinkIQ™ Cable + Network Tester
- Remote ID #1
- Patch cords
- USB-C cable
- Quick reference guide
- Carrying case
