DSX Cable Analyzer™ Series

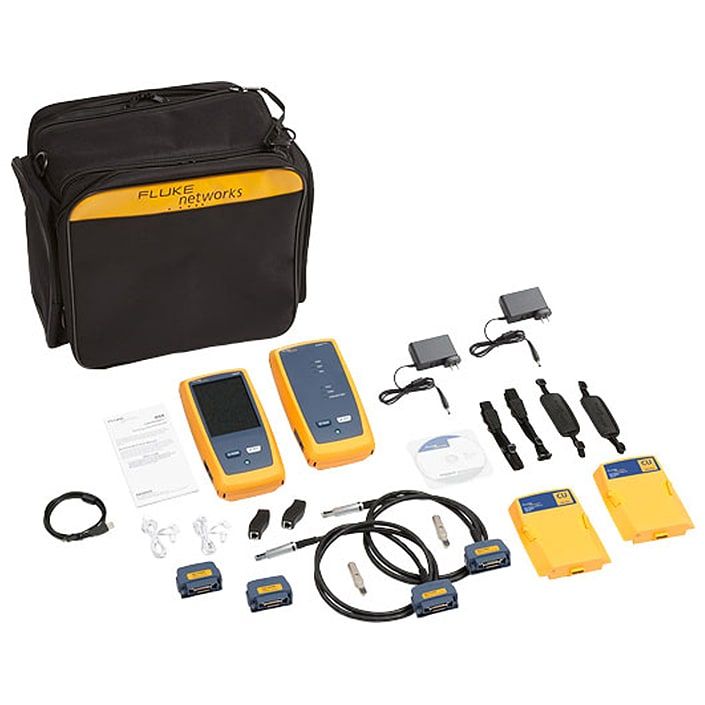

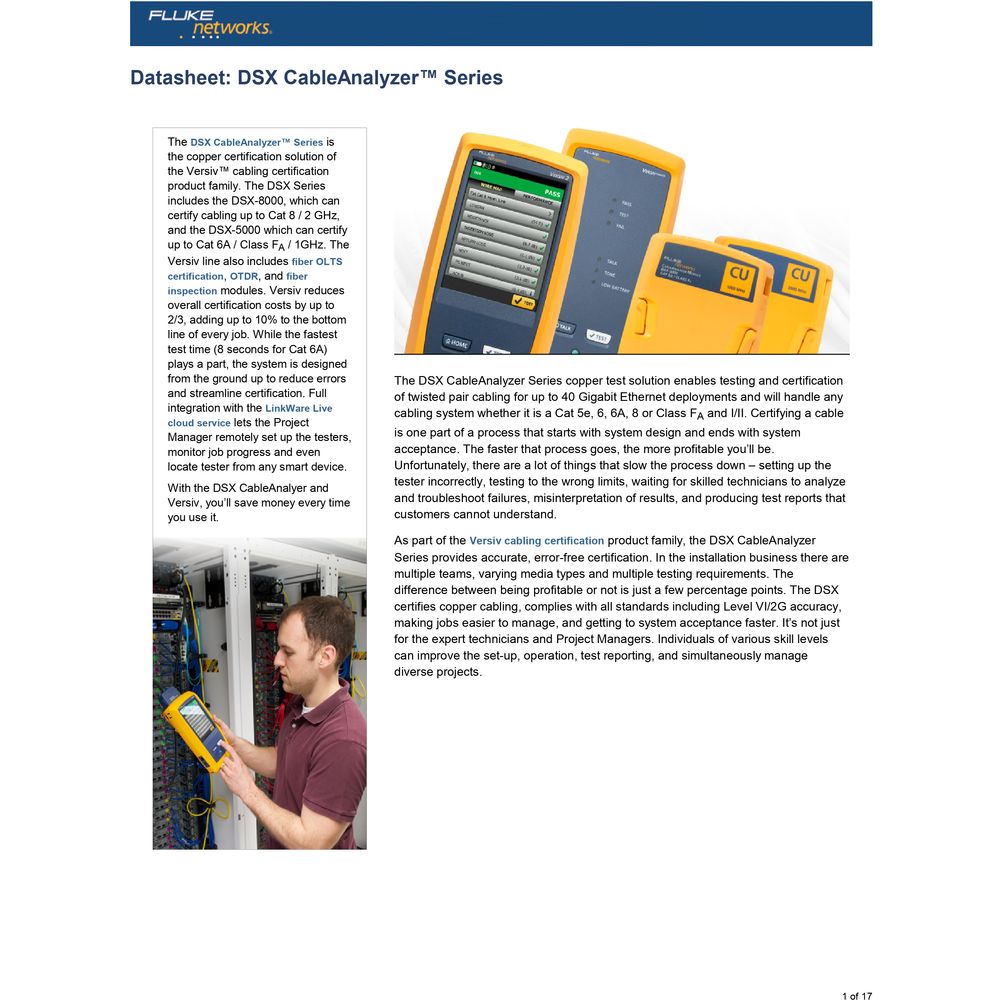

The DSX Cable Analyzer™ Series is the copper certification solution within the Versiv™ cabling certification product family. It includes:

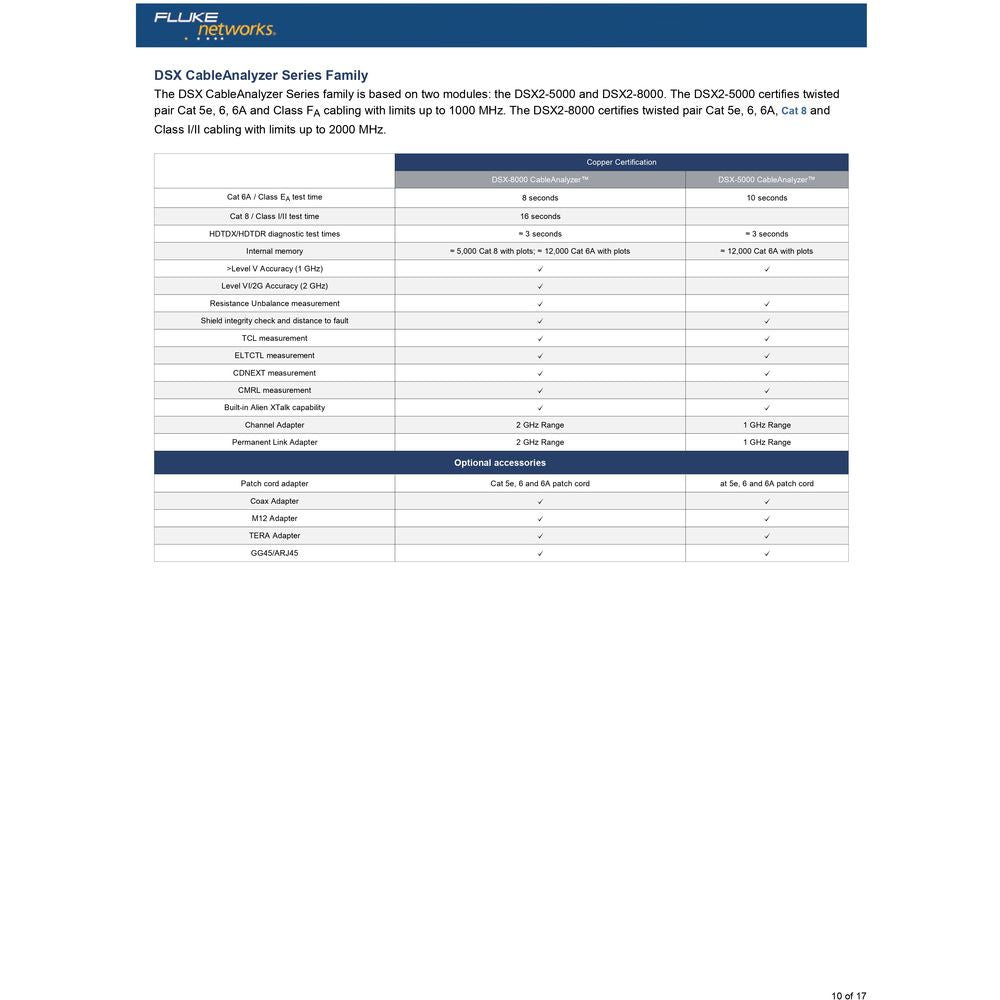

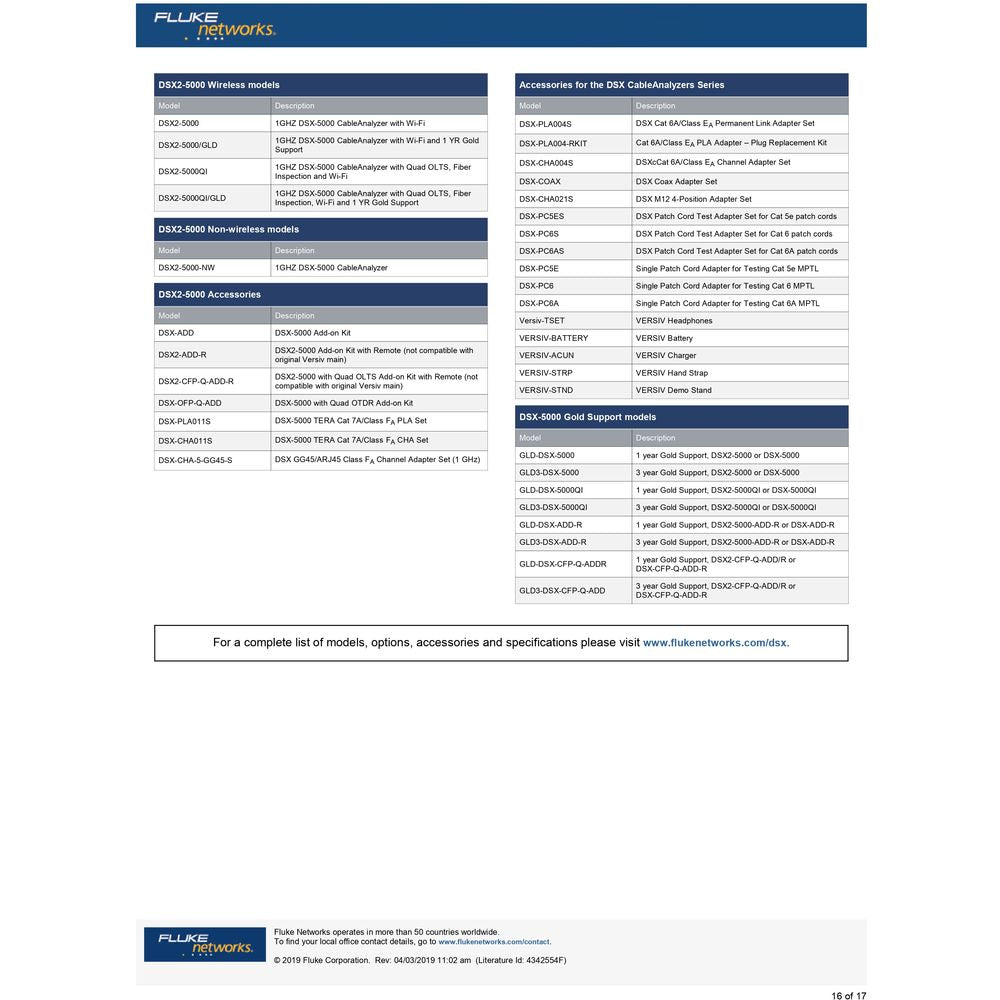

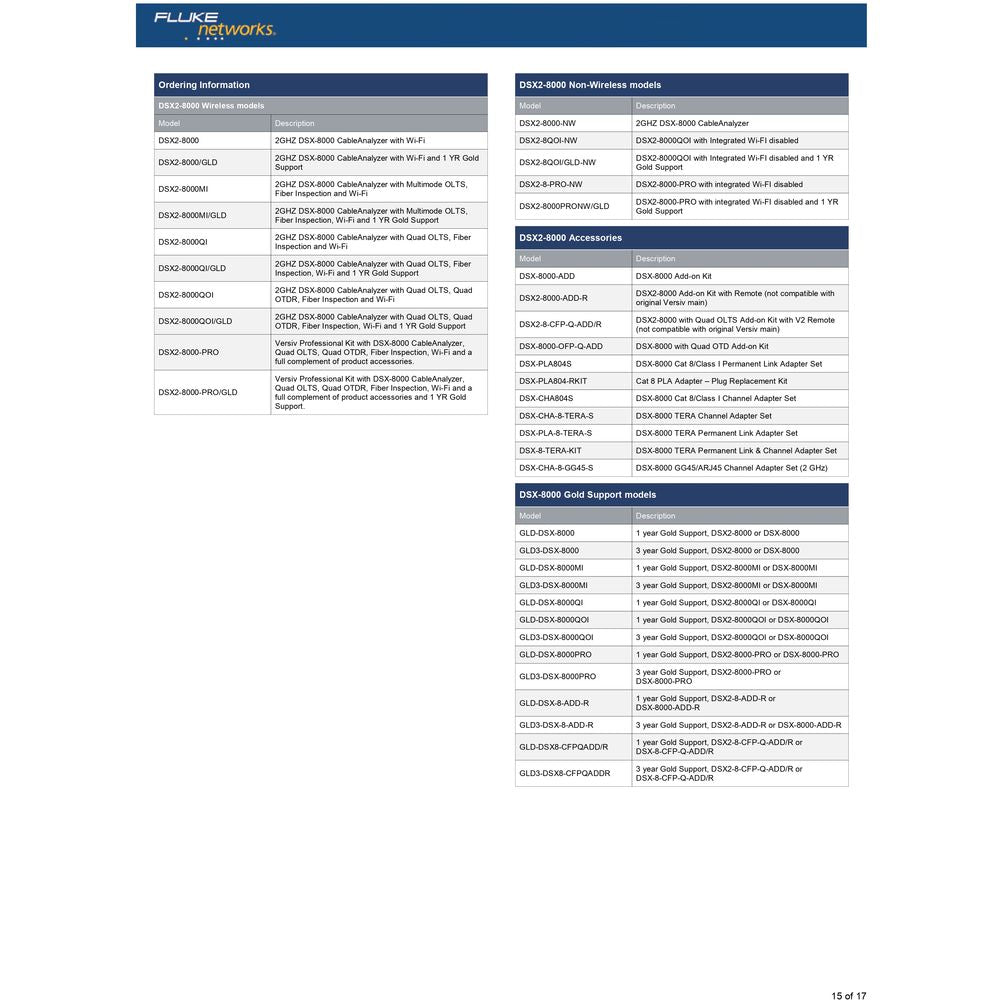

• DSX-8000: Certifies up to Cat 8 / 2 GHz
• DSX-5000: Certifies up to Cat 6A / Class Fa / 1 GHz

The Versiv line also supports fiber OLTS certification, OTDR, and fiber inspection modules. Versiv reduces total certification costs by up to 2/3, potentially increasing job profitability by 10%.

Key Benefits

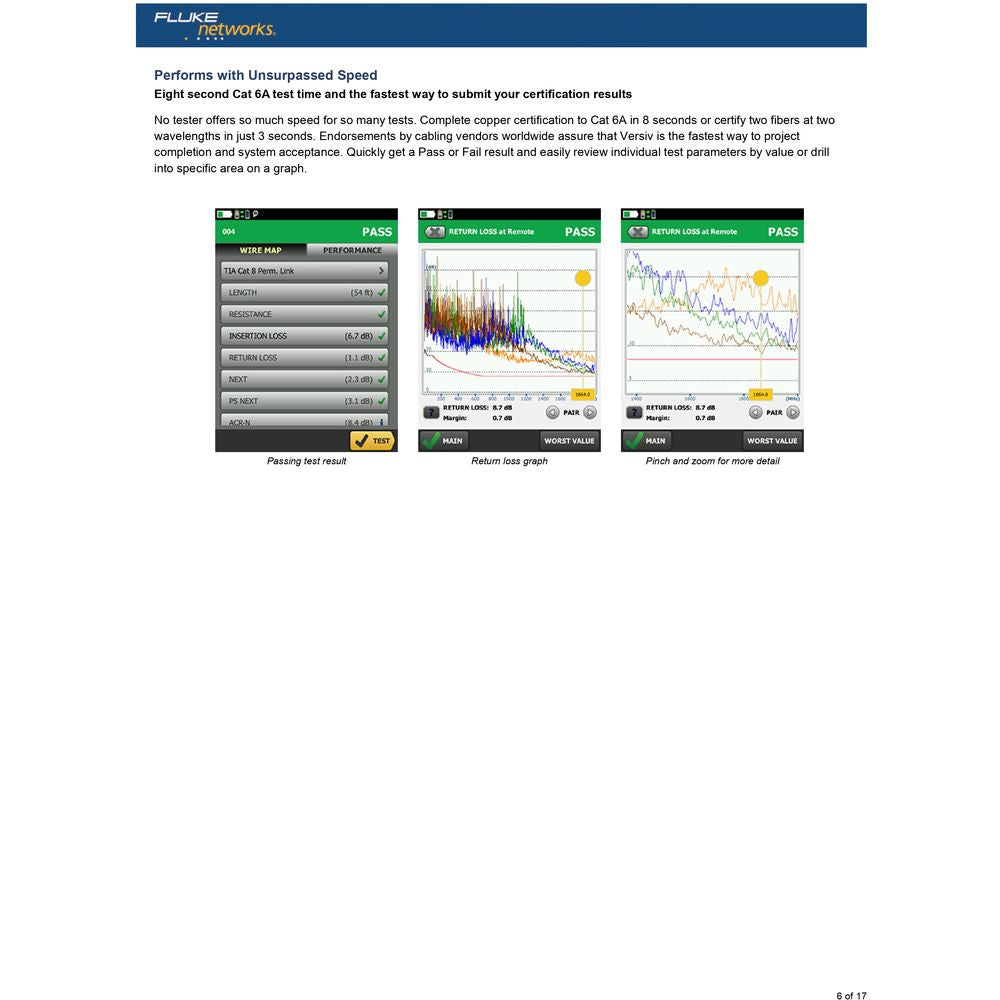

• Fastest test time in the industry: 8 seconds for Cat 6A
• Reduces setup and reporting errors
• Integrates with LinkWare Live for remote tester setup, job progress tracking, and location tracking via smart devices

Certification Capabilities

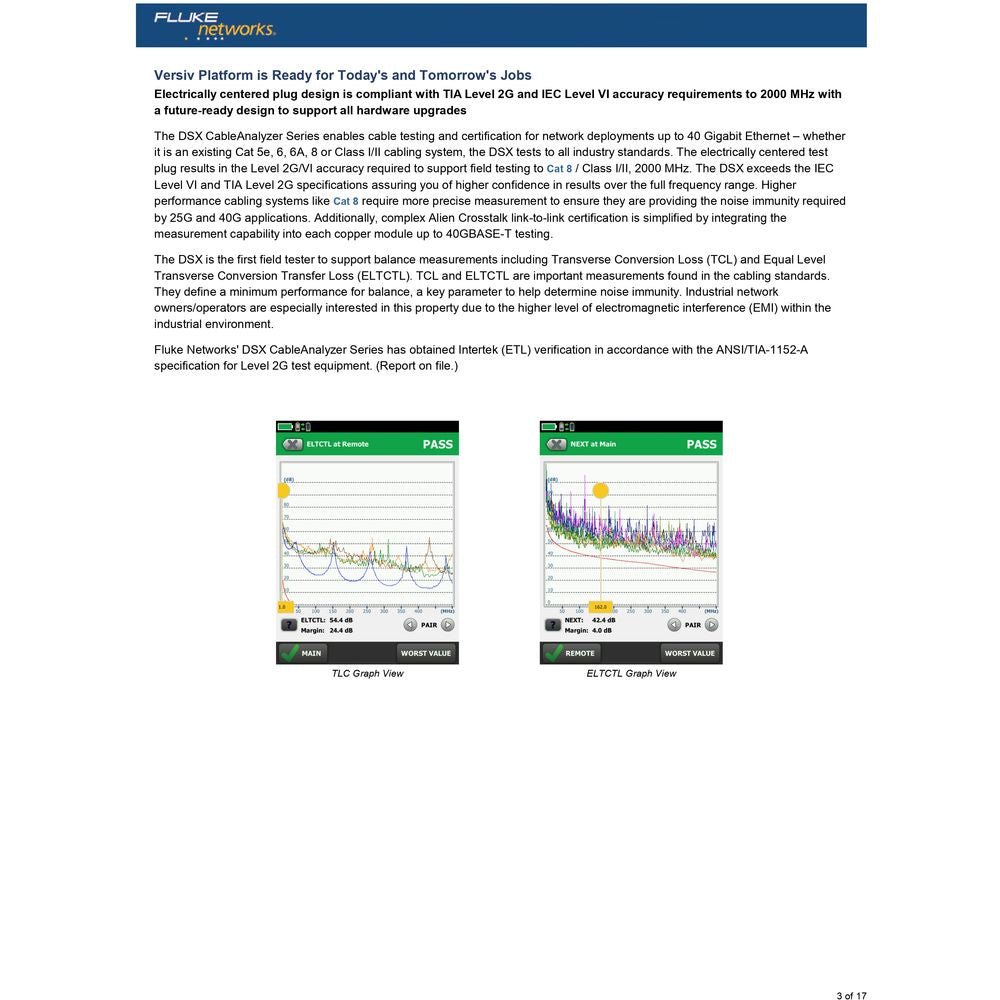

The DSX CableAnalyzer enables testing and certification of twisted pair cabling for up to 40 Gigabit Ethernet deployments. Supported cabling systems:

• Cat 5e, 6, 6A, 8
• Class Fa, I/II

It ensures accurate, error-free certification across multiple media types and installation teams, minimizing profit loss from misconfiguration or test delays.

Advanced Features & Capabilities

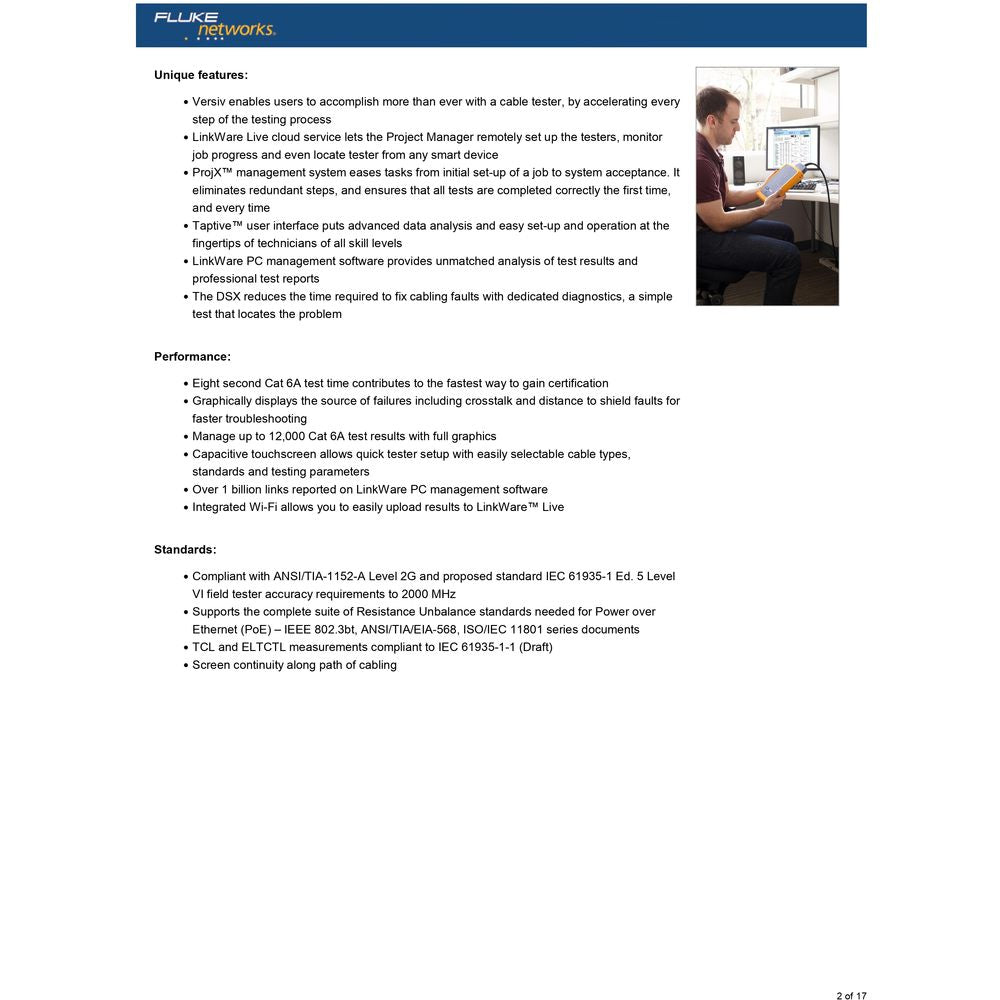

• Modular Design: DSX modules are hot-swappable to support copper, fiber, and OTDR testing

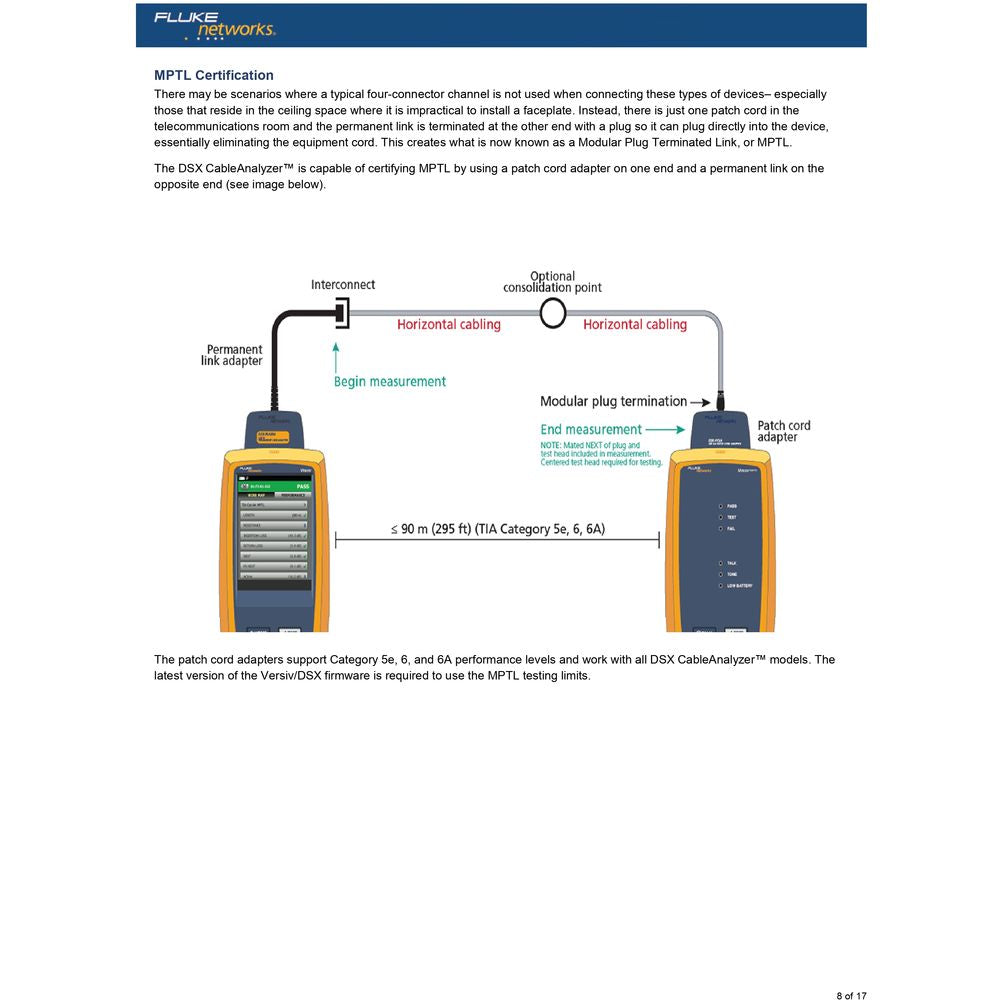

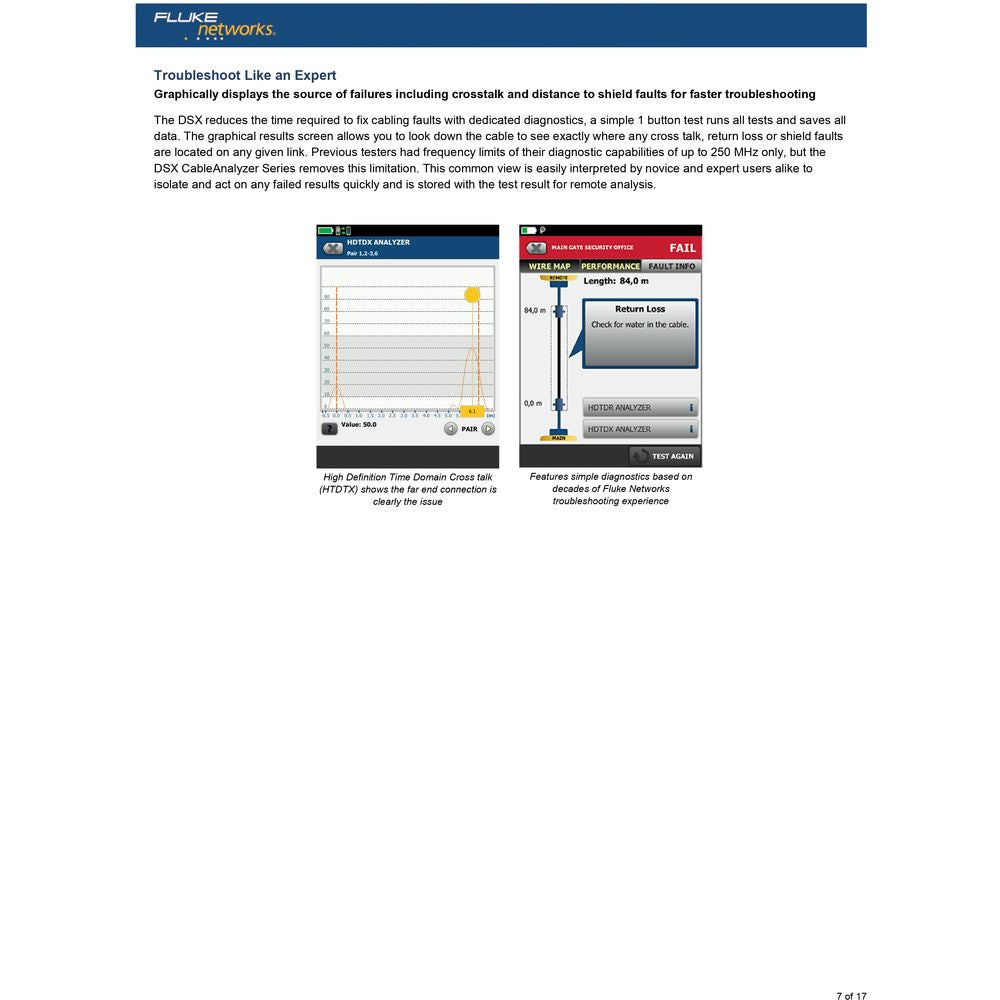

• Graphical Diagnostics: TDR-based fault info (distance to shield faults, wiremap, crosstalk, return loss, etc.)
• Alien Crosstalk: Easy setup and analysis using only one main and one remote unit

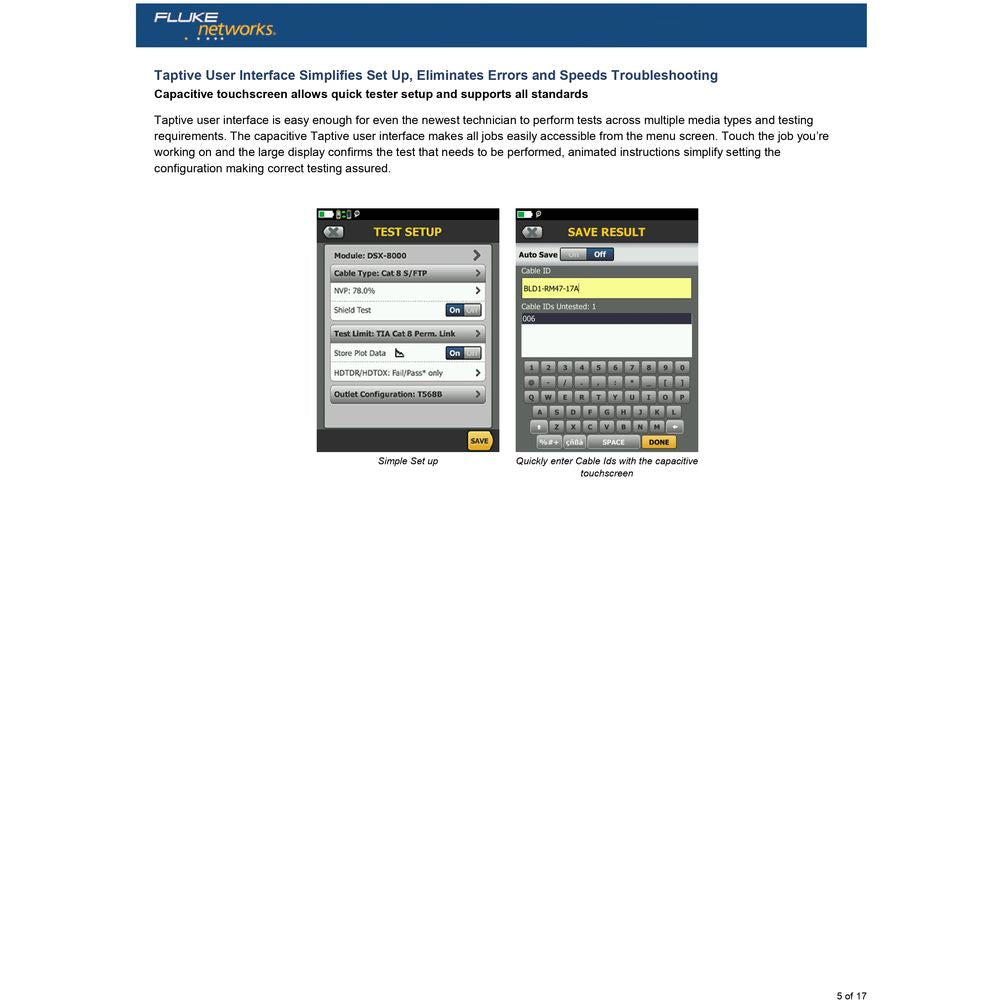

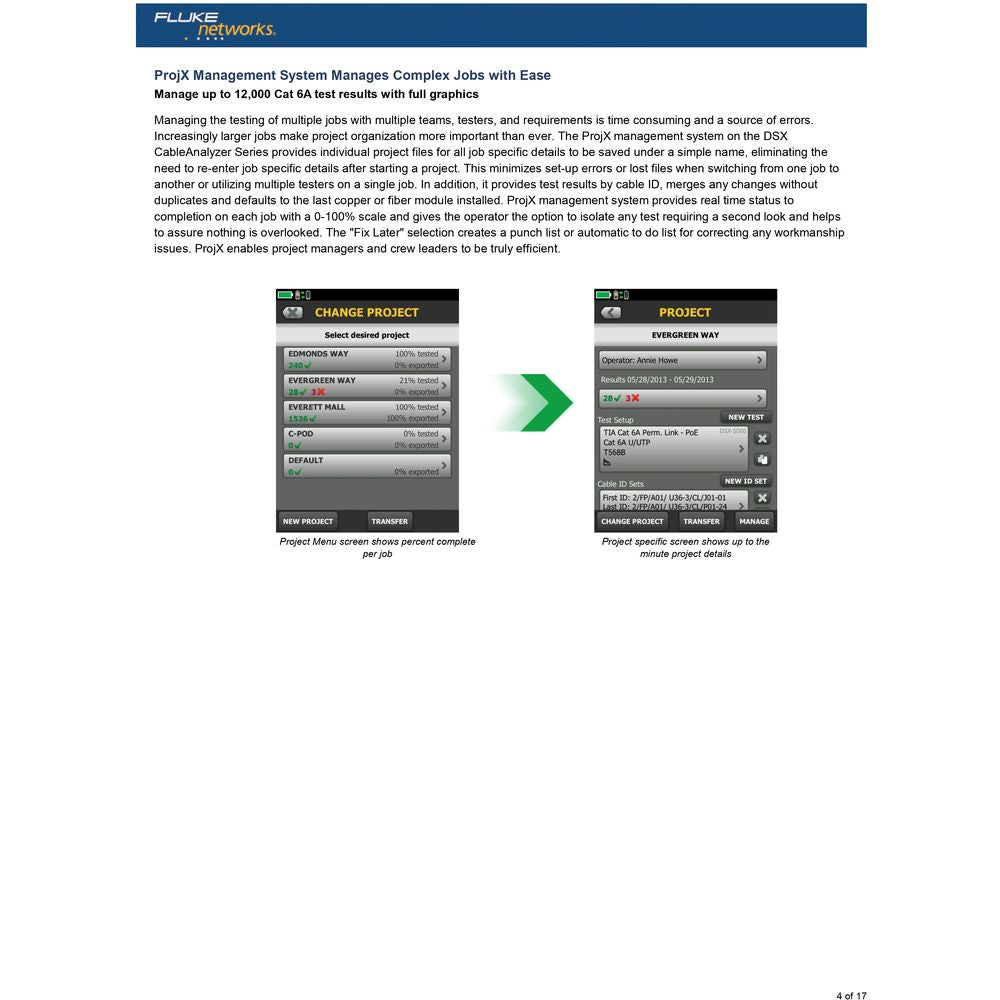

• ProjeX System: Simplifies setup and ensures consistency across teams

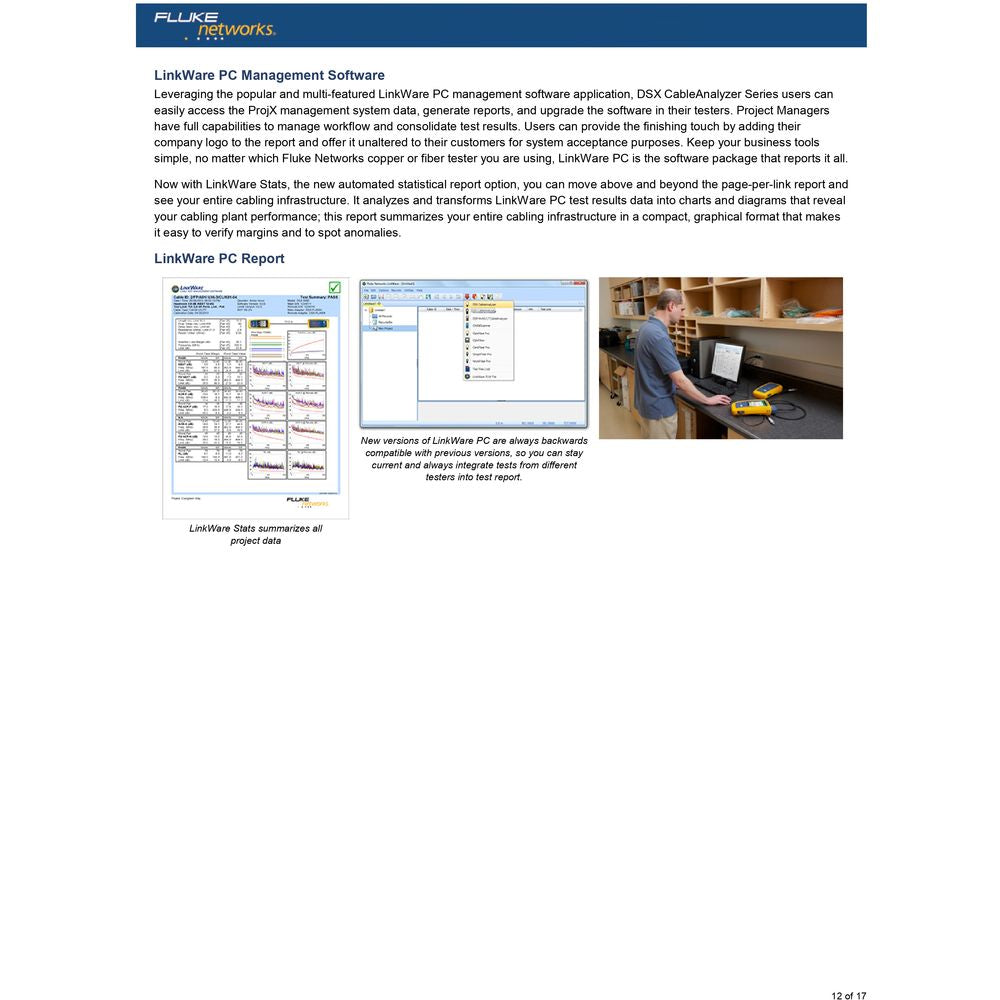

• LinkWare PC: Professional PDF reports with pass/fail summary, logo, and test data

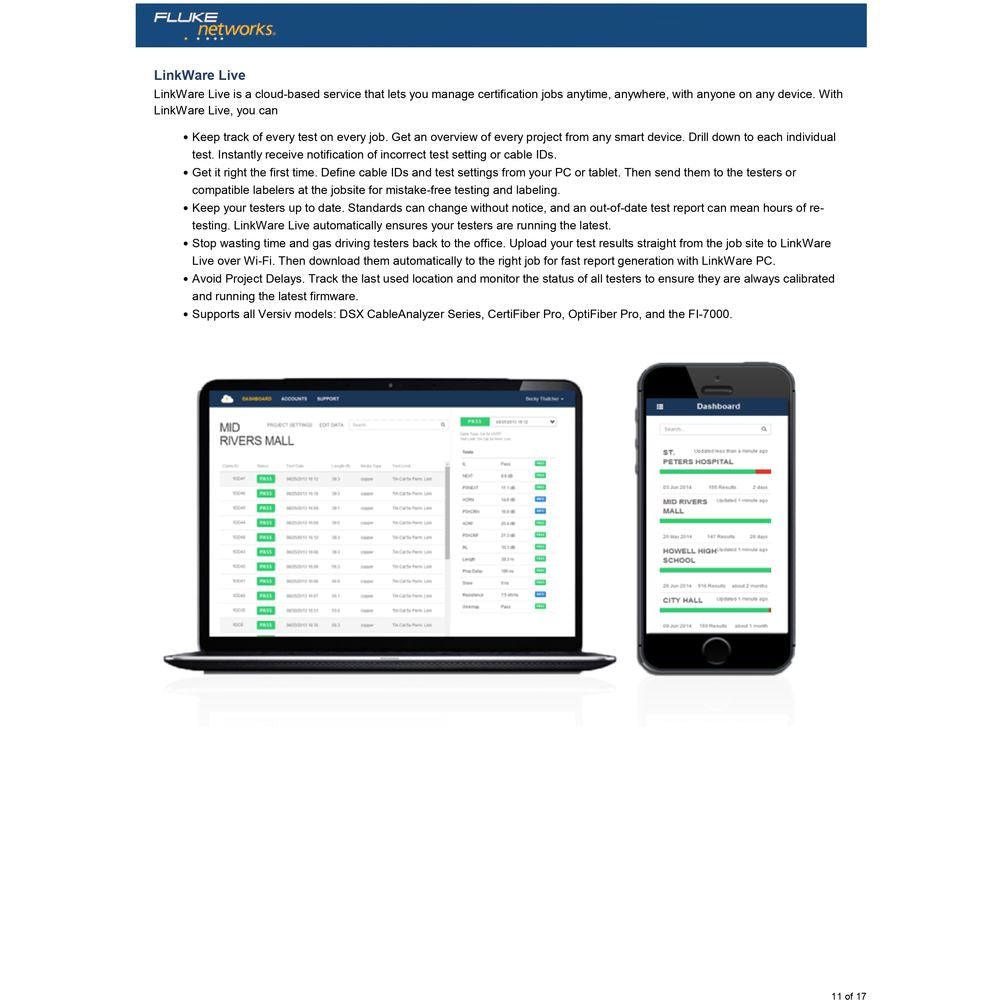

• LinkWare Live: Cloud-based certification project management

Performance Highlights

• Speed: 8-second Cat 6A tests with full standards compliance
• Accuracy: Level V accuracy for highest compliance (per IEC 61935-1 Ed. 4)
• Diagnostics: TDX™ and HDTDX™ for advanced fault isolation

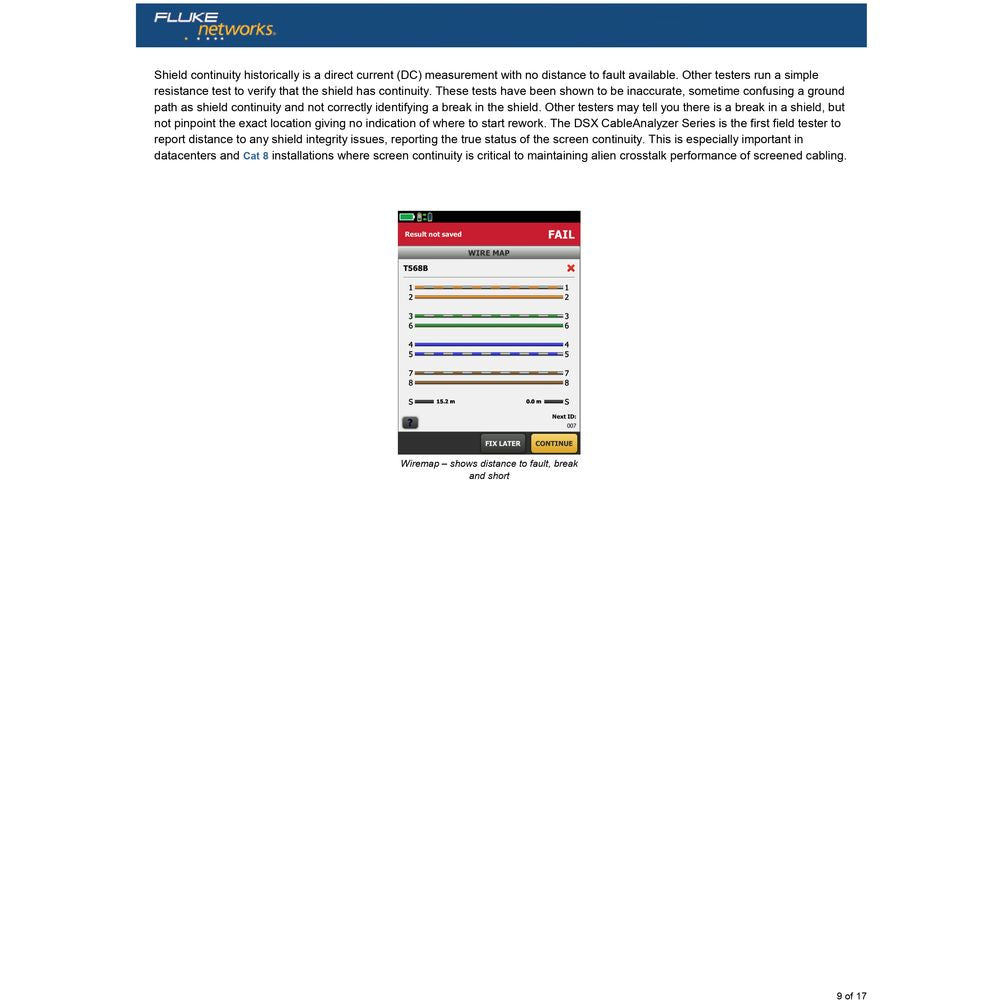

• Shield Integrity Testing: Patented technology detects shield breaks even under grounding conditions

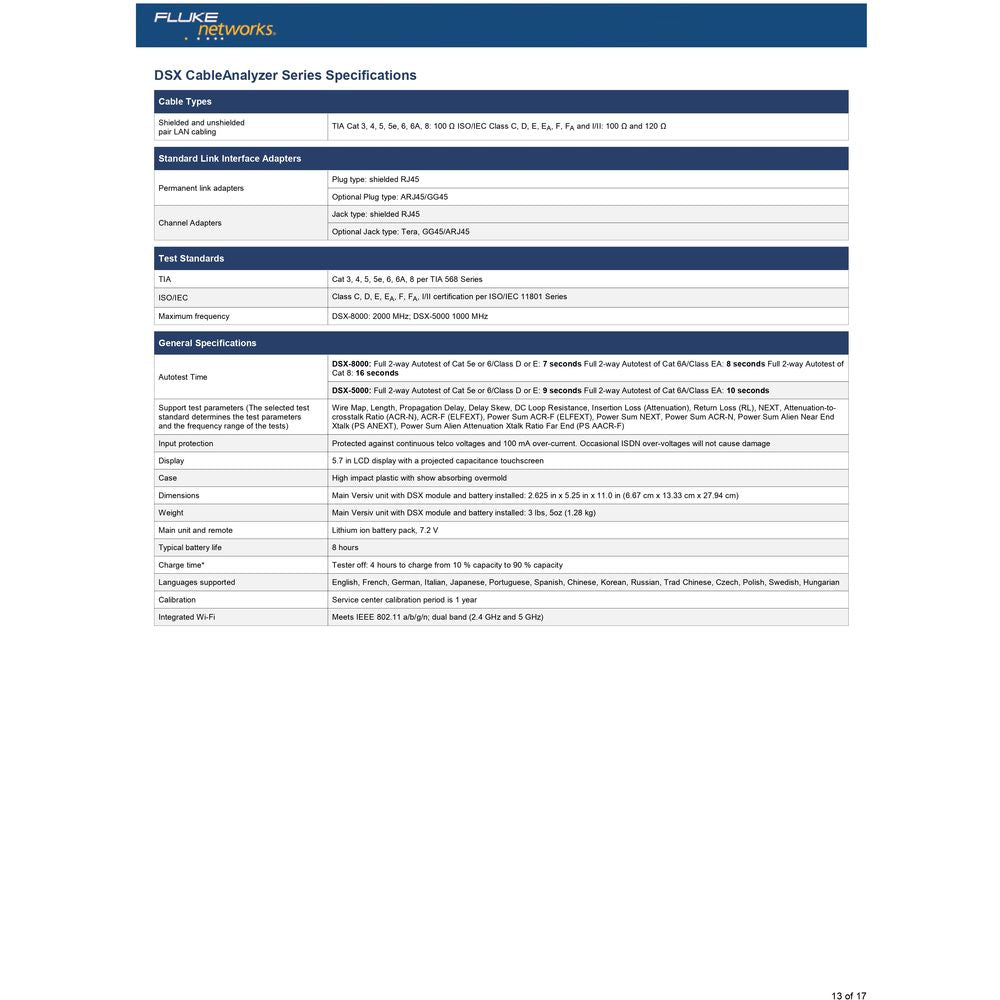

Hardware Interfaces

• USB ports: 1x USB-A, 1x micro-USB
• Display: 5.7" color touchscreen
• Memory: Up to 12,000 test results
• External storage: USB flash drive support
• Wi-Fi: Internal radio (802.11a/b/g/n), for LinkWare Live upload
• Wired LAN: RJ45 10/100 Mbps Ethernet port

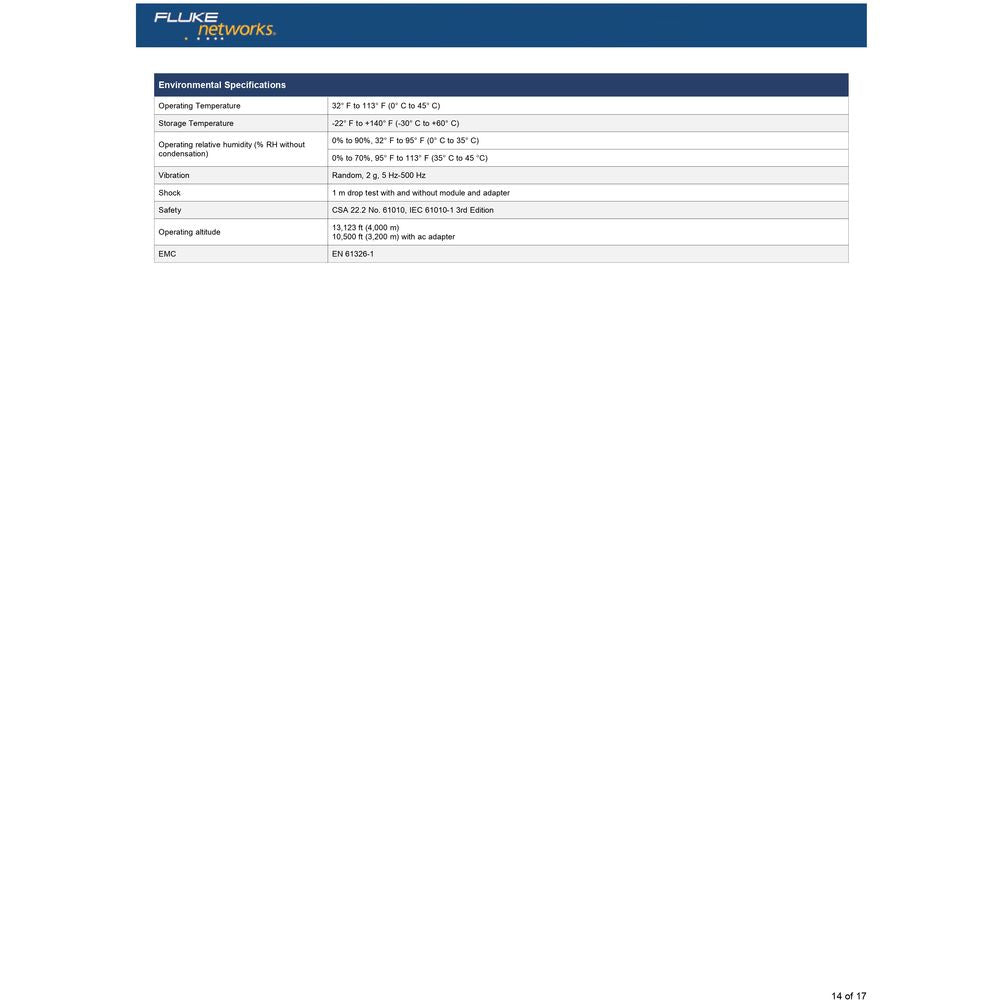

Power & Battery

• Battery: Removable, rechargeable Li-ion
• Runtime: 8+ hours continuous use
• Charging: AC charger or external charger (optional)
