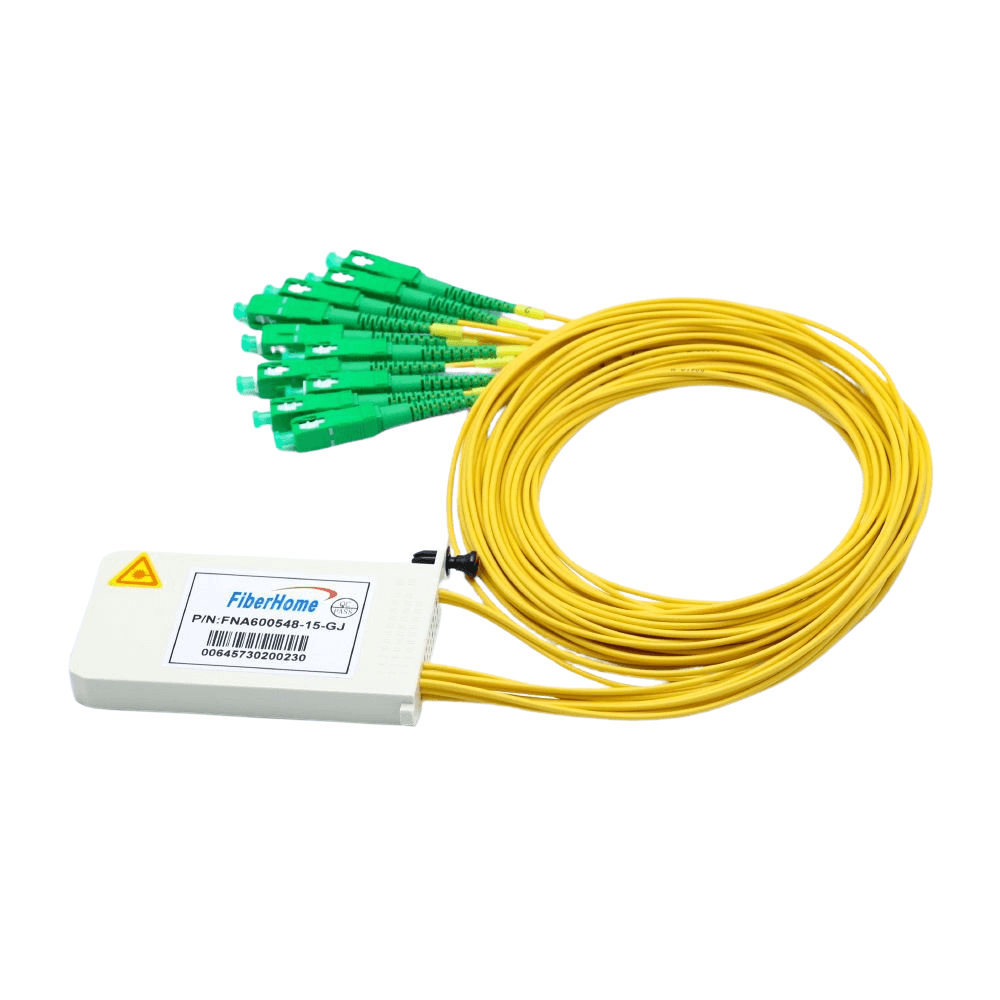

FiberHome LGX-M PLC Optical Splitter – 2×8 SC/APC, G657A Fiber, Low Insertion Loss, Telcordia GR-1209/1221, RoHS, IP65, -40°C~+85°C

Roll over image to zoom in Click on image to zoom

FiberHome LGX-M PLC Optical Splitter – 2×8 SC/APC, G657A Fiber, Low Insertion Loss, Telcordia GR-1209/1221, RoHS, IP65, -40°C~+85°C

Name: FiberHome LGX-M PLC Optical Splitter – 2×8 SC/APC, G657A Fiber, Low Insertion Loss, Telcordia GR-1209/1221, RoHS, IP65, -40°C~+85°C
Brand: FiberHome
SKU: PLC-SC-APC-2:8
Price: 31000.0 IQD
Availability: InStock

Save 23%

FiberHomeSKU: PLC-SC-APC-2:8

Price:

31,000 IQD 40,000 IQD

Quantity:

Share this product

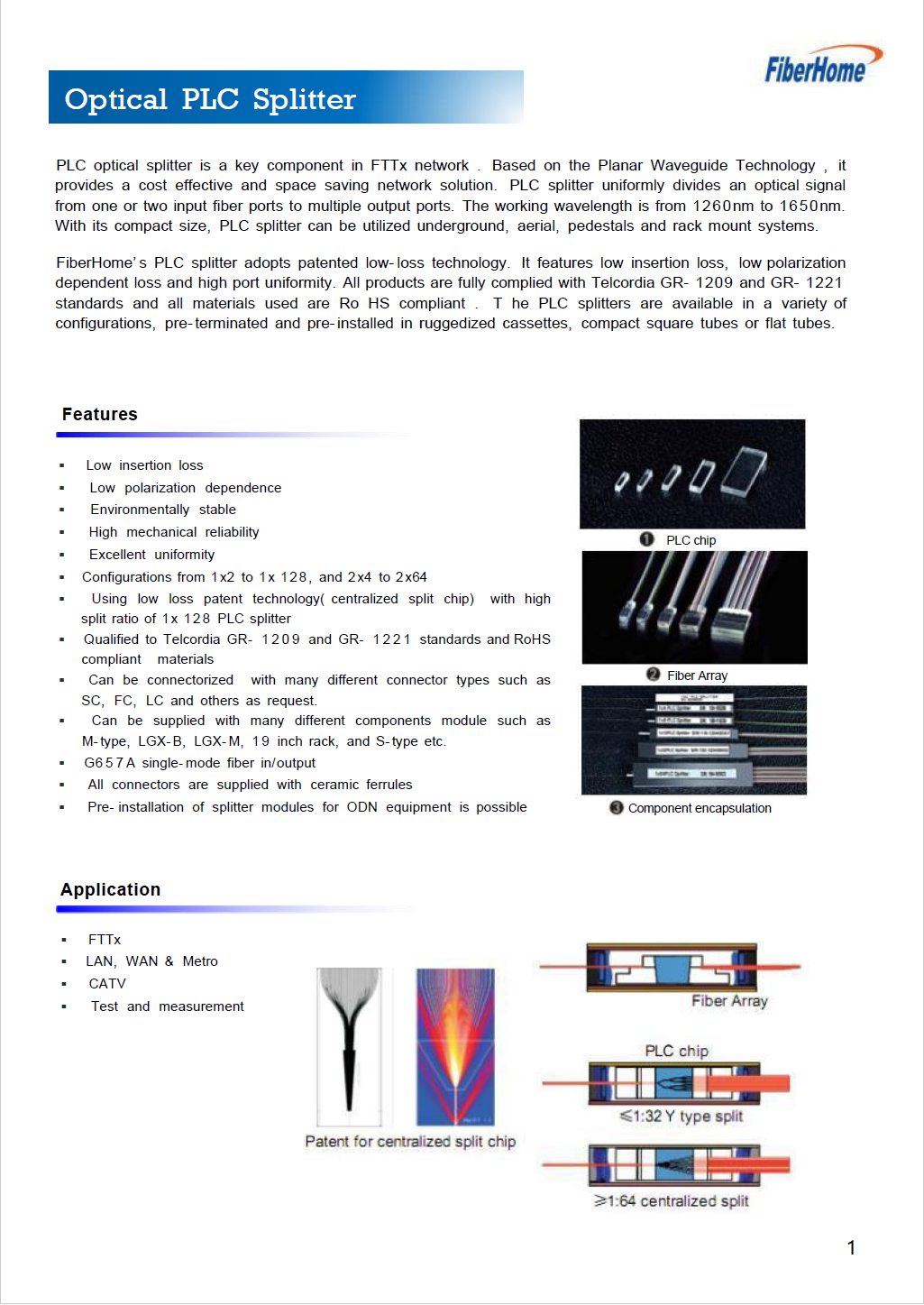

Low insertion loss and low polarization dependent loss (PDL)
High uniformity between output ports for consistent signal distribution
Stable performance across a wide environmental range
Compliant with Telcordia GR-1209, GR-1221, and RoHS standards
Configuration: 2×8 PLC splitter with SC/APC connectors

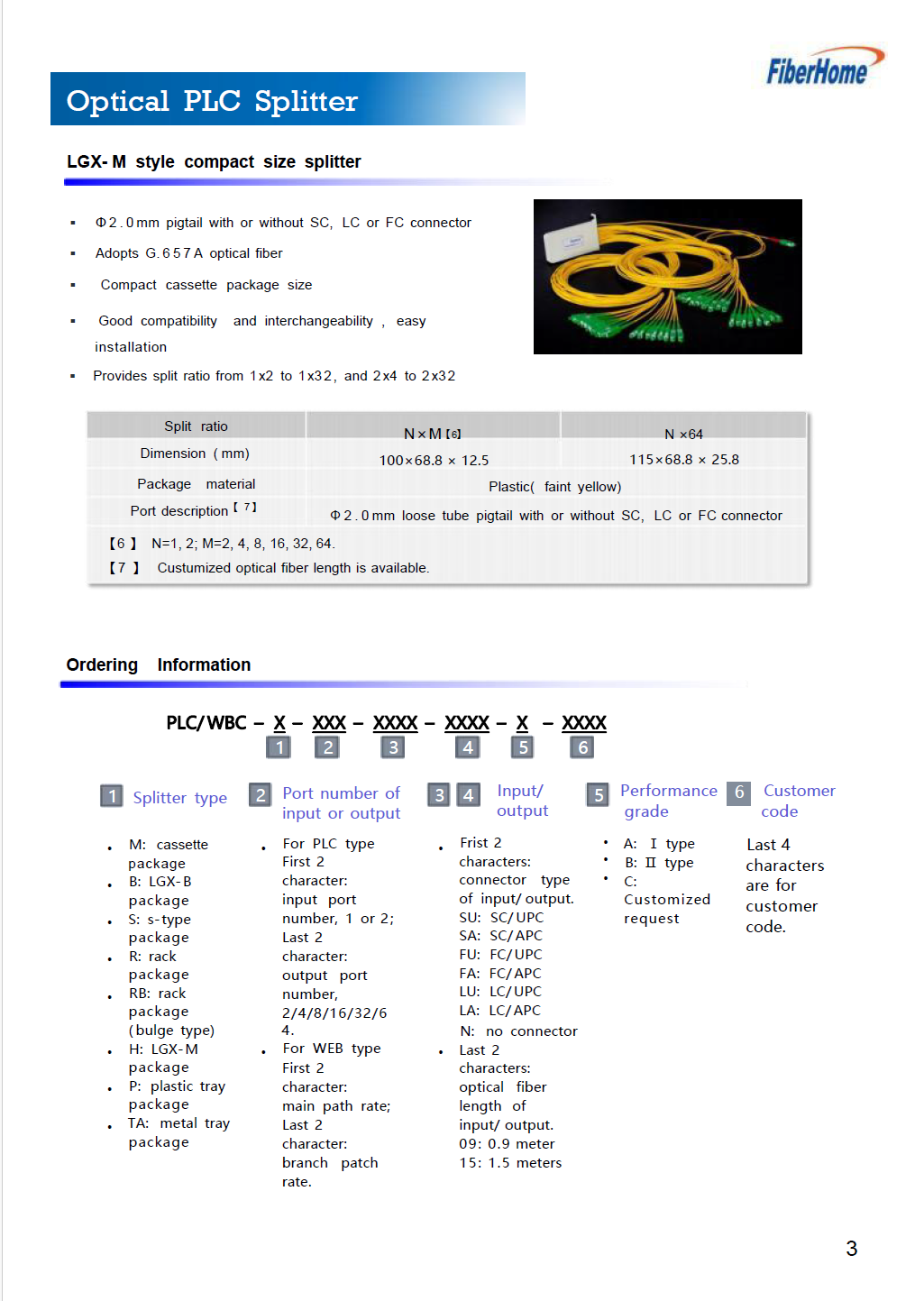

Available in various packaging types: LGX-M cassette, rack-mounted (19"), S-type

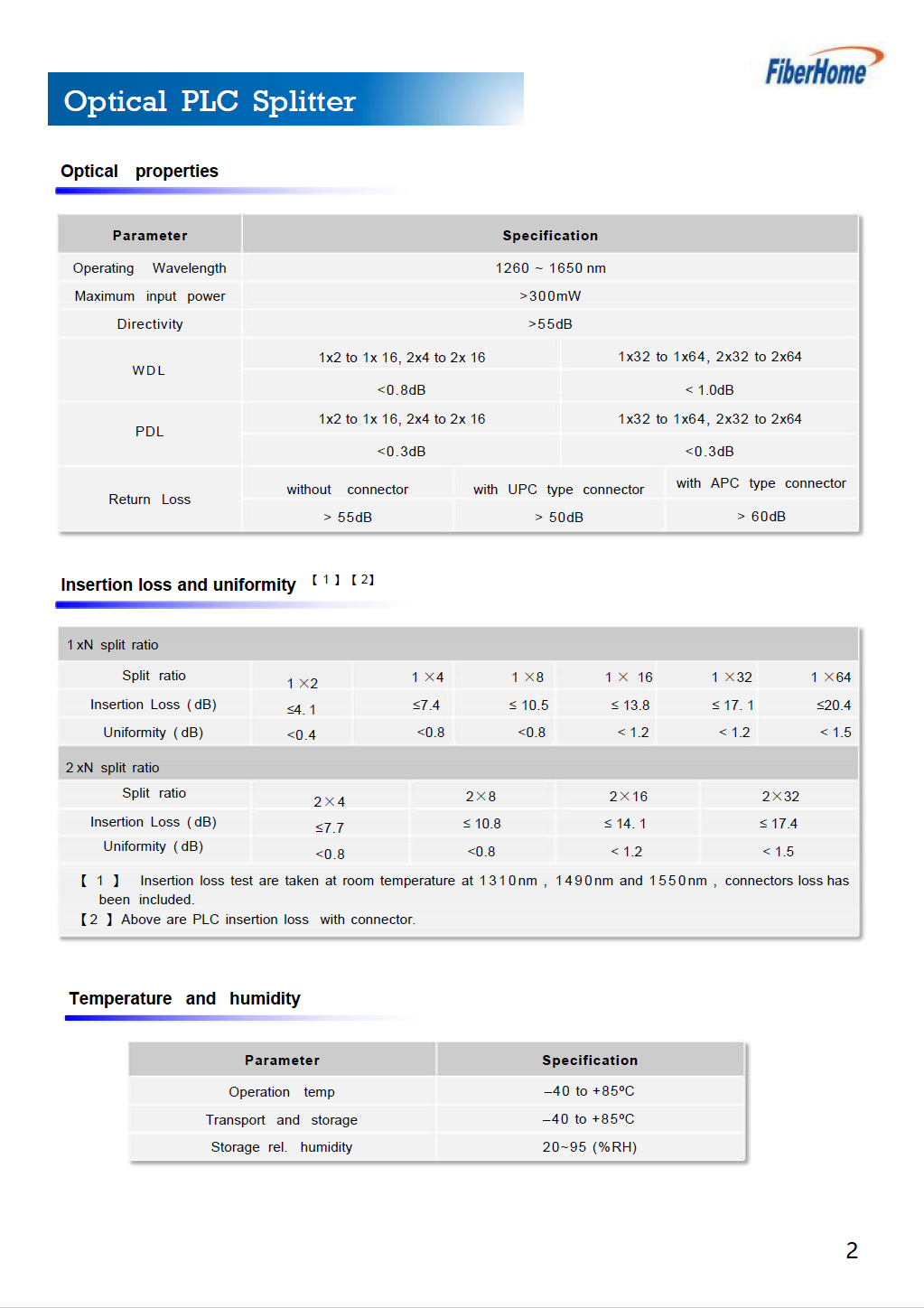

Wavelength range: 1260 – 1650 nm | Max input power: >300 mW
Return loss: 60 dB (APC) | Directivity: >55 dB
Uses G657A single-mode fiber with φ2.0 mm pigtails or loose tube
Operating & storage temperature: -40°C to +85°C | Humidity: 20–95% RH
Pre-installable in ODN (optical distribution network) systems
