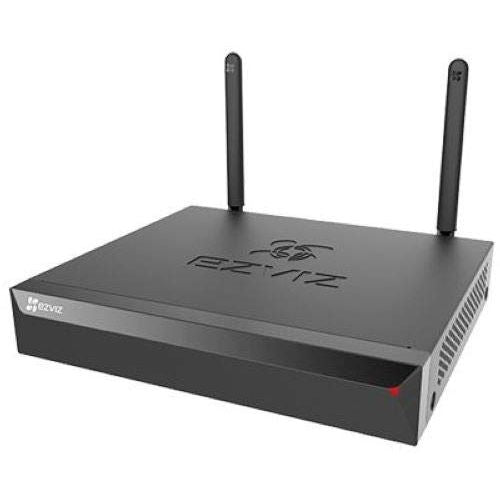

EZVIZ X5S Wireless NVR with HDMI/VGA Output, 3K Support, 8TB Capacity, H.265, Up to 8 Wi-Fi Cameras, Dual Antenna, ONVIF Compatible

The EZVIZ X5S is a wireless NVR designed to deliver reliable and scalable video storage for multi-camera security systems. It supports up to 8 Wi-Fi cameras, enabling simultaneous recording in high resolution up to 3K. With HDMI and VGA outputs, you can easily connect to external monitors for live or playback viewing. The system ensures smooth operation with advanced H.265 compression, dual antennas for extended Wi-Fi range, and local storage expandability up to 8TB. Ideal for 24/7 surveillance in home or business settings.

Key Features
• Supports up to 8 Wi-Fi cameras with 3K video resolution
• HDMI and VGA outputs for convenient live viewing and playback
• Up to 8TB 3.5-inch HDD storage capacity (HDD not included)
• Dual antennas provide wireless range up to 100m (in open environments)
• H.265 and H.264 video compression for efficient storage
• Four flexible recording modes: manual, motion, scheduled, and event-triggered
• Compatible with ONVIF and HIKVISION protocols
• USB 2.0 port for backups and accessories
• Supports instant, normal, event, and tag-based playback

Specifications
• Models: CS-X5S-R100-4W (supports 4 Wi-Fi cameras), CS-X5S-R100-8W (supports 8 Wi-Fi cameras)
• Wireless Range: Up to 100m (2.4GHz)
• Ethernet: 1× 10/100M adaptive interface
• HDMI Output: Up to 2592×1944 @ 30Hz
• VGA Output: Up to 1920×1080 @ 60Hz
• Recording Resolutions: 3K, 2K+, 2K, 1080p, UXGA, 720p, VGA, 4CIF, 2CIF, CIF, QCIF
• Playback Support: 4×3K (4W), 8×3K (8W)
• Storage Interface: 1× SATA, supports 1TB–8TB 3.5" HDD
• USB Interface: 1× USB 2.0
• Audio In/Out: Not supported
• Power Supply: DC 12V/1.5A
• Power Consumption: ≤8W (standby)

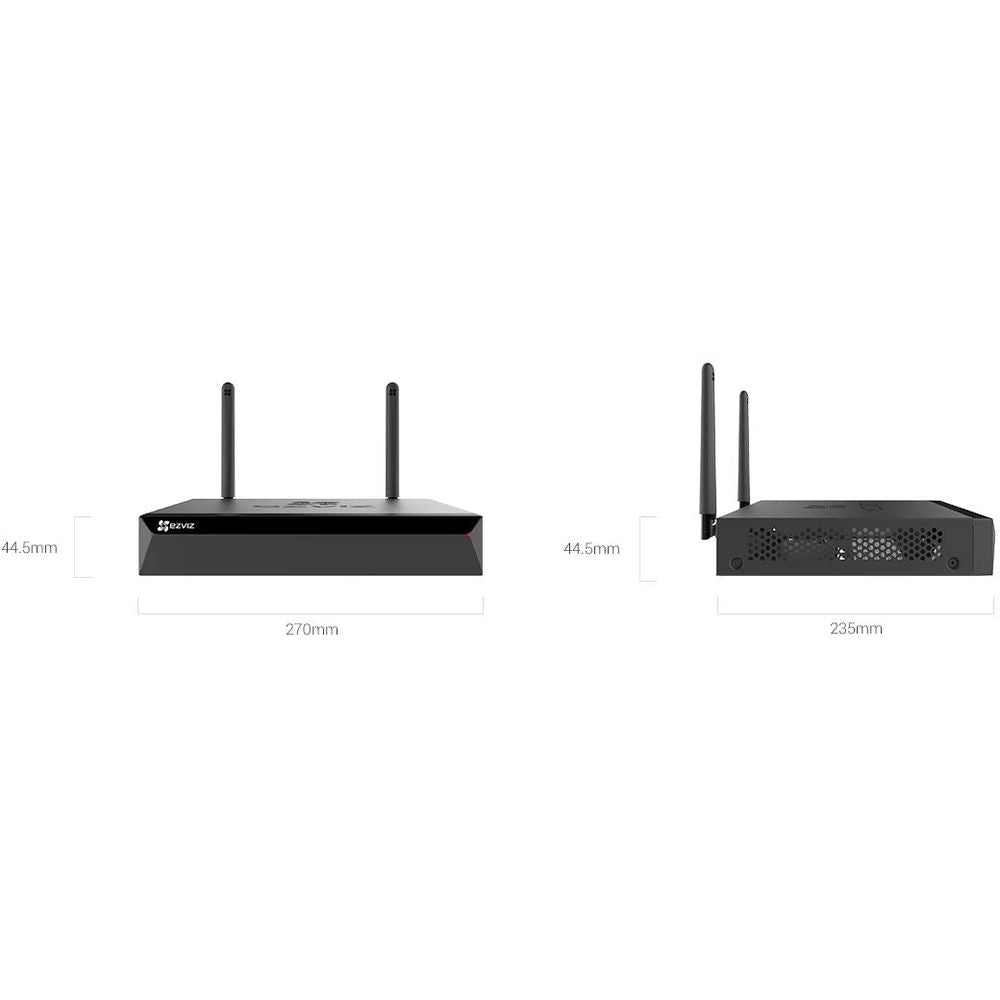

• Product Dimensions: 235 × 270 × 44.5 mm
• Package Dimensions: 387 × 362 × 75 mm
• Weight: 932 g

In the Box
• X5S NVR
• Power Adapter
• Mouse
• Screw Kit
• Regulatory Information (×2)
• Quick Start Guide
