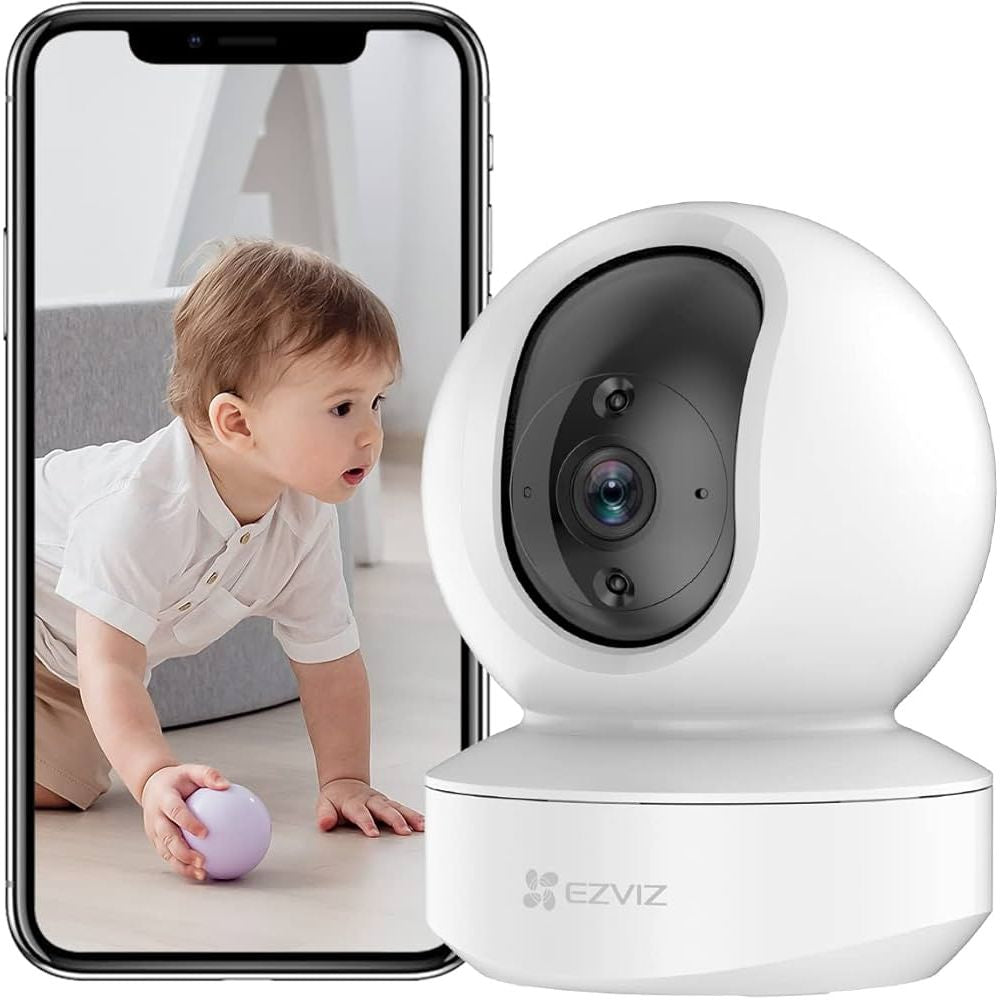

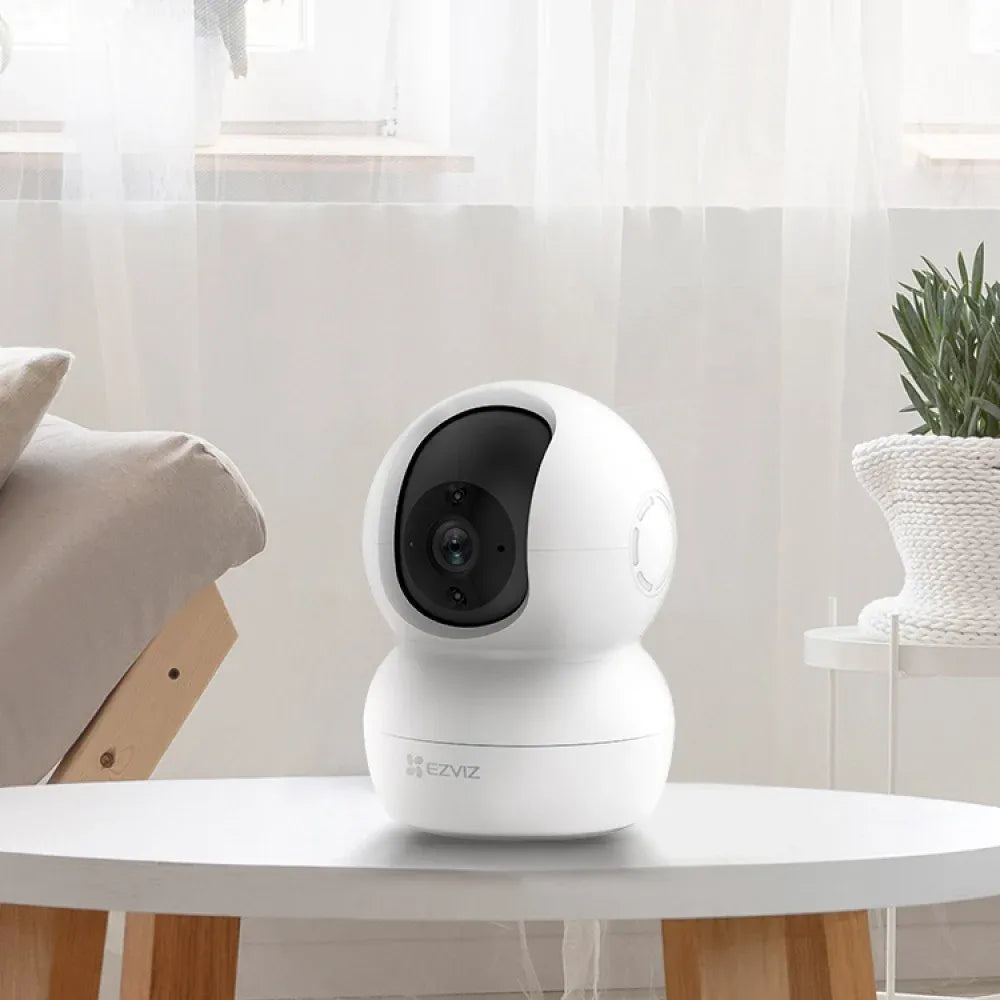

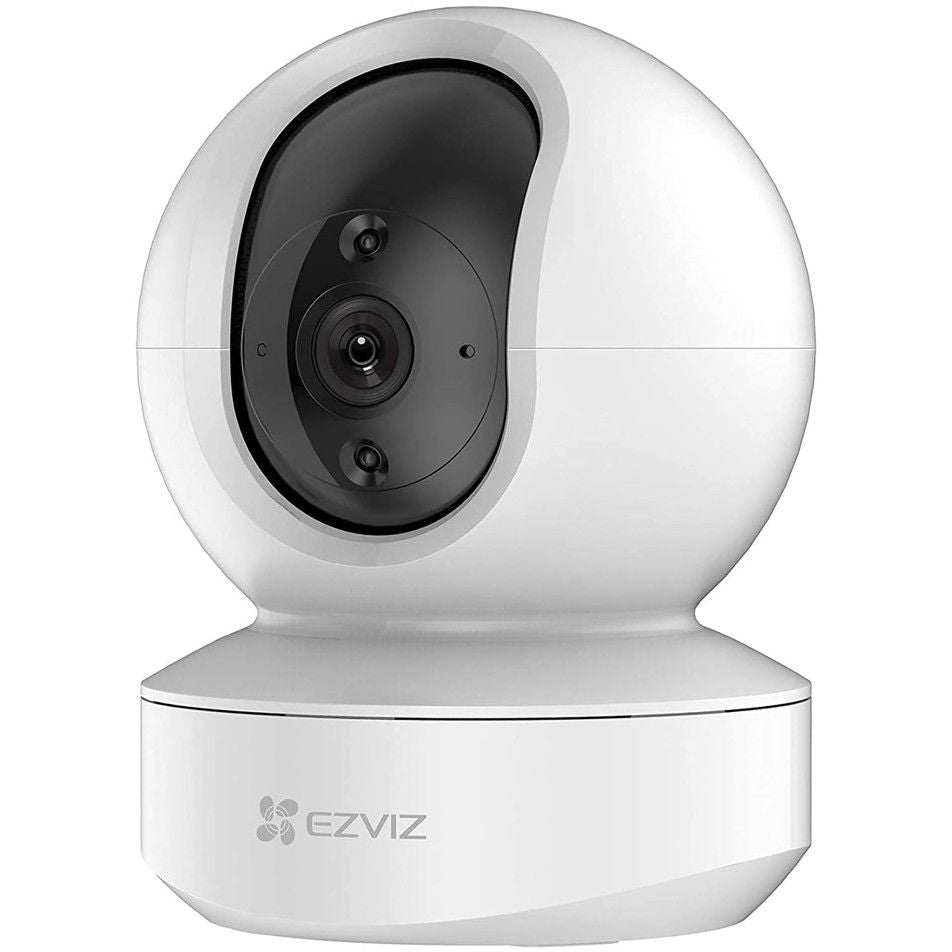

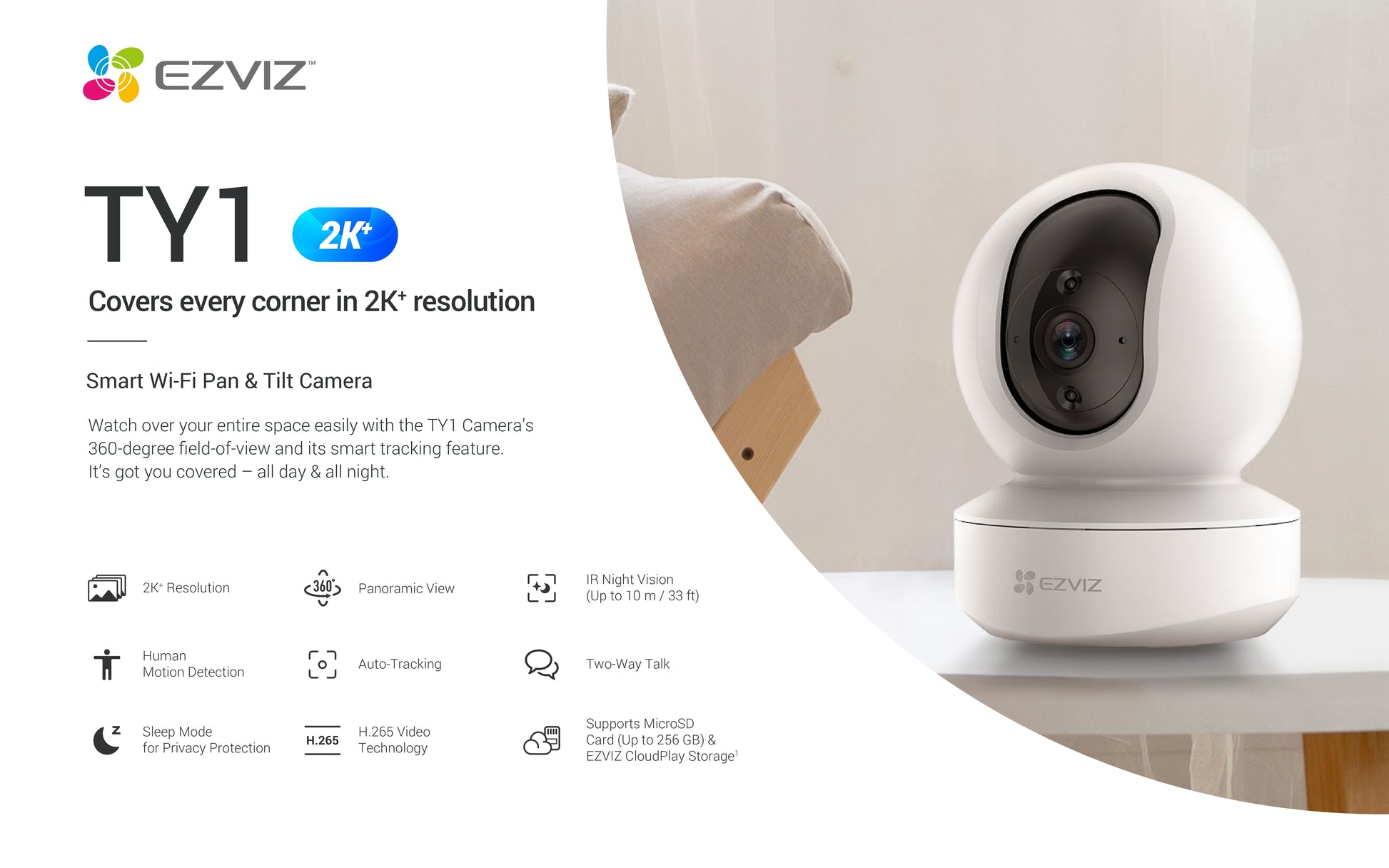

EZVIZ TY1 4MP Smart Wi-Fi Pan & Tilt Camera
-
2K+ Resolution (2560 × 1440): Captures crystal-clear images and videos, even with 4x digital zoom.
-

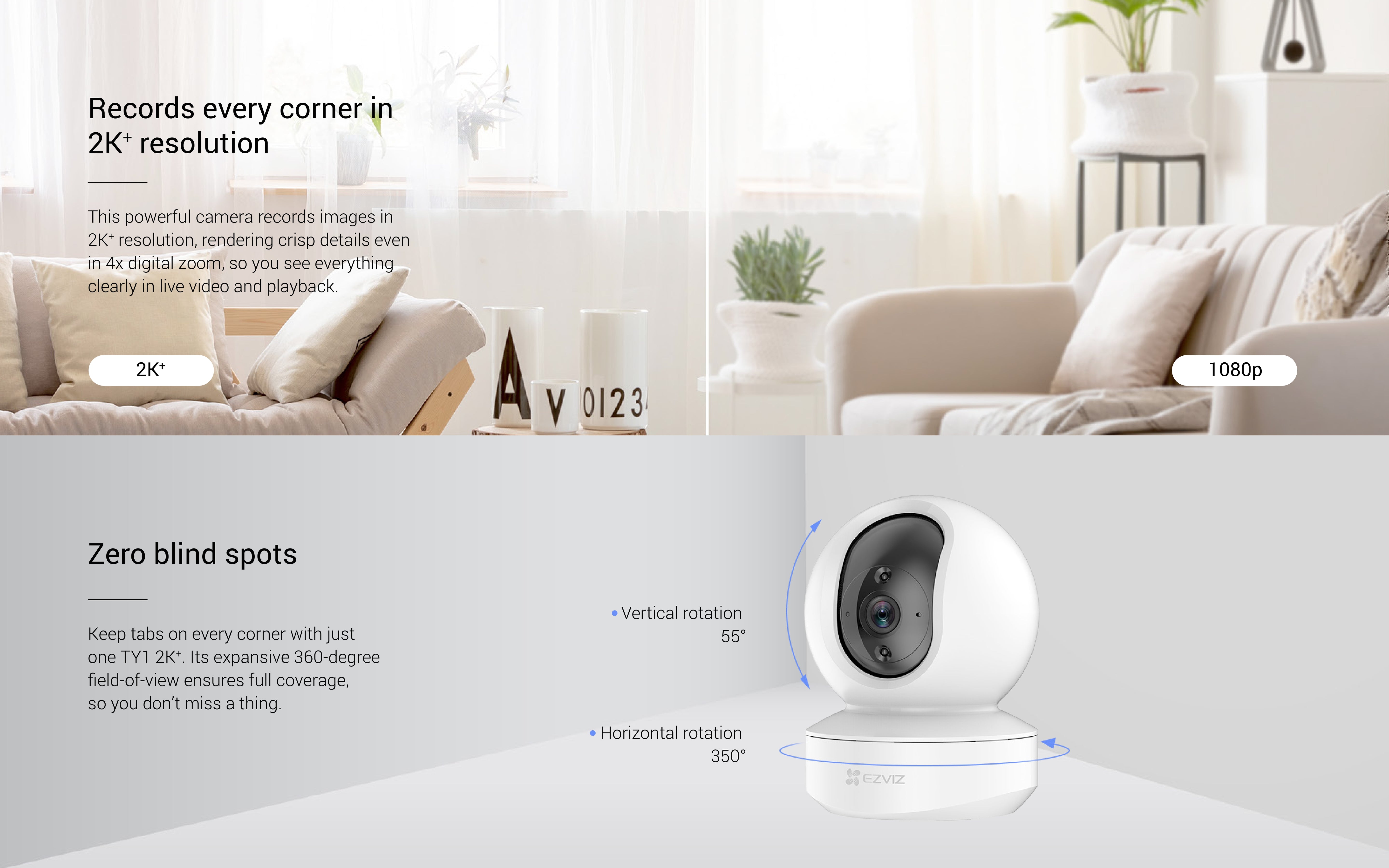

360° Coverage: Features 350° horizontal and 55° vertical rotation for complete room coverage.
-

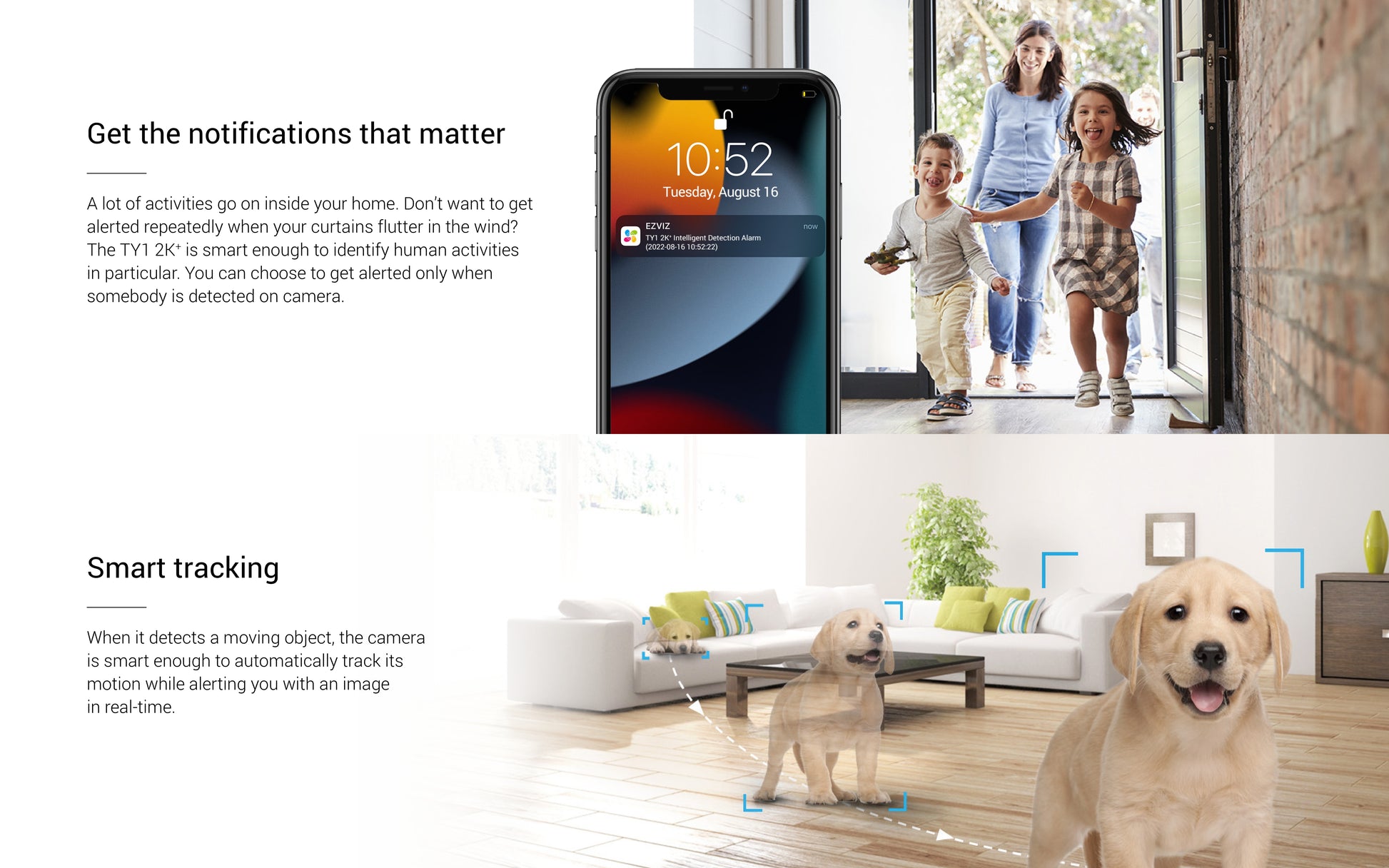

Human Motion Detection: Smart alerts only when a person is detected, reducing false alarms.
-
Auto Tracking: Automatically follows moving subjects and sends real-time alerts.
-

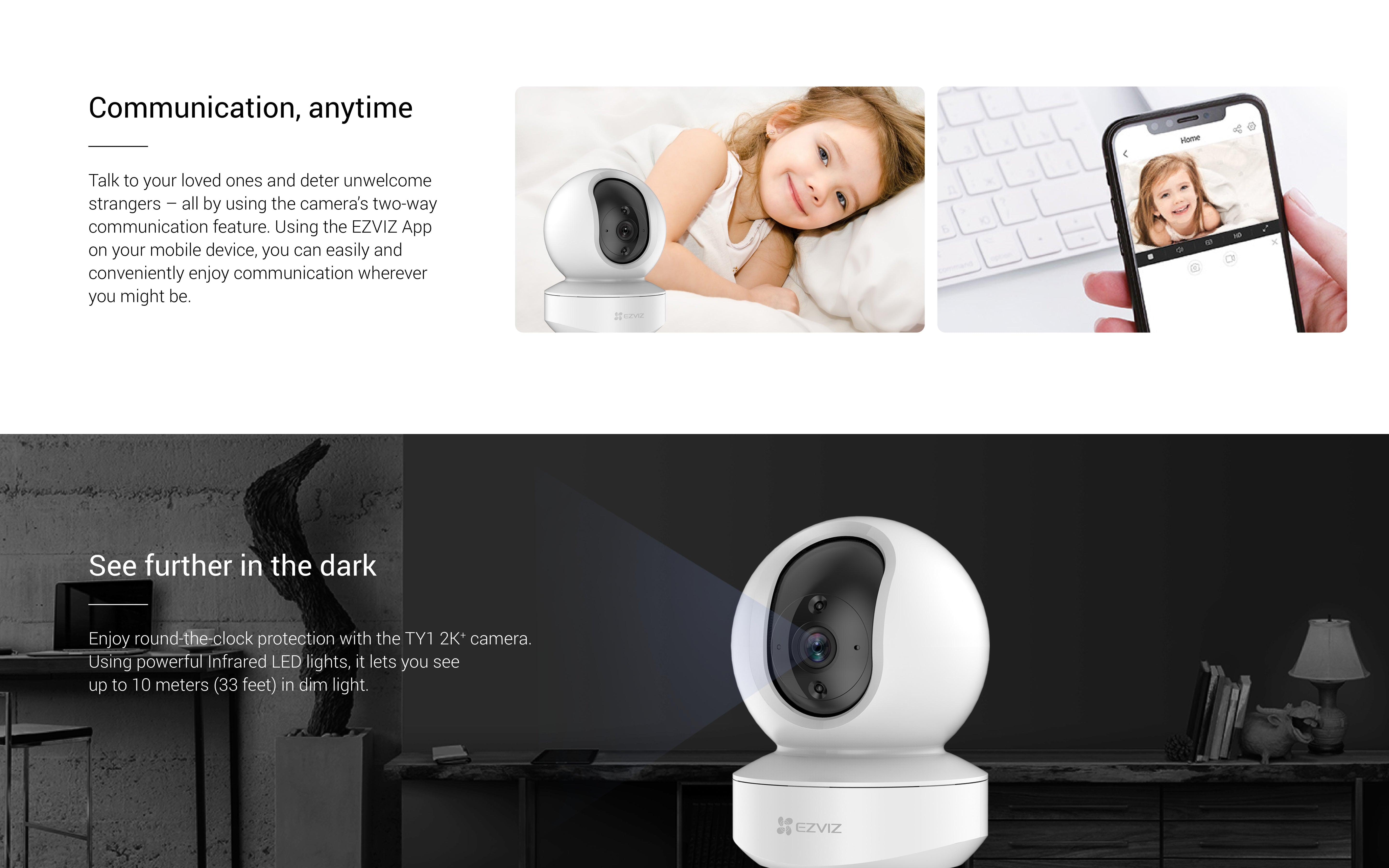

IR Night Vision: Clear visibility up to 10 m (33 ft) in complete darkness.
-
Two-Way Talk: Built-in microphone and speaker let you communicate remotely via the EZVIZ App.
-

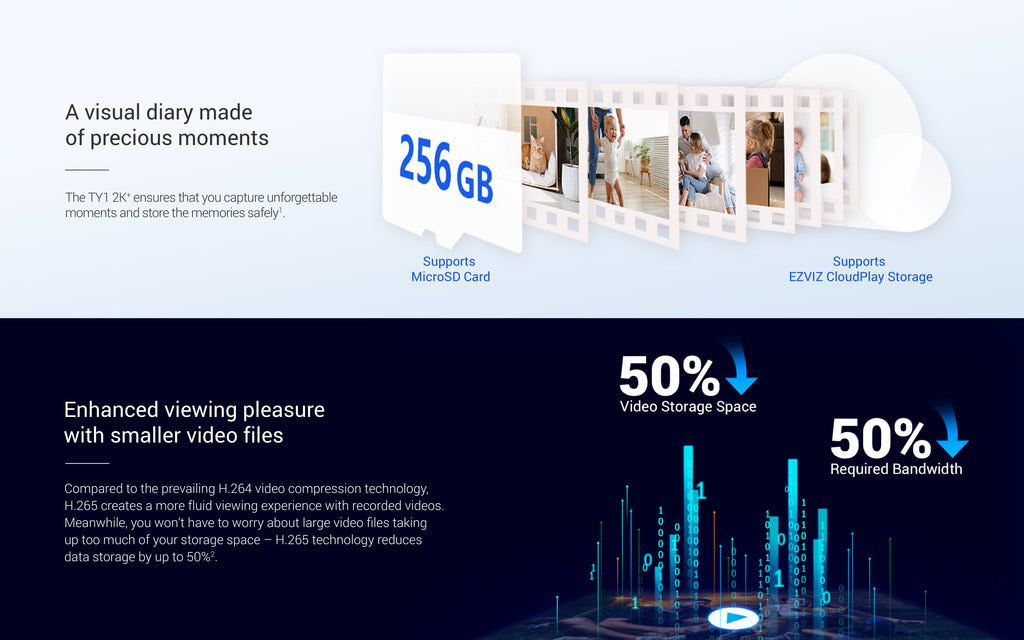

H.265 Video Compression: Saves up to 50% more storage space compared to H.264 technology.
-
Smart Integration: Works with EZVIZ CloudPlay and supports microSD cards up to 512 GB (sold separately).
-
Privacy Mode: Sleep mode disables the camera when privacy is needed.
-
Wi-Fi & Ethernet: Supports 2.4GHz Wi-Fi and includes an RJ45 Ethernet port for wired connectivity.

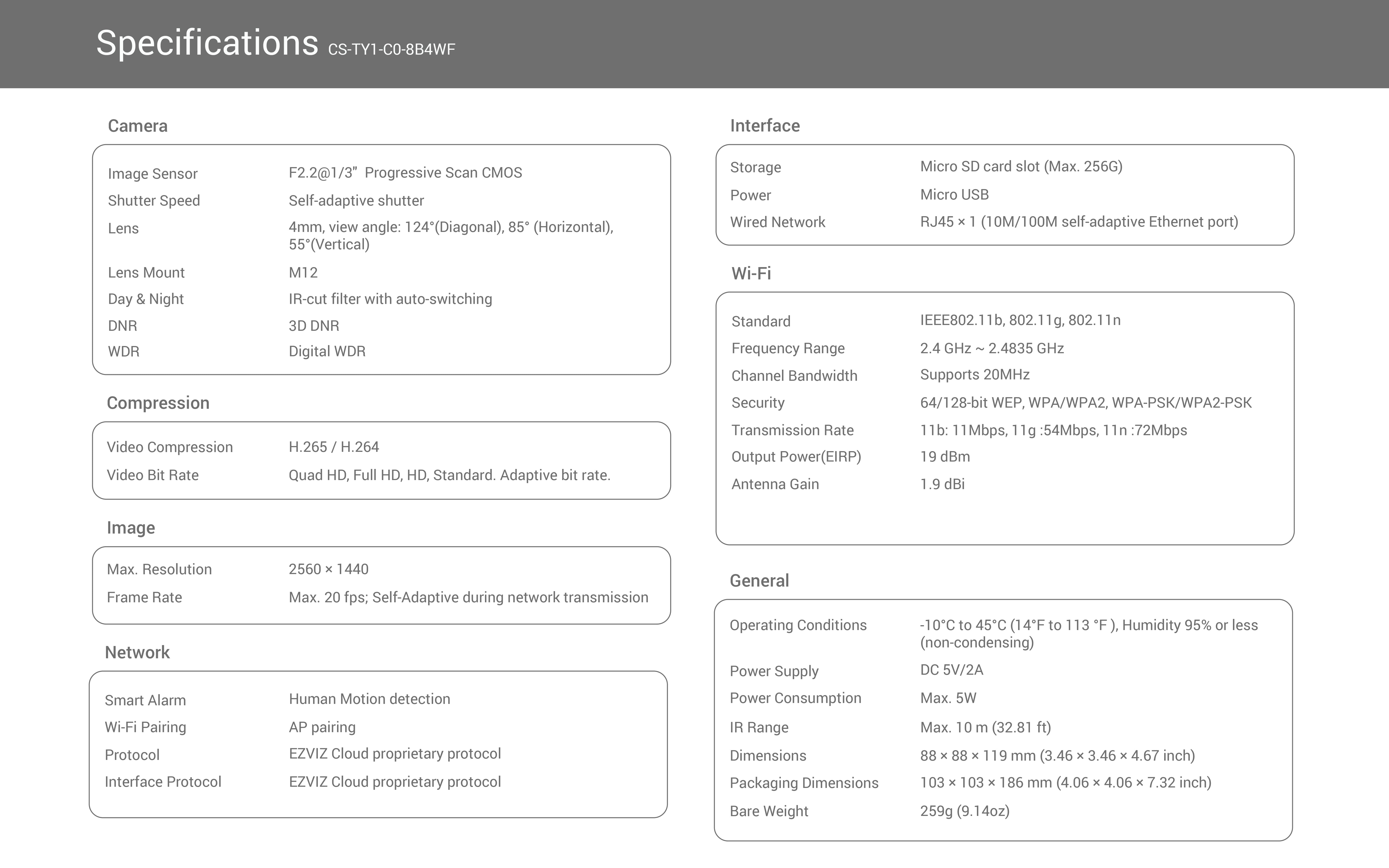

Technical Specifications:
-
Model: CS-TY1-C0-8B4WF
-
Image Sensor: 1/3" Progressive Scan CMOS
-
Lens: 4mm @ F2.2, 124° diagonal field of view
-
Frame Rate: Max. 20 fps (adaptive)
-
Video Compression: H.265 / H.264
-
IR Range: Up to 10 m (32.81 ft)
-
Audio: Two-way communication supported
-
Storage: MicroSD (up to 512 GB), EZVIZ CloudPlay
-
Connectivity: Wi-Fi IEEE802.11b/g/n (2.4 GHz), RJ45 Ethernet
-
Power Supply: DC 5V/2A (included)
-
Operating Conditions: -10°C to 45°C (14°F to 113°F), ≤95% RH
-

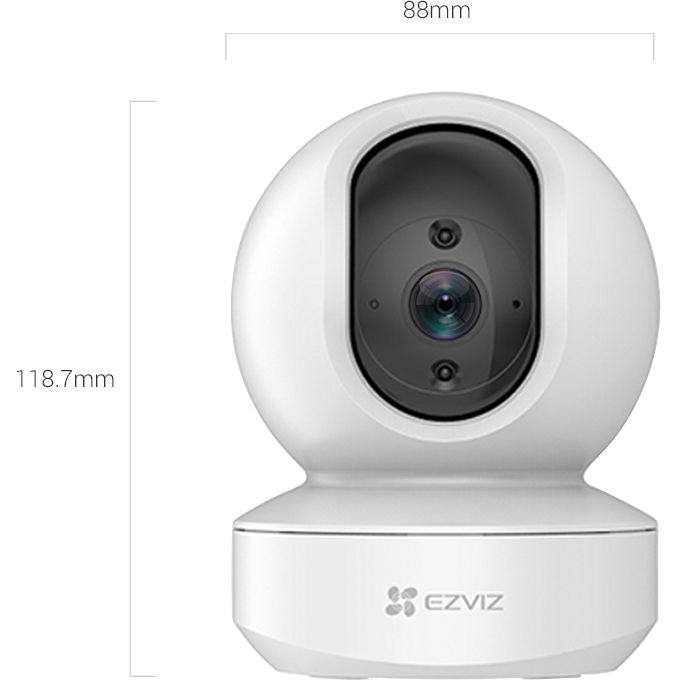

Dimensions: 88 × 88 × 119 mm (3.46 × 3.46 × 4.67 in)
-
Weight: 259g (9.14 oz)
-
Certifications: FCC / UL / CE / WEEE / REACH / RoHS

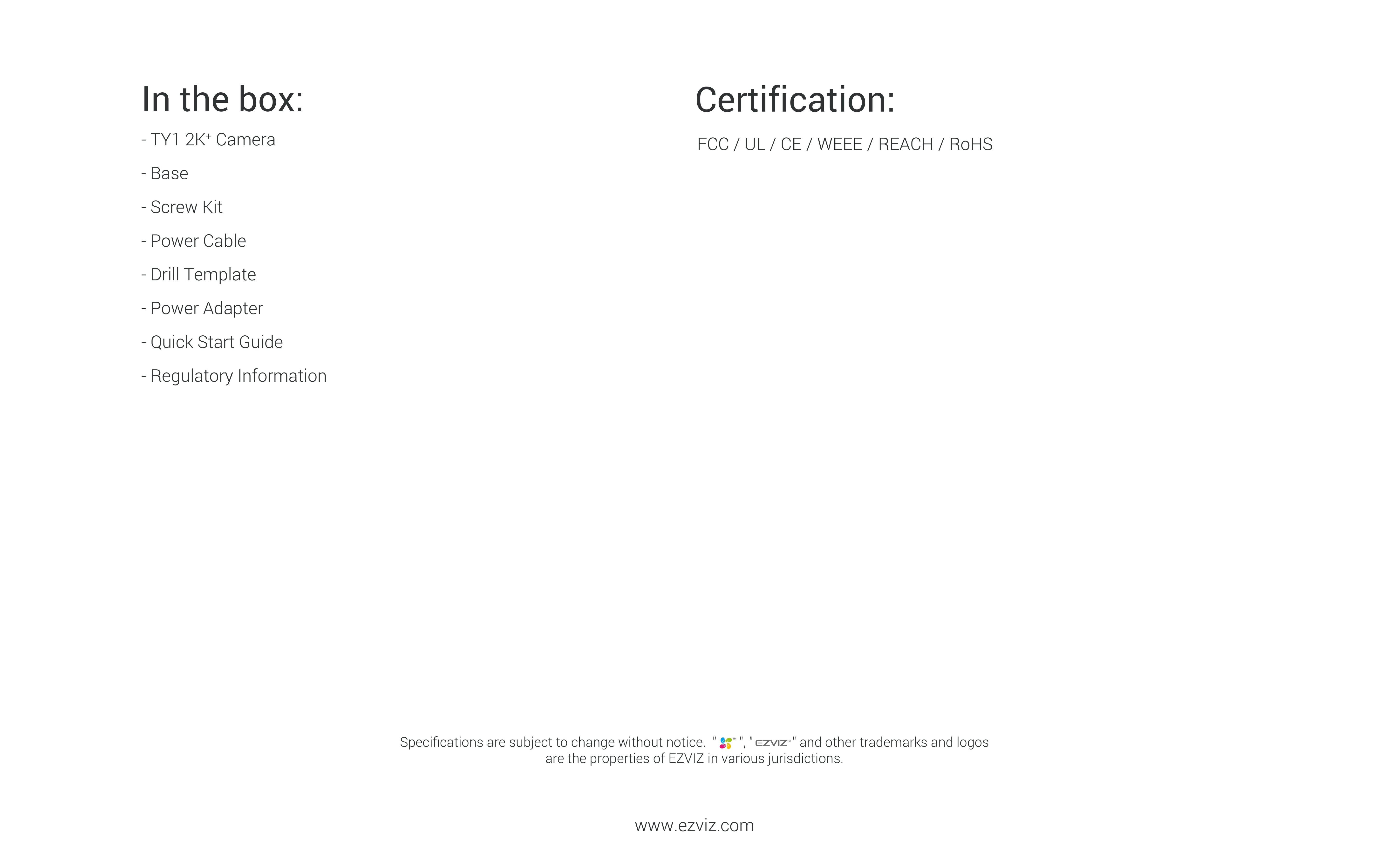

What’s in the Box:
- 1 × TY1 2K+ Camera
- 1 × Base
- 1 × Power Adapter & Cable
- 1 × Screw Kit
- 1 × Drill Template
- 1 × Quick Start Guide
- 1 × Regulatory Information
