The EZVIZ H90 Dual revolutionizes panoramic surveillance by combining two independently rotating lenses in one powerful unit. With dual 2K+ resolution, intelligent co-tracking, and adaptive color night vision, it offers unmatched coverage and detail. Designed for large-area monitoring, it delivers seamless, smart security with full integration into your smart home system.

Key Features

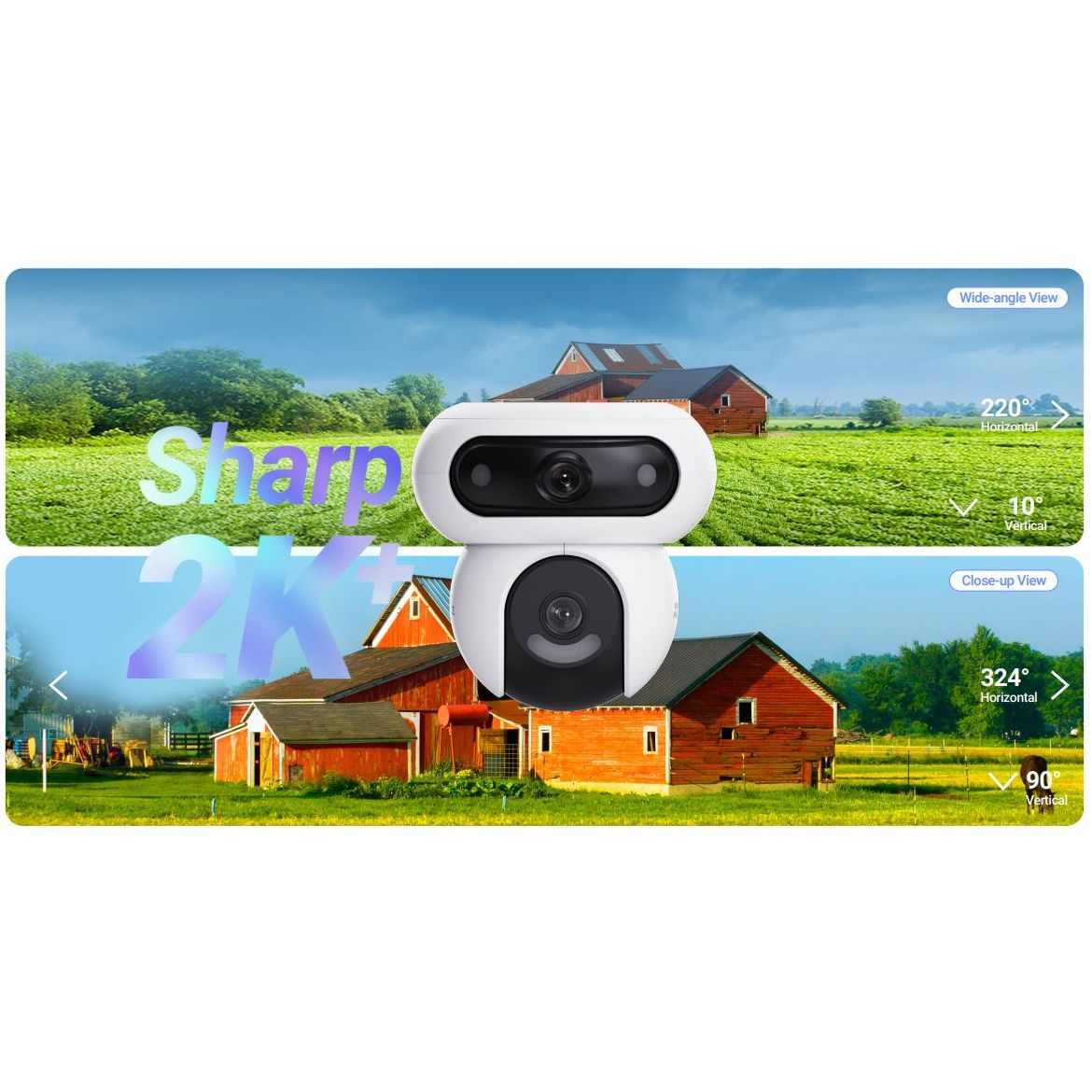

• Dual 2K+ lenses with triple-motor rotation for wide and close-up views
• 360° panoramic monitoring with synchronized lens movement
• AI-powered detection for human and vehicle shapes
• Co-detection system enables smart auto-tracking between both lenses
• Two patrol modes with customizable scan paths
• Color night vision up to 40 meters with 4 built-in spotlights
• Adaptive exposure control for balanced low-light performance
• Two-way audio with optional 10-second pre-recorded voice alerts
• Active defense with siren and strobe light deterrents
• Voice control via Google Assistant and Amazon Alexa
• Dual antennas with 220 m Wi-Fi coverage and wired Ethernet support
• H.265 video compression for efficient storage use
• Local microSD storage (up to 512 GB) and EZVIZ CloudPlay support

Specifications
• Max Resolution: 2K+ (2560 × 1440)
• Top Lens: 2.8mm F1.6, 110° diagonal FOV
• Bottom Lens: 6mm F1.6, 60° diagonal FOV

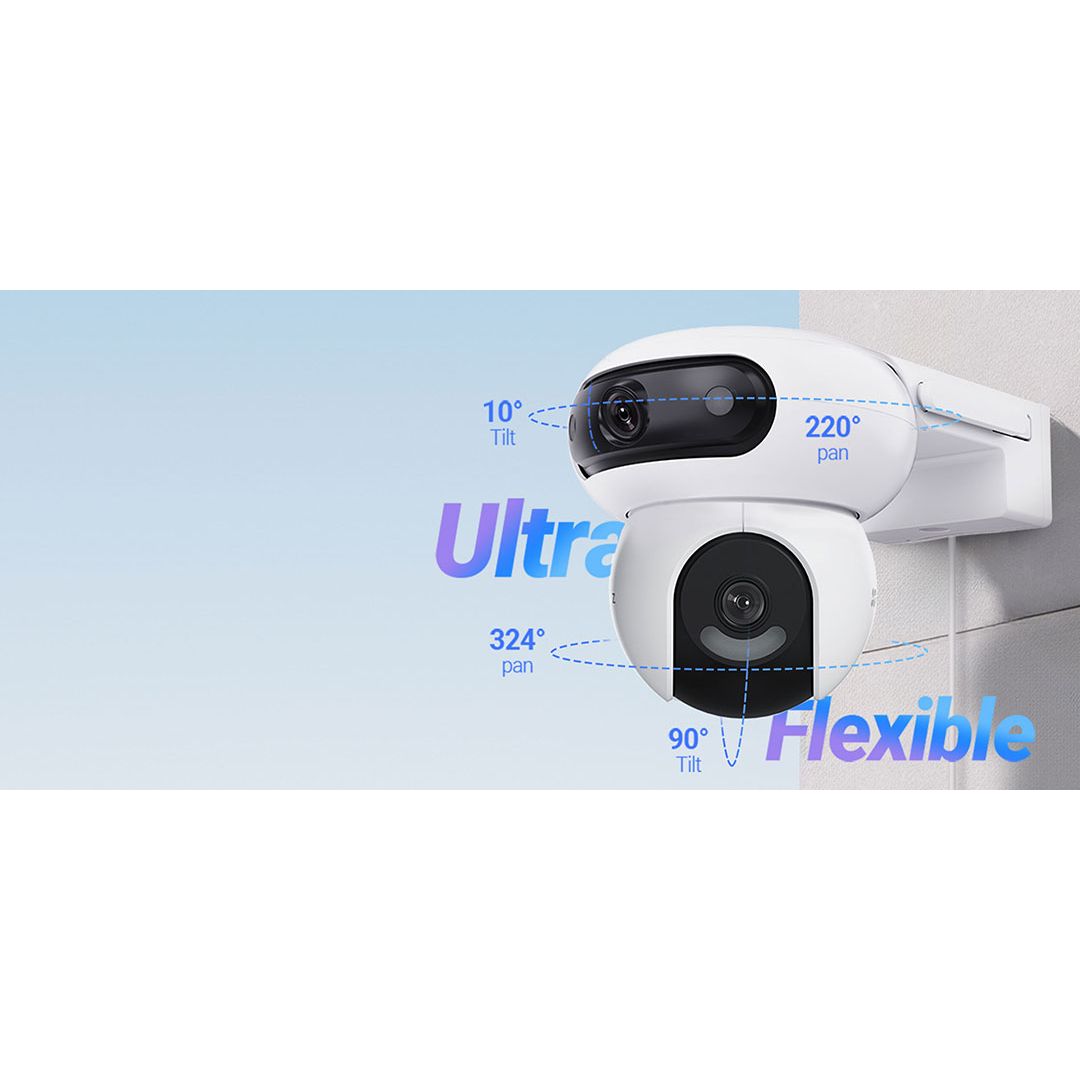

• PTZ Range: Top – Pan 220°, Tilt 10° (manual); Bottom – Pan 324°, Tilt 90°
• Night Vision: Color up to 40 m; IR up to 30 m
• Smart Detection: AI Human/Vehicle Detection, Motion Detection, Auto Tracking
• Audio: Two-Way Talk, Custom Voice Alerts
• Wi-Fi: IEEE802.11b/g/n, 2.4 GHz, Dual Antennas
• Wired Connection: RJ45 Ethernet (10M/100M)
• Storage: microSD Card (up to 512 GB), EZVIZ CloudPlay
• Power Supply: DC 12V / 1.5A, Max. 18W
• Operating Temp: -30°C to 50°C, ≤95% RH
• Weather Resistance: IP65 + 2h rainstorm rating

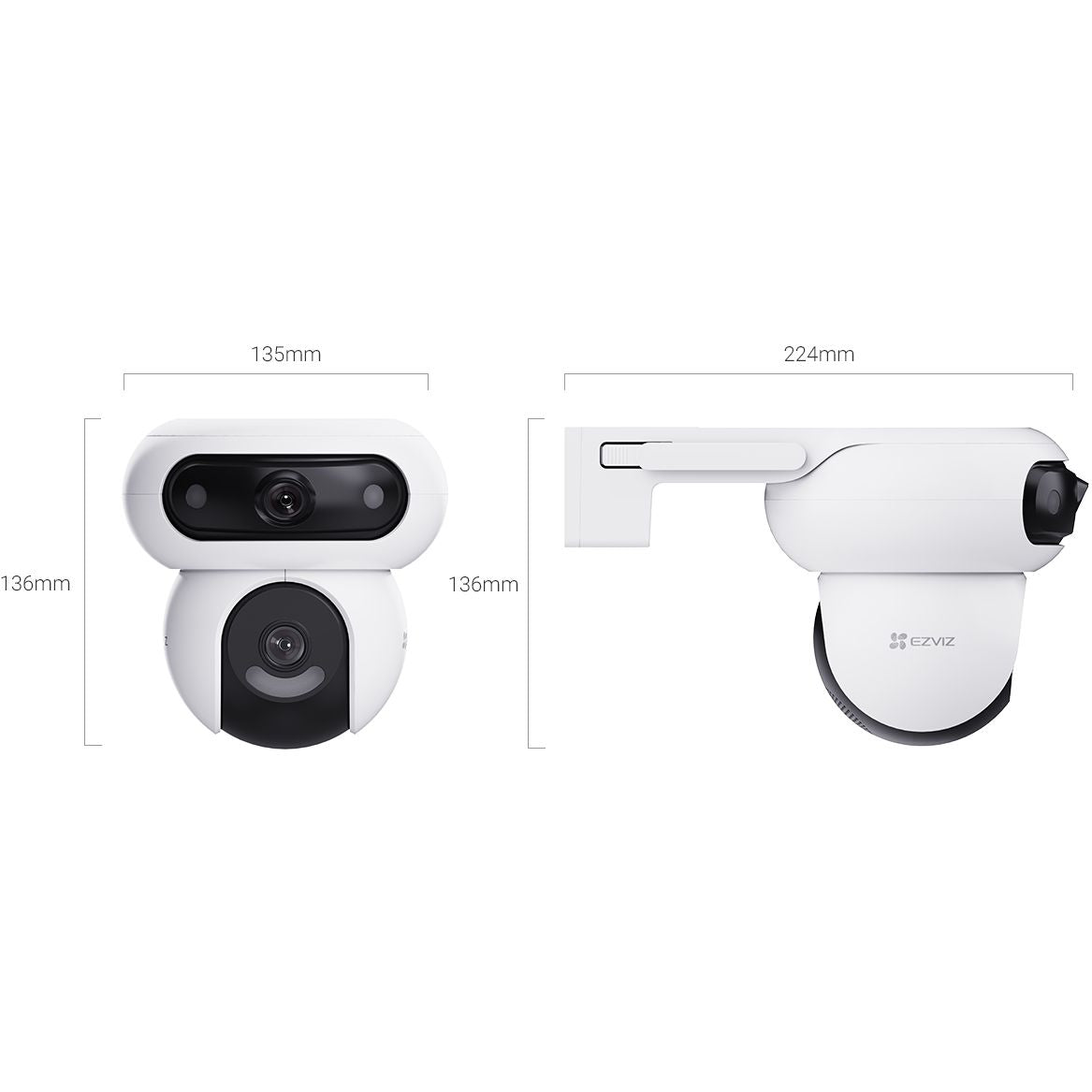

• Dimensions: 224 × 135 × 136 mm
• Weight: 723 g (net), 1203 g (packaged)

In the Box
• H90 Dual 2K+ Camera
• Power Adapter
• Drill Template
• Waterproof Kit
• Screw Kit
• Regulatory Information (x2)
• Quick Start Guide
