- 1.3 GHz dual‑core ARM Cortex‑A53 CPU (MT7981 chipset) :contentReference[oaicite:1]{index=1}
- 4‑stream dual‑band Wi‑Fi 6 (160 MHz & 1024‑QAM): 2402 Mbps @5 GHz + 574 Mbps @2.4 GHz :contentReference[oaicite:2]{index=2}
- Supports UL/DL OFDMA + MU‑MIMO for high capacity & low latency :contentReference[oaicite:3]{index=3}
- Beamforming with 4× fixed antennas (max gains ~4.8 dBi @5 GHz, ~3.4 dBi @2.4 GHz) :contentReference[oaicite:4]{index=4}
- Connects up to 200 devices; covers up to 130 m² (200 m open-space) :contentReference[oaicite:5]{index=5}

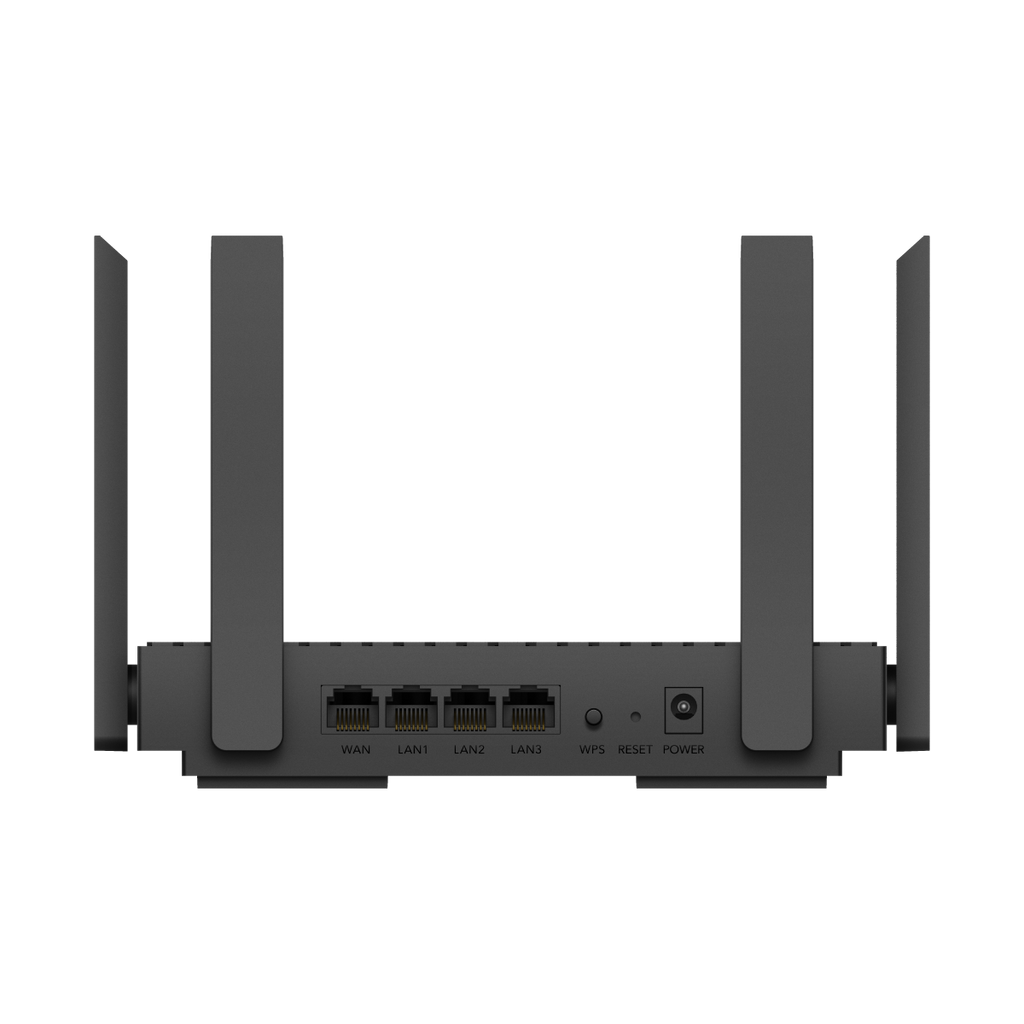

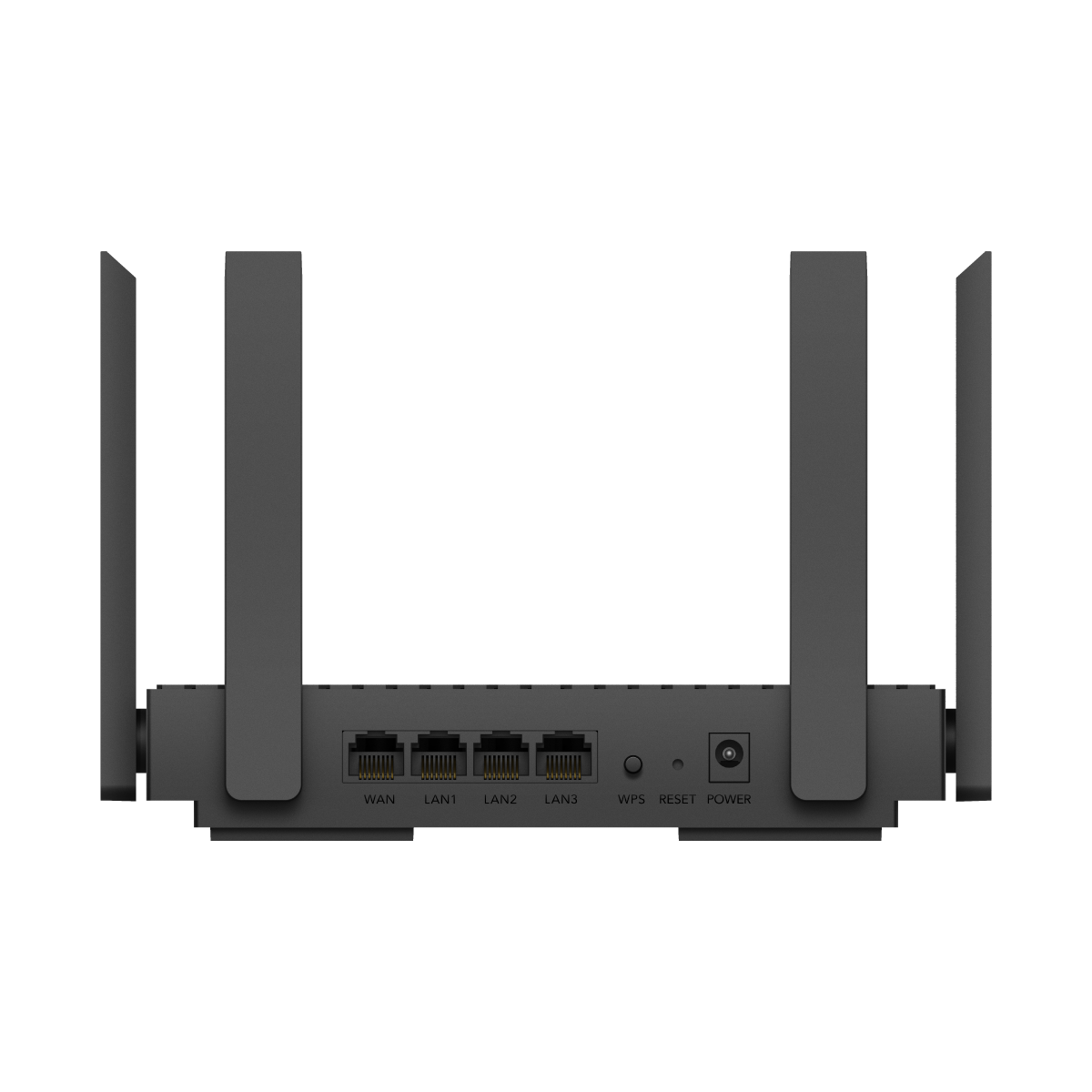

- 4× Gigabit Ethernet ports (1 WAN + 3 LAN) :contentReference[oaicite:6]{index=6}
- VPN server/client: WireGuard, OpenVPN, IPsec, PPTP, L2TP, ZeroTier; DNS over TLS (Cloudflare/Google/Quad9) :contentReference[oaicite:7]{index=7}
- Cudy Mesh support, IPTV port assignment, managed via Cudy App & cloud :contentReference[oaicite:8]{index=8}
- IPv4/IPv6 like DHCPv6, SLAAC, DS‑Lite; TR-069 etc. :contentReference[oaicite:9]{index=9}

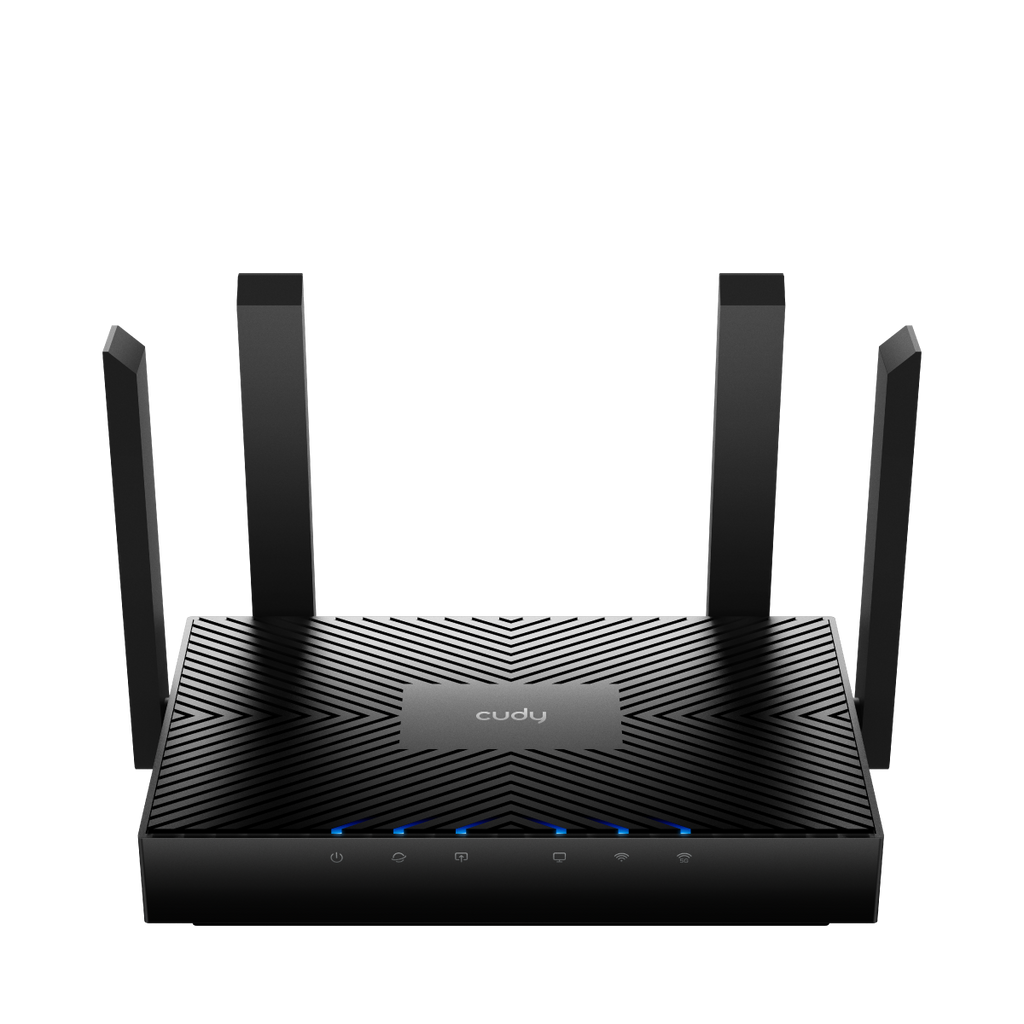

- LEDs (Power, Internet, LAN, Wi‑Fi bands); WPS & Reset buttons :contentReference[oaicite:10]{index=10}
- Power: 12 V⎓1 A (100–240 V AC adapter); Max ≈ 11.5 W, Idle ≈ 4.2 W :contentReference[oaicite:11]{index=11}
- Operating temp: 0–40 °C; storage: –40–70 °C; humidity: 10–90% non‑condensing :contentReference[oaicite:12]{index=12}
- Dimensions: 183.3 × 109 × 35 mm; weight ~295 g (10.4 oz) :contentReference[oaicite:13]{index=13}
- Certifications: FCC & CE :contentReference[oaicite:14]{index=14}
