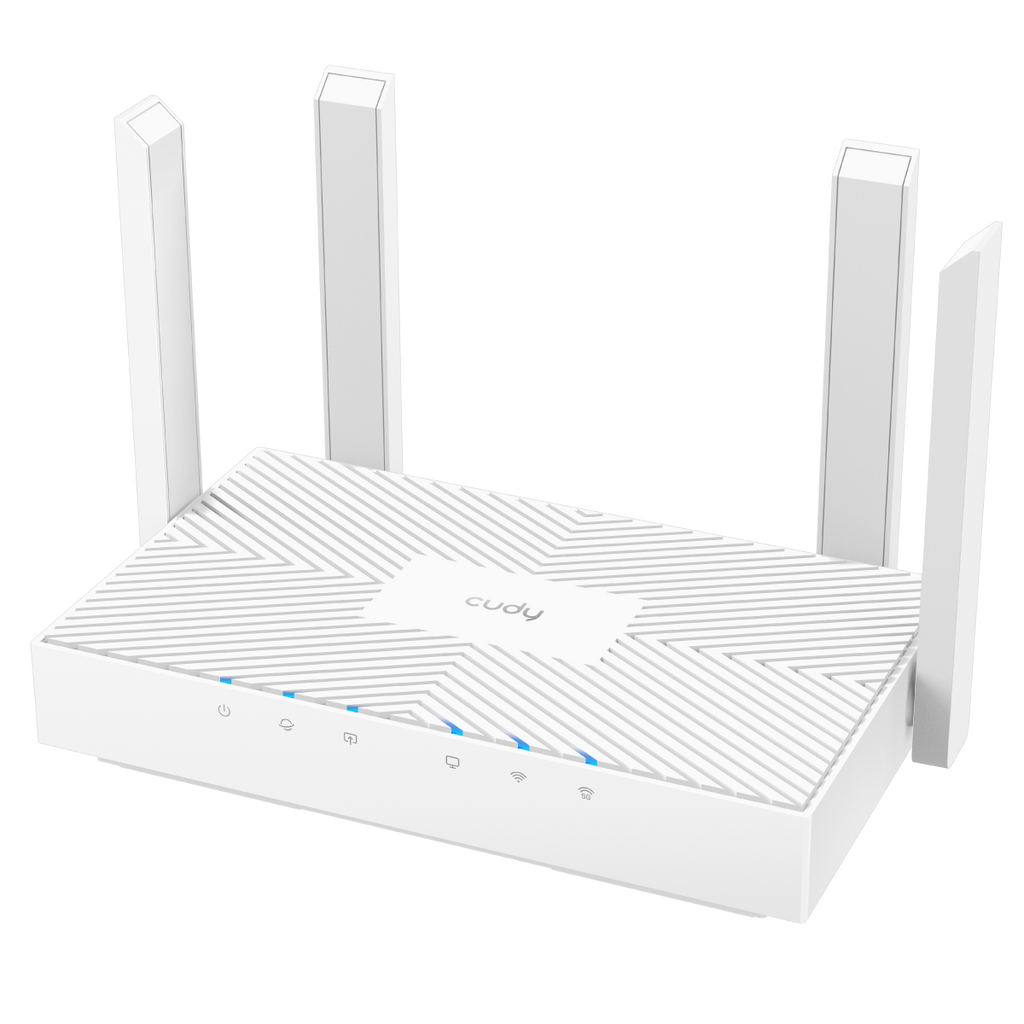

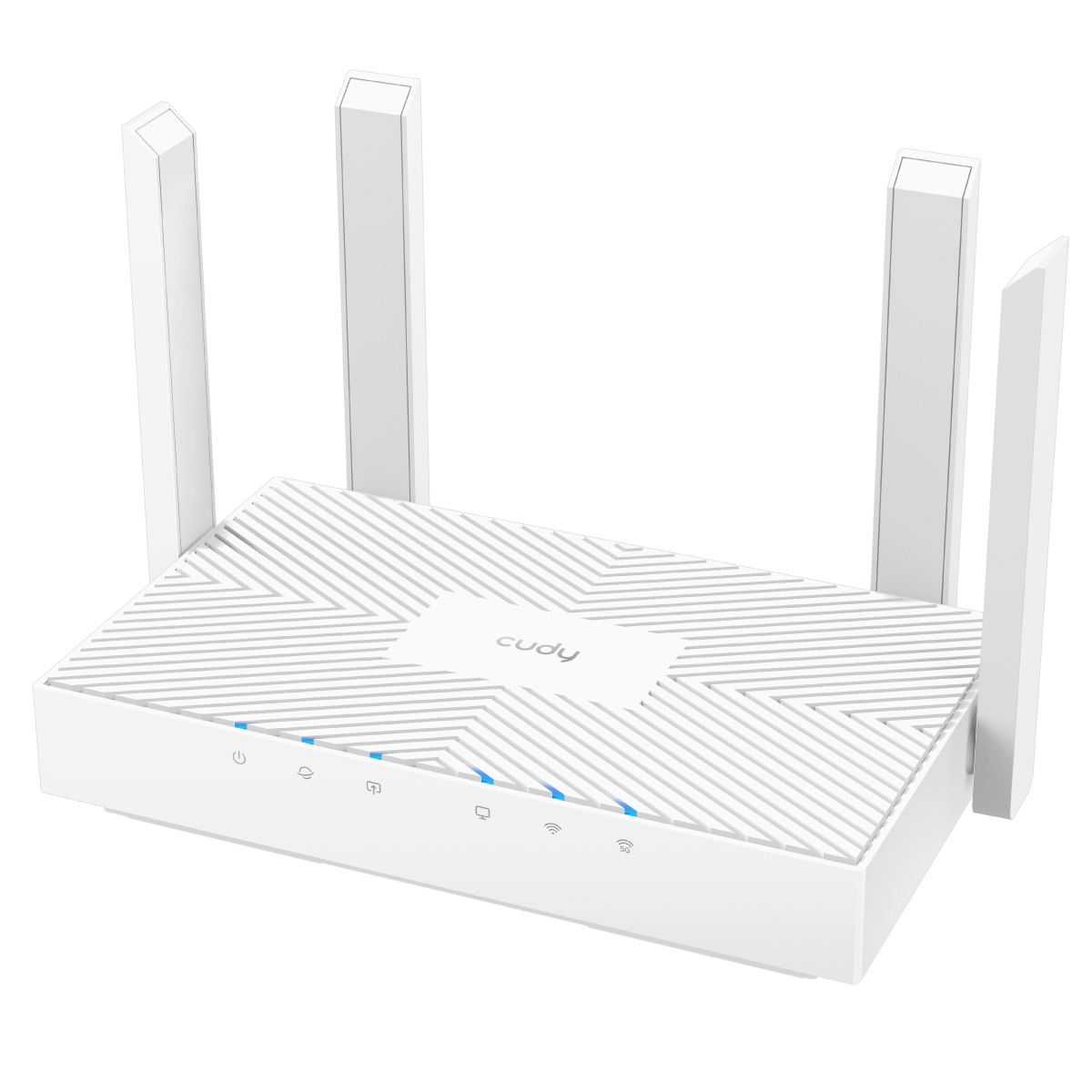

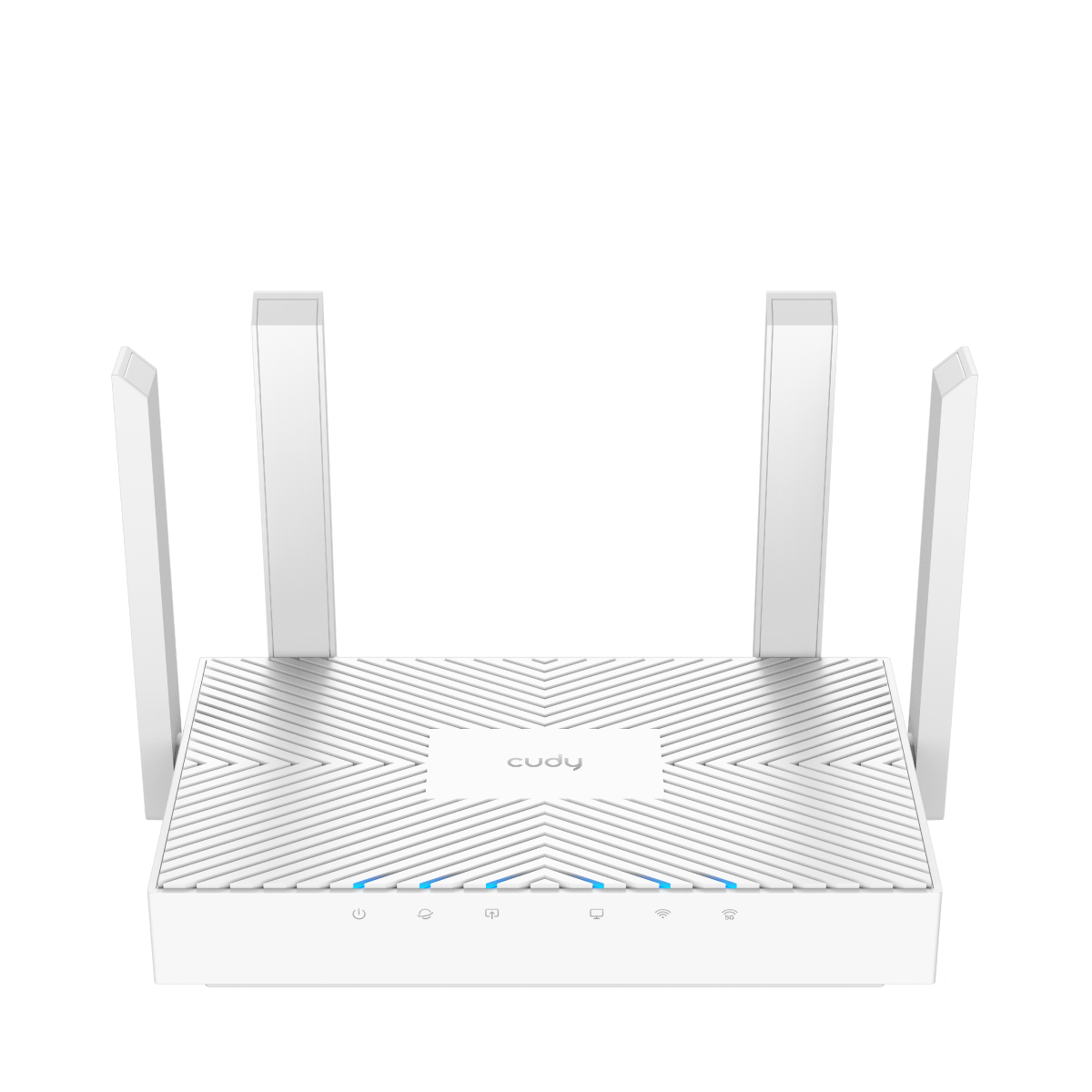

- 4‑stream dual‑band Wi‑Fi 5: 867 Mbps @5 GHz + 300 Mbps @2.4 GHz (MU‑MIMO, beamforming)
- 4× high‑gain fixed antennas (5 GHz: ~5.99 dBi; 2.4 GHz: ~5.24 dBi)
- MT7621 dual‑core CPU @880 MHz with 128 MB DDR3 + 16 MB NOR flash
- Supports up to 50 devices; covers ~100 m² (1,100 ft²)

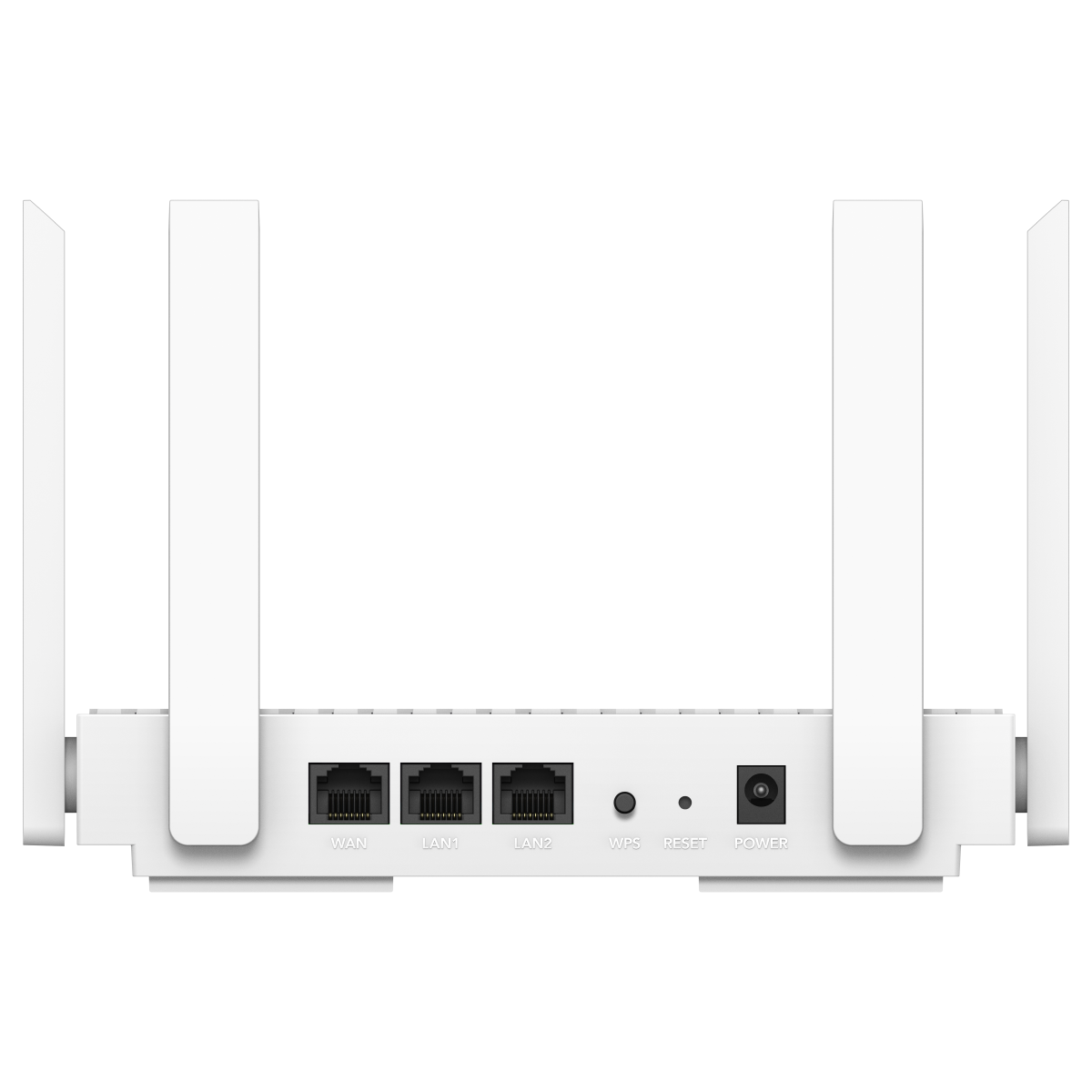

- 3× Gigabit Ethernet ports (1× WAN + 2× LAN) — full‑speed wired connectivity
- Cudy Mesh support; functions as router, AP, extender, WISP
- Security: WPA/WPA2/WPA3, guest networks on both bands
- Built‑in VPN: WireGuard, OpenVPN, IPsec, Zerotier, plus PPTP/L2TP
- Advanced firewall, QoS, parental controls, per‑device schedules
- IPv4/IPv6 support: DHCPv6, SLAAC, 464XLAT, DS‑Lite, MAP‑E
- WPS & reset buttons with LED status indicators
- DC power: 12 V⎓1 A; max power ~9.1 W; idle ~3.6 W
- Operating temp: 0–40 °C; storage: –40–70 °C; humidity: 10–90% non‑condensing
- Compact desktop/wall‑mount form: 183×109×35 mm; 240 g
- Certifications: FCC, CE
