- AX3000 dual‑band Wi‑Fi 6: up to 2402 Mbps @5 GHz + 574 Mbps @2.4 GHz, 160 MHz, 1024‑QAM
- 1.3 GHz dual‑core ARM Cortex‑A53 CPU; 256 MB DDR3 RAM & 16 MB NOR flash memory
- 3×3 MIMO on 5 GHz and 2×2 MIMO on 2.4 GHz bands

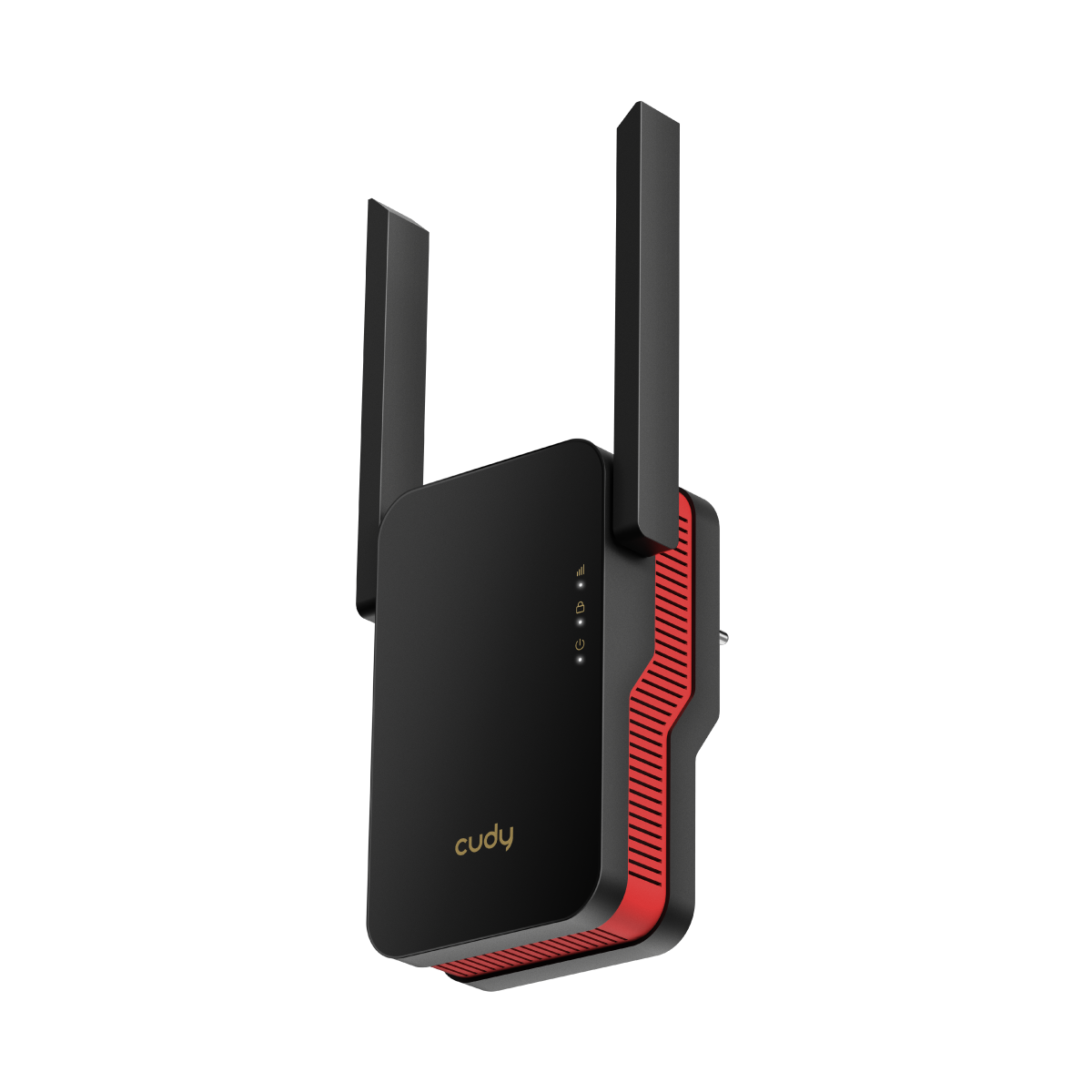

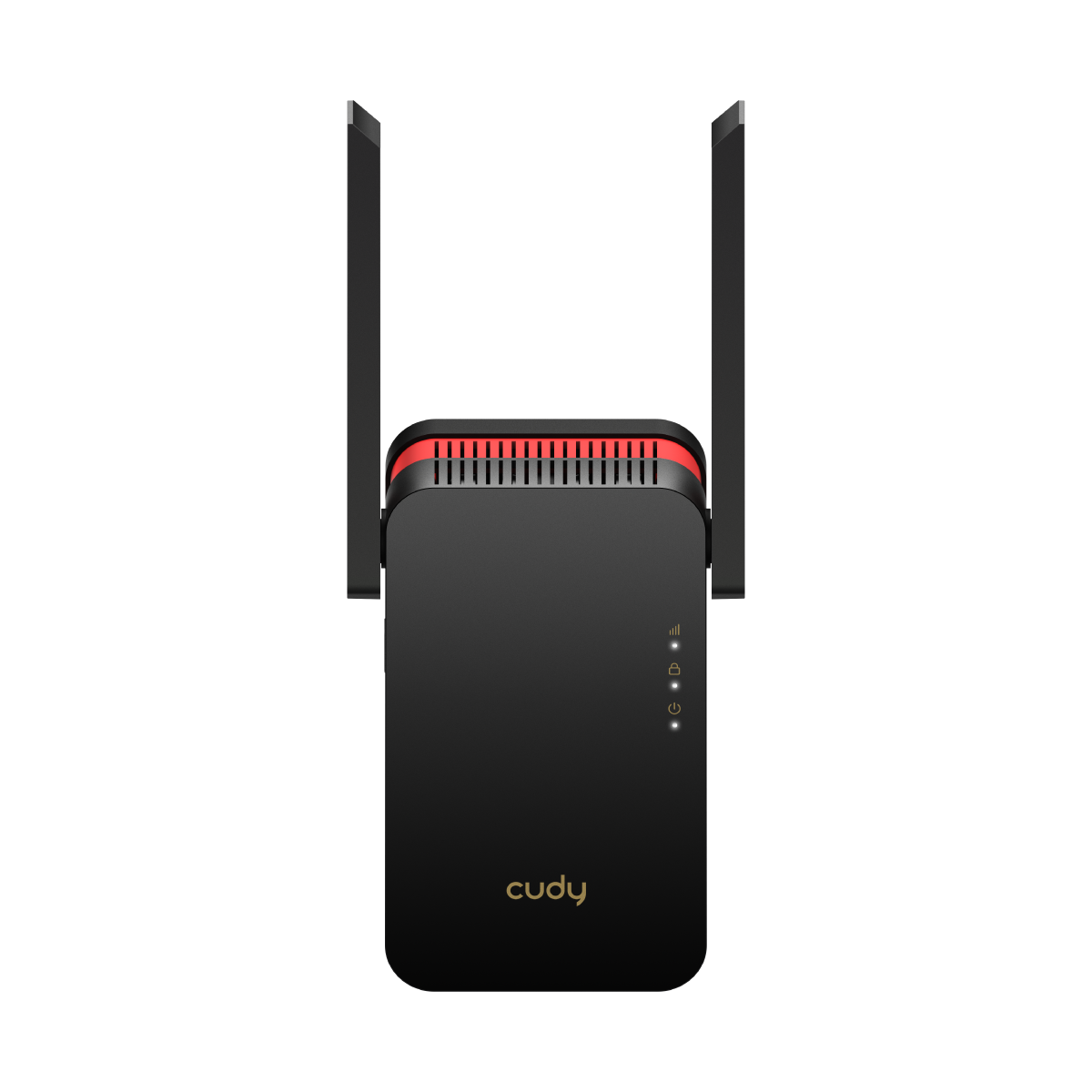

- Fixed antennas: 2 × external + 1 × internal (5 GHz), 2 × internal (2.4 GHz)
- Covers up to 50 devices; MU‑MIMO, OFDMA, BSS Color for efficient multi‑device performance

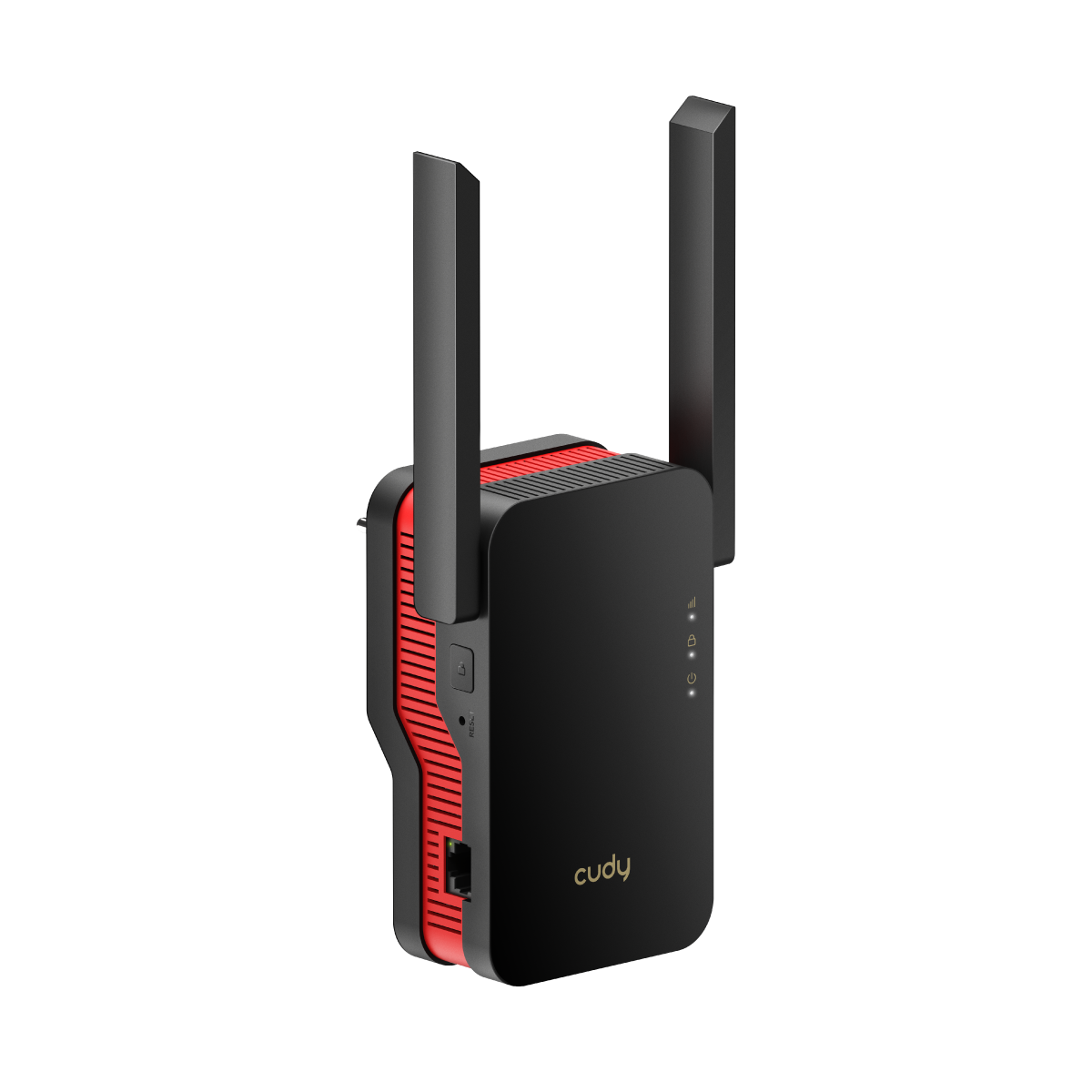

- Single Gigabit Ethernet port – supports Ethernet backhaul or AP mode
- Beamforming technology boosts signal to nearby devices
- Supports Cudy Mesh satellite functionality and plug‑and‑play WPS auto setup
- Security: WPA3/WPA2/WPA; WPS button
- Operation modes: Range Extender, Access Point (supports wired backhaul)
- Up to 160 MHz channel width for expanded throughput

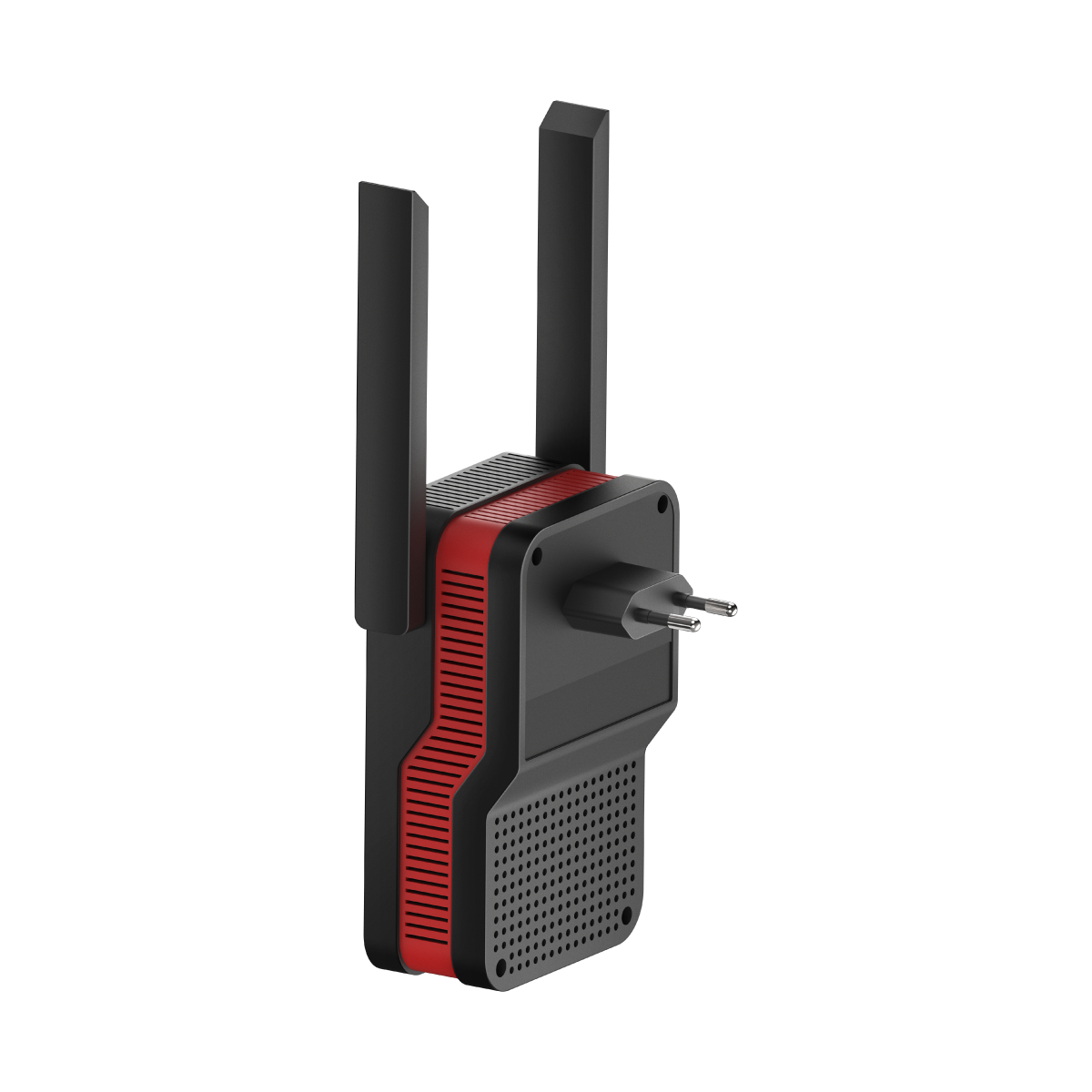

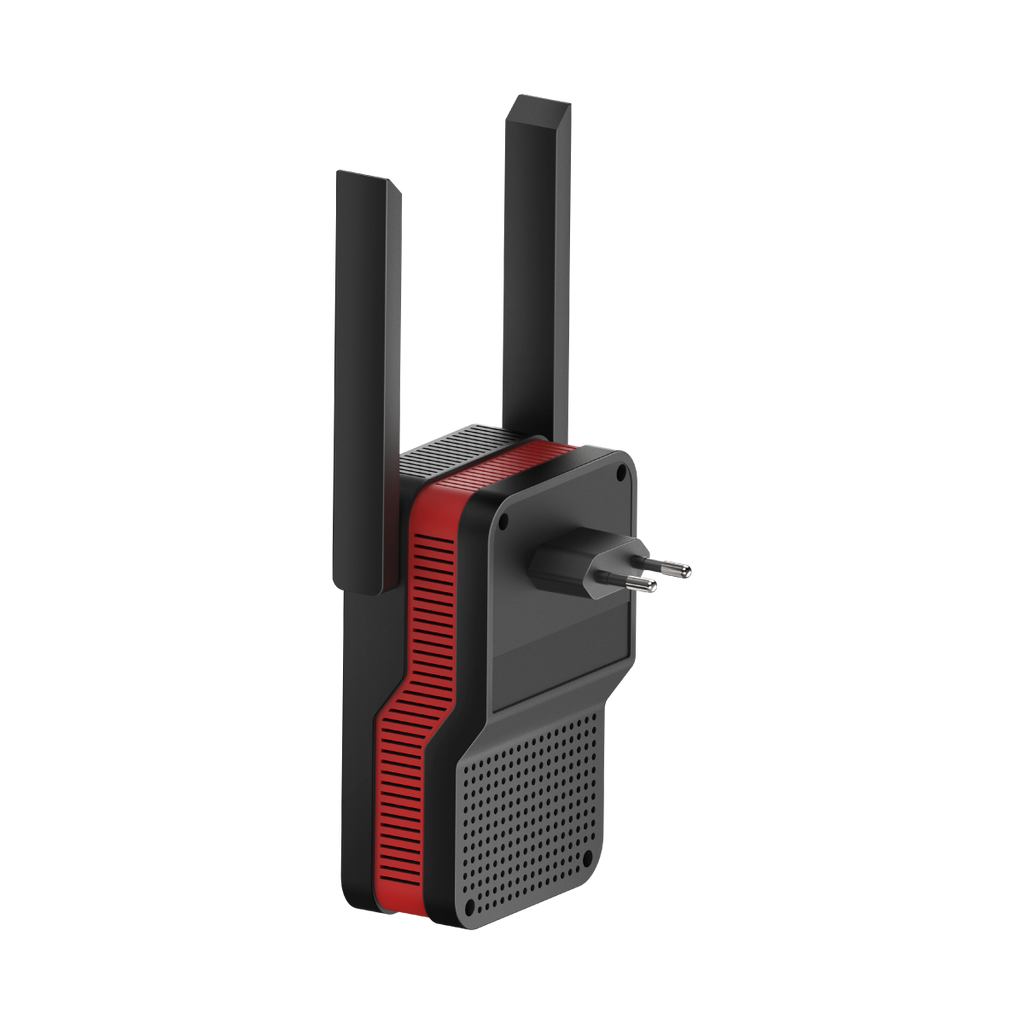

- One‑plug design—operating temp: 0–50 °C; storage temp: –40–70 °C; humidity: 10–90% non‑condensing
- Dimensions: 129.6 × 80 × 48.6 mm; weight ~280 g (varies by region)
- Certifications: FCC, CE

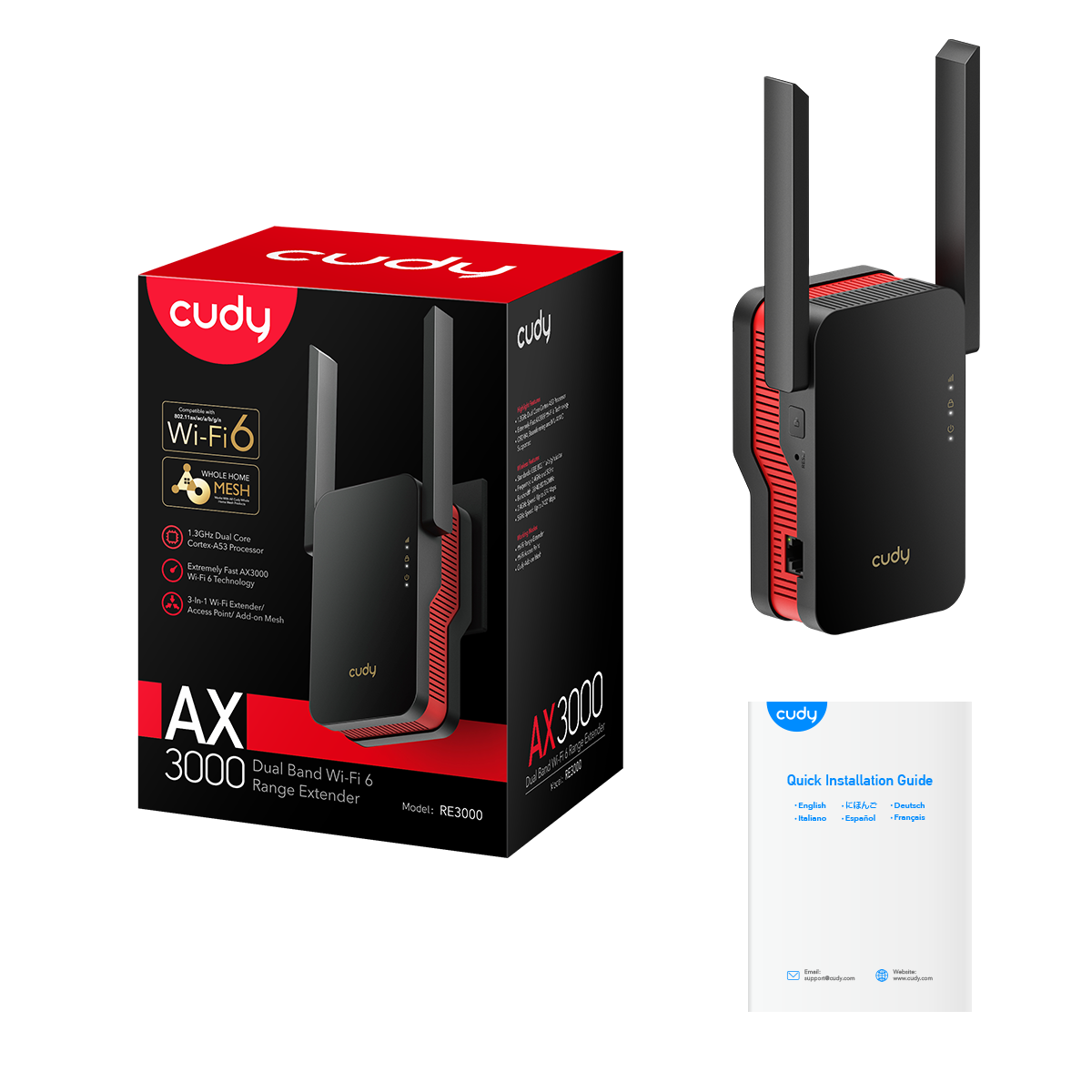

- Includes RE3000 unit and quick‑start guide
