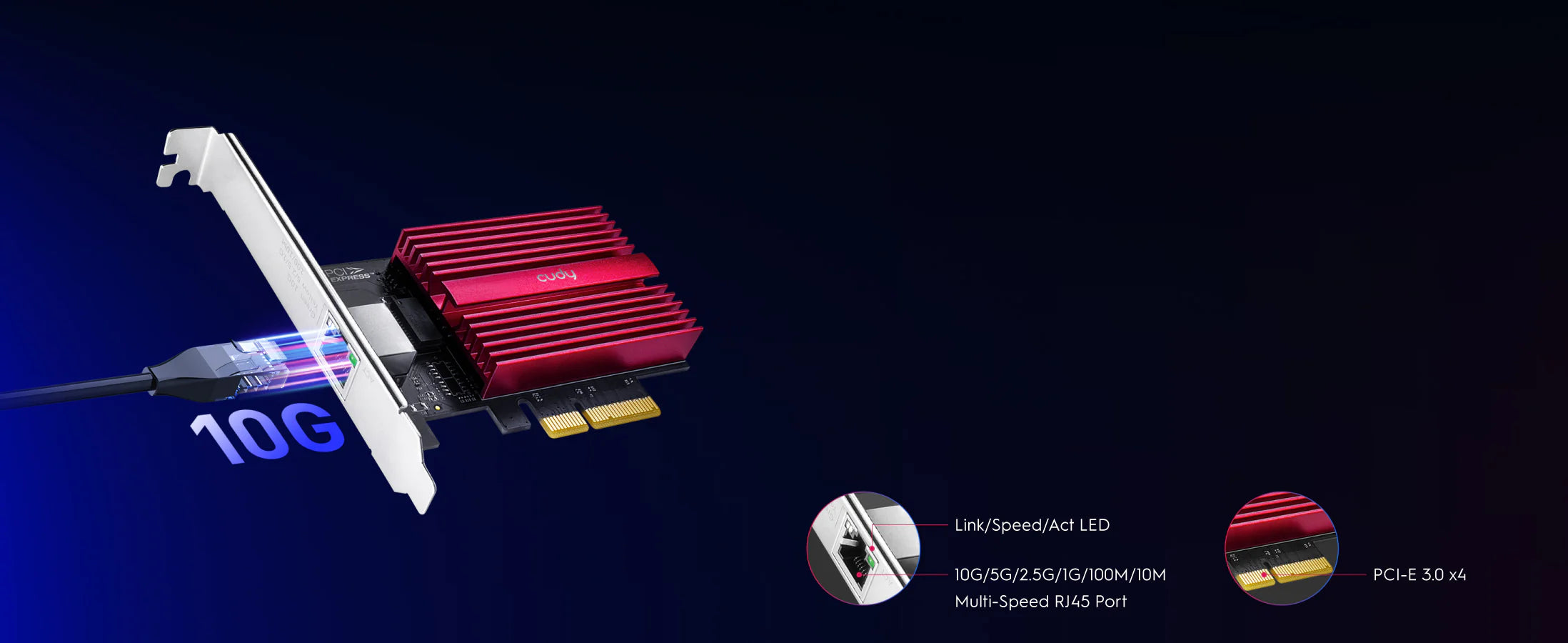

- Single 10 GBASE‑T RJ‑45 port; auto-negotiates 10 G/5 G/2.5 G/1 G/100 M/10 M Mbps
- Chipset: Aquantia AQC113 for high-speed performance :contentReference[oaicite:1]{index=1}
- Supports Wake-on-LAN and IEEE 802.3x flow control to prevent packet loss :contentReference[oaicite:2]{index=2}
- Energy-Efficient Ethernet (802.3az) enables low-power idle mode :contentReference[oaicite:3]{index=3}

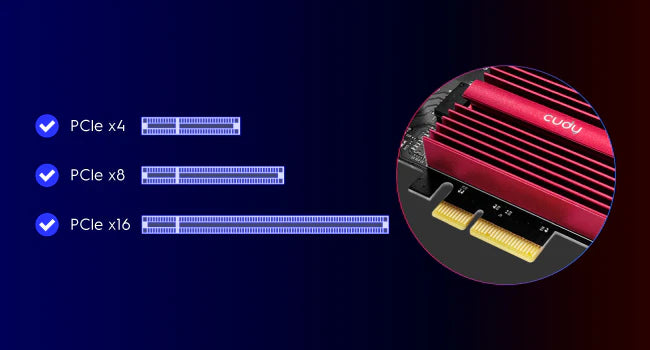

- Requires PCI‑E 3.0 x4 (or higher) slot; includes standard and low-profile brackets :contentReference[oaicite:4]{index=4}
- Operating temp: 0 °C – 65 °C; storage: –40 °C – 70 °C; humidity: 10–90% non‑condensing :contentReference[oaicite:5]{index=5}
- Compact PCB dimensions: 100×66×15 mm; weight: 84.5 g (2.98 oz.) :contentReference[oaicite:6]{index=6}
- LED indicators for speed, link, and activity status
- Supports Windows 10/11, Windows Server 2022, Linux, DSM 7.2+ :contentReference[oaicite:7]{index=7}
- FCC & CE certified for reliability and safety :contentReference[oaicite:8]{index=8}

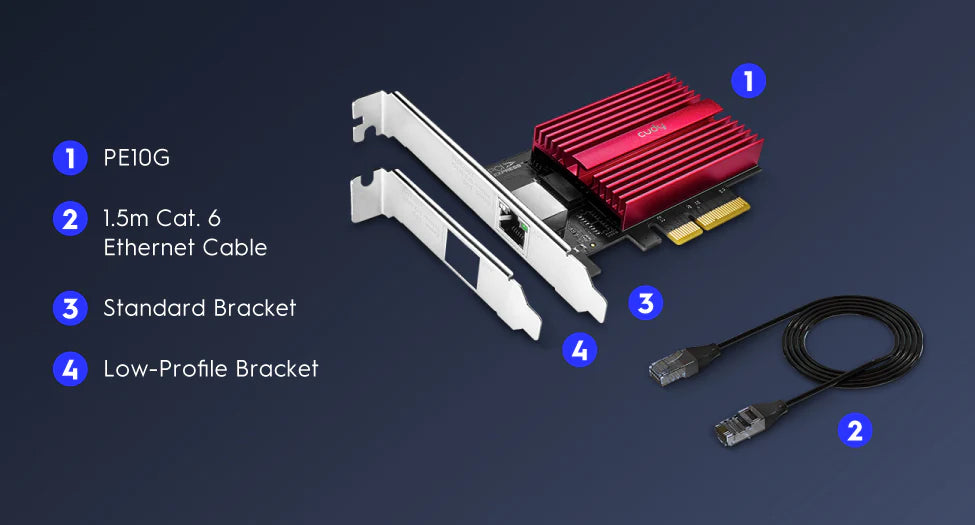

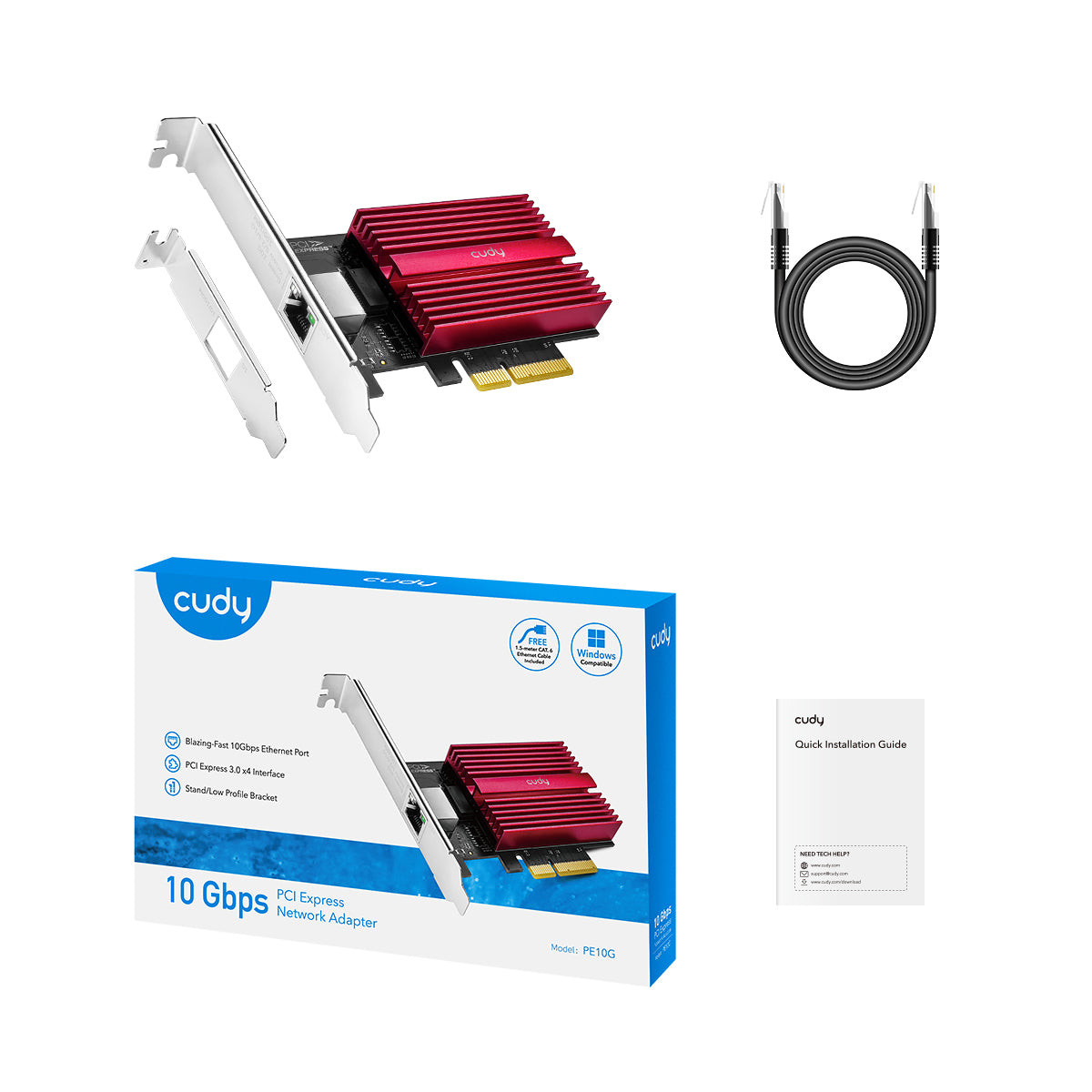

- Package includes PE10G adapter, low-profile bracket, Ethernet cable, and installation guide :contentReference[oaicite:9]{index=9}
