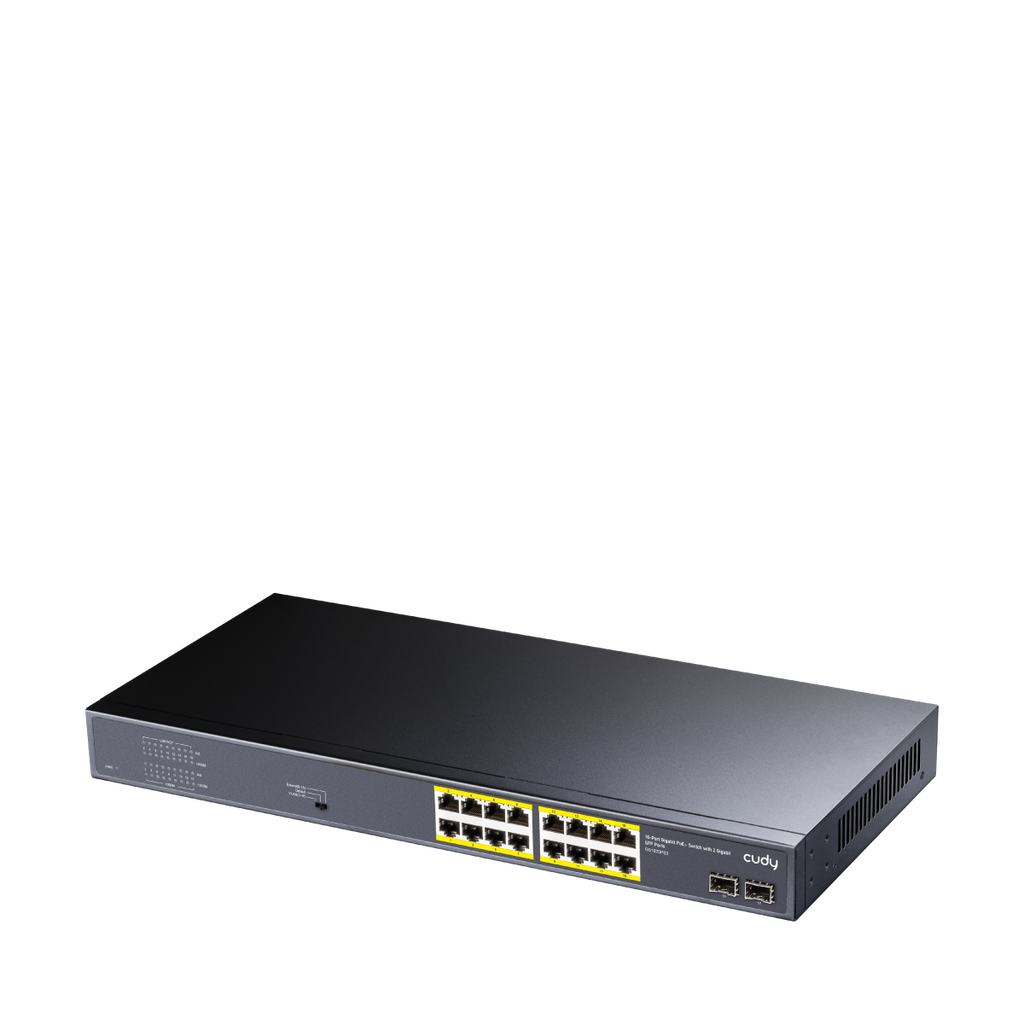

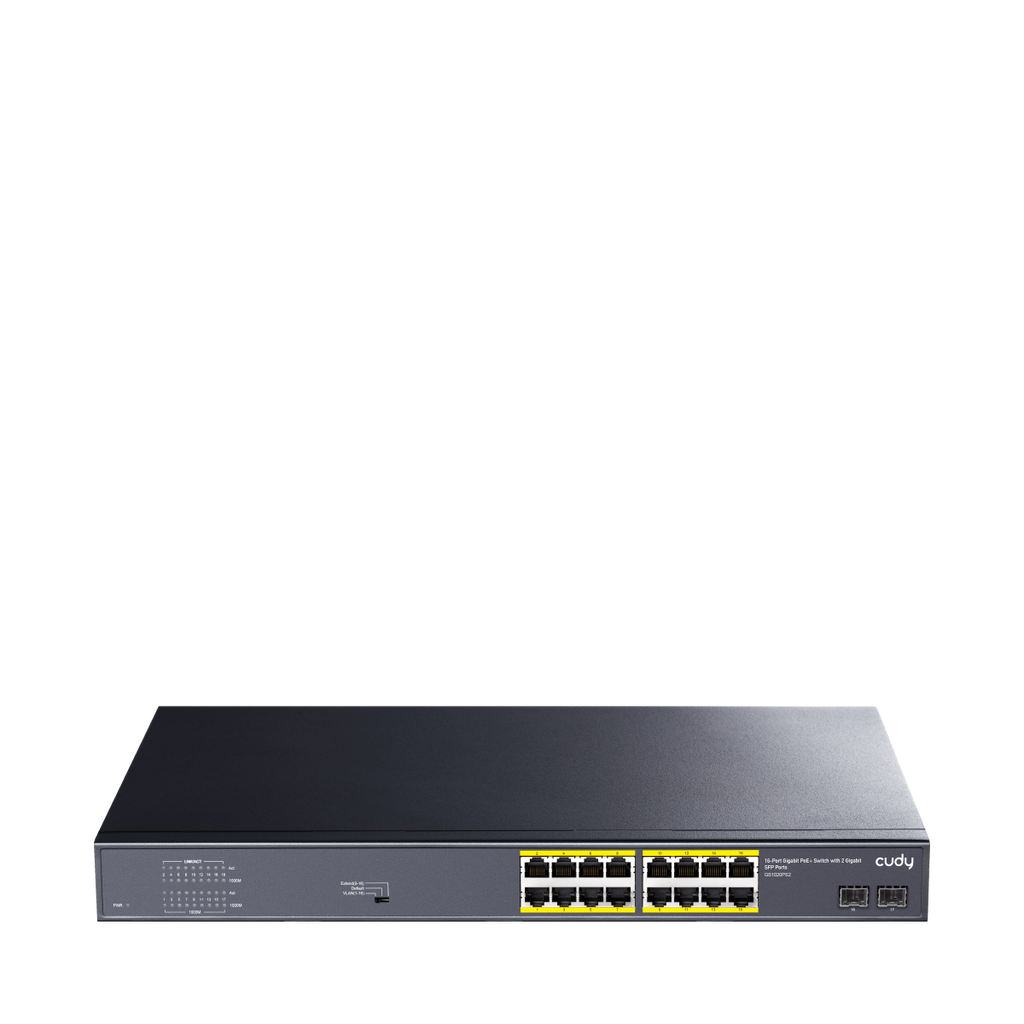

- 16× Gigabit RJ‑45 ports with IEEE 802.3at/af PoE+ (up to 30 W per port, total 200 W)
- 2× Gigabit SFP uplink ports

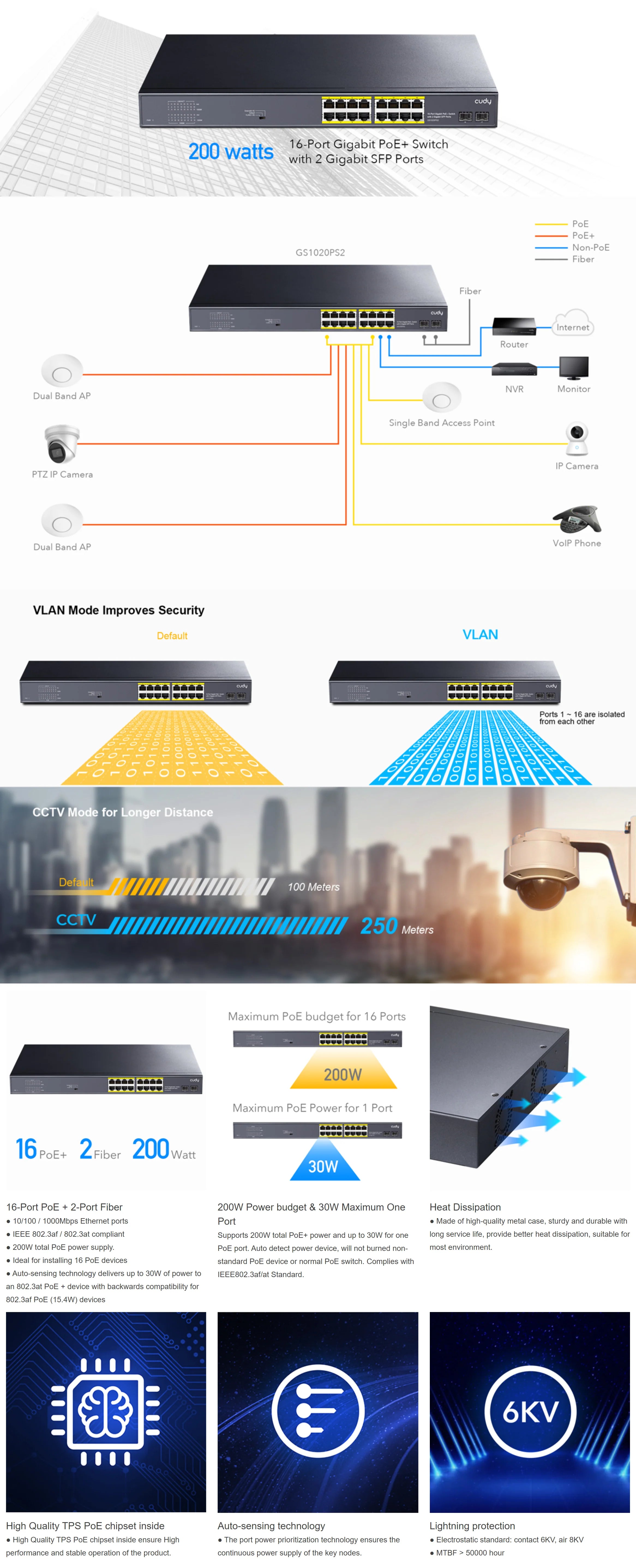

- Extend, Default & VLAN modes via DIP switch
- Extend mode supports PoE/data up to 250 m
- Dimensions: 440 × 204 × 44 mm; weight ≈ 2.6 kg
- Fan cooling with silent operation; desktop or rack-mountable
- Switching capacity: 36 Gbps; forwarding rate ~26.78 Mpps
- MAC table supports 8 K entries; packet buffer: 4 Mbit (4 MB)
- Jumbo frame support up to 9.6 KB
- Metal housing for durability and heat dissipation
- Protocol support: IEEE 802.3/3u/3ab/3z/3x
- Flow control: full‑duplex (802.3x), half‑duplex backpressure
- Auto MDI/MDIX on all ports
- Operating temperature: –10 °C to 50 °C; storage: –40 °C to 70 °C
- Humidity: operating 10–90% non‑condensing; storage 5–95%
- AC power input: 100–240 V 50/60 Hz; idle power ≈ 10 W
- Certifications: CE, FCC, RoHS

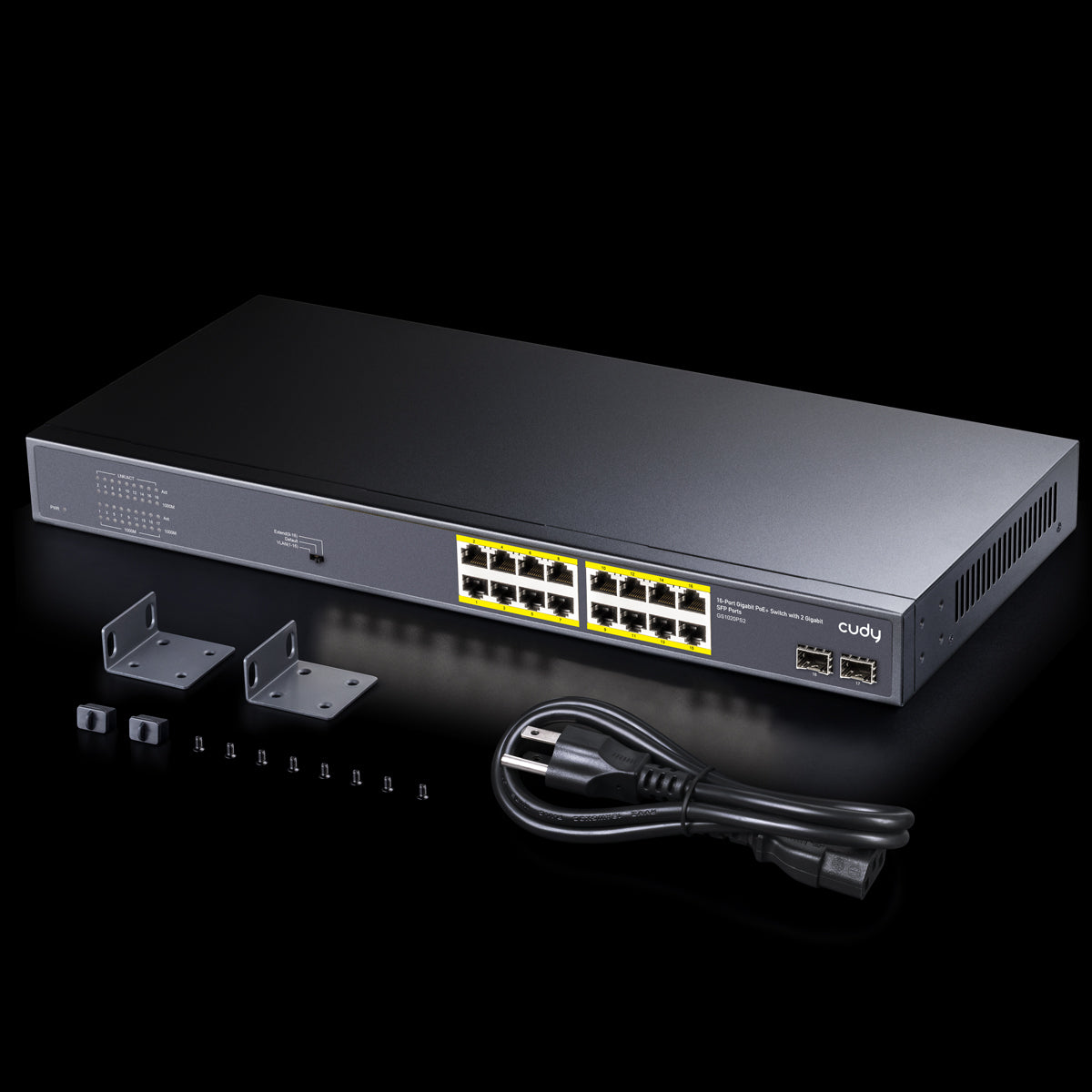

- Includes power cord, rack brackets, guide
