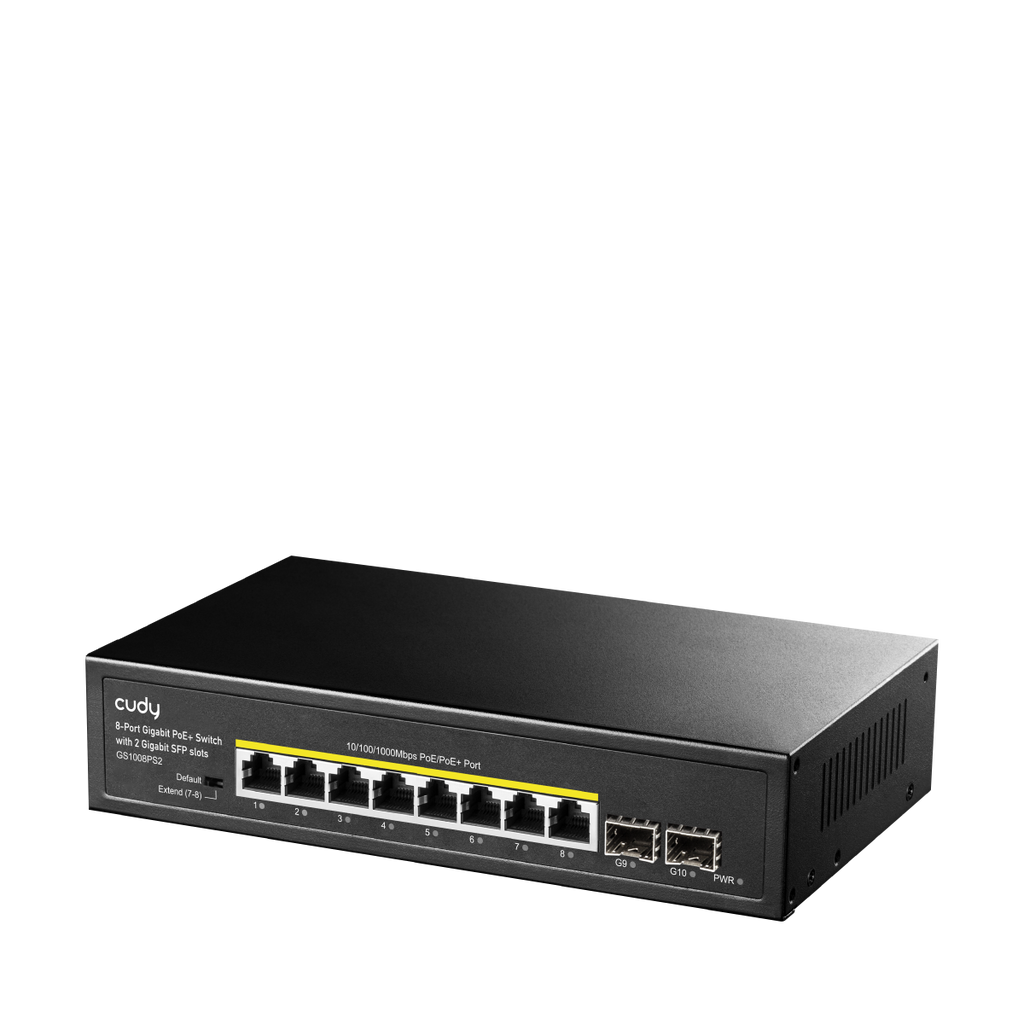

- 8× Gigabit RJ‑45 ports with IEEE 802.3at/af PoE+ (up to 30 W per port)
- 2× 1.25 Gbps SFP uplink slots for fiber connectivity
- Total PoE power budget: 120 W
- Extend mode on ports 7–8 supports PoE to 250 m
- MAC address table capacity: 2048 entries
- Switching capacity: 20 Gbps; forwarding rate: 14.88 Mpps
- Jumbo frame support up to 9 KB; packet buffer: 2 Mbit

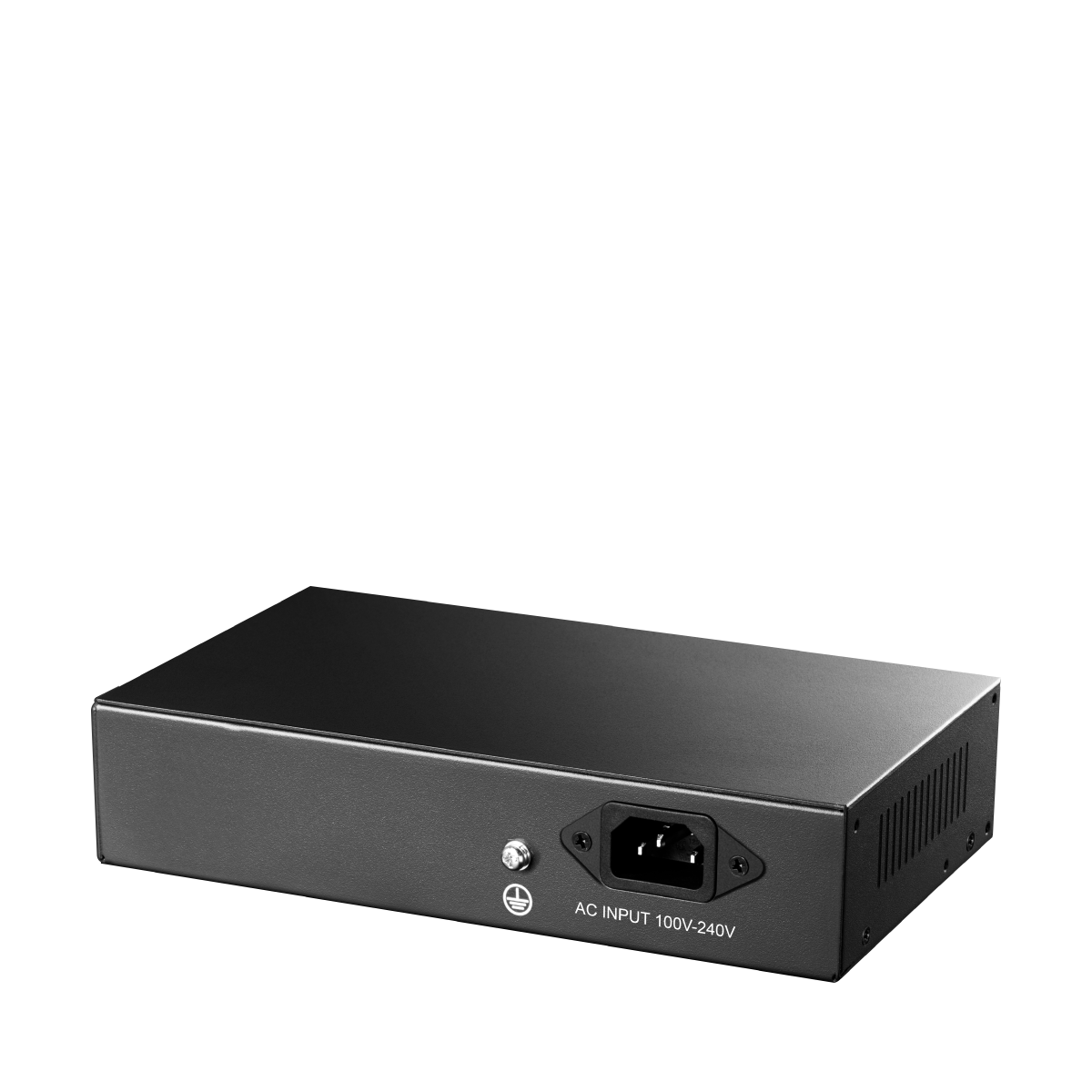

- AC 100–240 V, 50/60 Hz power input; 120 W PSU; idle power ≈ 6 W
- Dimensions: 220 × 161 × 44 mm; weight: 1.773 kg
- Metal housing, desktop or rack-mountable (brackets optional)
- LED indicators: power, mode switch, link/ACT for each port
- Operating temperature: –10 °C to 50 °C; humidity: 10–90% non‑condensing
- Storage temperature: –40 °C to 70 °C; humidity: 5–95% non‑condensing

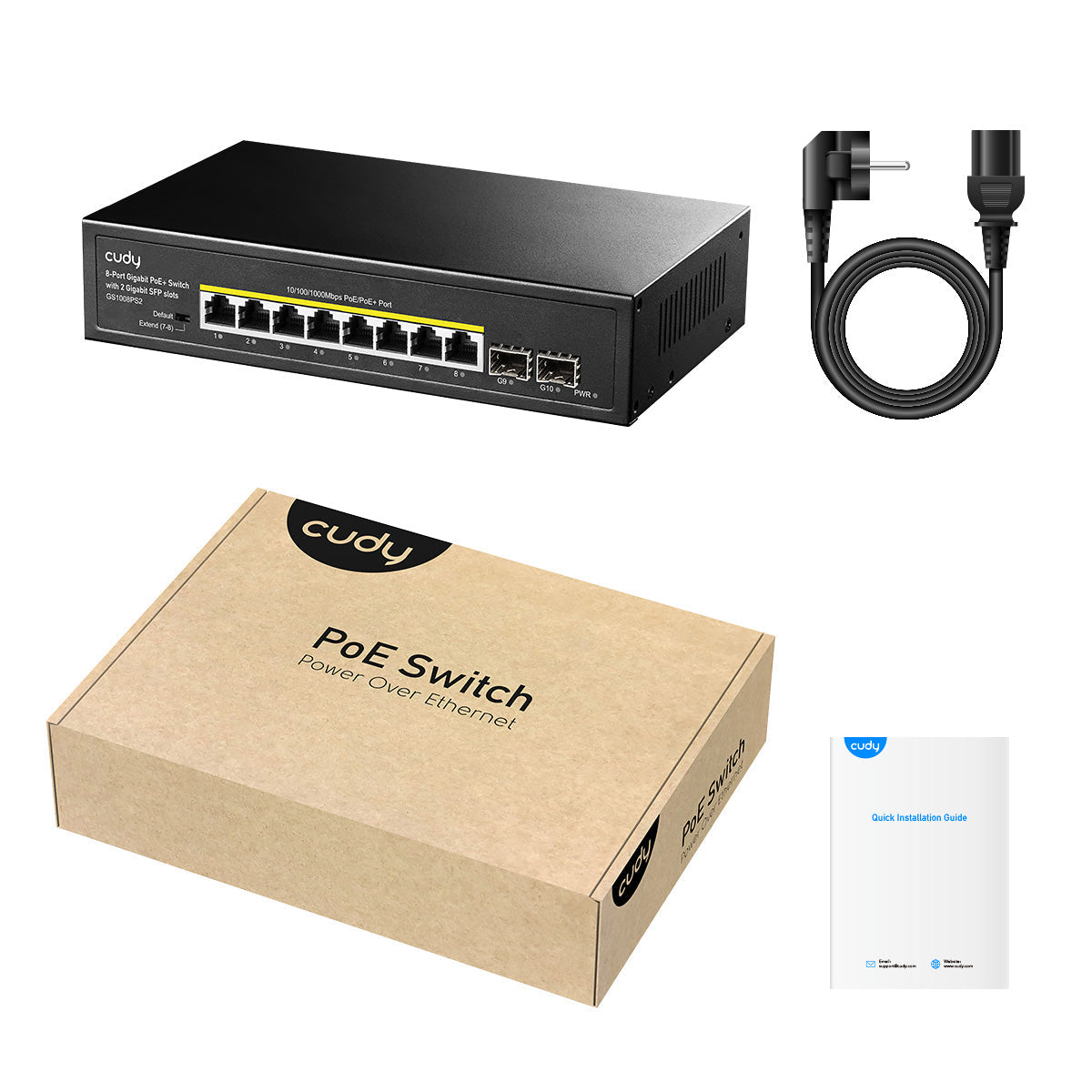

- Includes AC power cord and installation guide
