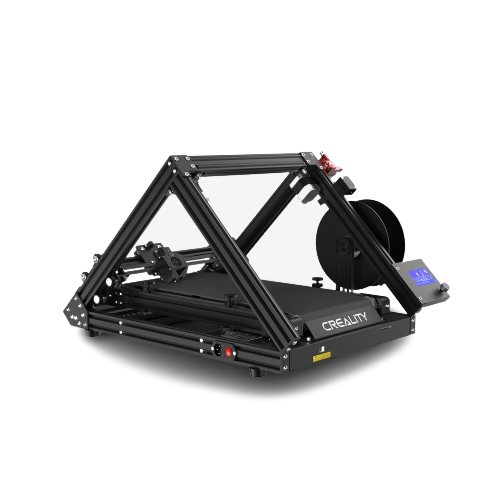

Creality CR-30 3DPrintMill FDM 3D Printer , Infinite Z-Axis Conveyor Belt , Continuous Printing , Long Model & Batch Production , 45° Printing Angle

Product Description

• The Creality CR-30 3DPrintMill is a unique FDM 3D printer designed for continuous printing, extra-long models, and batch production.
• Its infinite Z-axis conveyor belt allows finished parts to move off the print area automatically, making it ideal for repeated production with minimal supervision.
• With a rigid all-metal frame, 45-degree gantry, and CoreXY motion system, it is built for stable and efficient long-duration printing.

Key Features

• Infinite Z-Axis Printing: 200 × 170 × ∞ mm build area enables exceptionally long models and continuous production.
• Conveyor Belt Bed: Nylon belt automatically moves finished prints forward, supporting unattended batch printing.
• 45-Degree Angled Gantry: Unique printing angle helps support continuous belt-based printing.
• CoreXY Motion System: Provides stable and efficient movement during long print jobs.
• All-Metal Frame: Rigid construction improves durability and printing stability.
• Heated Conveyor Bed: Reaches temperatures up to 100°C for improved filament adhesion.
• Bowden Extruder: Lightweight extrusion setup designed for consistent filament feeding.
• 240°C Nozzle Temperature: Supports a range of common FDM printing materials.
• Adjustable Layer Height: Supports 0.1 mm to 0.4 mm layer heights for detail or faster printing.
• ±0.1 mm Print Accuracy: Designed for reliable dimensional consistency.
• Filament Runout Sensor: Detects when filament is depleted to help prevent failed prints.
• CrealityBelt Software: Dedicated slicing software optimized for conveyor-belt printing.
• Wide Filament Support: Compatible with PLA, PETG, and TPU.

Technical Specifications

• Technology: Fused Deposition Modeling (FDM)
• Print Dimensions: 200 × 170 × ∞ mm
• Printer Dimensions: 535 × 656 × 410 mm
• Frame: All-metal with 45° angled gantry
• Motion System: CoreXY
• Bed Type: Nylon Conveyor Belt
• Maximum Bed Temperature: 100°C
• Extruder: Bowden Extruder
• Maximum Nozzle Temperature: 240°C
• Layer Height: 0.1 – 0.4 mm
• Print Accuracy: ±0.1 mm
• Supported Filaments: PLA, PETG, TPU
• Slicing Software: CrealityBelt
