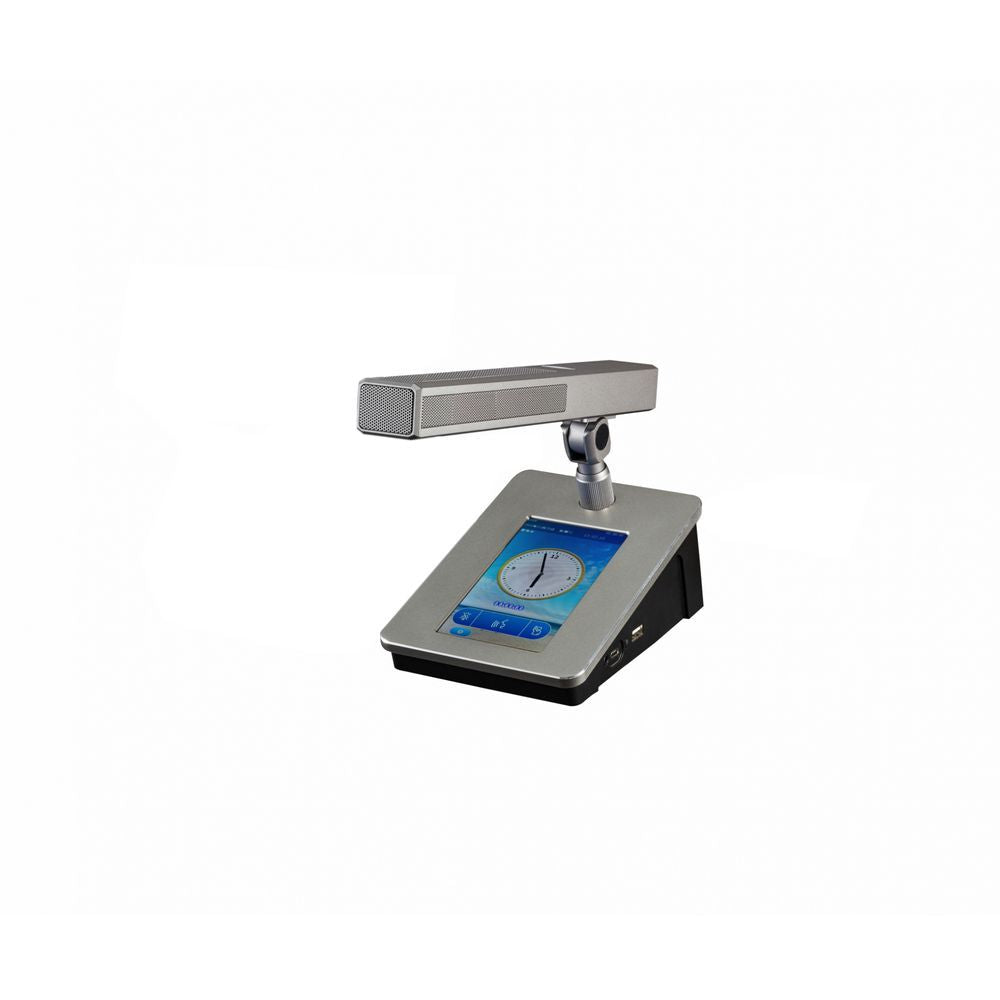

WS-256 – Wireless Delegate Conference Microphone Unit with Voting & Display
The WS-256 is a wireless delegate microphone unit designed for digital conference systems requiring voting, check-in, and discussion functionality. It features a 5” IPS screen, dual-color microphone status indicator, and encrypted Wi-Fi communication. With a user-friendly interface and reliable performance, it is ideal for business, education, or institutional use.
-
Touch Mic Control: Capacitive mic with red (speaking) and green (apply) indicator lighting for status feedback.
-
Secure Wireless Communication: Operates on the 5.1–5.8GHz band using encrypted Wi-Fi to avoid interference.
-
Audio Quality: 48KHz sampling rate, wide 80Hz–16kHz frequency range, and feedback suppression for clarity.
-
Interactive Display: 5” IPS screen displays mic status, ID settings, voting results, and check-in info in multiple languages.
-
Convenient Audio Monitoring: 3.5mm earphone jack with individual volume control.
-
Fast USB-C Charging: Fully charges in 3 hours; includes red/green LED charging indicators for status.
-
Auto Tracking Compatible: Works with camera tracking systems for video follow modes during active discussions.
Technical Specifications:
-
Model: WS-256 | Type: Delegate Unit
-
Wireless Band: 5.1–5.8GHz (802.11a/an/ac/Wave2)
-
Frequency Response: 80Hz–16kHz | S/N Ratio: >80dB(A)
-
Battery: 5200mAh, 3.7V | Charging Time: 3 hours
-
Power Consumption: Max 1.5W | Mic Impedance: 1kΩ
-
Display: 5” IPS | Output: 3.5mm earphone jack
-
Dimensions: Base: 170 x 115 x 70 mm | Mic Pole: 235 x 28 x 28 mm
-
Color: Black & Silver Gray
Package Includes: WS-256 Delegate Mic Unit, Charging Cable, User Guide
