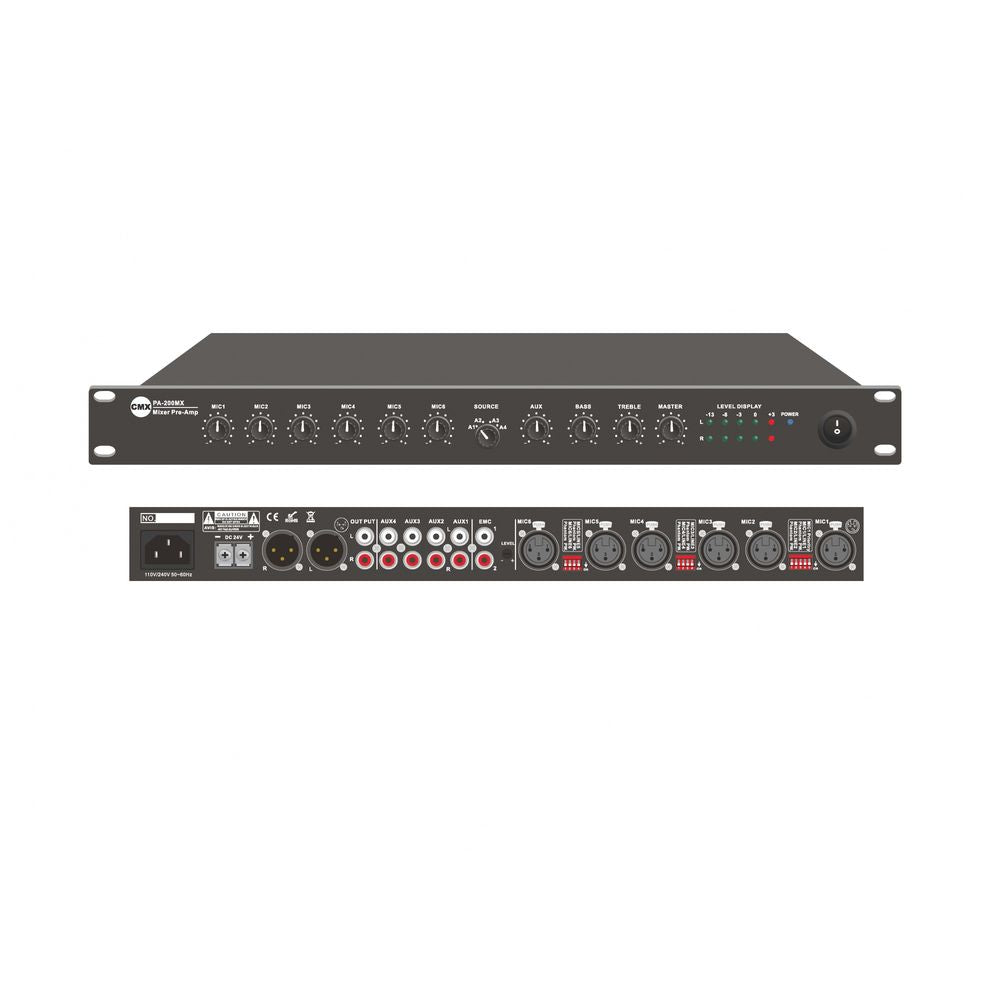

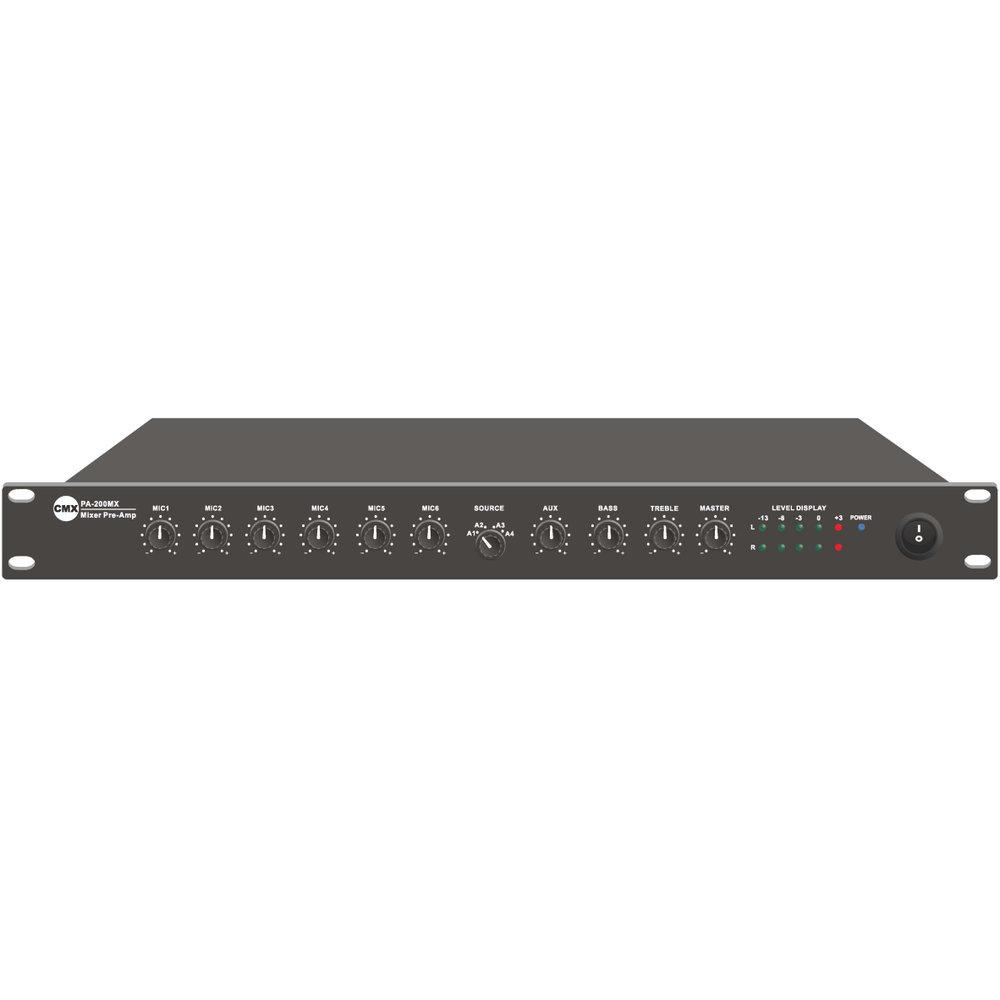

CMX PA-200MX 11-Input Stereo Mixer Pre-Amplifier with 6 Mic/Line Inputs, 48V Phantom Power, Dual AC/DC Power, 1U Rackmount

PA-200MX – 11-Input Stereo Mixer & Pre-Amplifier for Public Address & Pro Audio

The PA-200MX is a professional-grade stereo mixer and pre-amplifier designed for public address and professional audio systems. It features 6 balanced mic/line inputs with phantom power, 4 AUX inputs, and an EMC input with user-defined input priority. Suitable for use in mosques, classrooms, meeting rooms, and hotels, the unit offers both AC and DC power support and integrates easily with zone amplifiers such as the DA-2500.

• 11 Input Channels: Includes 6 balanced Mic/Line inputs, 4 AUX inputs (RCA), and 1 EMC input for voice alarm integration.
• Phantom Power: 48V phantom power supported on each microphone input; ideal for condenser microphones.
• Priority Control: Flexible input priority options: Mic1 > EMC > Mic2-5 or EMC > Mic1 > Mic2-5.
• Professional Outputs: Stereo balanced XLR outputs and REC output for external recording or monitoring.
• Dual Power Design: Operates on 100–240V AC or 24V DC for versatile installation environments.
• Rackmountable: 19” 1U standard rackmount size for easy integration into existing audio racks.

Technical Specifications:

• Model: PA-200MX | Type: 11-Input Stereo Mixer / Pre-Amplifier
• Inputs:
  • Mic/Line: 6 x XLR, 600Ω, 5mV
  • AUX: 4 x RCA, 10kΩ, 200mV
  • EMC: 1 x RCA, 10kΩ, 200mV
• Output: Stereo balanced XLR, 10kΩ, 0.775mV
• Frequency Response: 60Hz – 15kHz | THD: <0.01% @ 1kHz
• S/N Ratio: >70dB | Power Consumption: 15W
• Power Supply: 100V–240V AC & 24V DC
• Dimensions: 483 x 440 x 100 mm | Weight: 2.6 kg

Package Includes: PA-200MX Mixer, Power Cable, Quick Guide, Mounting Screws
