CMX In-Wall Remote Control Panel for PA-6000 Series Amplifiers, 6-Zone Volume & Source Selector, CAT6, Powered by Amplifier

Description

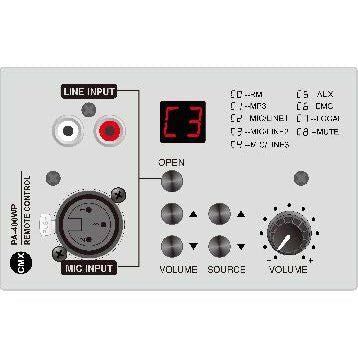

The PA-6000WP In-Wall Remote Control Panel is a professional audio control solution designed for PA-6000 series matrix amplifiers and multi-zone public address systems. Featuring zone-specific audio source selection and independent volume control, it allows users to conveniently manage background music and audio distribution within individual zones. Supporting up to 6 remote control panels per compatible matrix controller, it provides flexible operation across multiple areas. With CAT6 communication up to 999 meters, direct 24V DC power from the amplifier, and a compact flush-mount design, it is suitable for hotels, offices, restaurants, commercial buildings, and multi-room audio installations.

Key Features

• 6-Zone System Support: Designed for compatible 6-zone matrix amplifier systems.
• Individual Zone Control: Allows convenient audio management for a specific speaker zone.
• Audio Source Selection: Enables users to select available audio sources for their assigned zone.
• Independent Volume Control: Provides adjustable audio volume for individual zones.
• PA-6000 Series Compatibility: Compatible with PA-6030MX, PA-6060MX, PA-6120MX, PA-6030MW, PA-6060MW, and PA-6120MW amplifiers.
• Multiple Panel Support: Supports up to six compatible remote control panels per matrix controller.
• CAT6 Communication: Supports communication through CAT6 network cabling.
• 999m Communication Distance: Supports remote control connections over distances of up to 999 meters.
• Direct Amplifier Power: Operates using 24V DC power supplied directly from a compatible amplifier.
• Low Power Consumption: Features a rated power consumption of only 3W.
• Flush-Mount Installation: Designed for convenient in-wall installation and integration.
• Line Input Specifications: Supports 200mV line input sensitivity with 15kΩ impedance.
• Microphone Input Specifications: Features 30mV microphone input sensitivity with 1kΩ impedance.
• Wide Frequency Response: Supports an audio frequency range of 20Hz–20kHz.
• Low Harmonic Distortion: Features total harmonic distortion below 1% at RMS, 1kHz.
• Signal-to-Noise Ratio: Provides an SNR greater than 70dB for clear audio performance.
• Wide Operating Temperature: Supports temperatures ranging from -20°C to +70°C.
• Humidity Tolerance: Designed to operate at relative humidity below 95% without condensation.
• Compact Dimensions: Measures 120.5 × 85 × 36.5mm for convenient wall installation.
• Lightweight Design: Weighs approximately 0.15kg.
• Multi-Room Audio Applications: Suitable for hotels, offices, restaurants, residential audio systems, and commercial background music installations.
