CMX 6-Zone Remote Paging Microphone for PA-6000 Series Amplifiers, CAT6 Connectivity, Chime, Zone Control, Daisy-Chain, Powered by Amplifier

Description

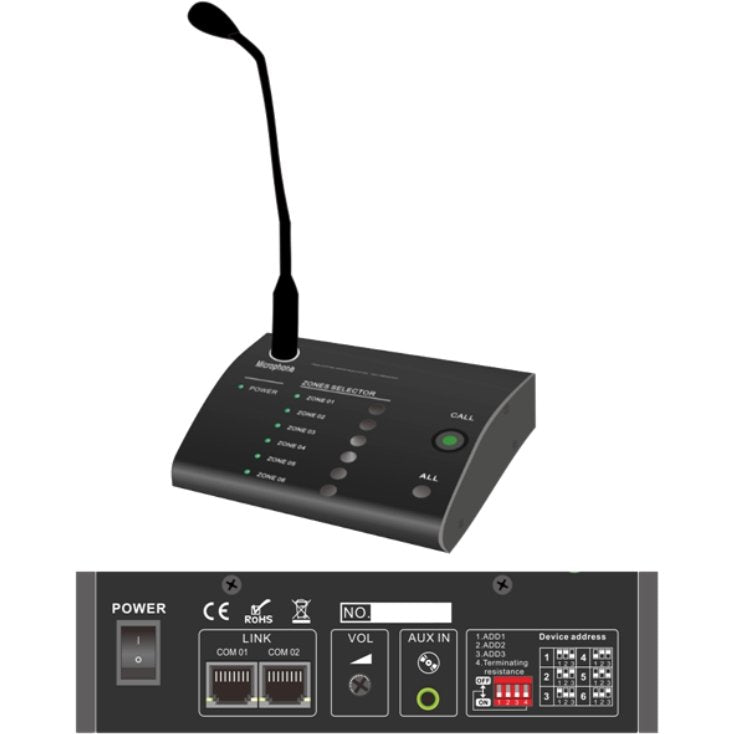

The PA-6000RM 6-Zone Remote Paging Microphone is a professional paging solution designed for multi-zone public address systems and PA-6000 series amplifiers. Featuring 6-zone paging control, individual and group zone selection, and an all-zone announcement function, it enables efficient communication across multiple areas. Equipped with 6 zone selection buttons, LED status indicators, a built-in chime function, and adjustable microphone priority, it provides convenient paging management for commercial installations. Supporting CAT6 communication up to 200 meters, RJ45 daisy-chain connectivity, and direct 24V DC power from the amplifier, it is suitable for schools, shopping centers, offices, hotels, and professional PA systems.

Key Features

• 6-Zone Paging Control: Supports paging and announcements across six individual speaker zones.
• Individual Zone Selection: Allows announcements to be directed to a specific speaker zone.
• Group Paging: Supports simultaneous paging to multiple selected speaker zones.
• All-Zone Paging: Enables announcements to all six speaker zones simultaneously.
• PA-6000 Series Compatibility: Compatible with PA-6030MX, PA-6060MX, PA-6120MX, PA-6030MW, PA-6060MW, and PA-6120MW amplifiers.
• Multiple Microphone Support: Supports connection of up to six compatible remote paging microphones per amplifier.
• 6 Zone Selection Buttons: Provides dedicated buttons for convenient zone selection and paging.
• LED Status Indicators: Displays zone selection and operating status for convenient monitoring.
• Built-in Chime Function: Features a chime alert for announcing paging messages.
• Call Button: Includes a dedicated call button for convenient voice announcements.
• Microphone Priority Control: Supports priority configuration through a built-in DIP switch.
• CAT6 Communication: Supports remote paging communication over CAT6 cable distances up to 200 meters.
• RJ45 Connectivity: Features RJ45 connections for compatible amplifier communication.
• Daisy-Chain Support: Allows connection of additional compatible remote paging microphones.
• Direct Amplifier Power: Operates using 24V DC power supplied directly from a compatible amplifier.
• Low Power Consumption: Features a rated power consumption of only 3W.
• Auxiliary Input: Provides an auxiliary audio input with 350mV sensitivity and 10kΩ impedance.
• Microphone Volume Control: Allows convenient adjustment of microphone audio levels.
• Microphone Input Sensitivity: Features 5mV microphone input sensitivity with 600Ω impedance.
• Frequency Response: Supports an audio frequency range of 80Hz–16kHz.
• Low Harmonic Distortion: Features total harmonic distortion below 1% at RMS, 1kHz.
• Signal-to-Noise Ratio: Provides an SNR greater than 70dB for clear voice communication.
• Wide Operating Temperature: Supports temperatures ranging from -20°C to +70°C.
• Humidity Tolerance: Designed to operate at relative humidity below 95% without condensation.
• Compact Dimensions: Measures 153 × 52 × 175mm for convenient desktop placement.
• Lightweight Design: Weighs approximately 0.8kg.
• Professional PA Applications: Suitable for schools, shopping malls, offices, hotels, commercial buildings, and multi-zone paging installations.
