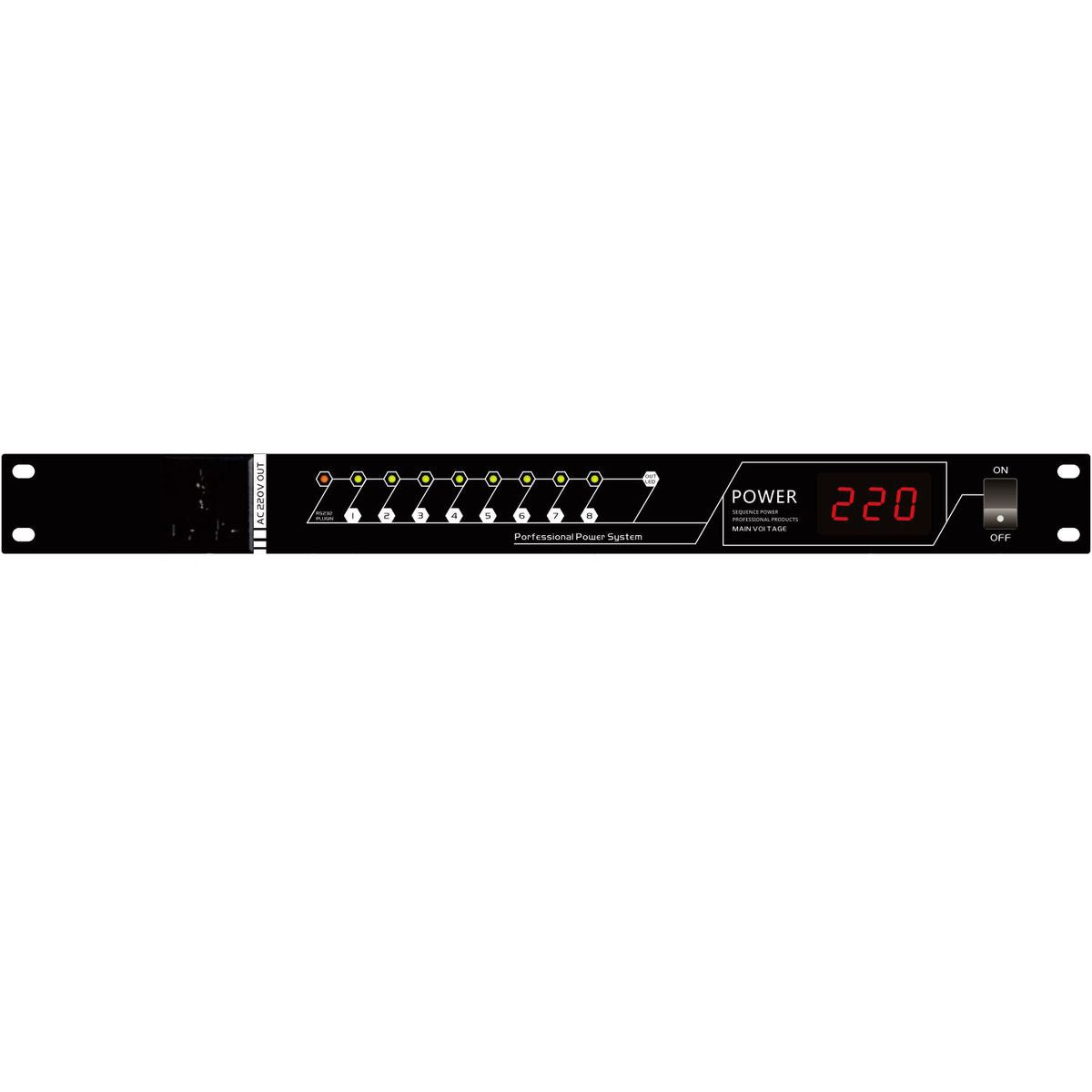

CMX PA-308PS Power Supply Sequence Controller, 8+1 Channel, 40A Load, RS232, LCD Display, Universal Socket, for PA System Equipment

Description

The PA-308PS 8+1 Channel Power Sequence Controller is a professional power management solution designed for public address systems, sound reinforcement equipment, and commercial audiovisual installations. Featuring 8 universal power output channels and 1 total control channel, it provides organized power sequencing with a 1-second delay between channels to help reduce simultaneous startup loads. Supporting up to 16A per channel and a 40A total system load, the PA-308PS operates on 220V AC, 50Hz power input. Equipped with an LCD display, channel status indicators, RS232 serial interface, external remote control input, and cascade functionality, it offers flexible power management for professional PA systems, audio racks, and AV equipment installations.

Key Features

• 8+1 Channel Power Controller: Features 8 universal power output channels and 1 total control channel.
• Sequential Power Management: Controls the startup and shutdown sequence of connected audio and AV equipment.
• 1-Second Channel Delay: Provides a 1-second interval between sequential channel operations.
• 16A Per Channel: Supports a maximum load rating of 16A for each individual output channel.
• 40A Total Load Capacity: Supports a maximum combined system load of 40A.
• 220V AC Power Input: Designed to operate with AC 220V, 50Hz power systems.
• Universal Output Sockets: Equipped with universal-type power outlets for connecting compatible equipment.
• LCD Display: Features an integrated LCD screen for monitoring channel and operating status.
• 8-Channel Status Indicators: Includes individual indicator lamps for convenient channel monitoring.
• Power Status Indicator: Provides a visual indication of the controller's operating status.
• RS232 Serial Interface: Features a DB9 RS232 connection operating at 9600bps for system integration.
• External Remote Control: Supports REM IN control input with DC 5V–12V compatibility.
• Status Output: Includes a status output interface for compatible external control systems.
• Cascade Control Support: Allows multiple compatible controllers to operate in a coordinated sequence.
• RS232 Status Indicator: Includes an indicator for monitoring RS232 communication status.
• Power Sequencing: Helps manage equipment startup and shutdown in an organized order.
• Professional PA Applications: Suitable for public address systems, professional amplifiers, and audio equipment.
• AV System Integration: Designed for professional audiovisual racks and commercial installations.
• Compact Dimensions: Measures 483 × 210 × 50mm.
• Net Weight: Weighs approximately 3.8kg.
